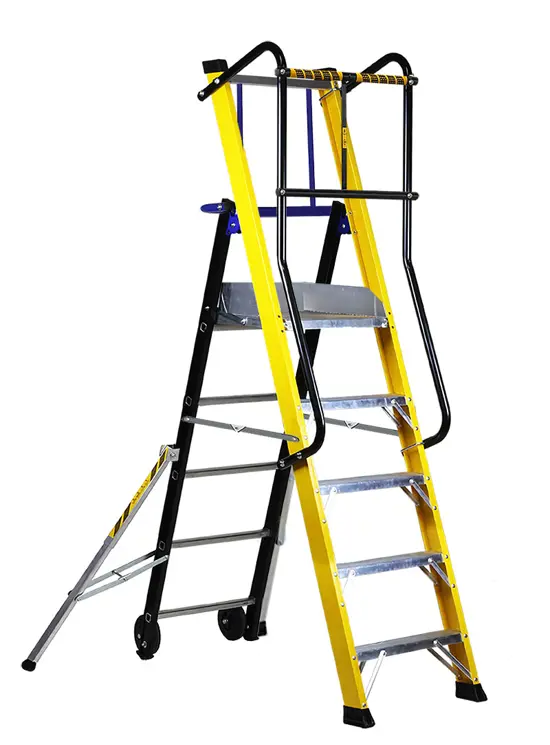

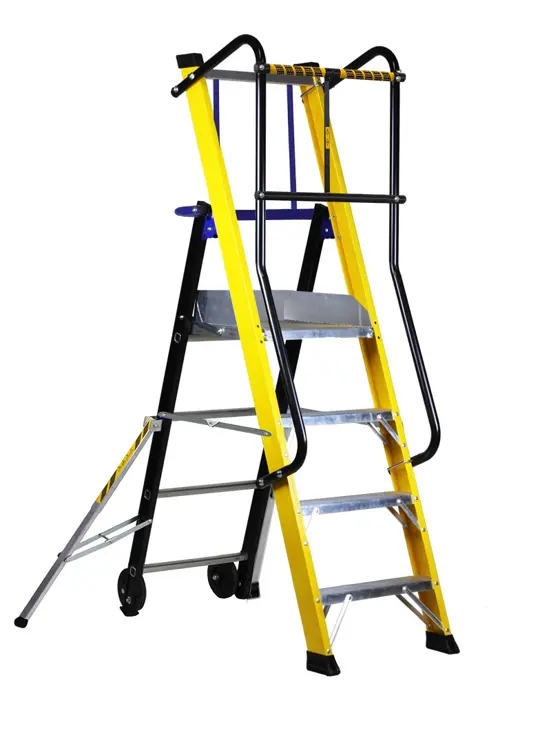

Fly Fibra

max height m 2,03

Producted in compliance with the European Standard for mobile platform ladders

This product has successfully passed the test of the German quality control body TÜV according to the European Standard on ladders

It shows the validity of the guarantee in years

It shows the maximum weight capacity of a product

It is the European Standard for ladders

Suitable for heavy duty

Made of fiberglass for intensive use with 2 wheels, handrails, platform and foldable base stabilizers

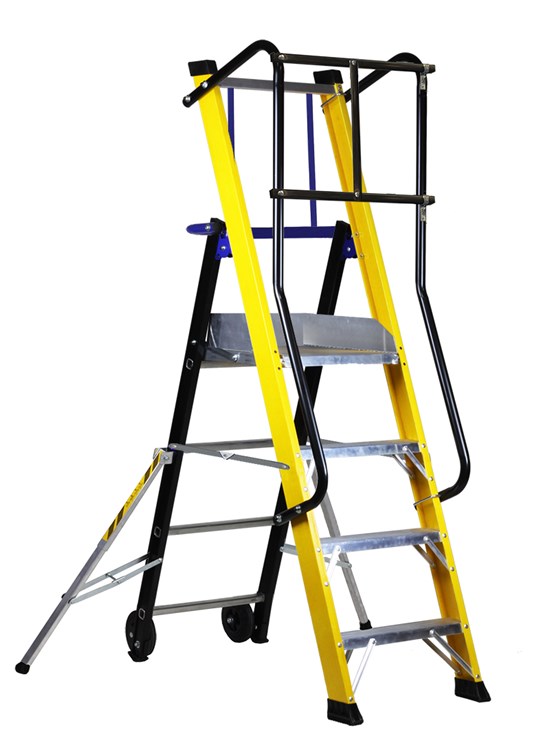

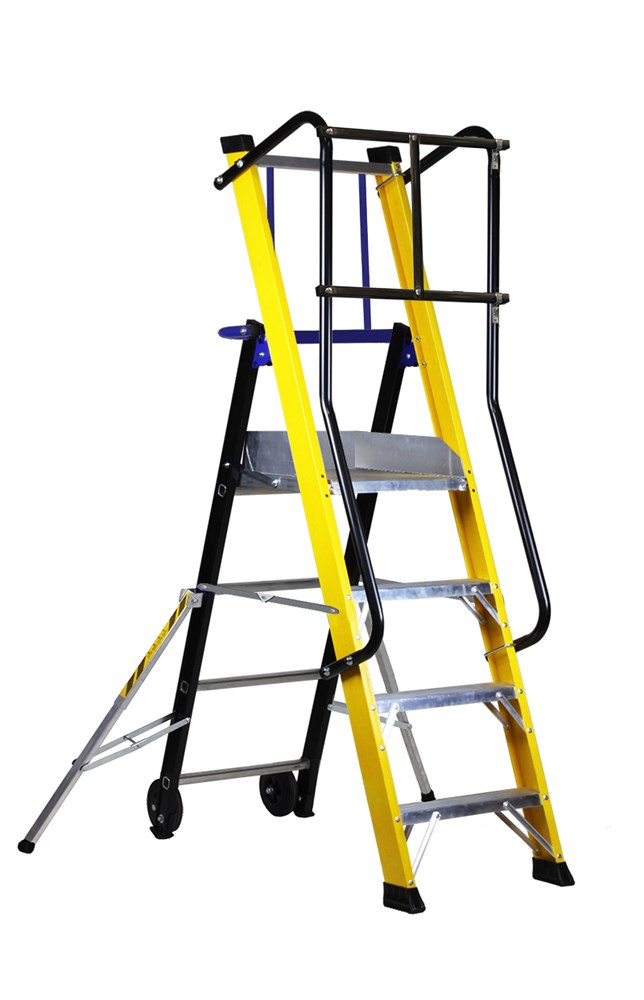

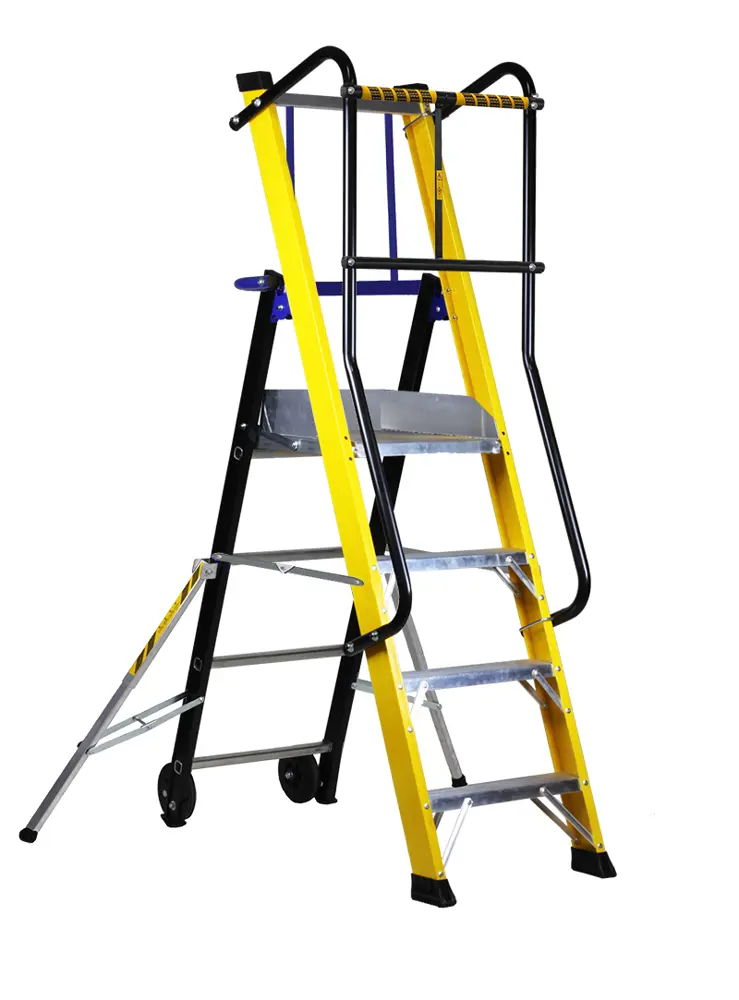

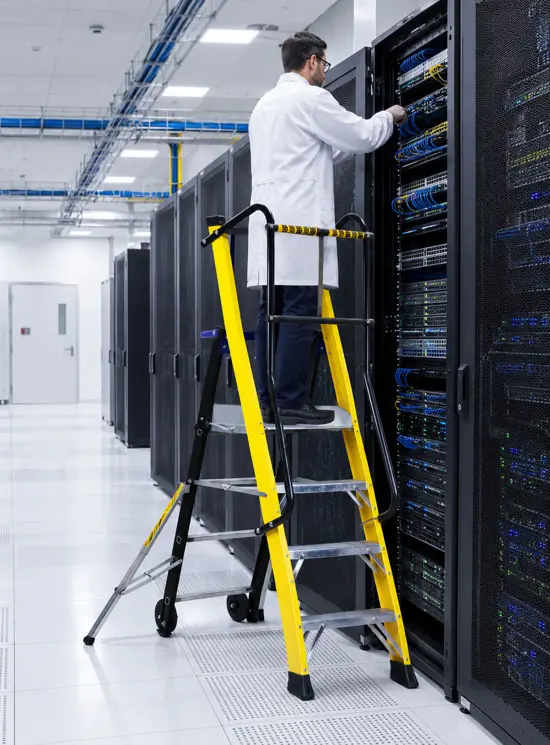

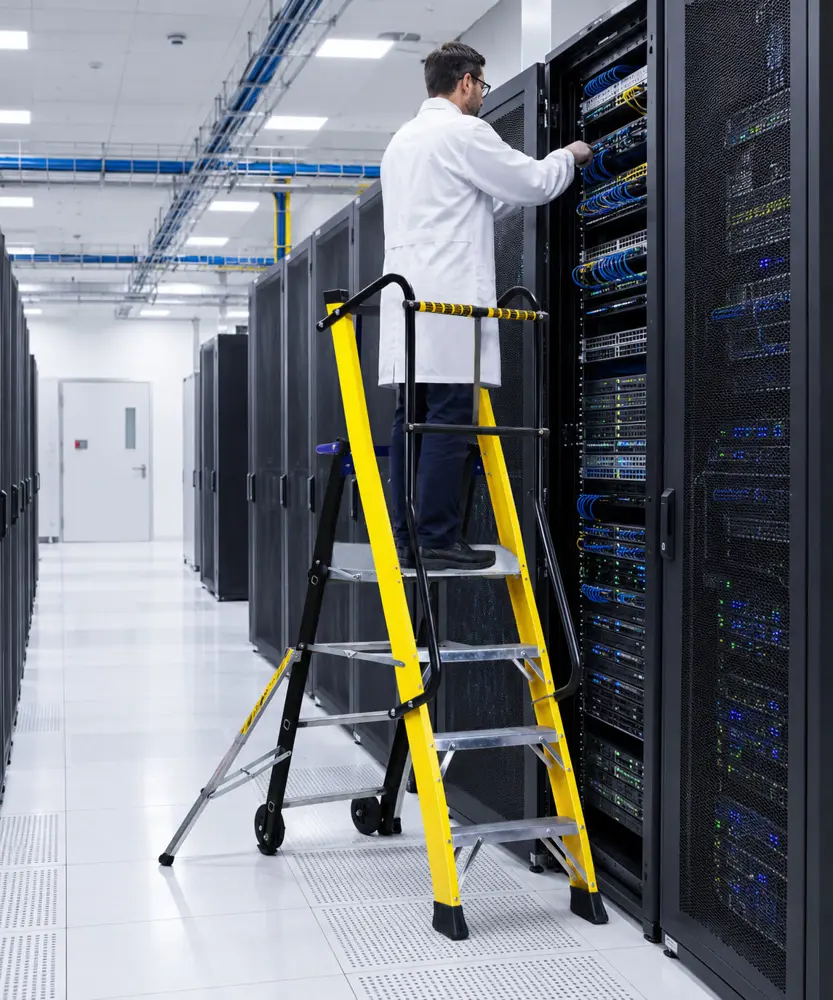

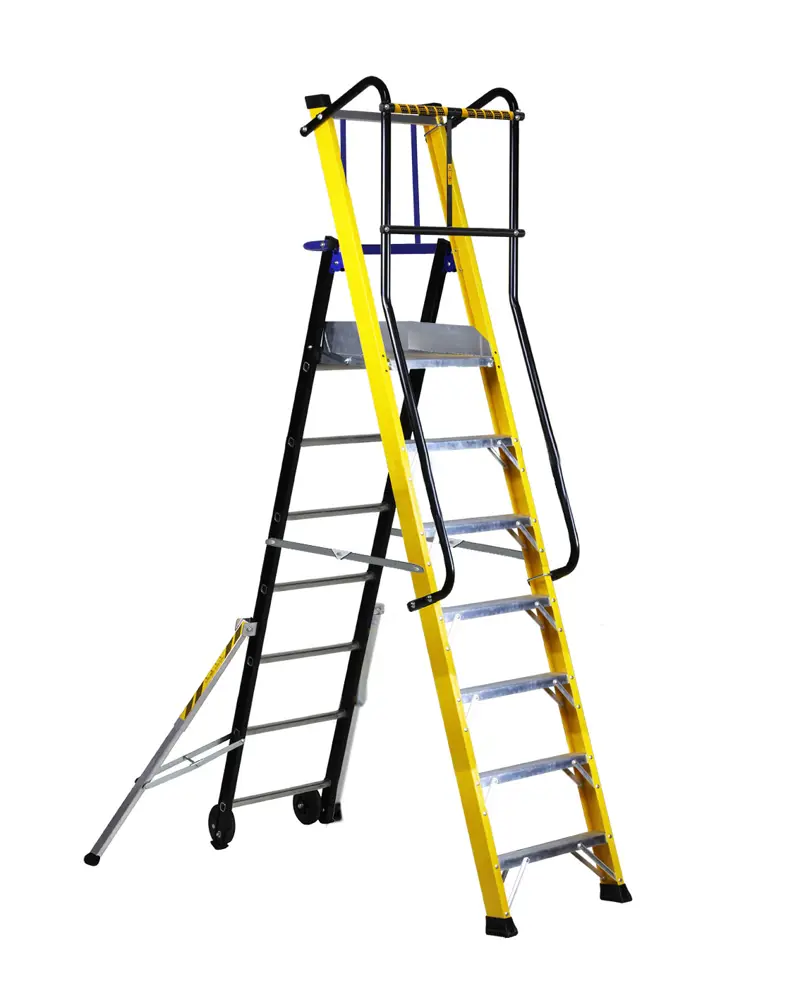

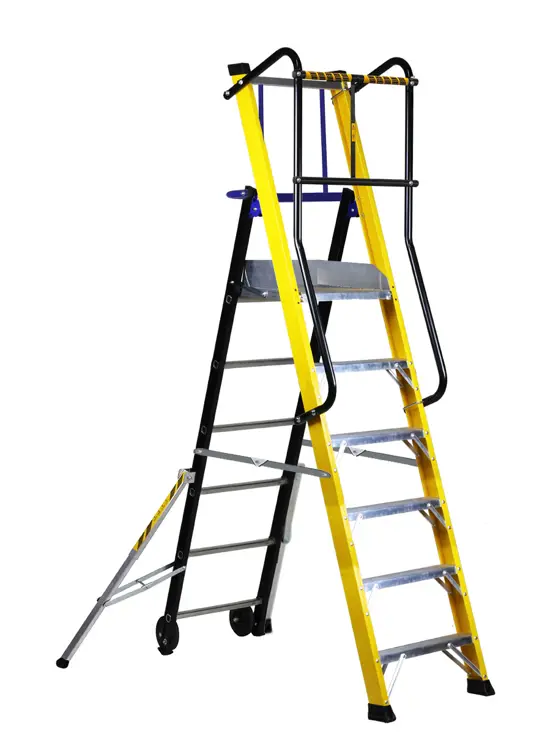

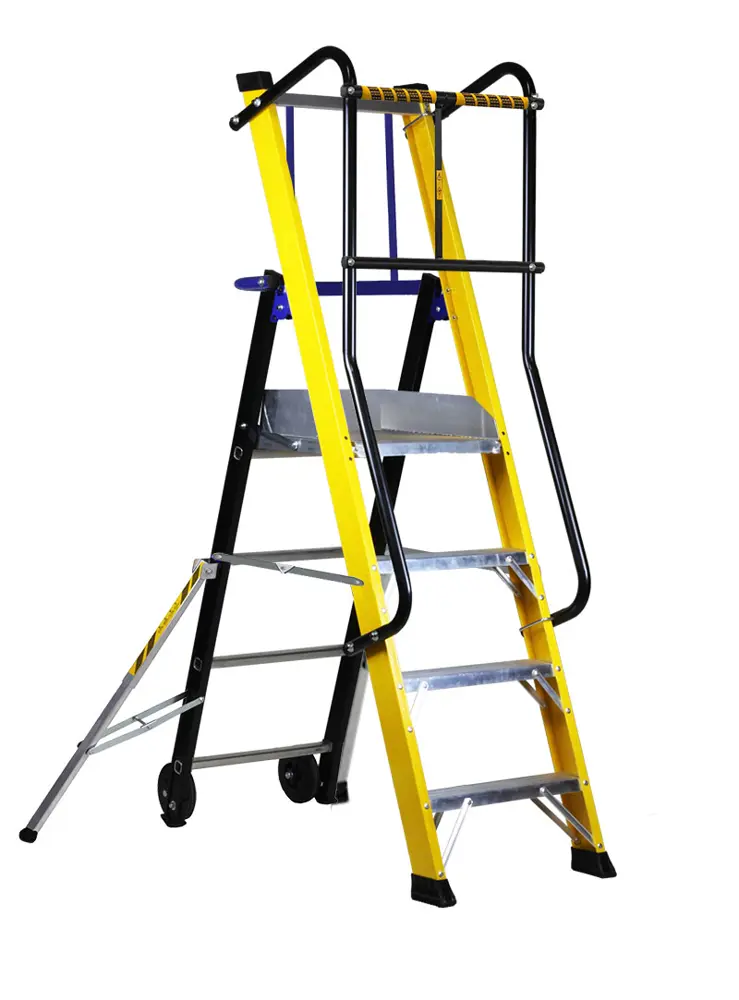

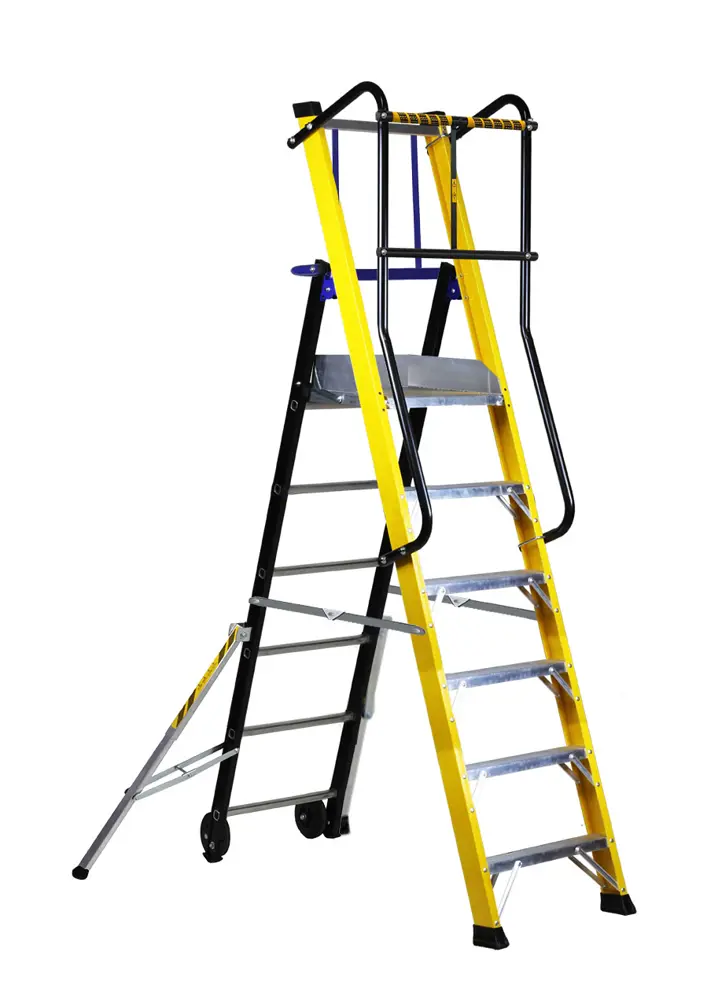

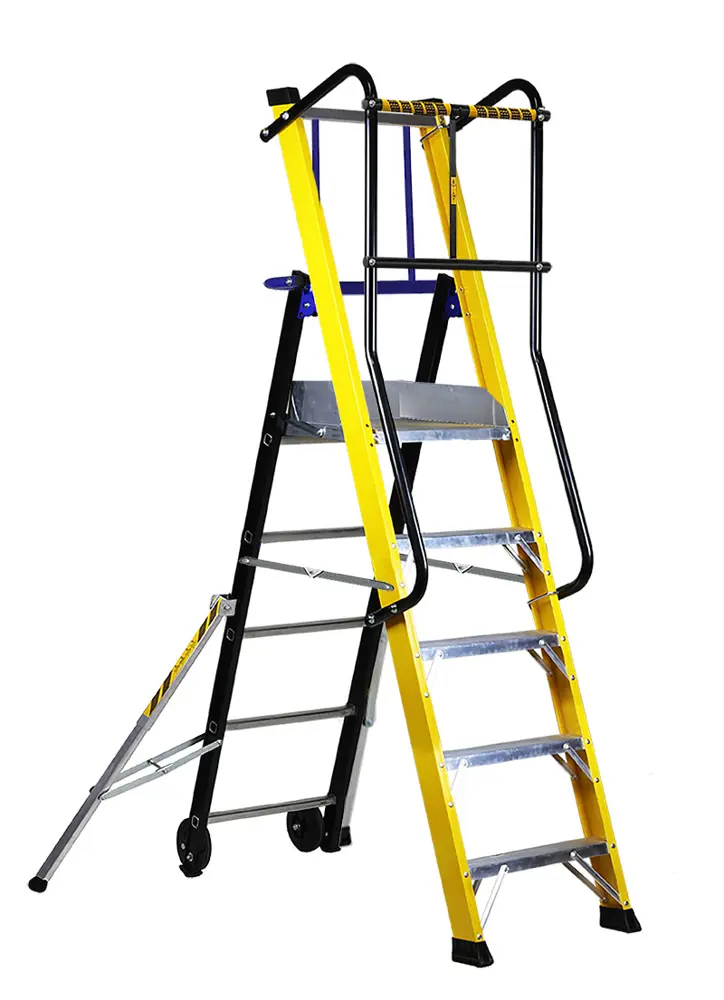

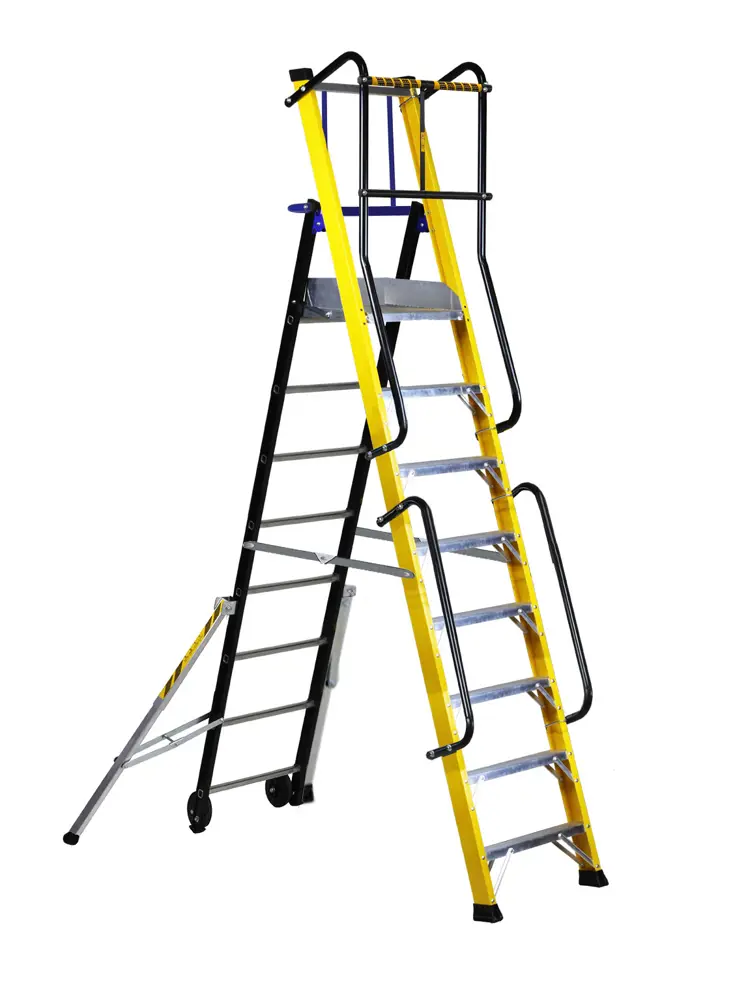

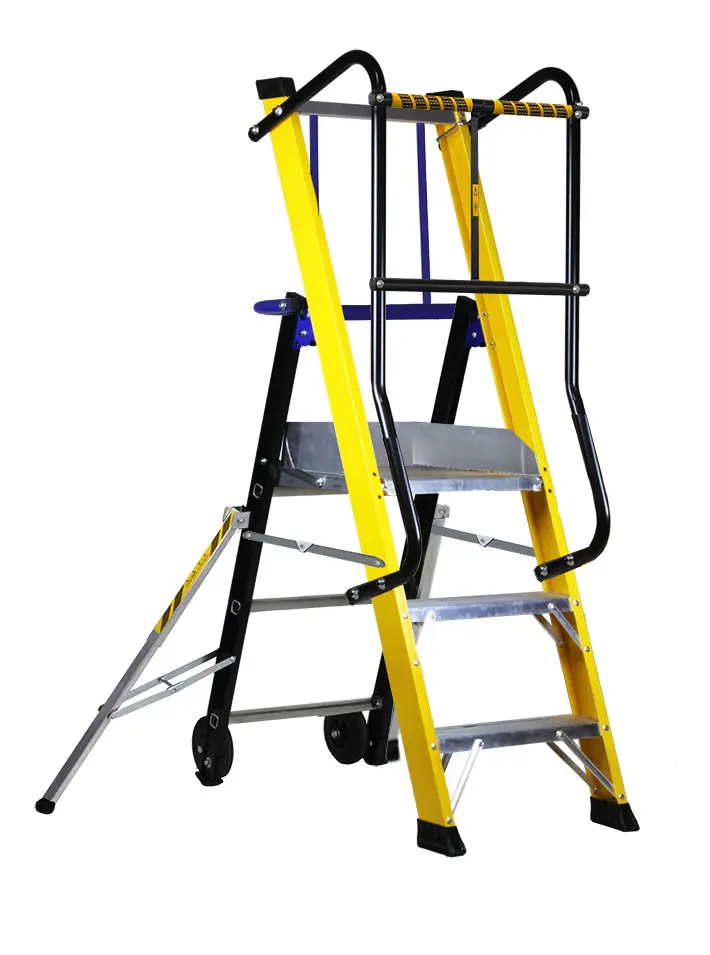

Platform fiberglass stepladder with 360° guardrail protection

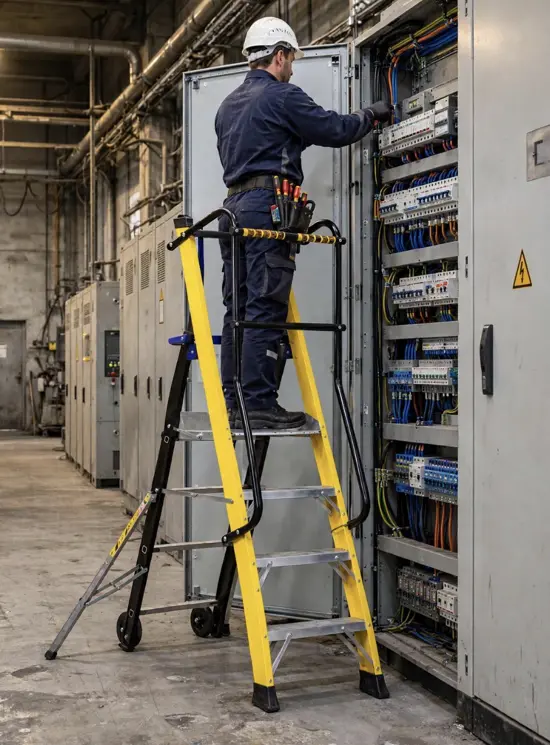

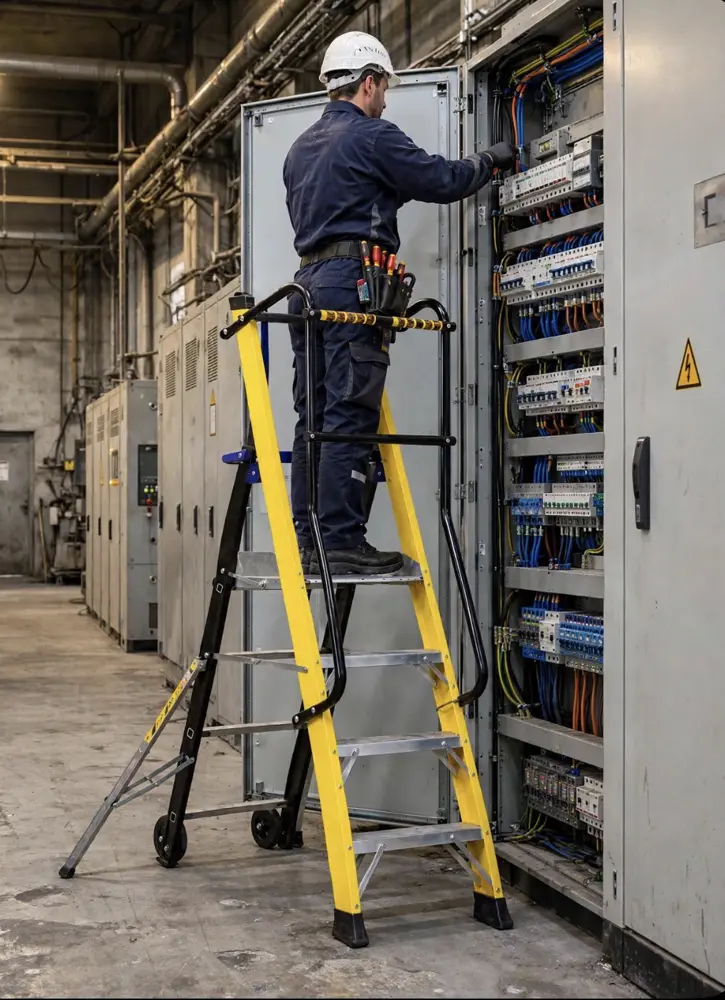

Electrically insulated heavy-duty ladder designed for operators who work near cables, sockets or other sources of electricity.

The fiberglass stiles offer electrical insulation and the non-slip knurled aluminum steps give the ladder lightness and maneuverability.
An advanced anti-overturning system consisting of foldable telescopic stabilizers allows to work even against a wall or in narrow areas.

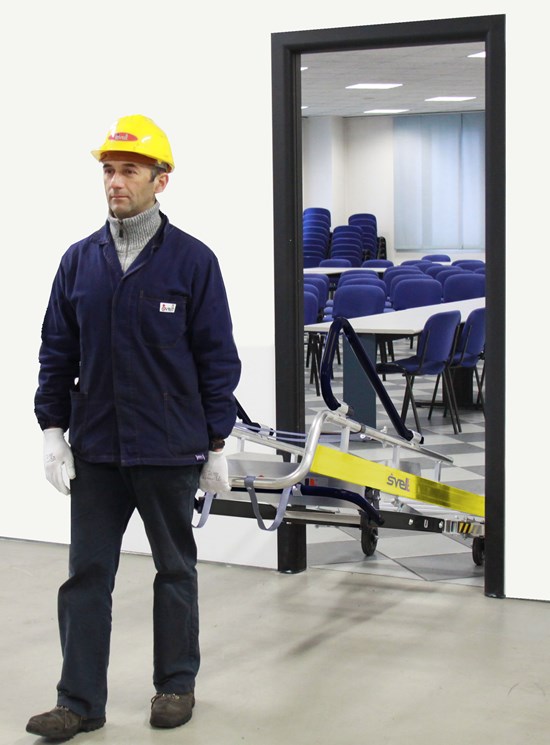

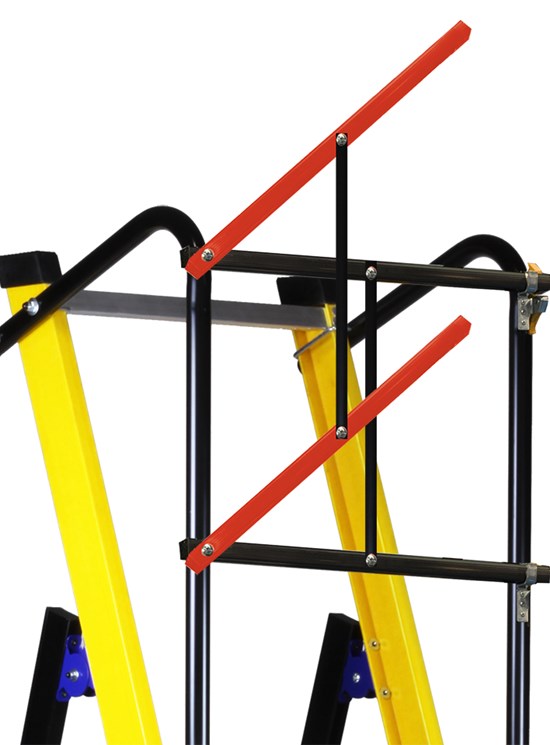

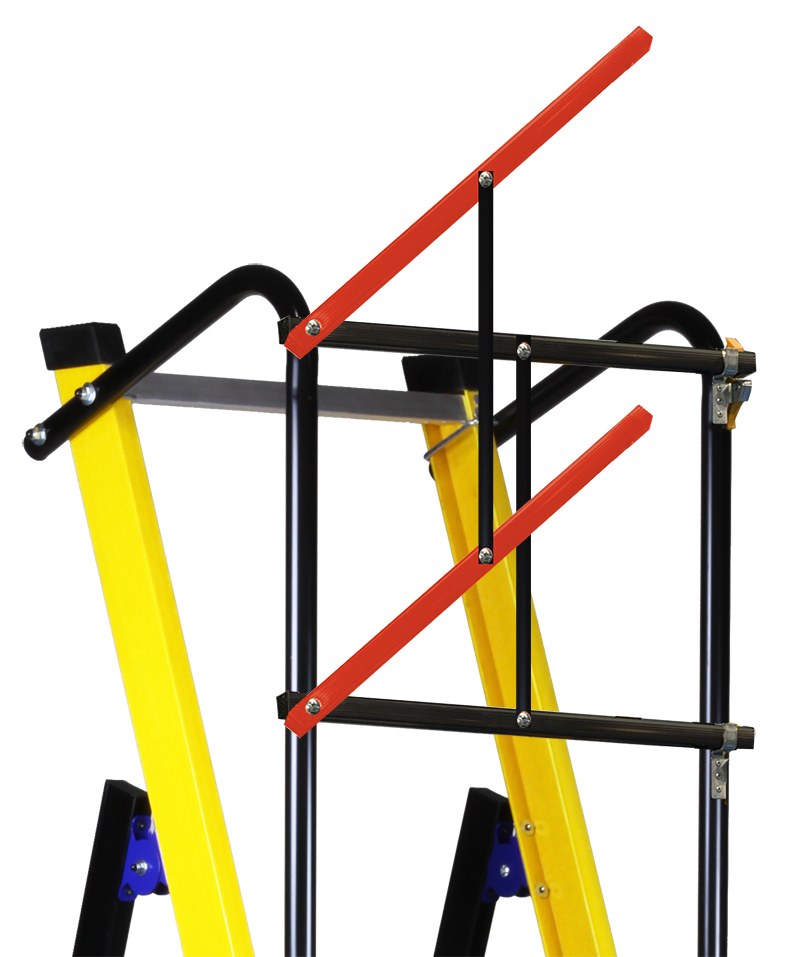

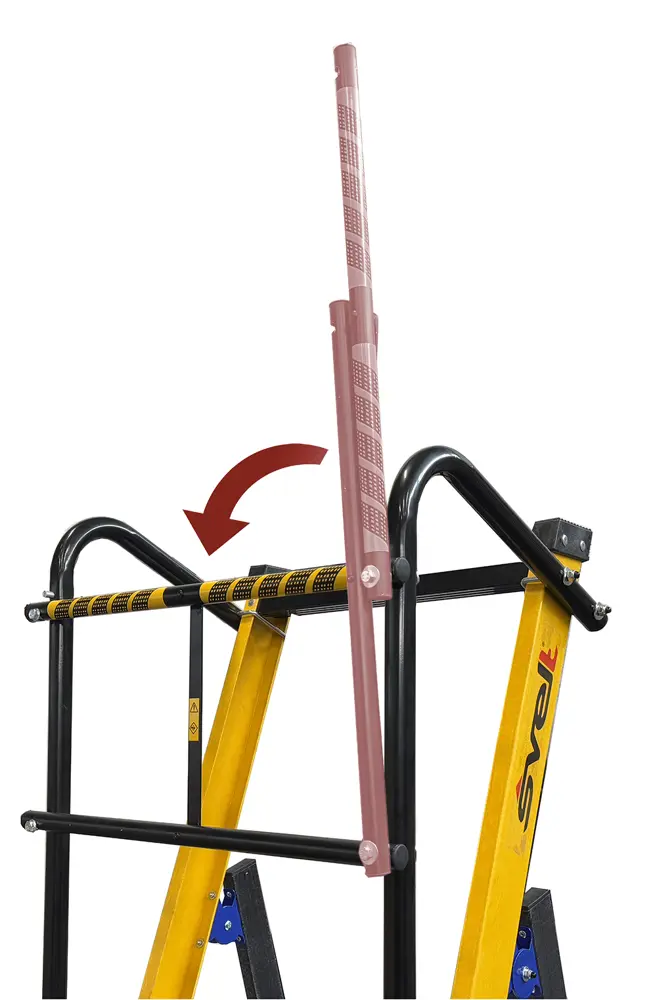

The patented handrails are foldable with a single gesture and allow easy transportation.

Reinforced non-skid aluminium platform (cm 60x53) with anti-opening system
10 cm toeboards

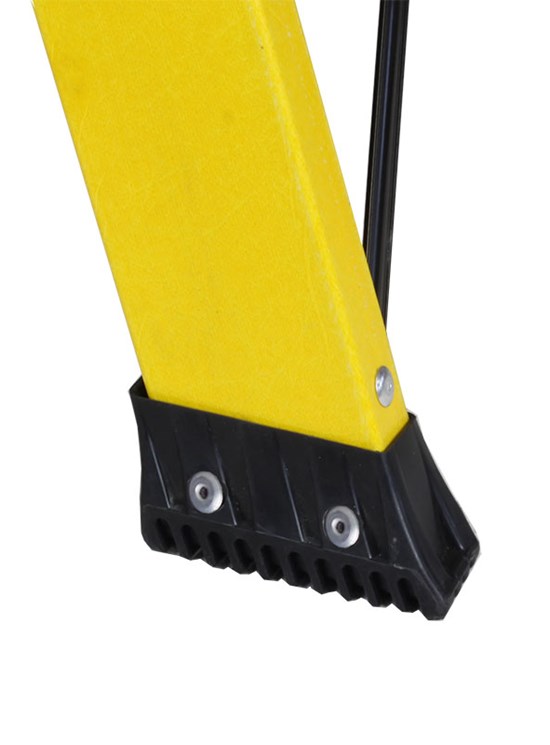

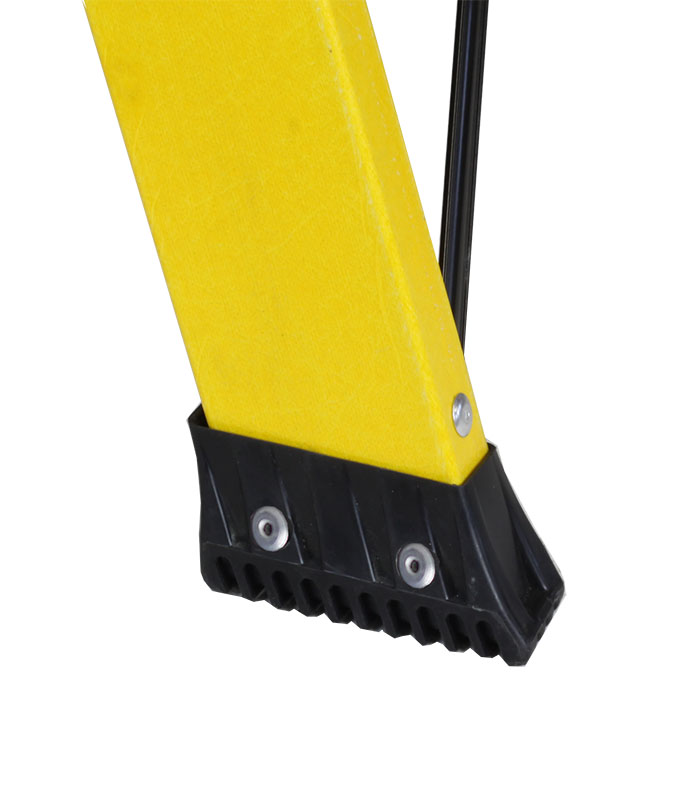

Ergonomic reinforced non-skid rubber feet

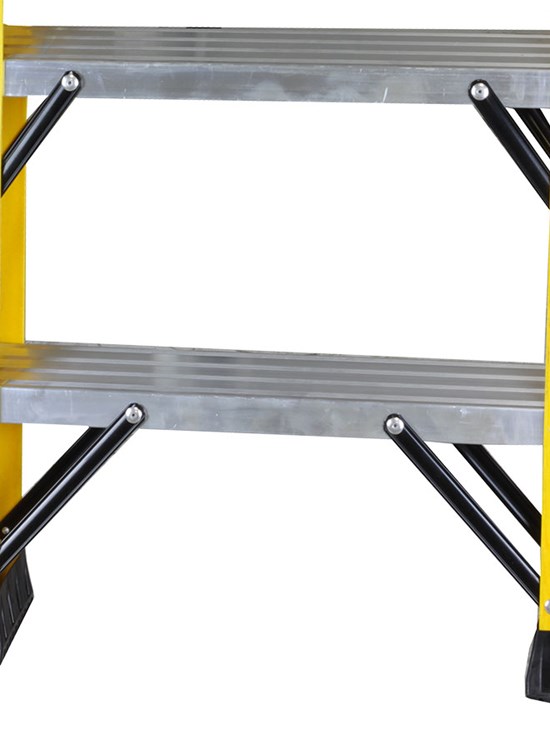

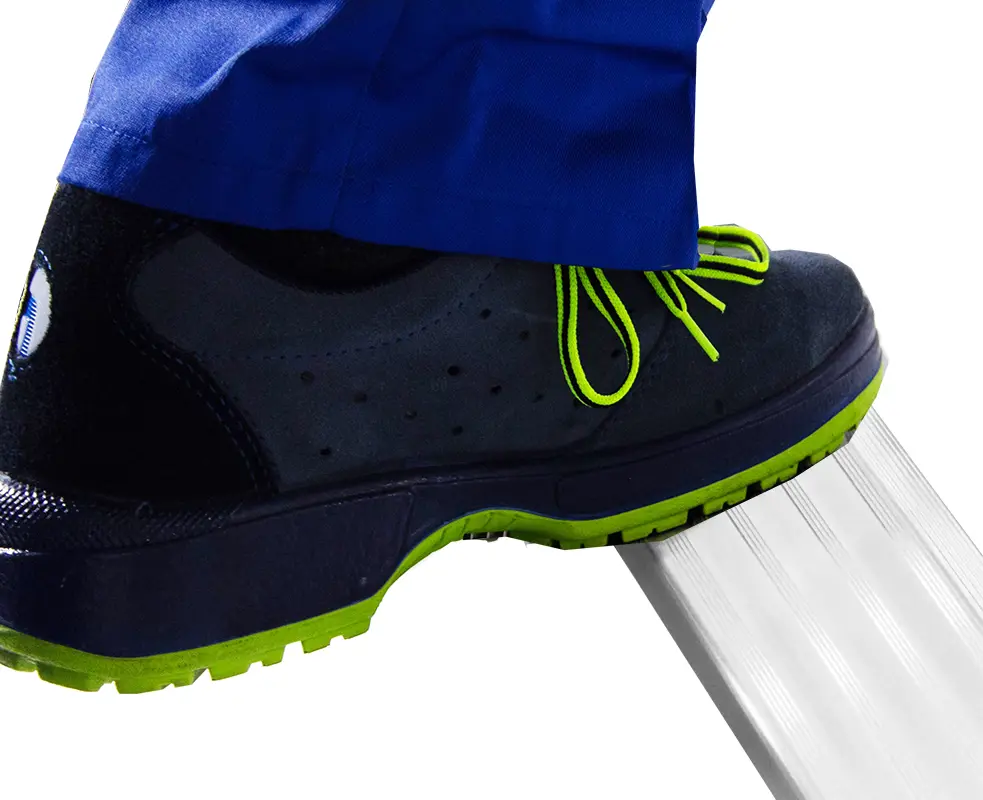

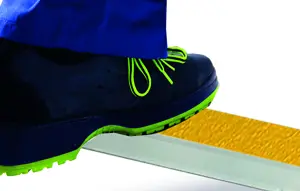

Non-skid steps: depth mm 80; distance mm 260
Guardrail cm 100 on all 4 sides

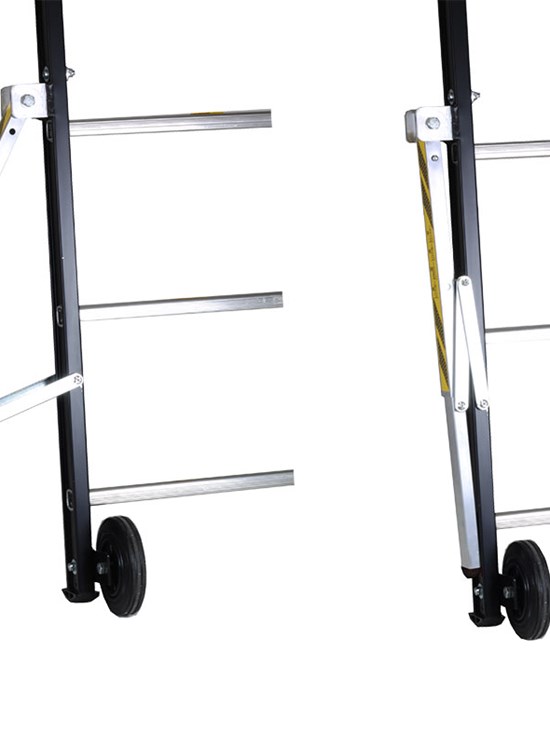

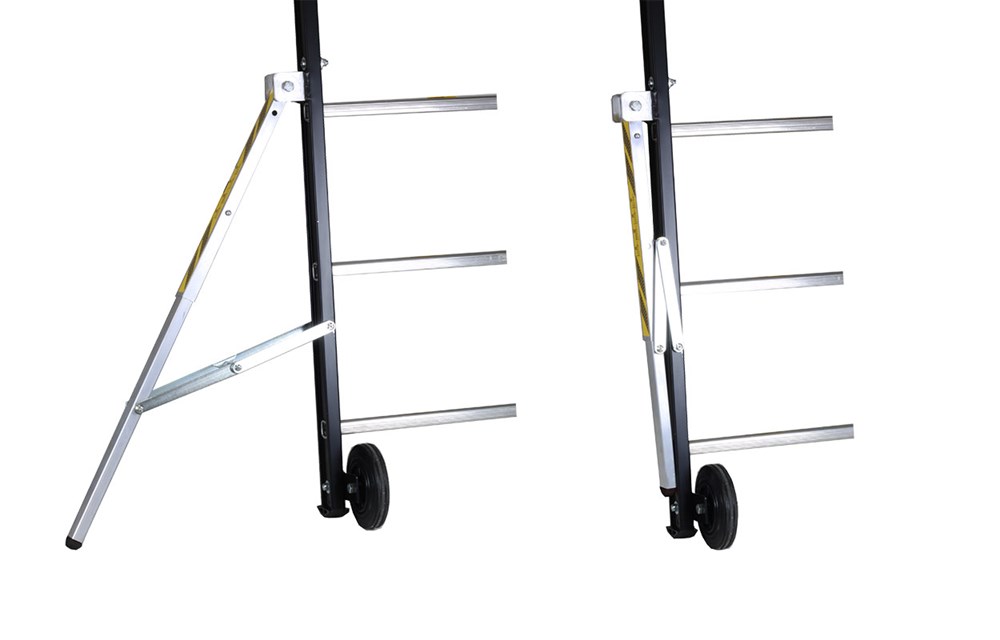

Integrated foldable telescopic stabilizers

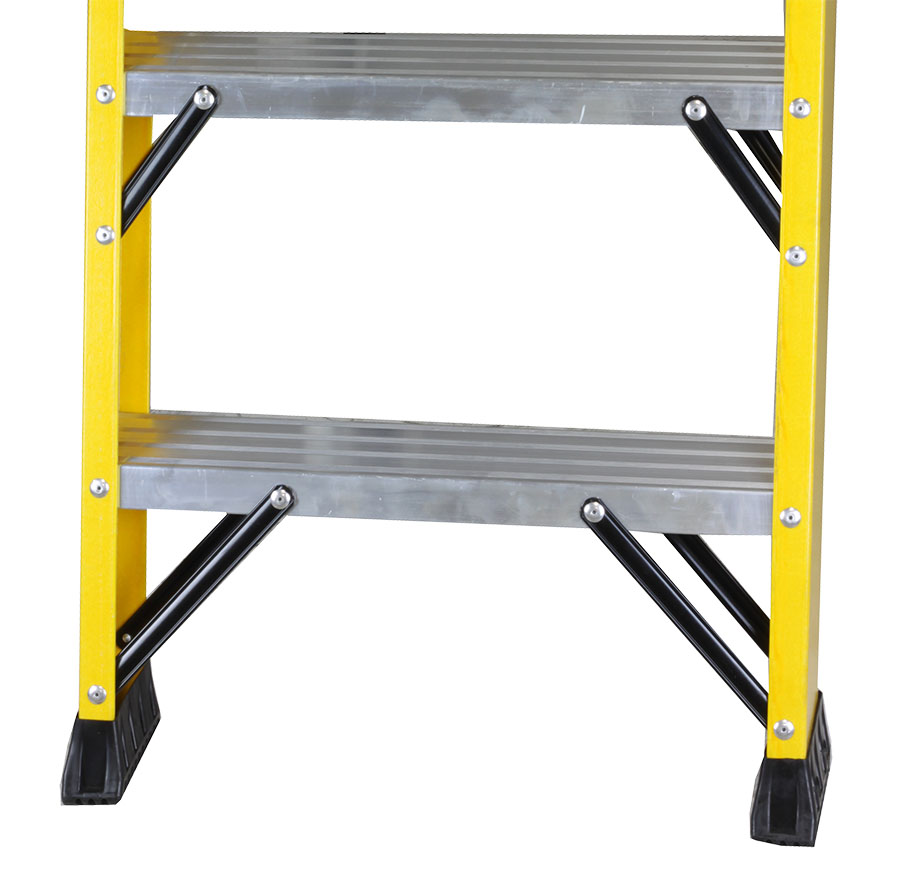

Anti-opening safety rigid bars

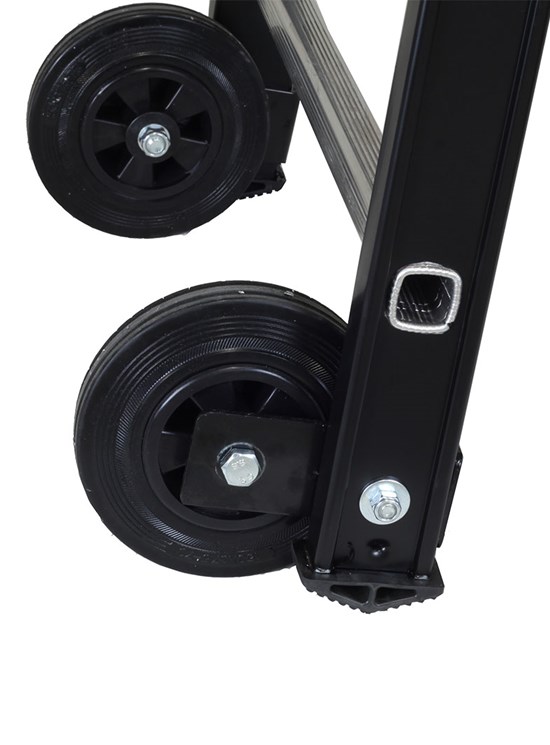

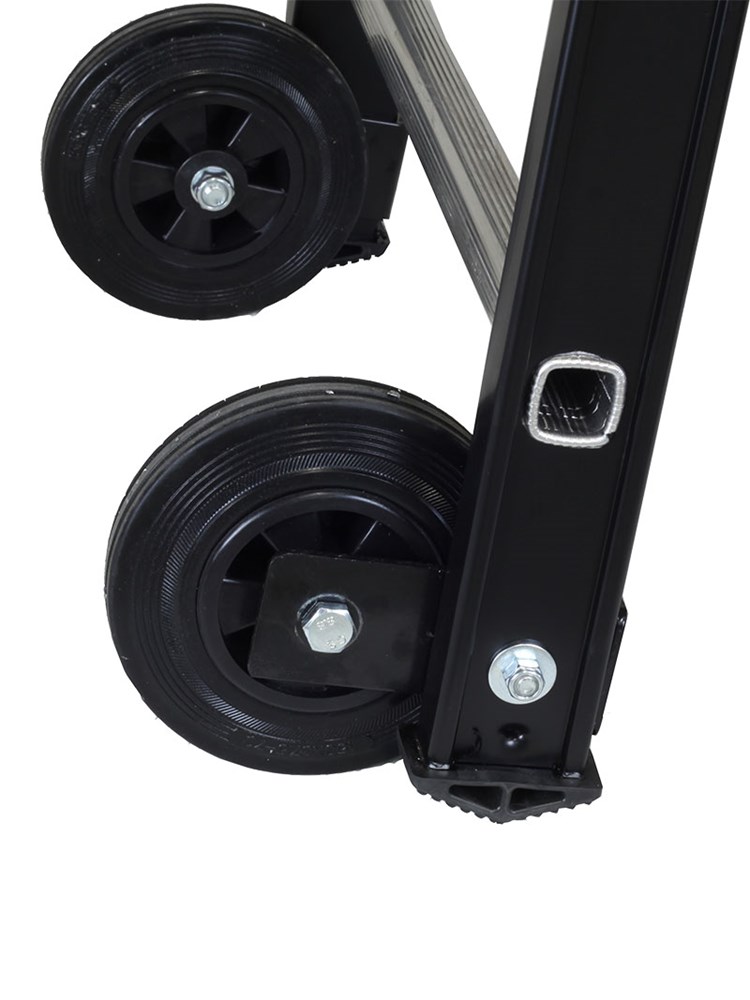

Moving wheels diam.150 mm
Outer ramp width cm 52

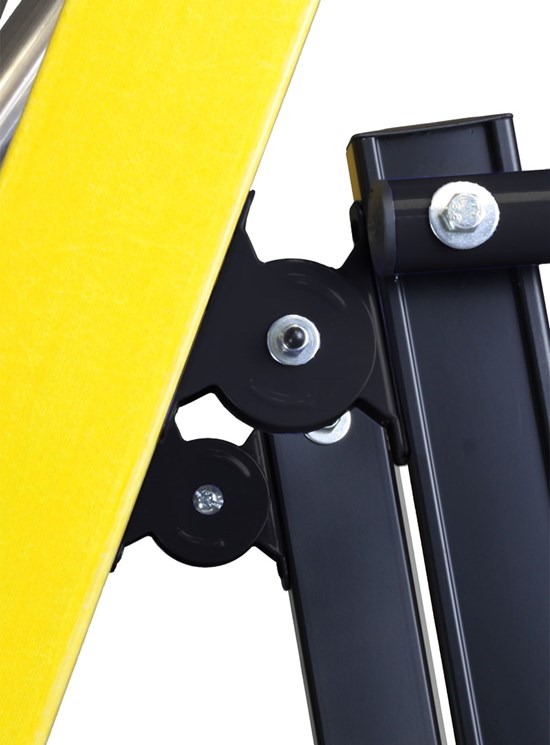

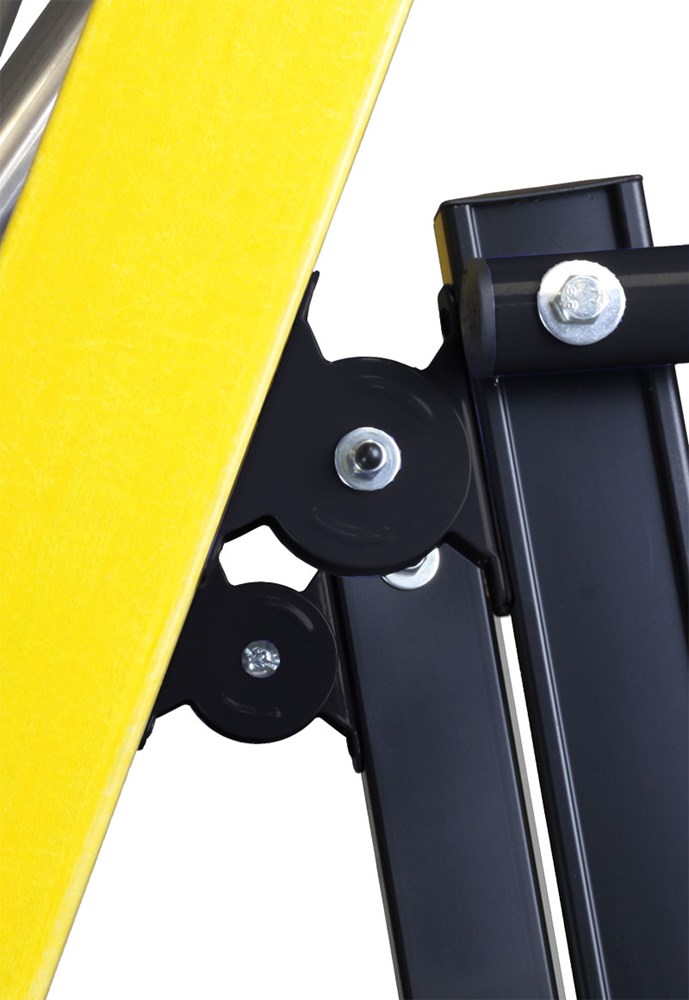

Steel opening hinges
Entry gate
Thermo-shrinkable plastic package
Front stile section mm 80x25
Back stile section mm 57x27

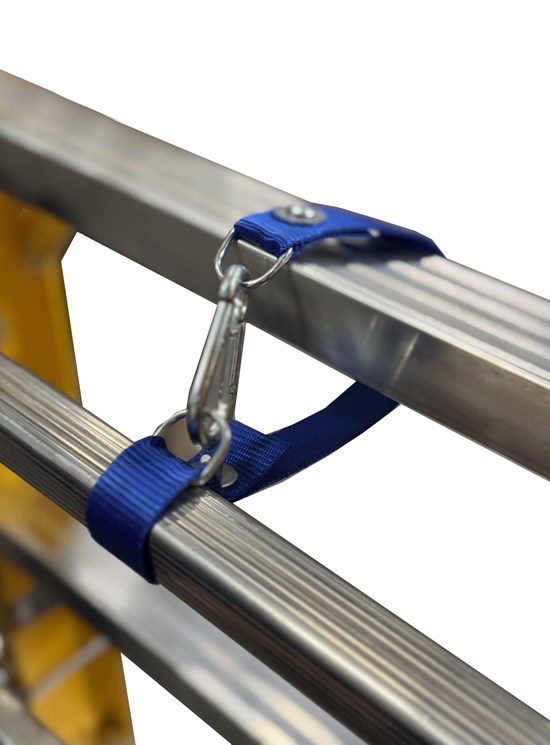

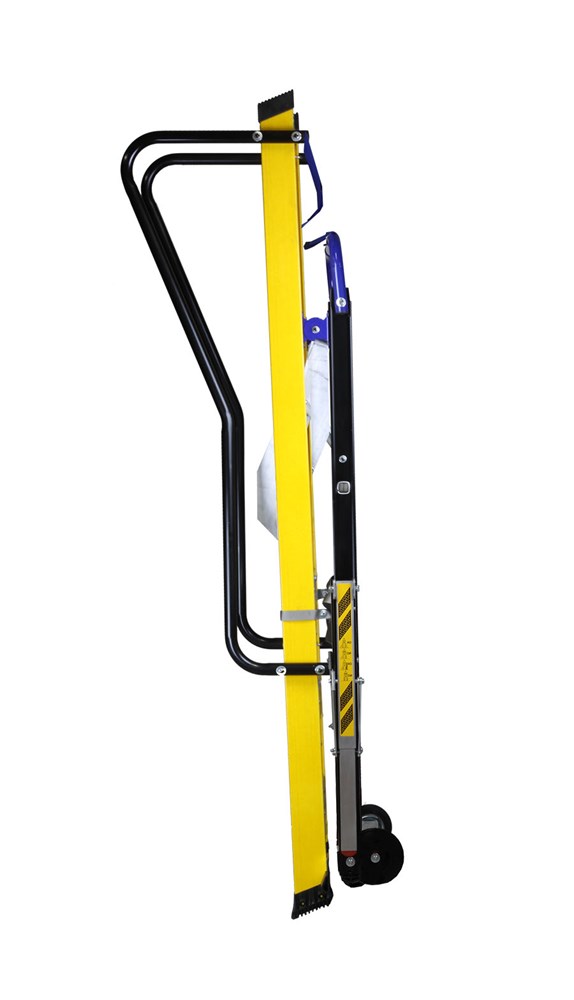

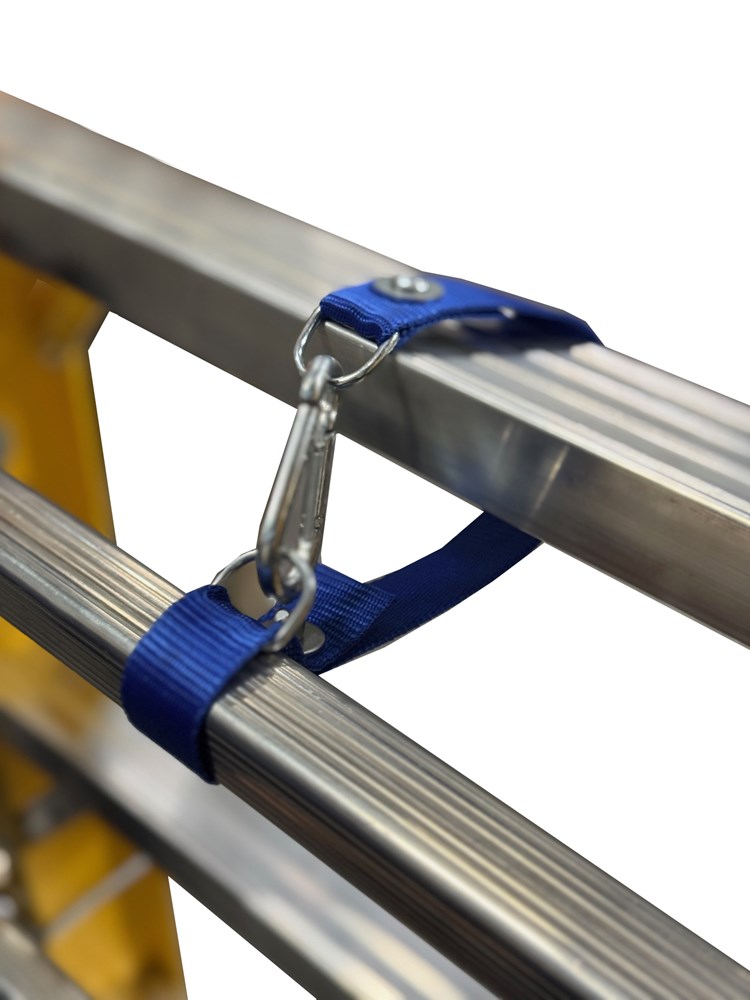

Closing strap for transport

Code	Steps number	Platform height m	Total height m	Working height m	Base dimensions cm	Weight Kg	Folded height m
SFLYF103	3	0,76	1,78	2,76	54x113	21	1,94
SFLYF104	4	1,00	2,02	3,00	54x134	23	2,20
SFLYF105	5	1,27	2,29	3,27	54x144	25	2,50
SFLYF106	6	1,53	2,55	3,53	54x165	27	2,78
SFLYF107	7	1,80	2,82	3,80	54x191	29	3,06
SFLYF108	8	2,07	3,09	4,07	54x212	31	3,34

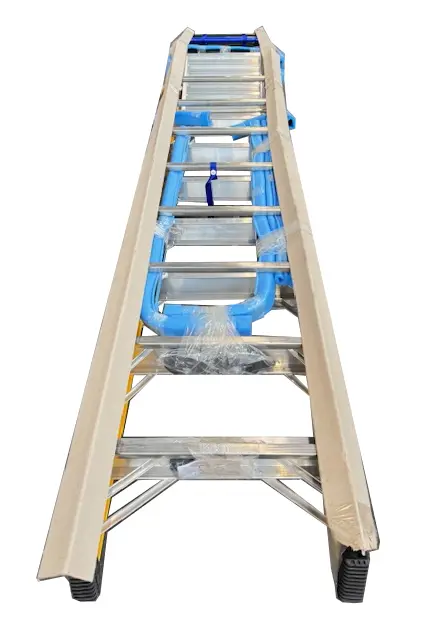

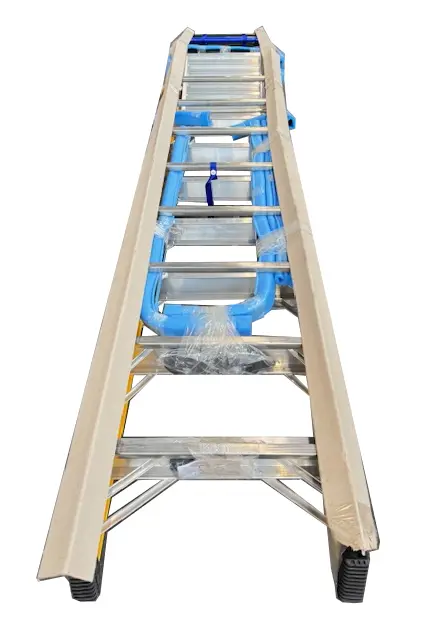

PACKAGING

A valuable ladder must be protected to avoid damage during transport, both from Svelt to its dealer and from the DEALER to its customer.

For this reason, the packaging is extremely complex to best protect each component.

The profiles are protected with cardboard and the tubes with shock-absorbent cylinders.

The entire package is then shrink-wrapped to ensure a flawless product, right from the packaging.

Tested against overturning according to European Standards UNIEN131/7 with 30 kg thrust at platform level.

Note: RAMP AND BACK STILES ARE FIBERGLASS FOR MAXIMUM ELECTRIC INSULATION
