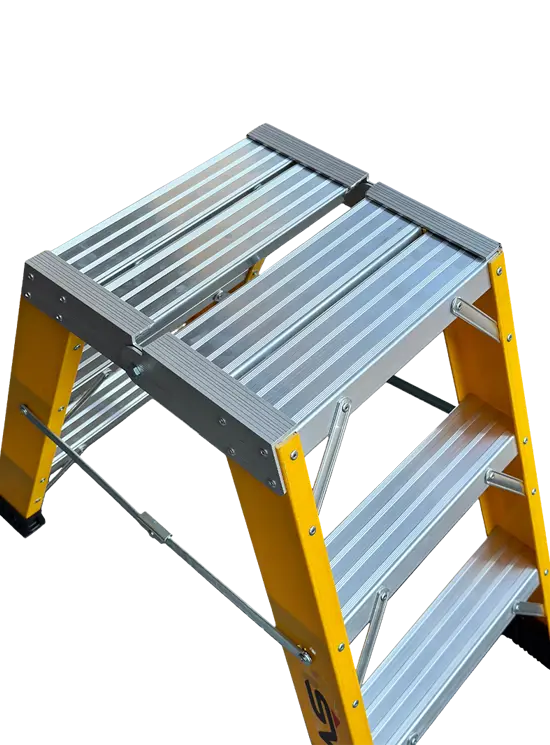

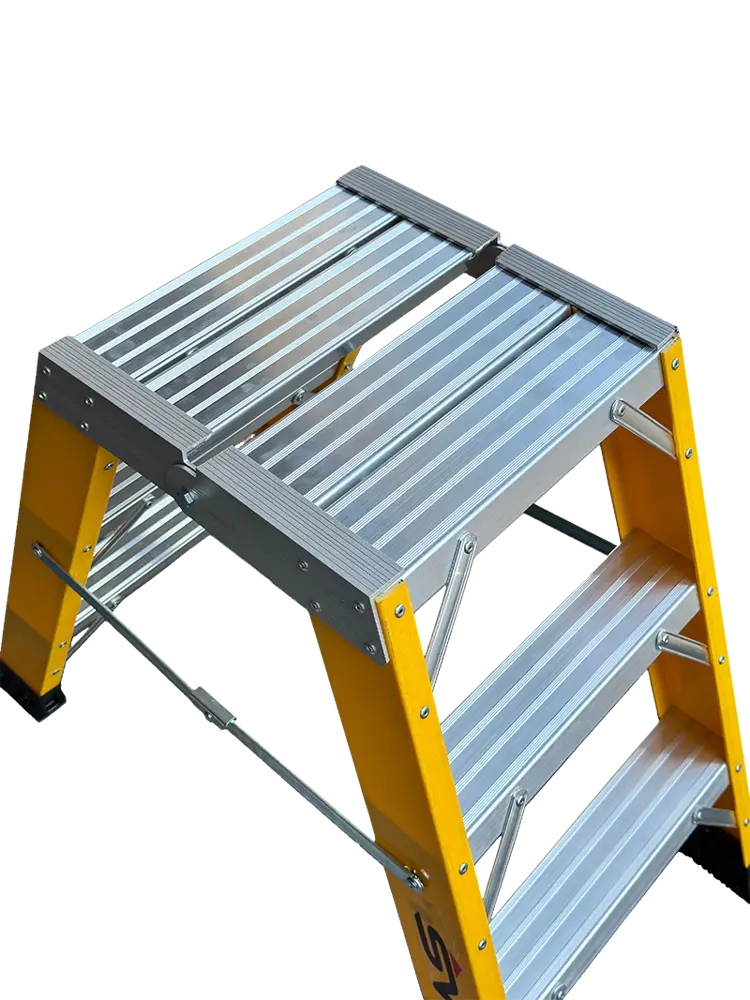

Punto Plus Fiber

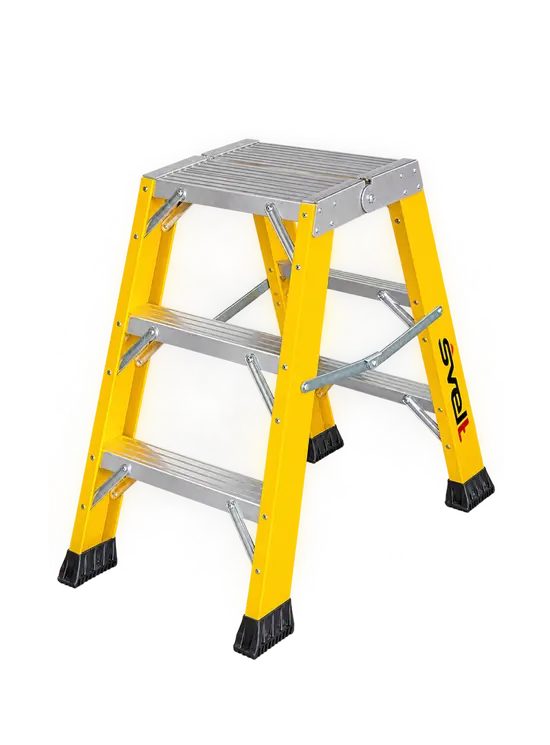

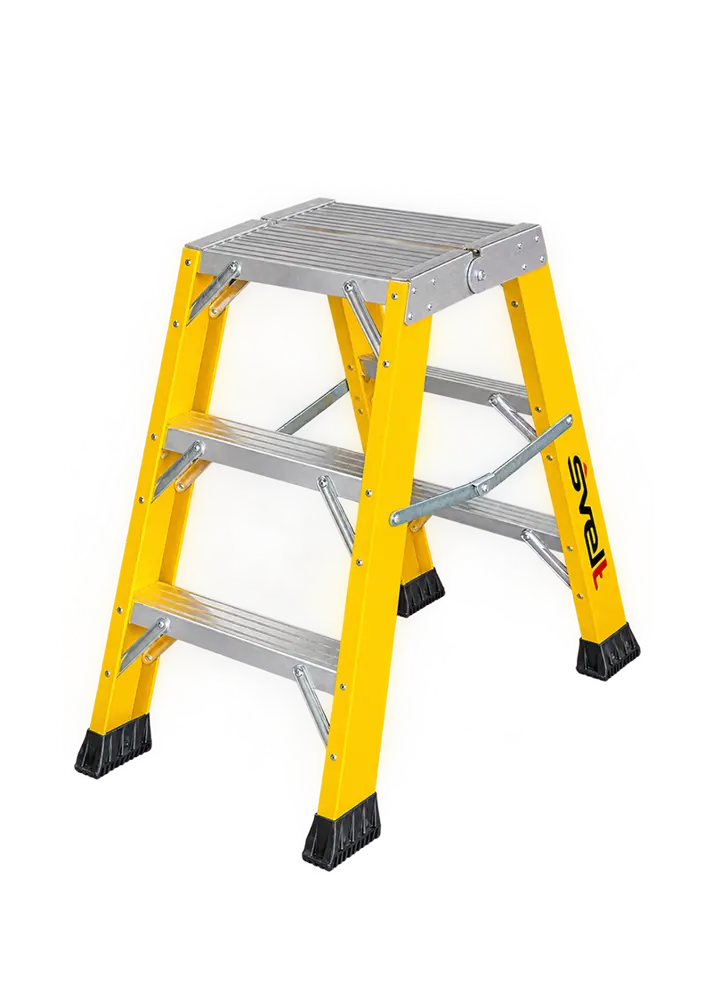

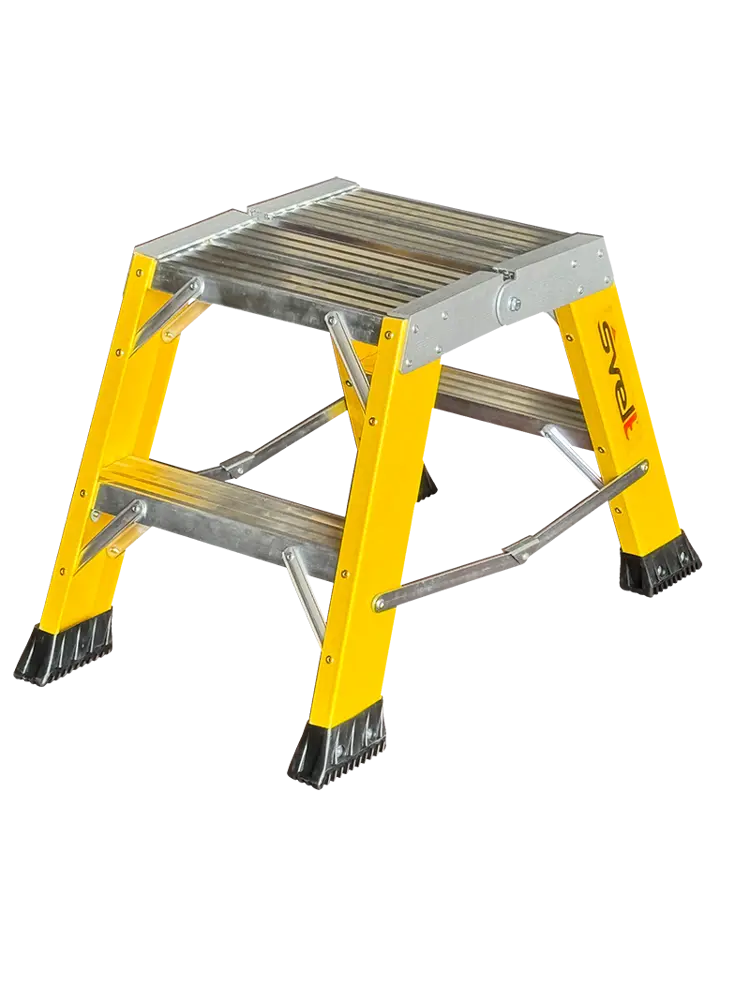

The PUNTO PLUS FIBRA double stepped fiberglass stool with oversized aluminum platform is designed to offer the operator a stable, safe and comfortable climb during professional activities that require working or standing at a higher height than the support surface.

The two-section structure allows you to reach the platform in a practical way, while the large walking surface allows you to work more comfortably even for prolonged periods.

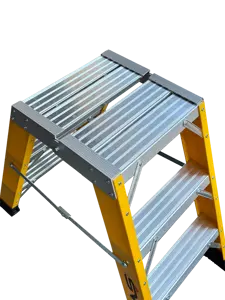

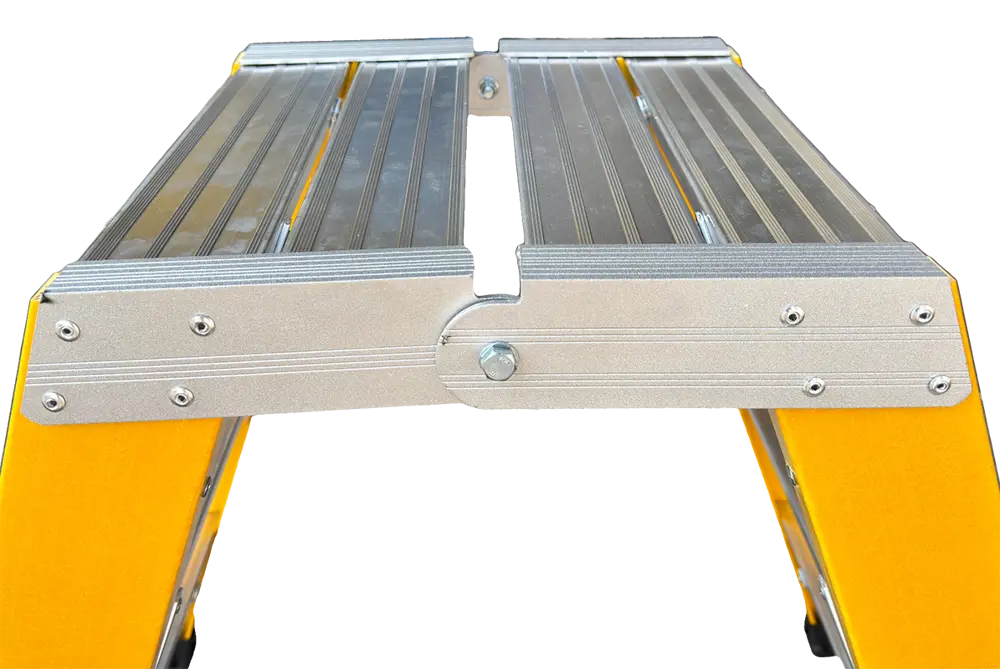

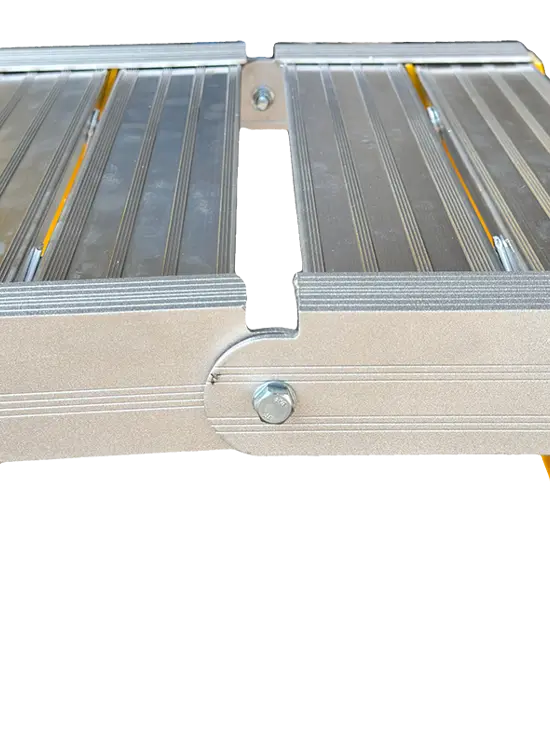

The oversized 35 x 40 cm platform offers a large support area on which the operator can stand comfortably and safely at the maximum height of the stool.

The dimensions of the platform are designed to ensure greater freedom of movement of the feet and a more comfortable position during work operations.

The particular combination of fiberglass uprights and aluminum steps makes this ladder particularly suitable for operators who have to work near electrical systems, cables, sockets and other sources of electricity, where it is necessary to use equipment with dielectric characteristics.

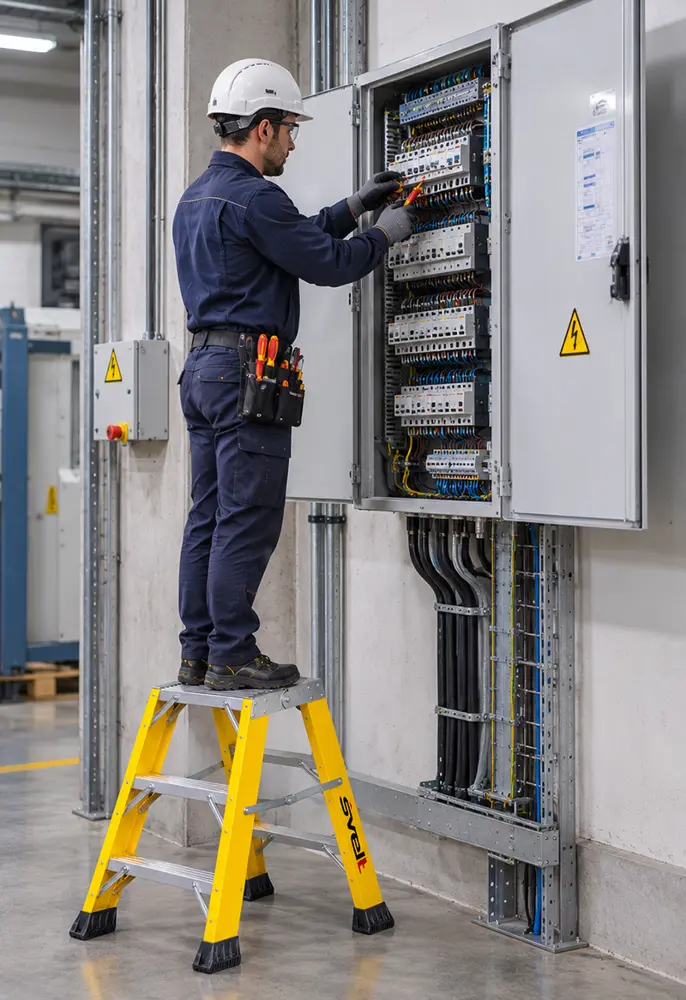

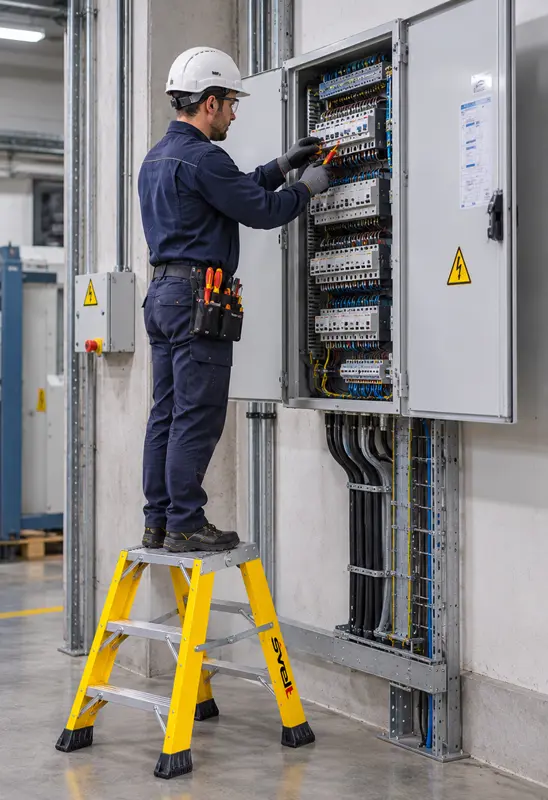

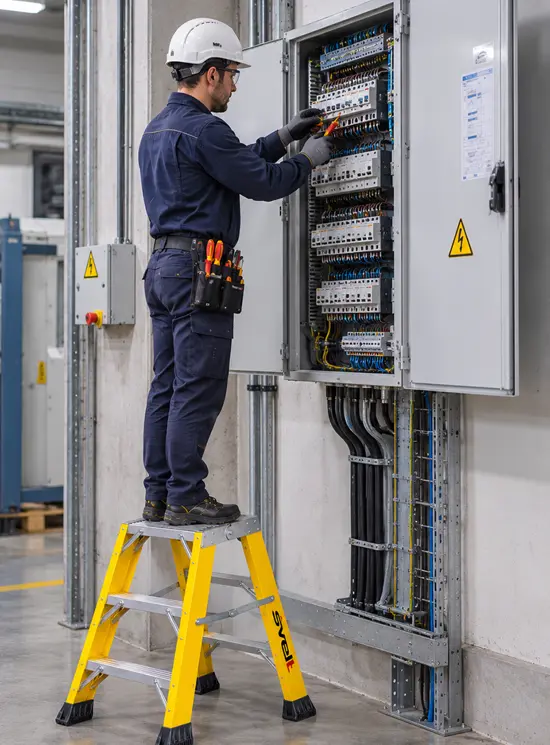

Punto Plus Fibra is a professional solution designed for electricians, maintenance technicians, installers and operators who carry out work in environments where there may be a risk related to proximity to electrical sources.

Professional fiberglass ladder with aluminum steps

The uprights are made of fiberglass, a material used for its electrical insulation properties, while the steps are made of ribbed extruded aluminum with a non-slip surface.

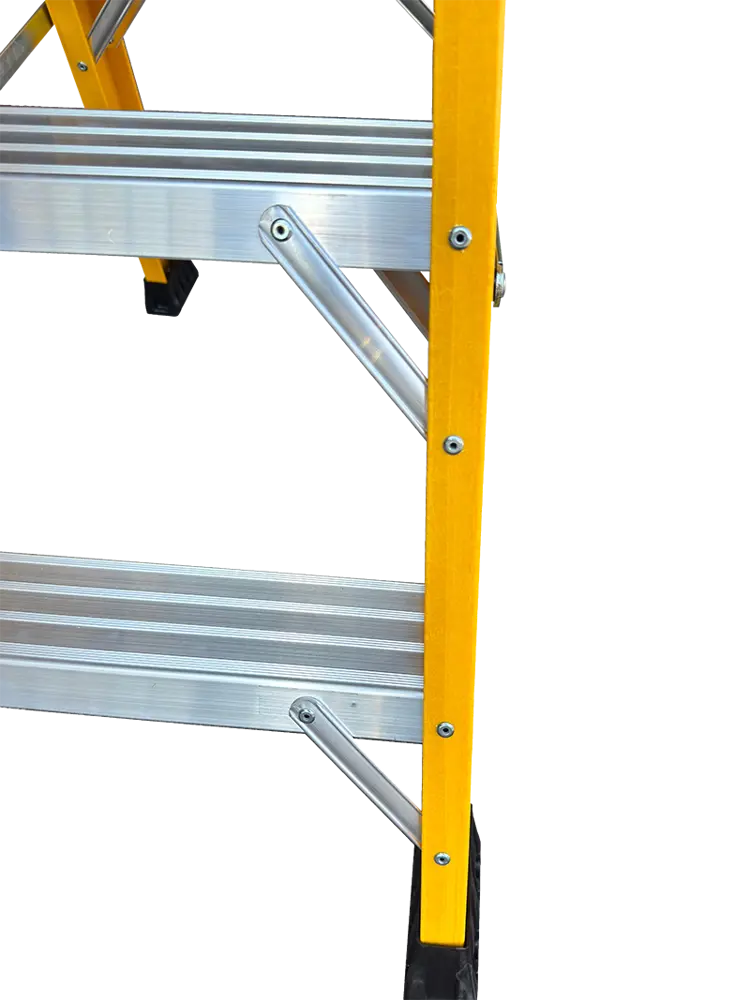

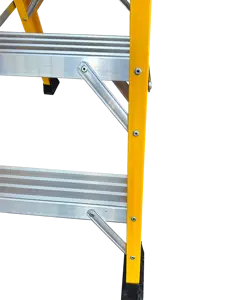

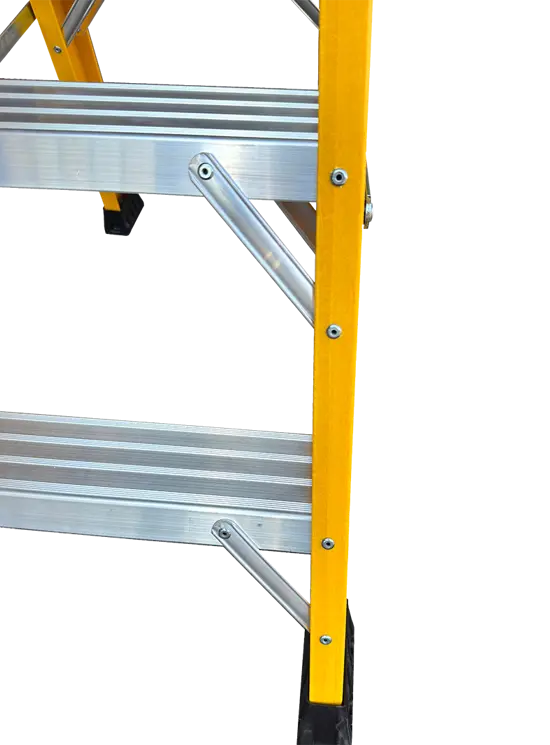

The structure is designed for professional use and the steps are fixed to the uprights using 8 rivets for each step. The large number of fastening points helps to create a stable and durable connection between steps and posts.

This construction solution has also been designed to limit the phenomenon of oscillation of the steps that can occur over time in stairs subjected to frequent use when the fastening has a lower number of riveting points.

The result is a ladder designed to maintain rigidity, stability and structural solidity over time, characteristics that are particularly important in professional use.

Dielectric ladder for work near electrical installations

One of the distinctive elements of Punto Plus Fibra is the use of fiberglass for the uprights, which makes the ladder particularly suitable for activities carried out near possible sources of electricity.

It is suitable for operators who may find themselves working near electrical cables, sockets, switchboards, systems and power lines, depending on the conditions and limits provided for the product.

The ladder is intended in particular for work on low-voltage power lines, with reference to the indicated values of 1000 V in alternating current and 1500 V in direct current.

It is important to distinguish the dielectric property of the material from the overall safety of the activity: the choice and use of the ladder must always be made according to the operating conditions, safety procedures and regulations applicable to electrical work.

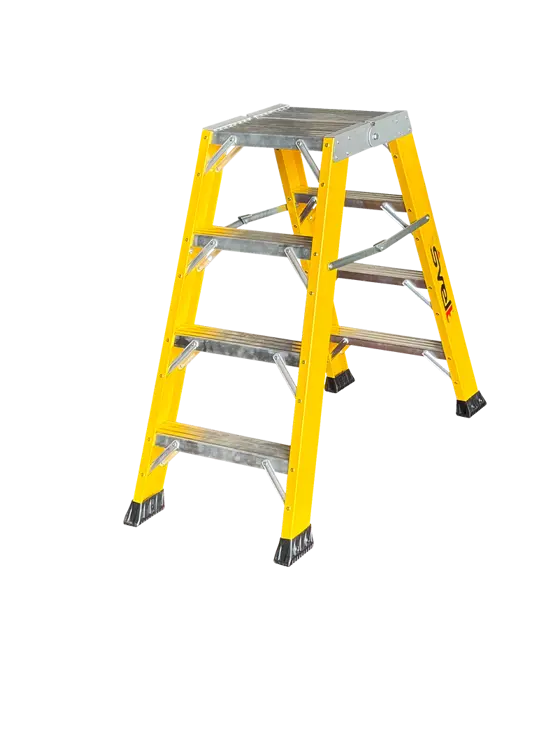

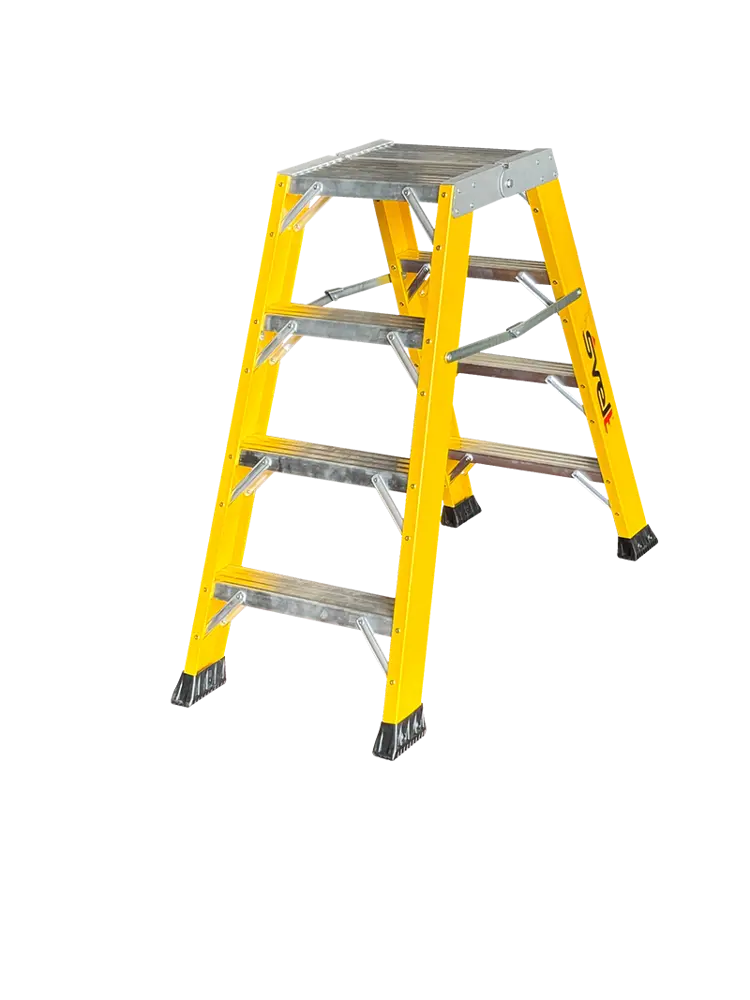

Double ascent for professional use

The double climb configuration allows the ladder to be used from both sides, offering greater versatility in maintenance, installation and intervention activities.

The flat non-slip 8 cm steps ensure a large and stable support surface for the foot, while the distance of 25 cm between the steps makes it easy to get on and off.

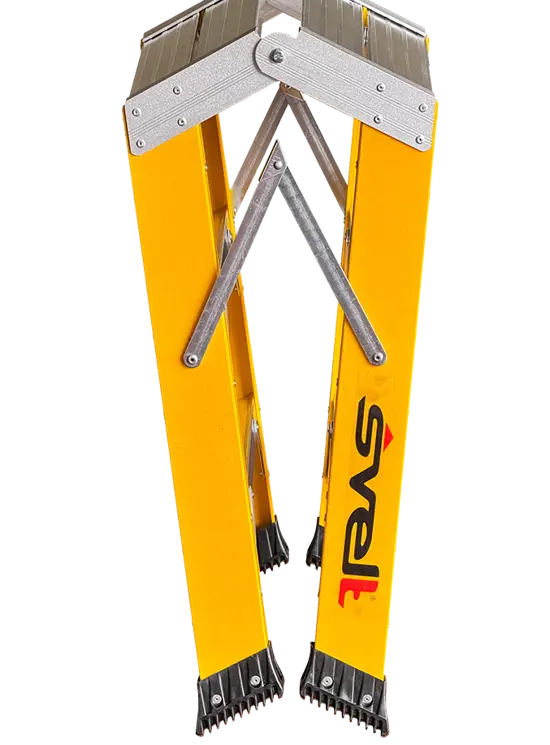

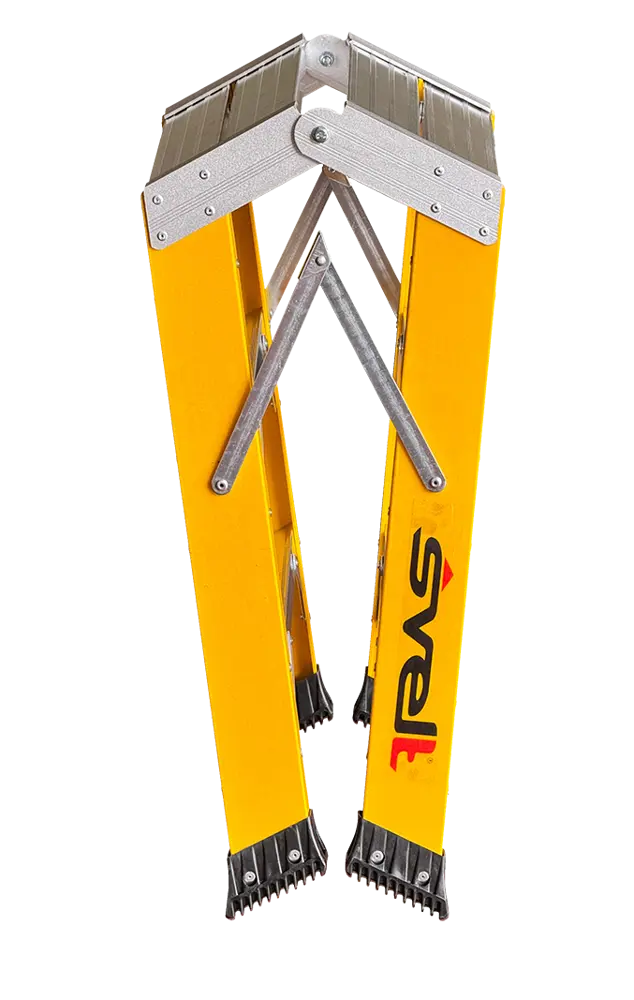

The C-shaped uprights with a section of 82 x 27 mm contribute to the rigidity of the structure. The ladder is also equipped with rigid anti-opening and anti-closing galvanized steel bars, designed to keep the structure correctly positioned during use.

The oversized ergonomic pads in non-slip PVC improve adherence to the floor and contribute to the stability of the equipment.

Reinforcements and construction details

To increase the strength of the climbing system, there are reinforcement bars on the steps, which contribute to the strength of the structure and the stability of the support.

Each element of the ladder is designed taking into account the typical needs of professional use, from the solidity of the connection between steps and uprights to stability on the ground.

The supply also includes identification labels and a use and maintenance manual, which are essential for knowing the correct methods of use and storage of the equipment.

EN 131 certification and compliance with regulations

Punto Plus Fibra is certified according to the European standards EN 131.

The stool can also be made in configurations that comply with the requirements of Legislative Decree 81/2008, depending on the specific configuration and intended use.

Regulatory compliance and certification are important elements when choosing a professional fiberglass ladder, especially when the equipment is used in work contexts.

Technical features

• Professional double ascent ladder;
• fiberglass uprights;
• steps in extruded non-slip ribbed aluminium;
• fixing of the steps to the uprights with 8 rivets per step;
• structure designed to ensure high stability and durability of the fixing;
• distance between steps 25 cm;
• 8 cm non-slip flat steps;
• C-posts 82 x 27 mm;
• rigid galvanized steel bars anti-opening/closing;
• oversized ergonomic pads in non-slip PVC;
• reinforcement bars on the steps;
• dielectric characteristics of fiberglass uprights;
• suitable for operators who work near sources of electricity;
• values indicated for low-voltage power lines: 1000 V AC / 1500 V DC;
• certification according to EN 131;
• possibility of construction according to the requirements of Legislative Decree 81/2008;
• identification labels;
• use and maintenance manual;
• shrink wrapping with poster.

Professional fiberglass ladder for electricians and maintenance technicians

Thanks to the fiberglass uprights, the ribbed aluminum steps and the fixing system with 8 rivets per step, Punto Large Plus Fibra is a professional solution for those looking for a fiberglass double climbing ladder, sturdy and designed for use in environments where it is necessary to operate near systems and sources of electricity.

The combination of electrical insulation of the uprights, non-slip steps, reinforced structure, anti-opening systems and EN 131 certification makes this ladder particularly suitable for the needs of electricians, installers, maintenance technicians and professionals who need reliable equipment for daily interventions.

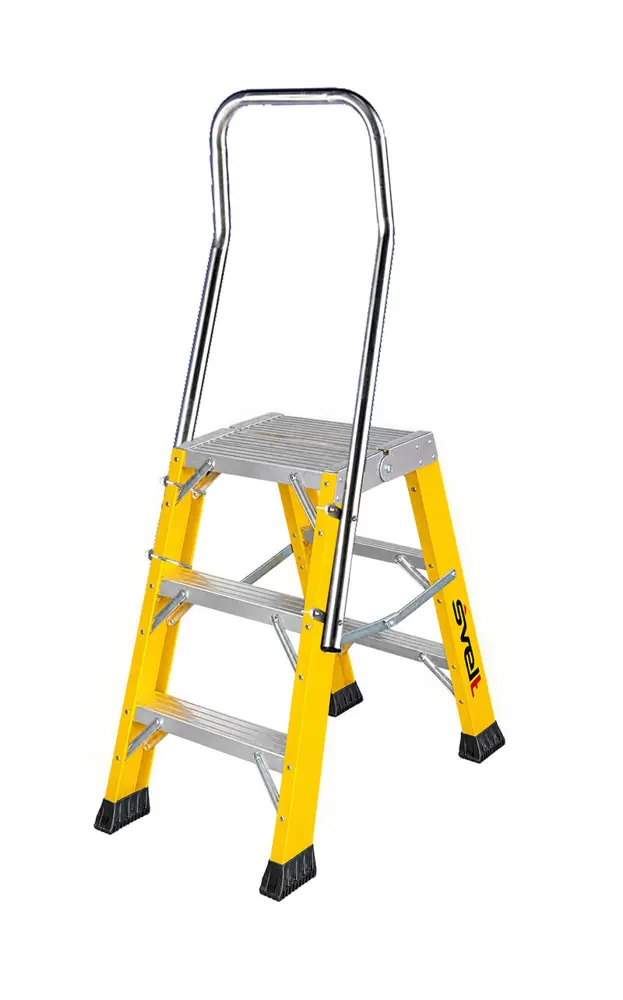

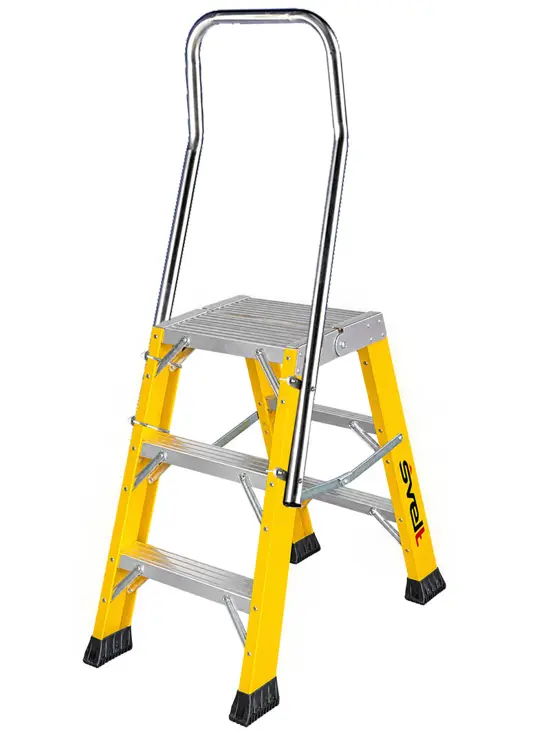

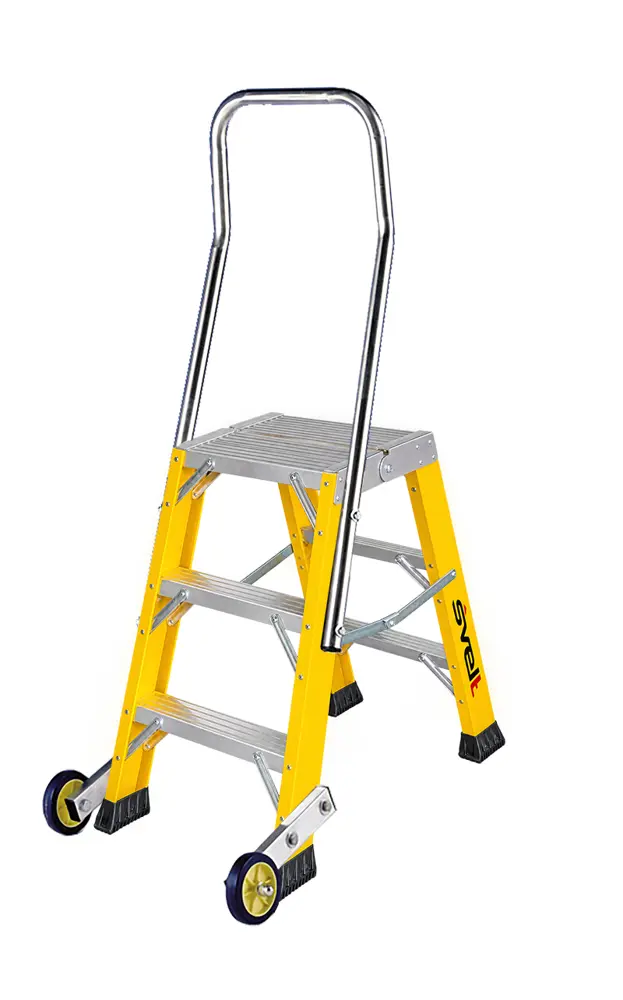

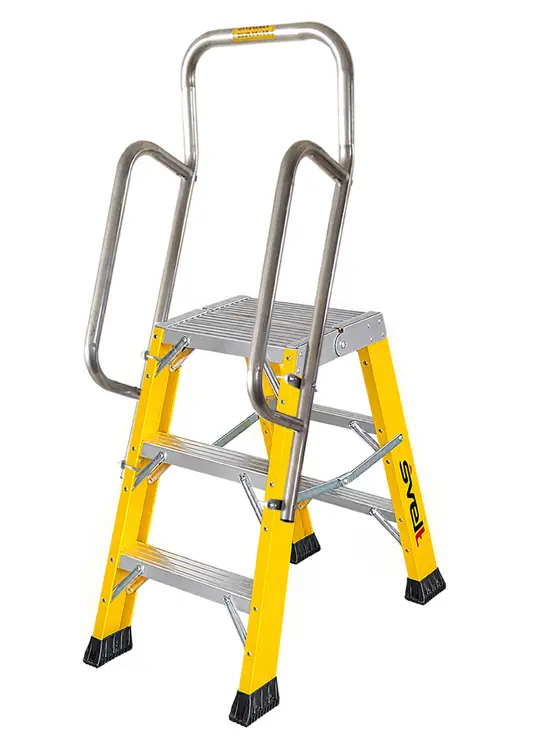

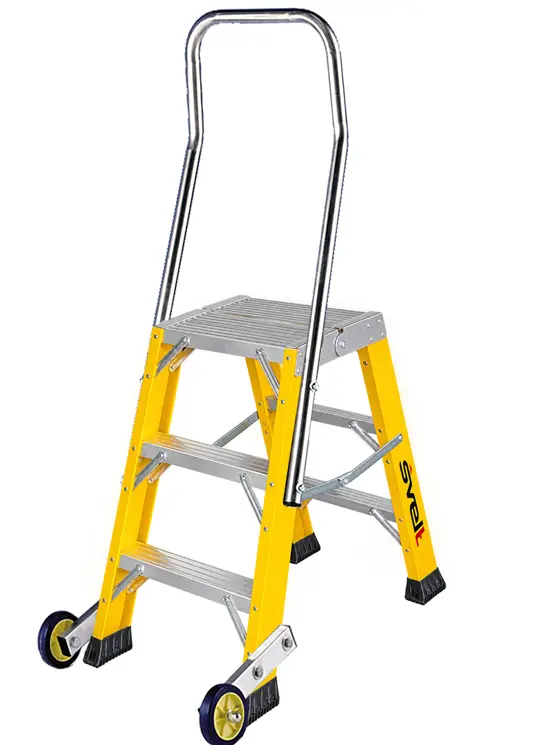

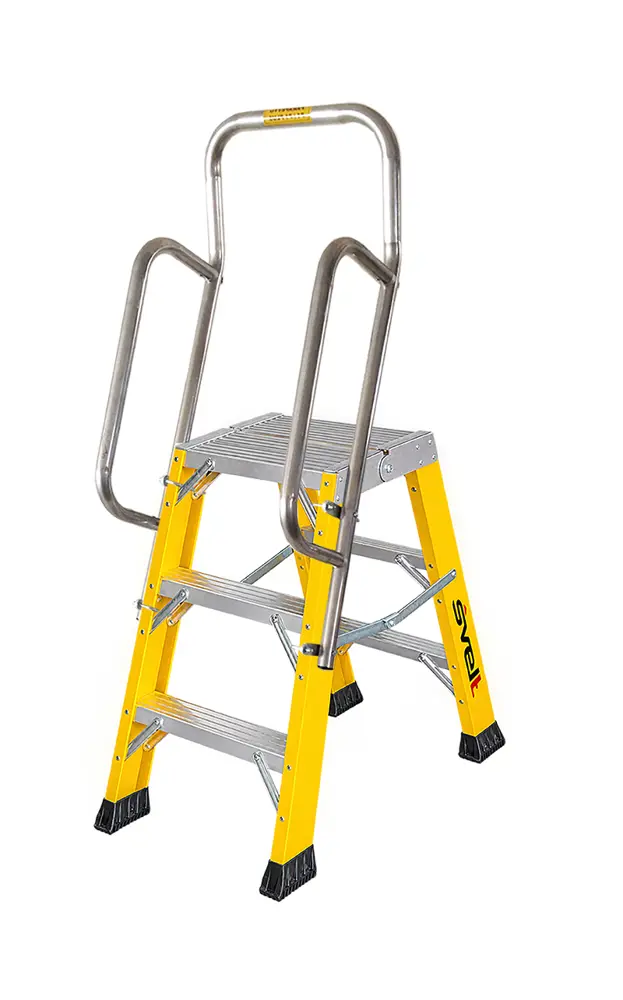

• These exceptional accessories allow for comfortable and safe professional use.
