Punto Large Plus FIBRA

Punto Large Plus Fibra is a professional double climb ladder with fiberglass uprights and non-slip ribbed extruded aluminum steps, designed to offer strength, stability and electrical insulation during professional activities.

The particular combination of fiberglass uprights and aluminum steps makes this ladder particularly suitable for operators who have to work near electrical systems, cables, sockets and other sources of electricity, where it is necessary to use equipment with dielectric characteristics.

Punto Large Plus Fibra is a professional solution designed for electricians, maintenance technicians, installers and operators who carry out work in environments where there may be a risk related to proximity to electrical sources.

Professional fiberglass ladder with aluminum steps

The uprights are made of fiberglass, a material used for its electrical insulation properties, while the steps are made of ribbed extruded aluminum with a non-slip surface.

The structure is designed for professional use and the steps are fixed to the uprights using 8 rivets for each step. The large number of fastening points helps to create a stable and durable connection between steps and posts.

This construction solution has also been designed to limit the phenomenon of oscillation of the steps that can occur over time in stairs subjected to frequent use when the fastening has a lower number of riveting points.

The result is a ladder designed to maintain rigidity, stability and structural solidity over time, characteristics that are particularly important in professional use.

Dielectric ladder for work near electrical installations

One of the distinctive elements of Punto Large Plus Fibra is the use of fiberglass for the uprights, which makes the ladder particularly suitable for activities carried out near possible sources of electricity.

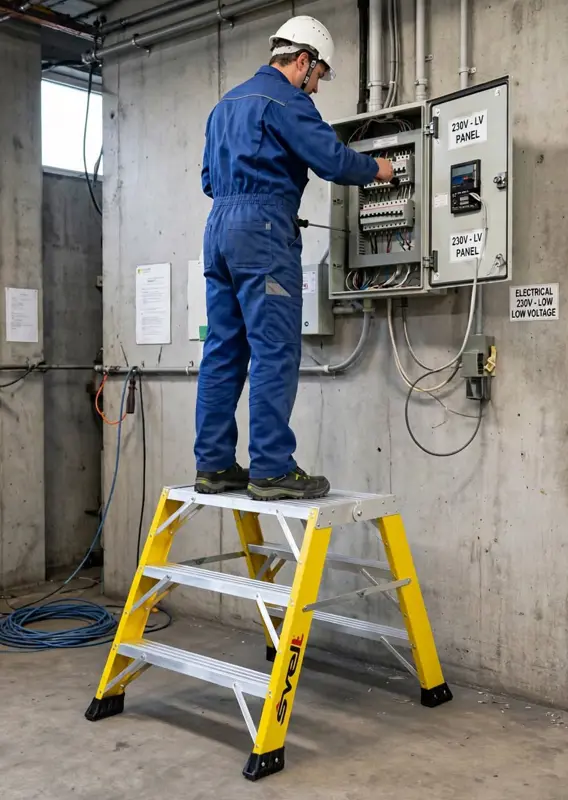

It is suitable for operators who may find themselves working near electrical cables, sockets, switchboards, systems and power lines, depending on the conditions and limits provided for the product.

The ladder is intended in particular for work on low-voltage power lines, with reference to the indicated values of 1000 V in alternating current and 1500 V in direct current.

It is important to distinguish the dielectric property of the material from the overall safety of the activity: the choice and use of the ladder must always be made according to the operating conditions, safety procedures and regulations applicable to electrical work.

Double ascent for professional use

The double climb configuration allows the ladder to be used from both sides, offering greater versatility in maintenance, installation and intervention activities.

The flat non-slip 8 cm steps ensure a large and stable support surface for the foot, while the distance of 25 cm between the steps makes it easy to get on and off.

The C-shaped uprights with a section of 82 x 27 mm contribute to the rigidity of the structure. The ladder is also equipped with rigid anti-opening and anti-closing galvanized steel bars, designed to keep the structure correctly positioned during use.

The oversized ergonomic pads in non-slip PVC improve adherence to the floor and contribute to the stability of the equipment.

Reinforcements and construction details

To increase the strength of the climbing system, there are reinforcement bars on the steps, which contribute to the strength of the structure and the stability of the support.

Each element of the ladder is designed taking into account the typical needs of professional use, from the solidity of the connection between steps and uprights to stability on the ground.

The supply also includes identification labels and a use and maintenance manual, which are essential for knowing the correct methods of use and storage of the equipment.

EN 131 certification and compliance with regulations

Punto Large Plus Fibra is certified according to the European standards EN 131 by TÜV.

The stool can also be made in configurations that comply with the requirements of Legislative Decree 81/2008, depending on the specific configuration and intended use.

Regulatory compliance and certification are important elements when choosing a professional fiberglass ladder, especially when the equipment is used in work contexts.

Technical features

• Professional double ascent ladder;
• fiberglass uprights;
• steps in extruded non-slip ribbed aluminium;
• fixing of the steps to the uprights with 8 rivets per step;
• structure designed to ensure high stability and durability of the fixing;
• distance between steps 25 cm;
• 8 cm non-slip flat steps;
• C-posts 82 x 27 mm;
• rigid galvanized steel bars anti-opening/closing;
• oversized ergonomic pads in non-slip PVC;
• reinforcement bars on the steps;
• dielectric characteristics of fiberglass uprights;
• suitable for operators who work near sources of electricity;
• values indicated for low-voltage power lines: 1000 V AC / 1500 V DC;
• certification according to EN 131 TÜV;
• possibility of construction according to the requirements of Legislative Decree 81/2008;
• identification labels;
• use and maintenance manual;
• shrink wrapping with poster.

Professional fiberglass ladder for electricians and maintenance technicians

Thanks to the fiberglass uprights, the ribbed aluminum steps and the fixing system with 8 rivets per step, Punto Large Plus Fibra is a professional solution for those looking for a fiberglass double climbing ladder, sturdy and designed for use in environments where it is necessary to operate near systems and sources of electricity.

The combination of electrical insulation of the uprights, non-slip steps, reinforced structure, anti-opening systems and EN 131 certification makes this ladder particularly suitable for the needs of electricians, installers, maintenance technicians and professionals who need reliable equipment for daily interventions.





TECHNICAL FEATURES

Cod.	Steps no.	Closed height m	Platform height m	Base width m	Weight Kg	Working height m
SPUNTOLPV2	2	0,52	0,45	80	6,1	2,45
SPUNTOLPV3	3	0,77	0,69	82	7,8	2,69
SPUNTOLPV4	4	1,02	0,92	84	9,6	2,92



 Optional accessories Punto Large Plus Fibra series

• These exceptional accessories allow for comfortable and safe professional use.

• All these accessories are supplied in assembly kits.

• The stairs do not need to be prepared with holes as they are mounted with screws and nuts without drilling the profile of the staircase.





ACCESSORIES LIST

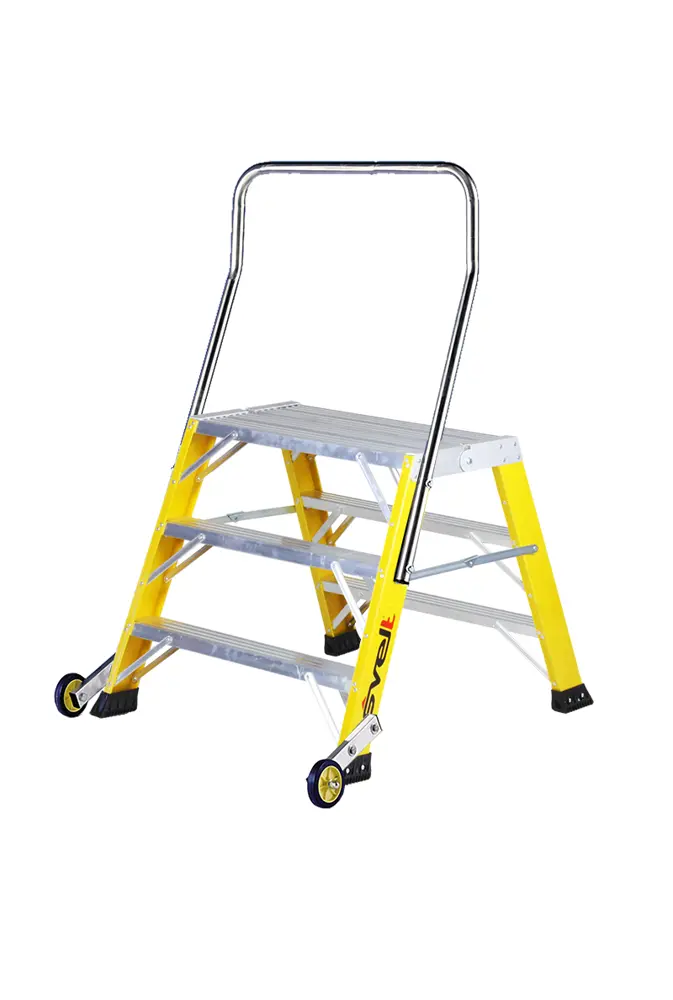

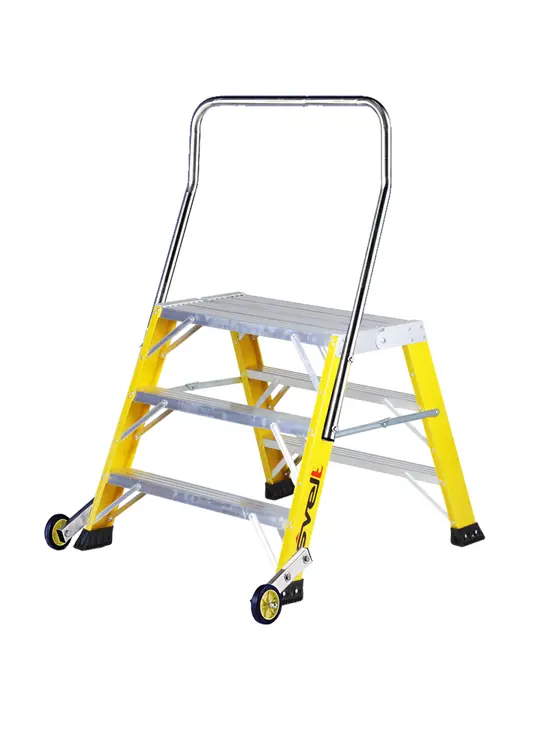

•  2 casters kit
• Together with the railing with handrails (excluded) they allow even the heaviest stairs to be moved quickly so as to save time and effort.

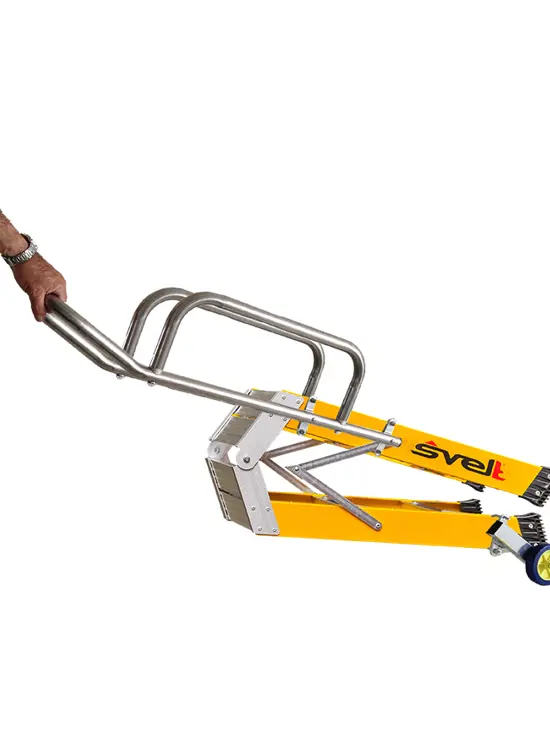

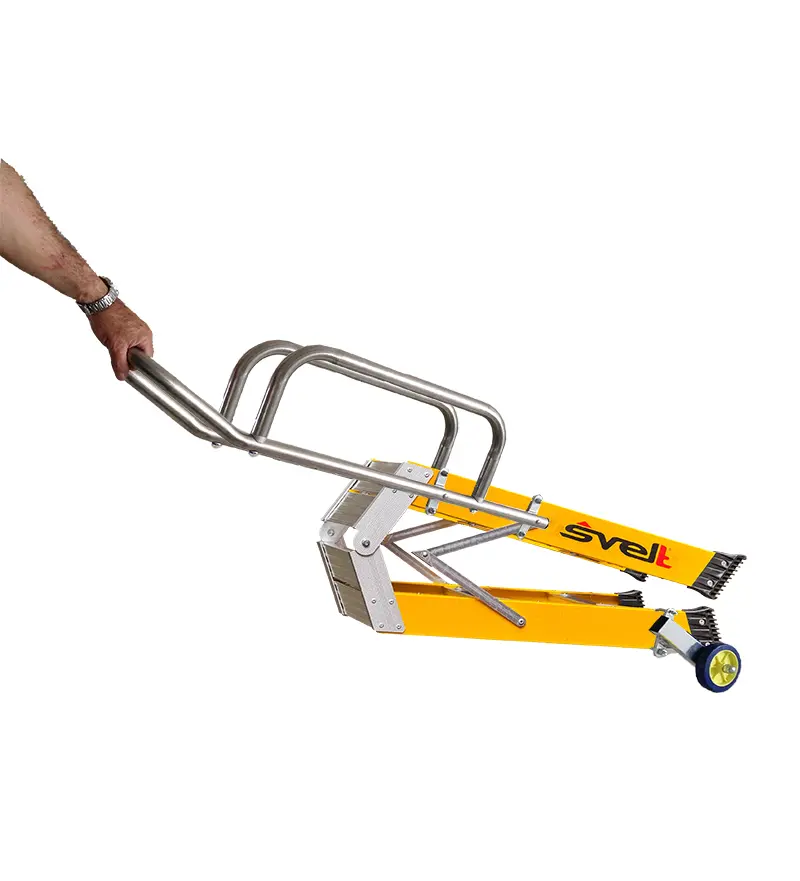

• The ladder can still be moved when open by lifting it from one side only



Code	m	For models only Punto Large Plus Fiber/Punto Plus Fiber	Photos
SPPLUS09/2	1,0

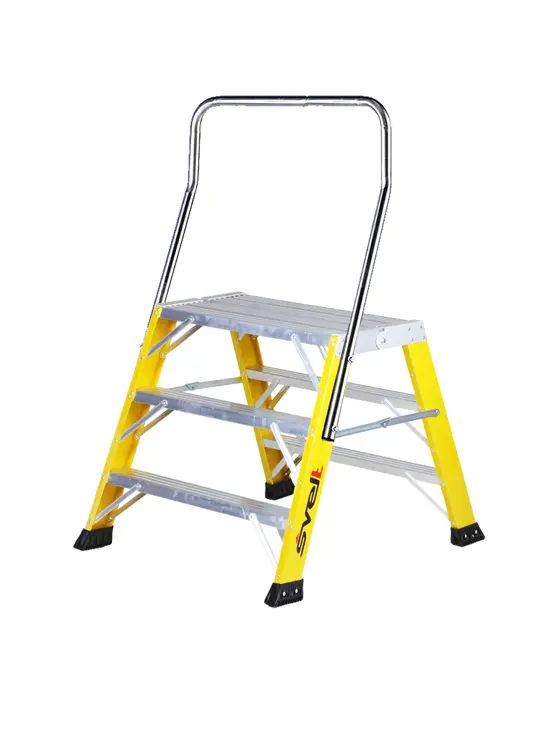

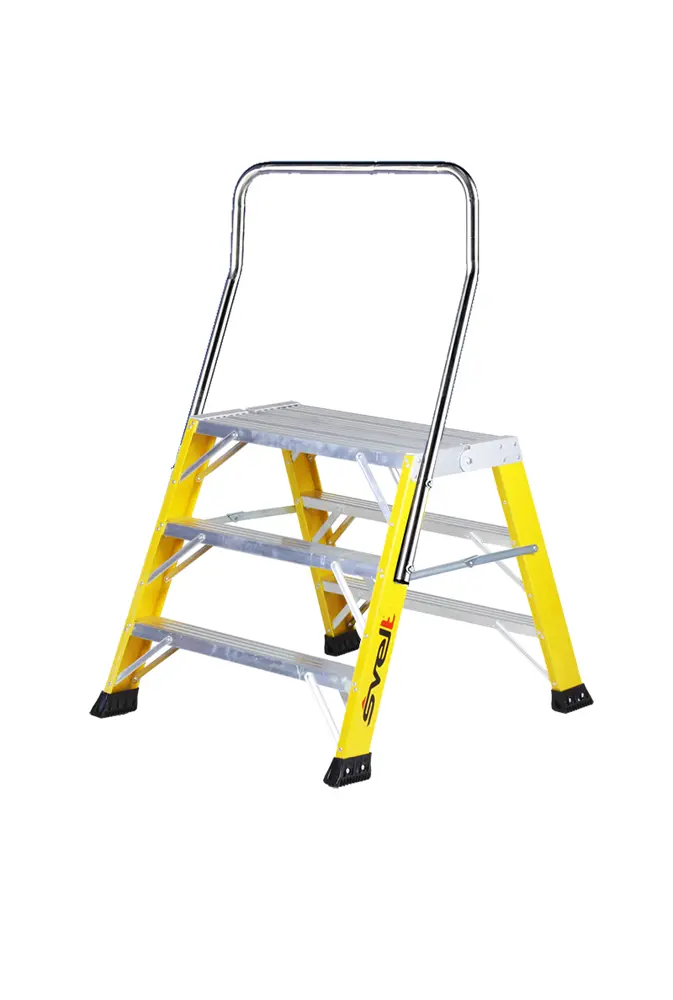

• Body guard without handrails
• Allows a secure grip when working at the top of the ladder



Code	m	For models only Punto Large Plus Fiber 3 & 4 steps	Photos
SPPLUS08	1,0

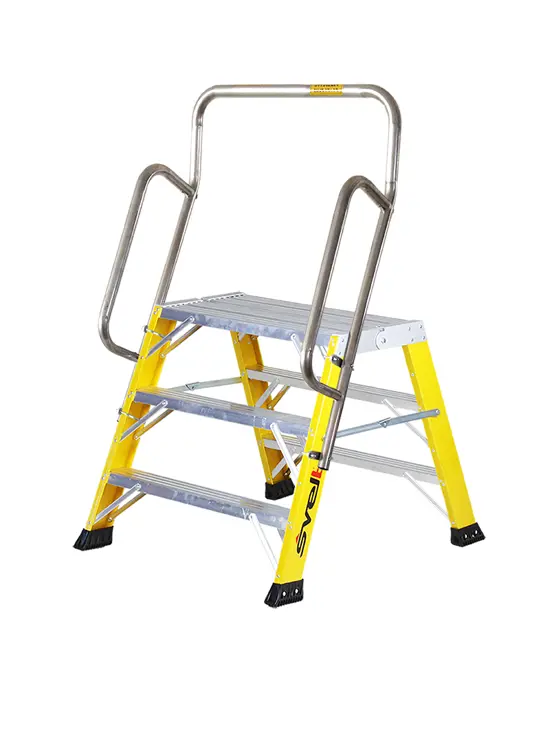

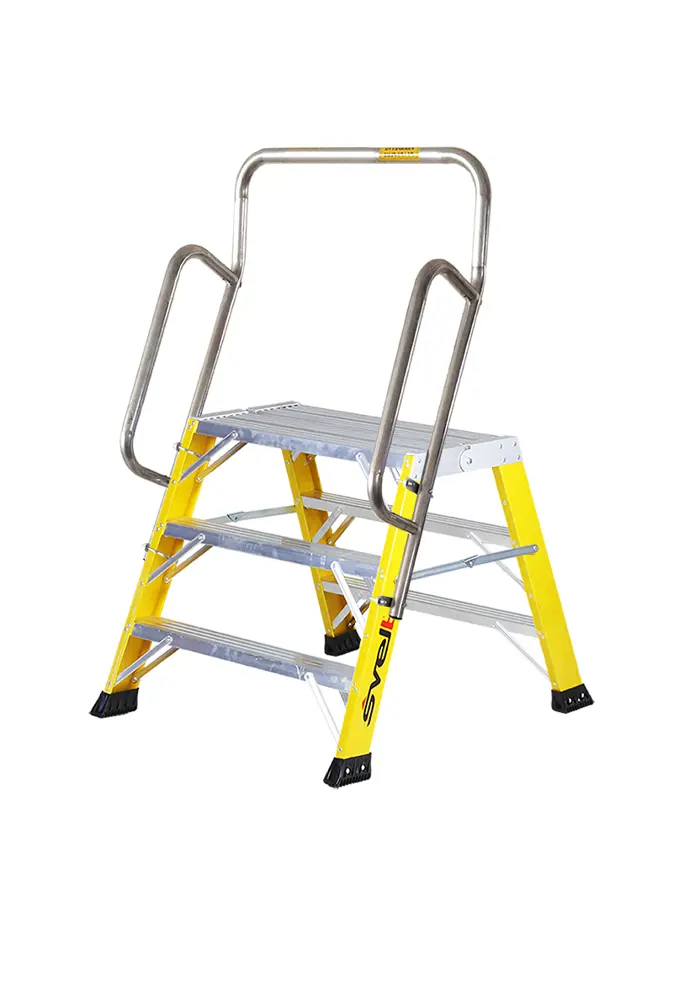

• Combined bodyguard with 2 handrails.
• Ideal accessory for taking advantage of the ladders up to the platform.
• It provides a good footing and a feeling of safety and comfort that increases productivity.



Code	m	For models only Punto Large Plus Fiber 3 & 4 steps	Photos
SPPLUS08/C	0,6

P1/P2/P3 SERIES REPLACEMENT FEET - DOT



Code	DESCRIPTION	MODEL	PACKAGING	Photos
CONF2090	Replacement Feet Kit	All P1, P2, P3 and Punto series models	4 feet
