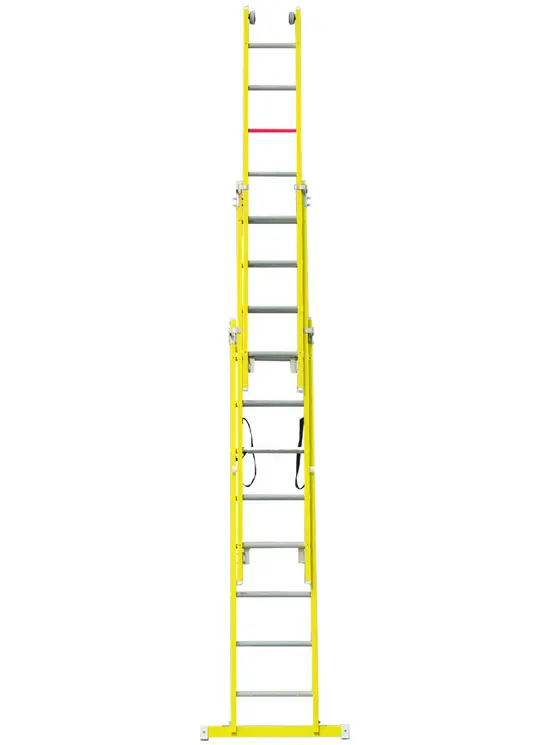

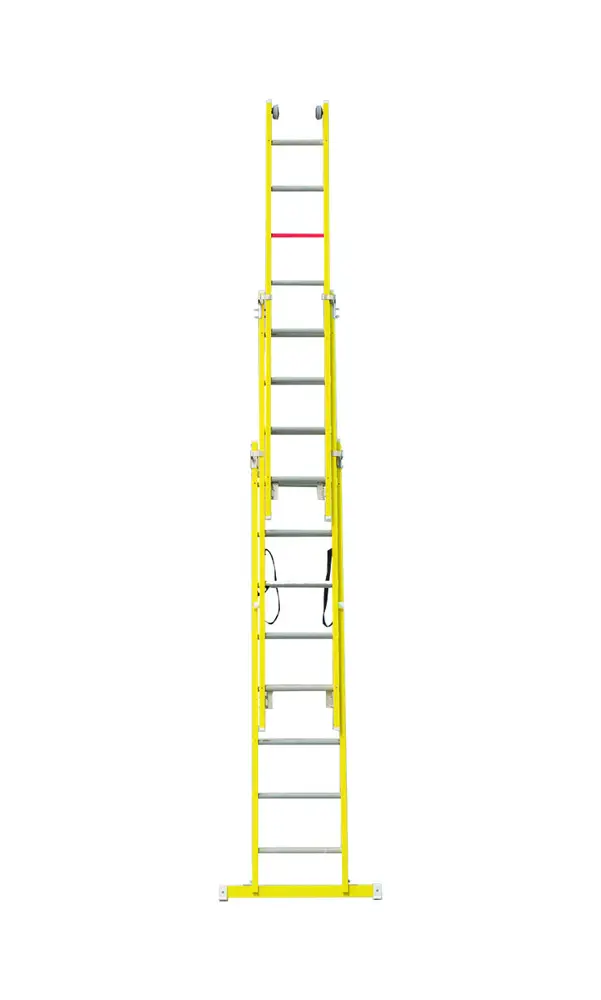

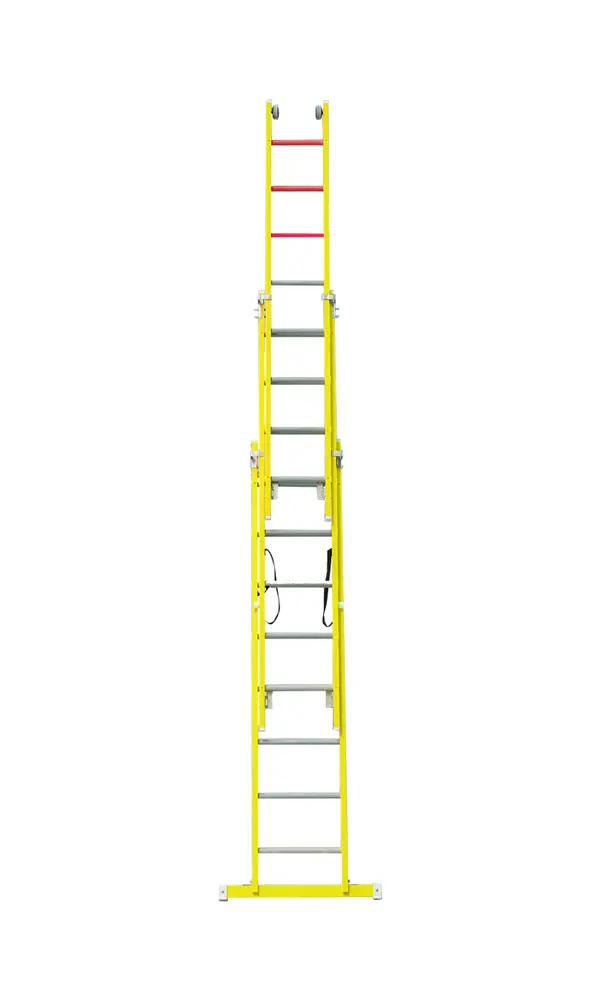

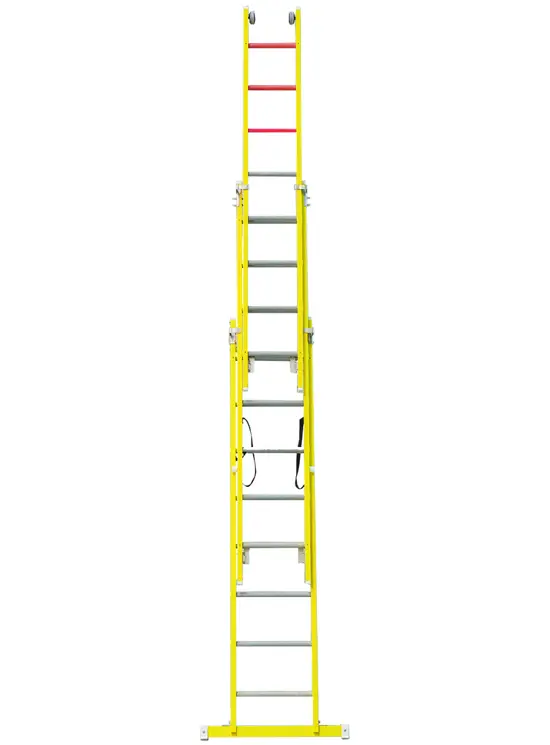

V3E 3-section ladder 100% fiberglass

Name: V3E 3-section ladder 100% fiberglass
Brand: Svelt

Max height 7.8 m

Suitable for heavy duty

3-section ladder 100% in dielectric fiberglass (uprights/rungs) for applications in electrical, food, chemical, brackish environments.

V3E is 100% FIBERGLASS (UPRIGHTS AND RUNGS)

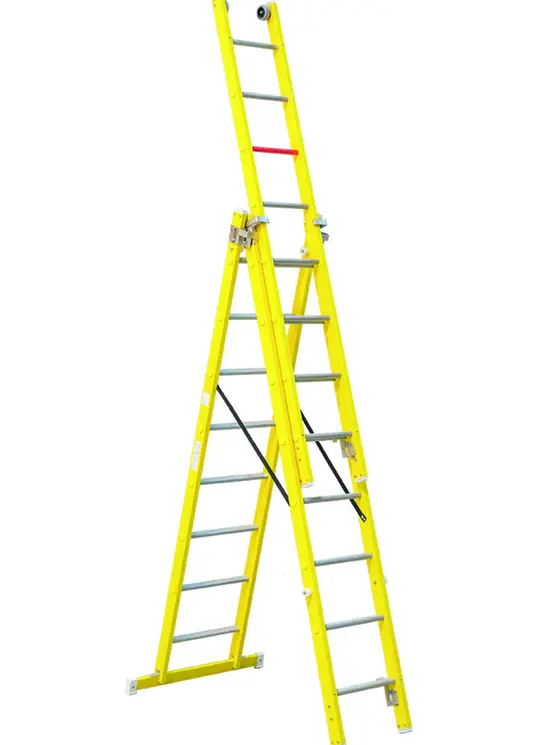

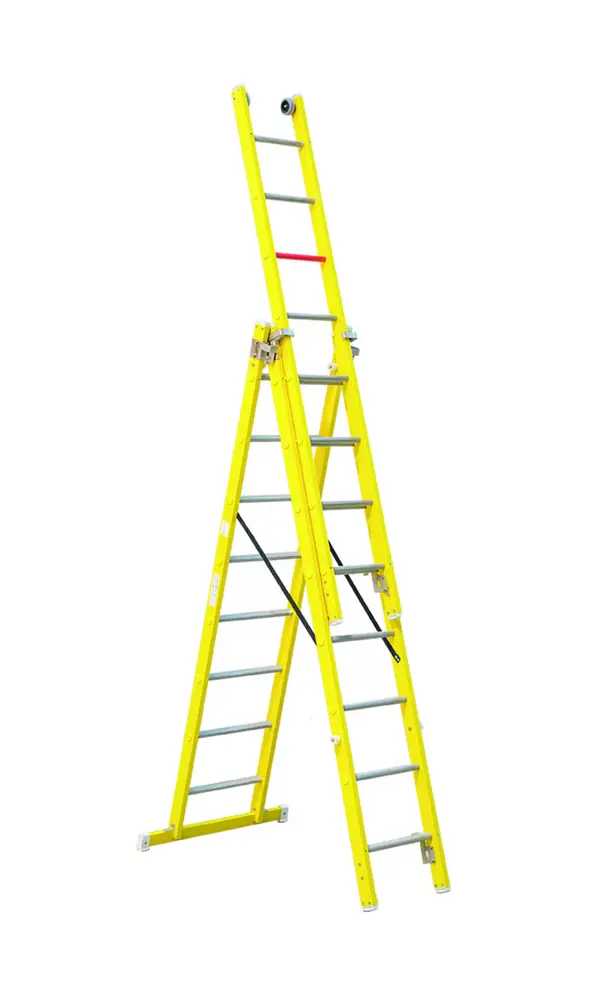

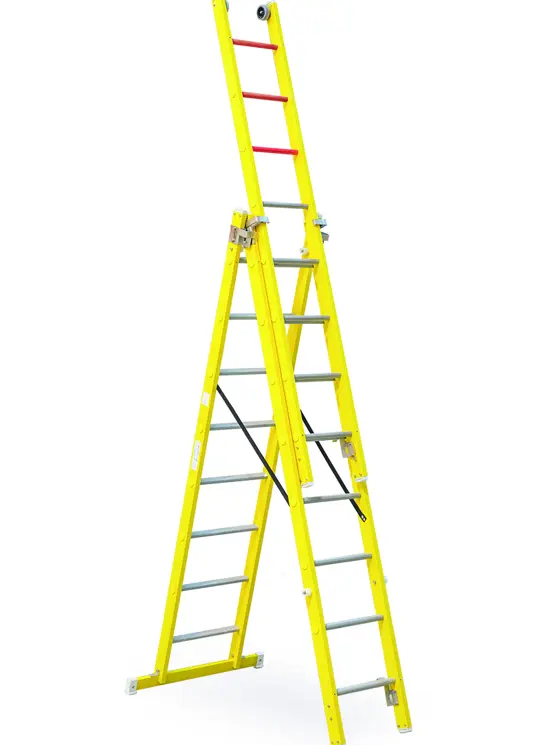

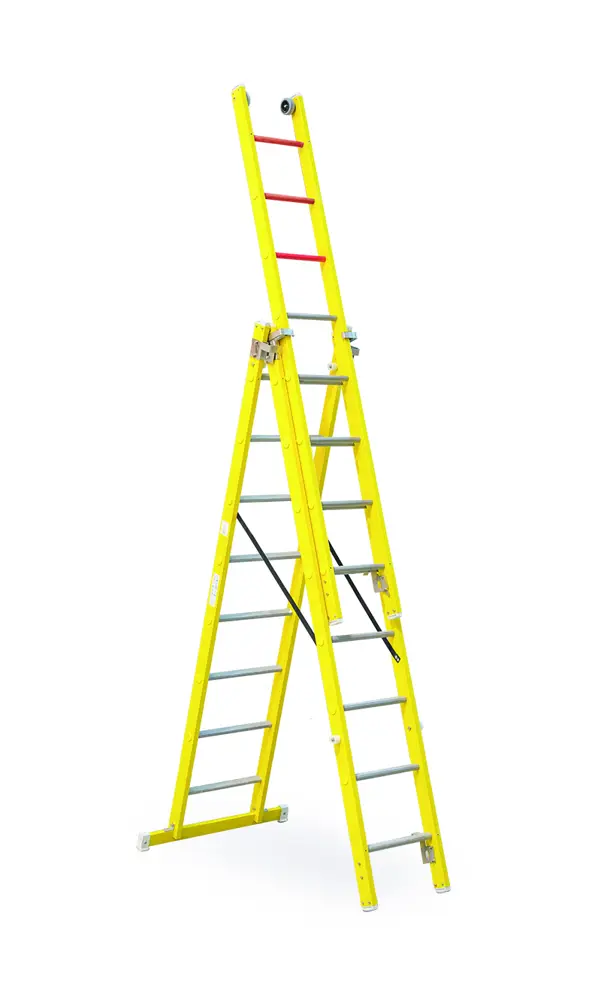

It is a series of professional ladders with 3 trunks that can be used as an extension and/or trestle, available in manual and rope versions.

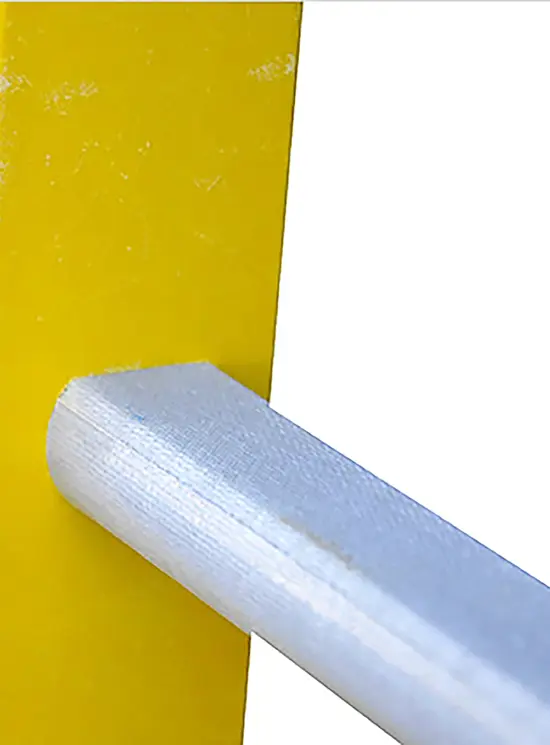

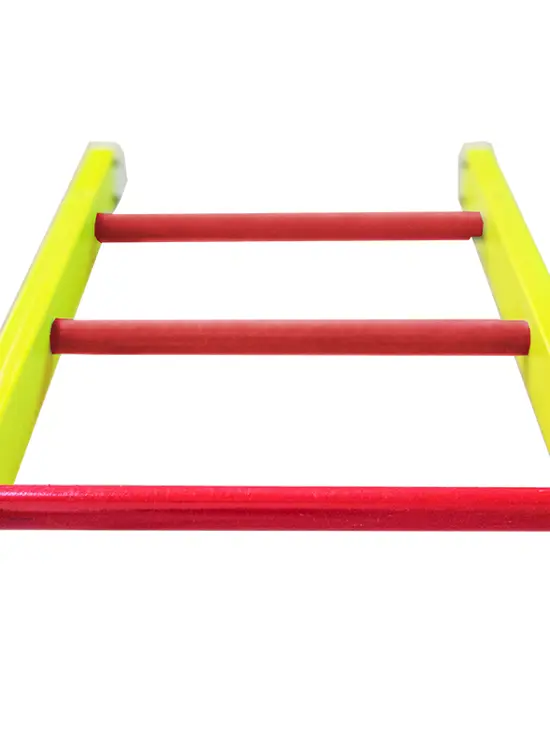

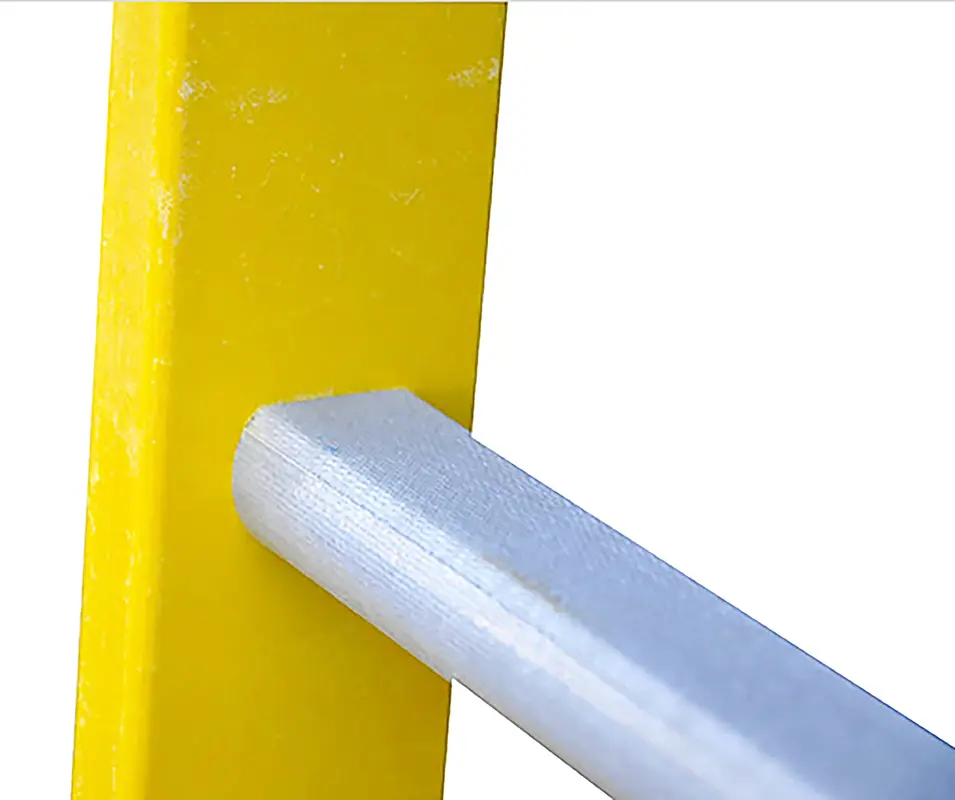

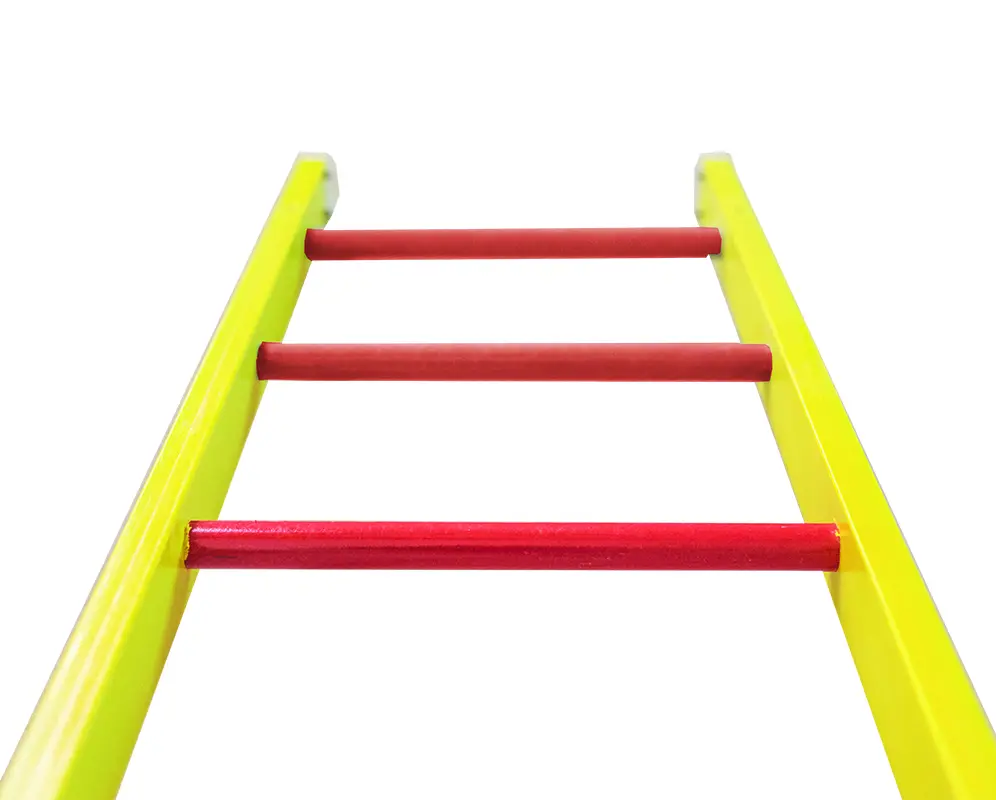

They are built with both rungs and fiberglass uprights.

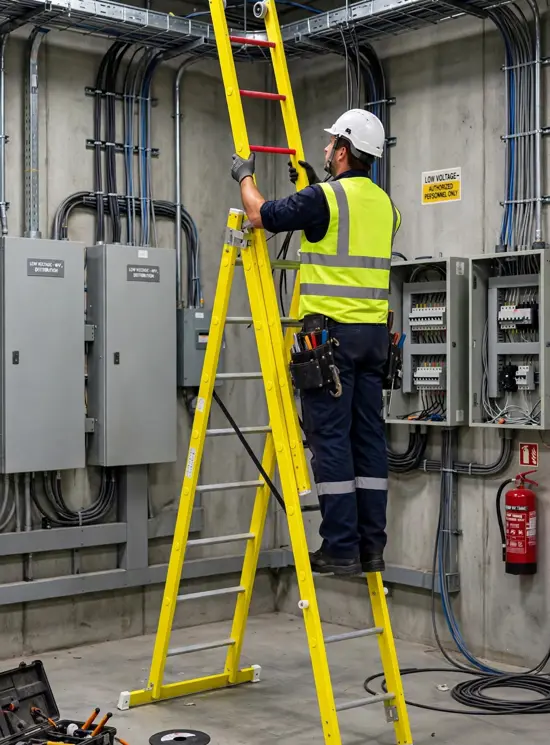

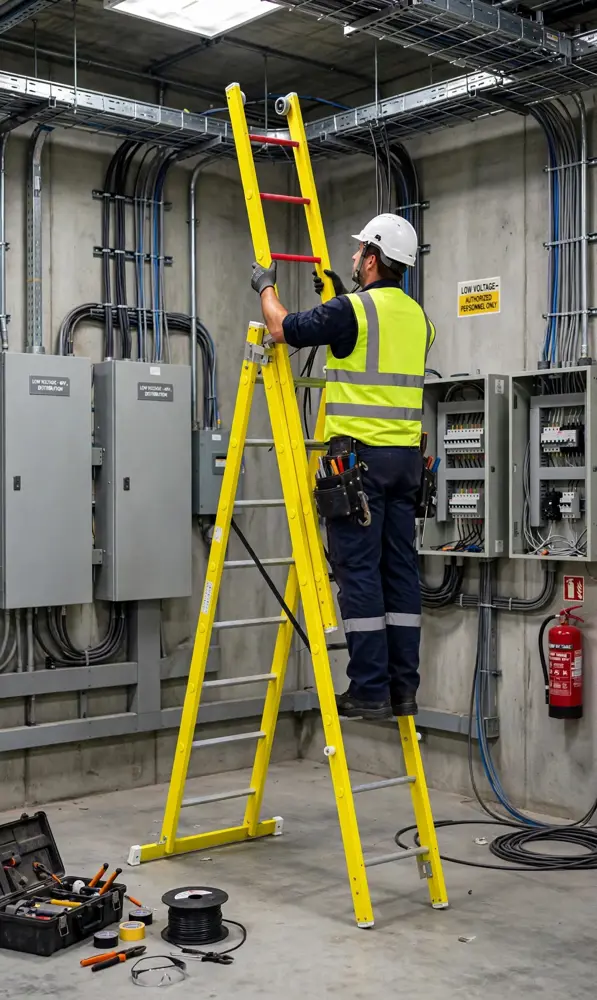

They are suitable for operators who are working near cables, sockets or other sources of electricity.

Also suitable for special uses in areas with high electrical or food or chemical hazards where aluminium cannot enter.

STANDARD EQUIPMENT

Non-slip rubber feet

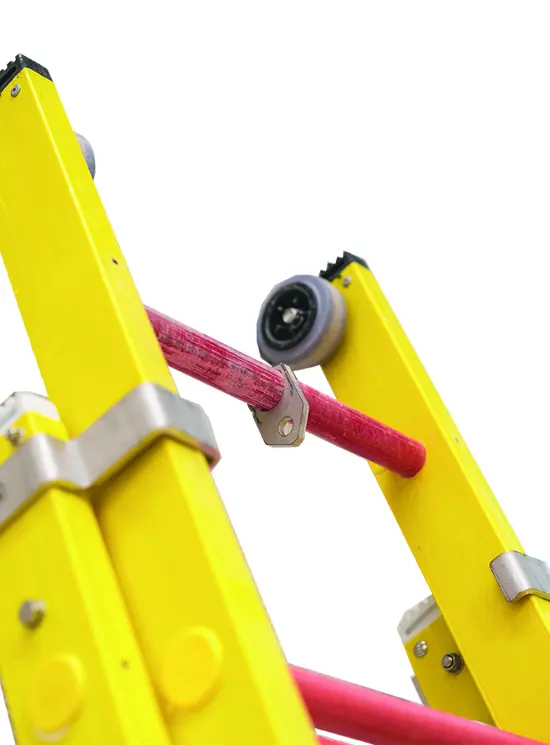

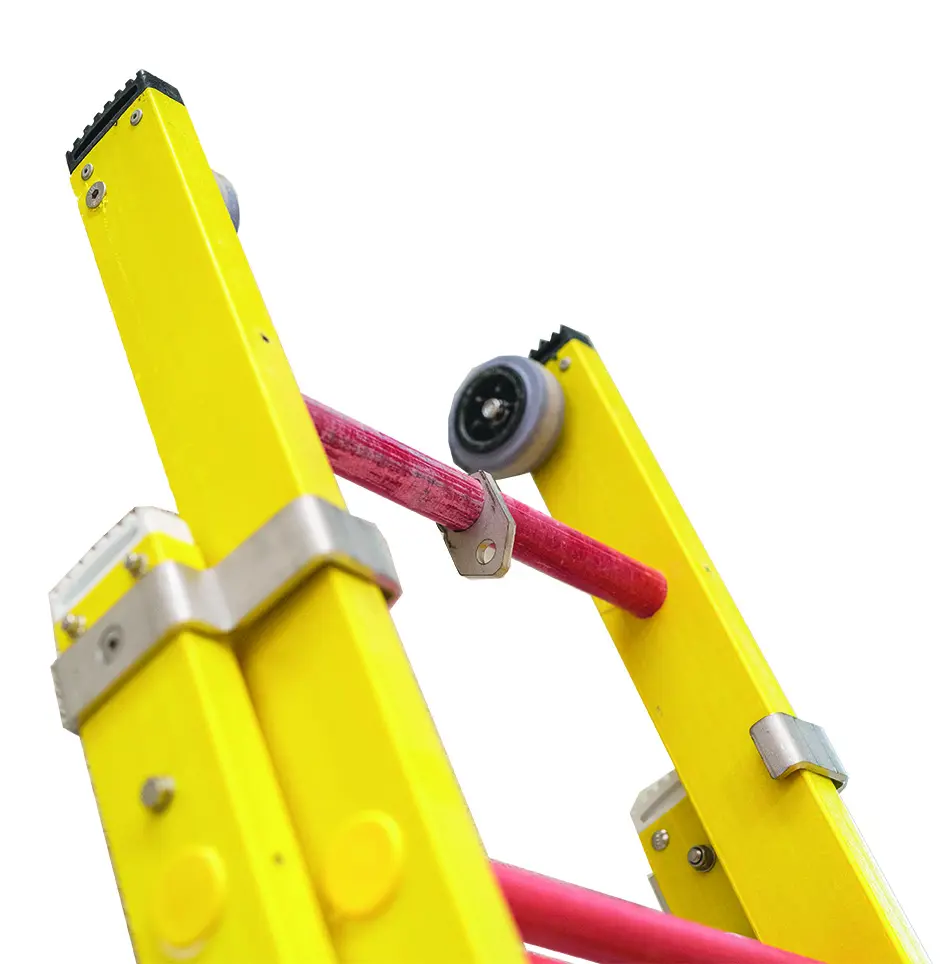

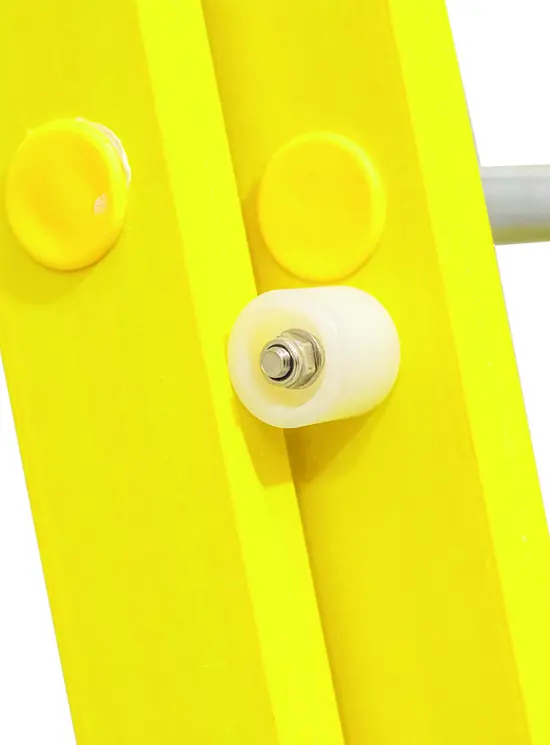

Sliding wheels on the wall
Base spreader
Operation and maintenance manual
Identification label

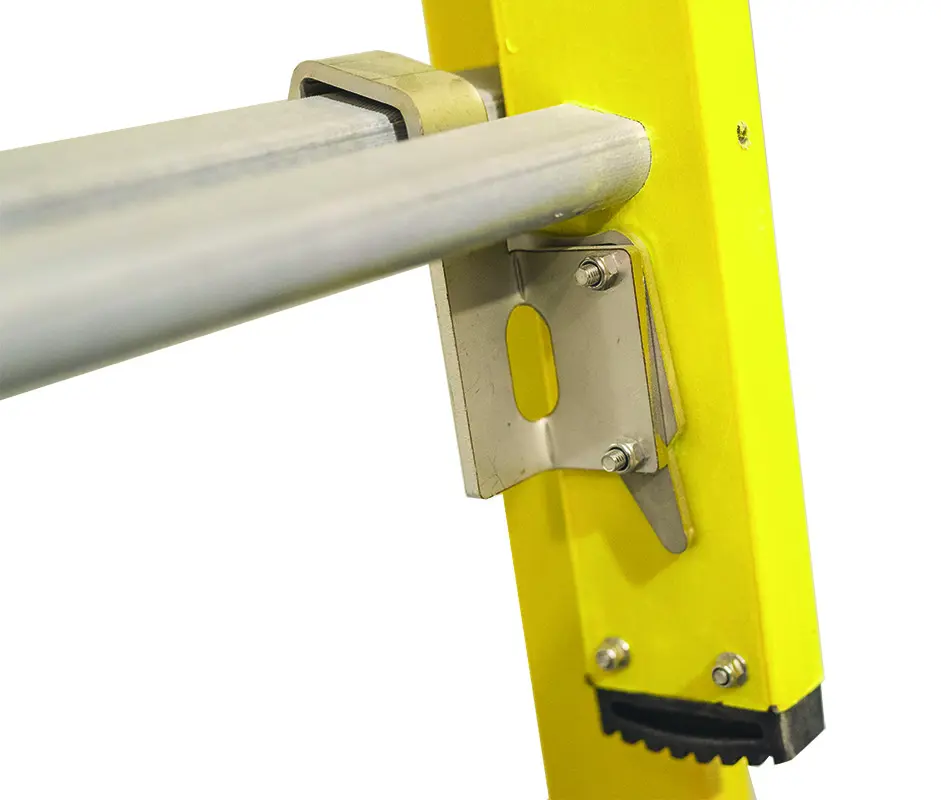

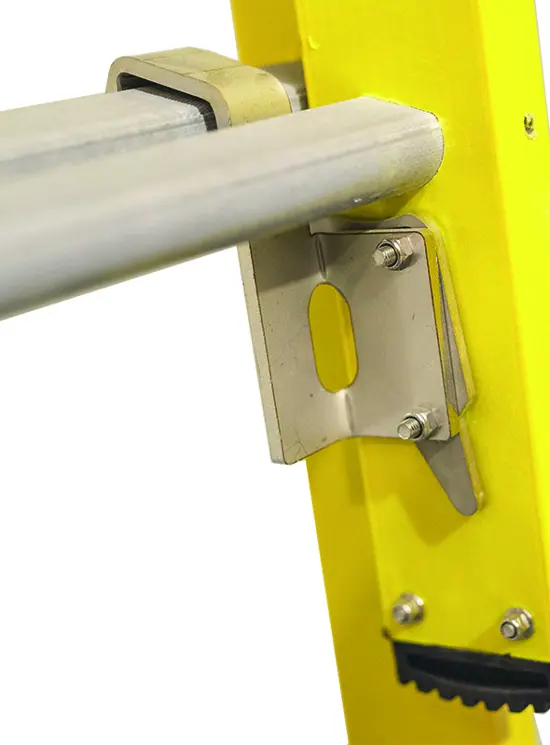

Stainless steel accessories and hinges.

SPECIFICATIONS

Model	Height	Max height	Max height	Width	Weight
Model	lock m	Easel m	wall-mounted m	Spreader mm	Kg
FTR7	2,14	3,30	4,50	790	24,5
FTR8	2,42	3,78	5,30	835	26,5
FTR9	2,70	4,40	6,16	880	28,5
FTR10	2,98	4,86	6,95	925	30,5
FTR11	3,26	5,52	7,80	970	32,5

STANDARDS

The V3FTR ladder series has been successfully tested according to the following standards:

EN 131-1: 2015 + A1:2019 + A2:2025
EN 131-2: 2010 + A1:2012 + A2:2017 + A3:2025
EN 131-3: 2018 + A1:2025

EUROPEAN STANDARD EN 61478 UP TO 30 kV:

Insulating ladder for electrical work – Tested according to EN 61478 up to 30 kV.

Designed for professional applications in the electrical industry, this insulating ladder has passed the tests required by the EN 61478 standard (Live working – Ladders of insulating material), according to the applicable requirements and test conditions up to 30 kV, as documented in the relevant test reports.

EN 61478 is specifically designed for ladders made of insulating material intended to facilitate access during work on live electrical systems.

Passing the documented tests certifies the product's verified performance under the specific test conditions.

The ladder is intended exclusively for qualified personnel trained in electrical work and must be used in compliance with safety procedures, the manufacturer's instructions, and the intended operating conditions.

Compliance with EN 61478 tests: documented by a test report.

Declared test level: up to 30 kV, within the limits and according to the methods indicated in the product's technical documentation.

The product is permitted for use only near low-voltage electrical systems.
