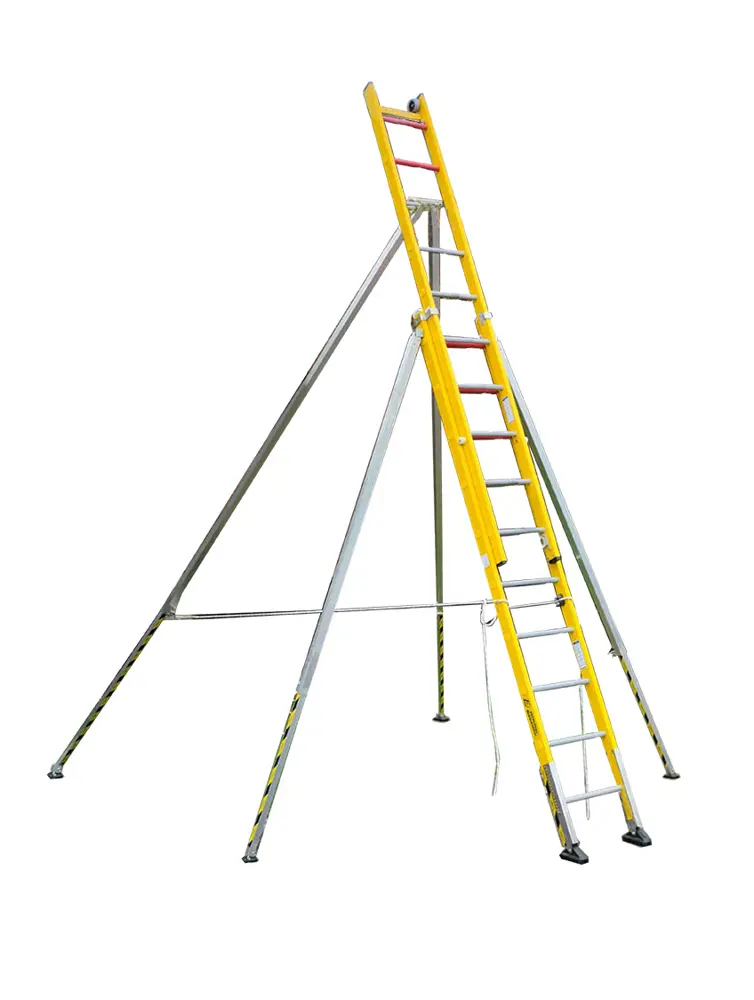

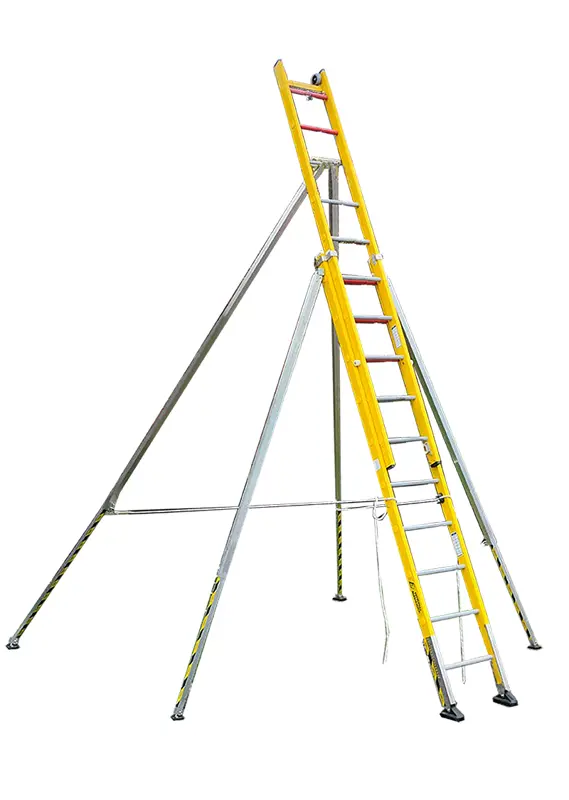

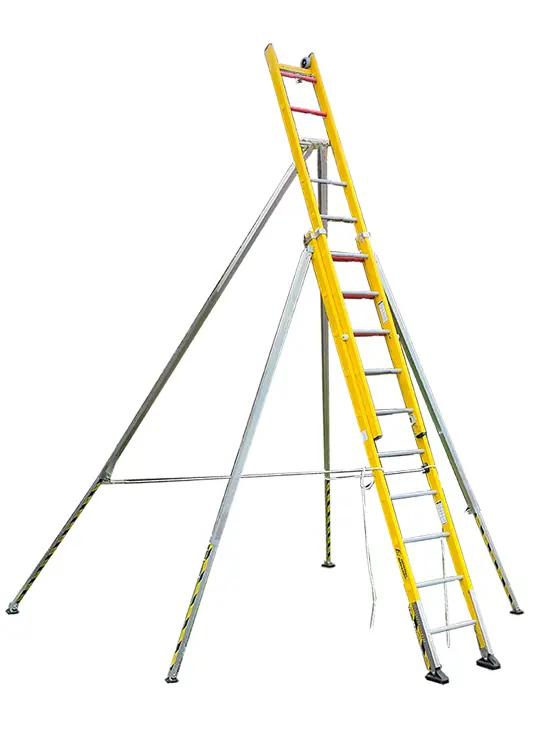

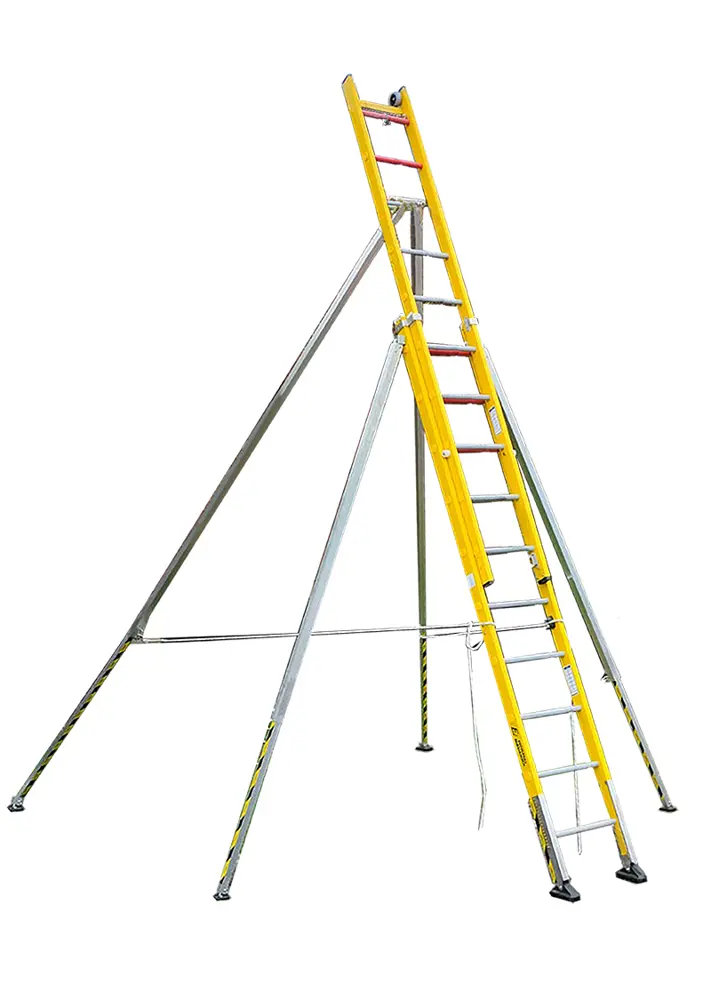

FIBRASAFE FSP (Self-Supporting)

Name: FIBRASAFE FSP (Self-Supporting)
Brand: Svelt

Max height 6 m

Suitable for heavy duty

100% insulating fiberglass workstation (uprights/rungs). Attachment point for fall arrest PPE. For use in open spaces without support with 4 stabilizers

100% FIBERGLASS WORKSTATION (UPRIGHTS AND RUNGS)

The Fibrasafe series is EN61478 Certified Workstations (tested at 100KV).

These are extension ladders in 2 fiberglass sections insulating against electrical, magnetic and thermal agents.

Made of fiberglass, it is an antimagnetic ladder resistant to moisture, acids, corrosion and ultraviolet rays.

The staircase is equipped with 2 sliding wheels at the top that allow it to slide along the façade as it is opened.

The EN795 certified hook is mounted on the reinforced rung of the ladder which allows the operator to hook his fall arrest device with a rope (PPE excluded from the supply).

The hook is securely mounted on the first rung at the top of the red colored ladder.

The red rungs visually indicate the limit at which the operator cannot stand with his feet.

The peg is specially reinforced and tested to withstand the strain resulting from the operator falling.

The FSP ladders are equipped with 4 aluminum stabilizers (fiberglass stabilizers optional on request).

Fiberglass is insulating against thermal and electrical agents.

It is also antimagnetic resistant to moisture, acids, corrosion and ultraviolet rays.

All stairs are equipped with sliding wheels.

All metal parts of the ladder are made of stainless steel which provides extra strength and does not contaminate food, chemical and pharmaceutical environments.

WORKSTATION AT HEIGHT

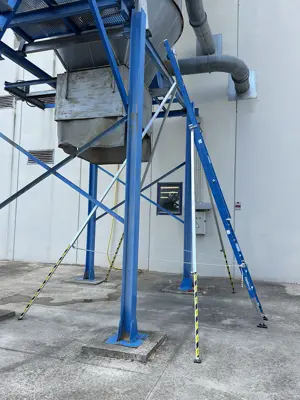

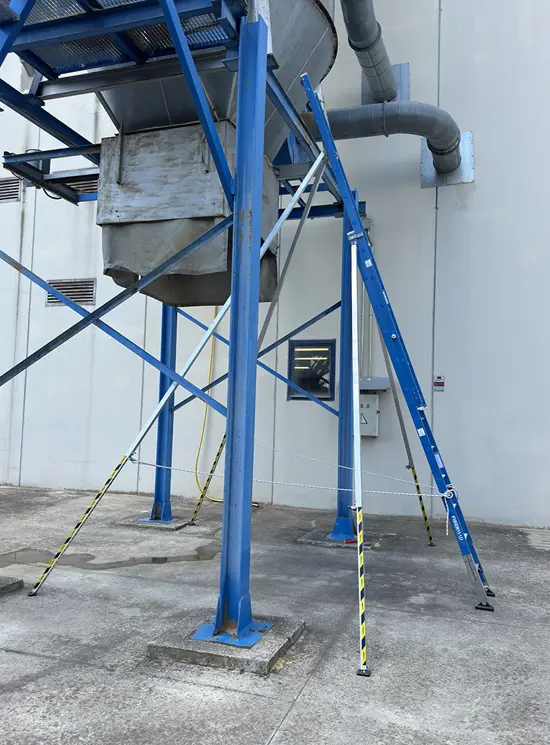

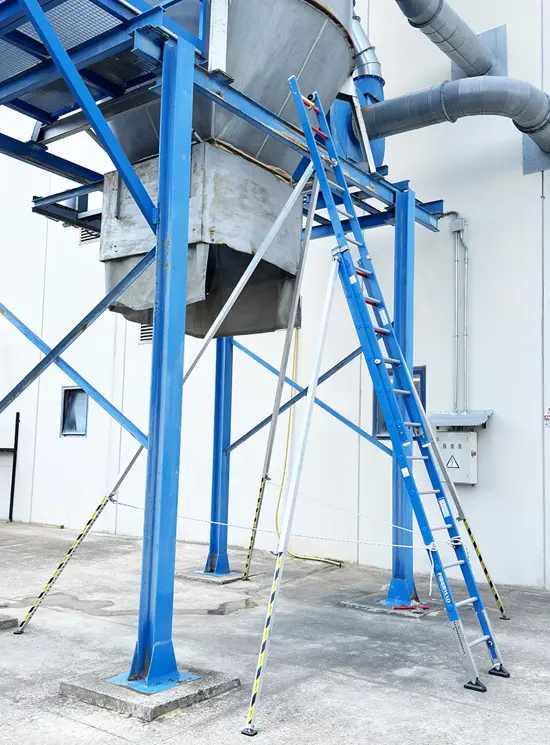

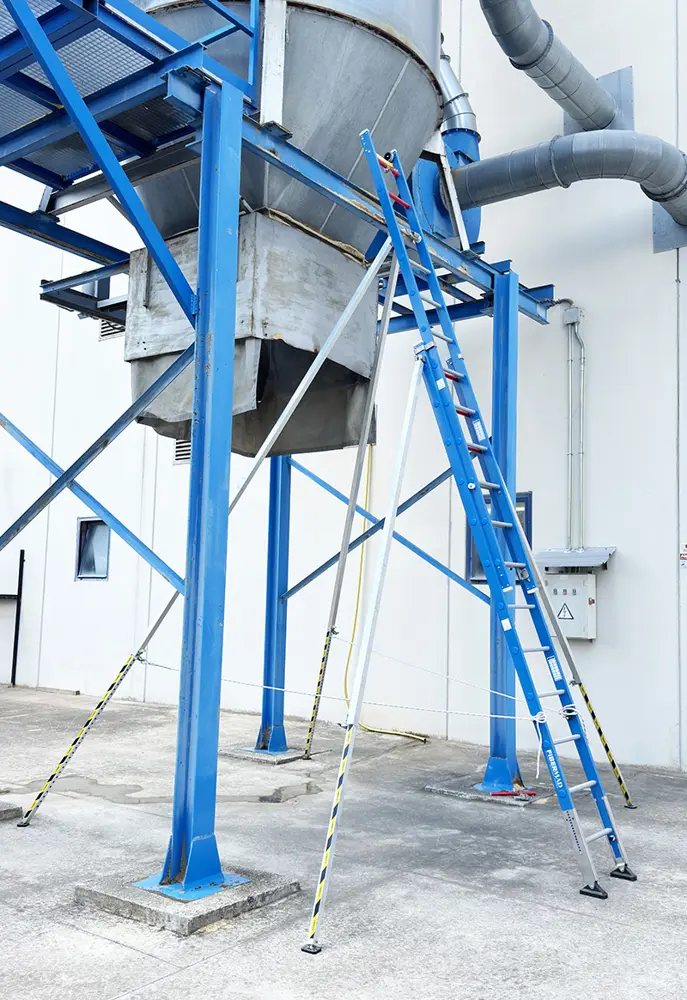

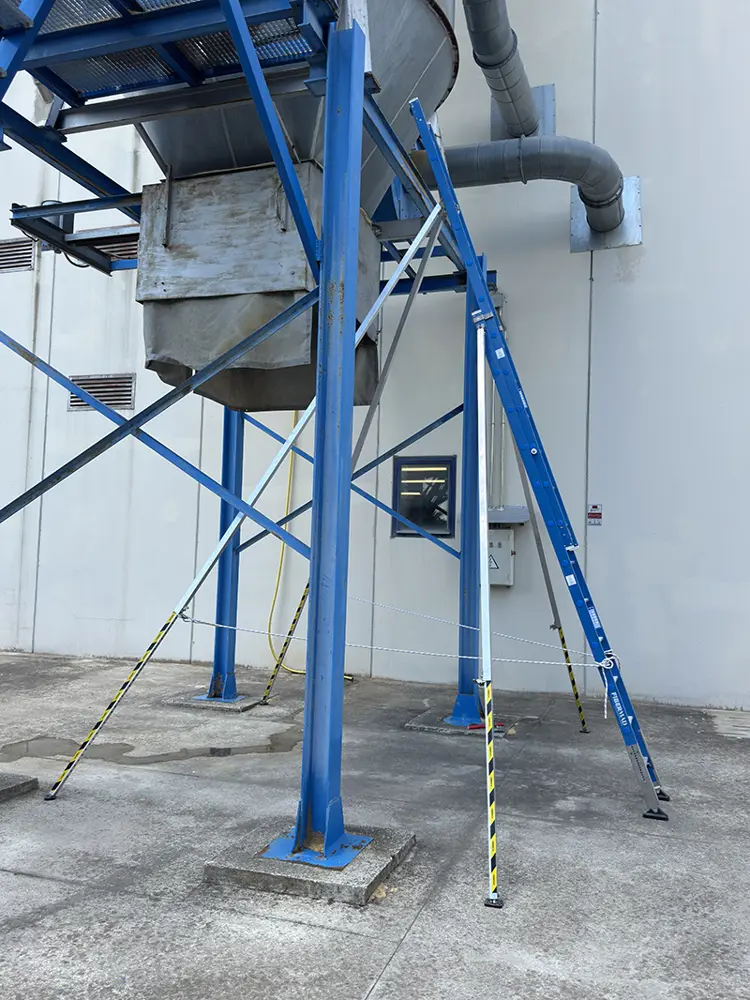

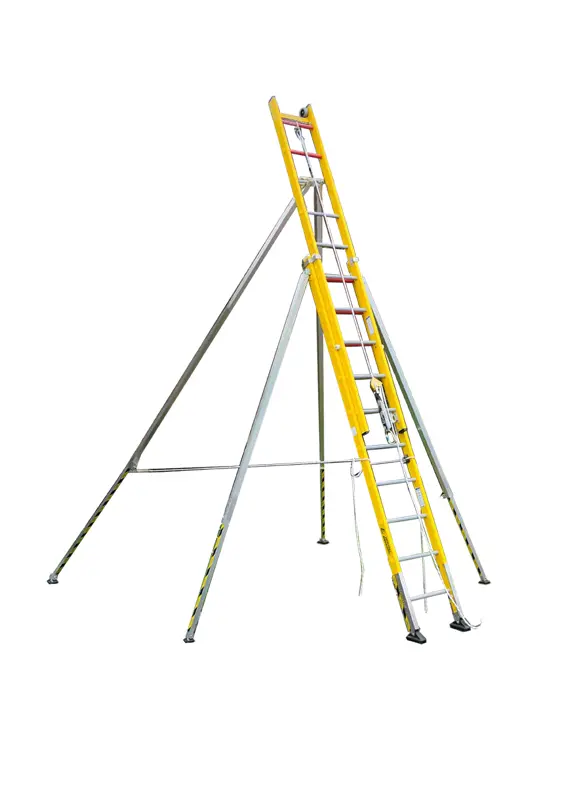

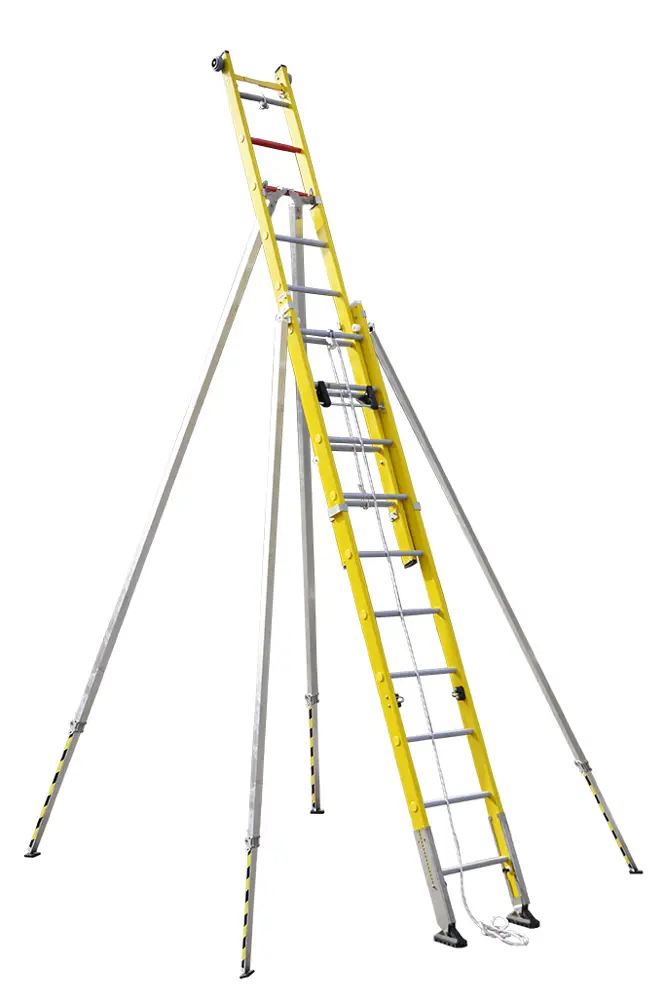

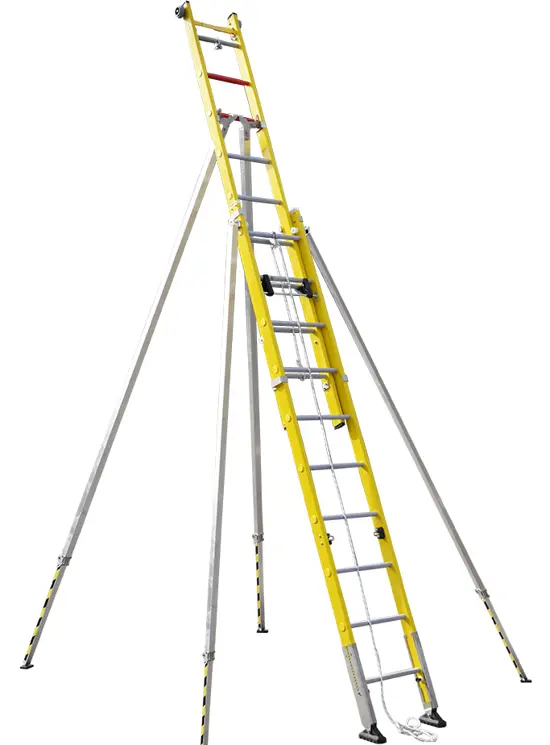

Self-supporting ladder that was created for professional work where it is not possible to place the ladder on solid poles, on a wall or on a machine.

Its self-supporting structure allows the operator to work in conditions of maximum safety.

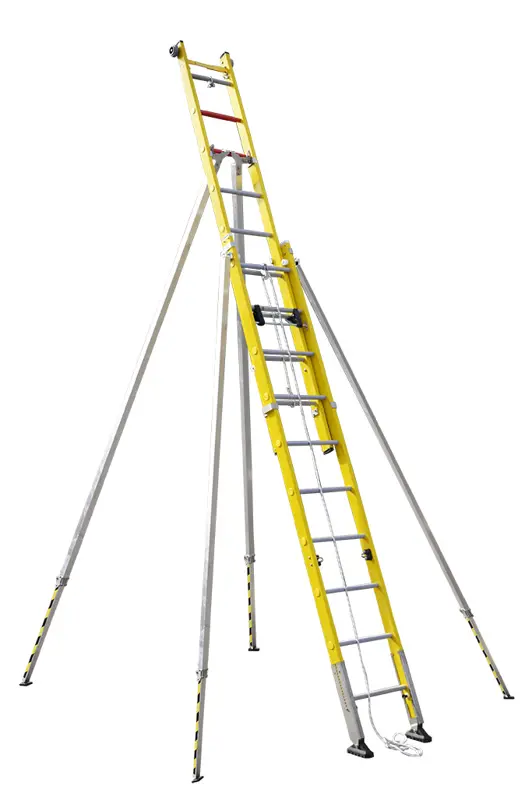

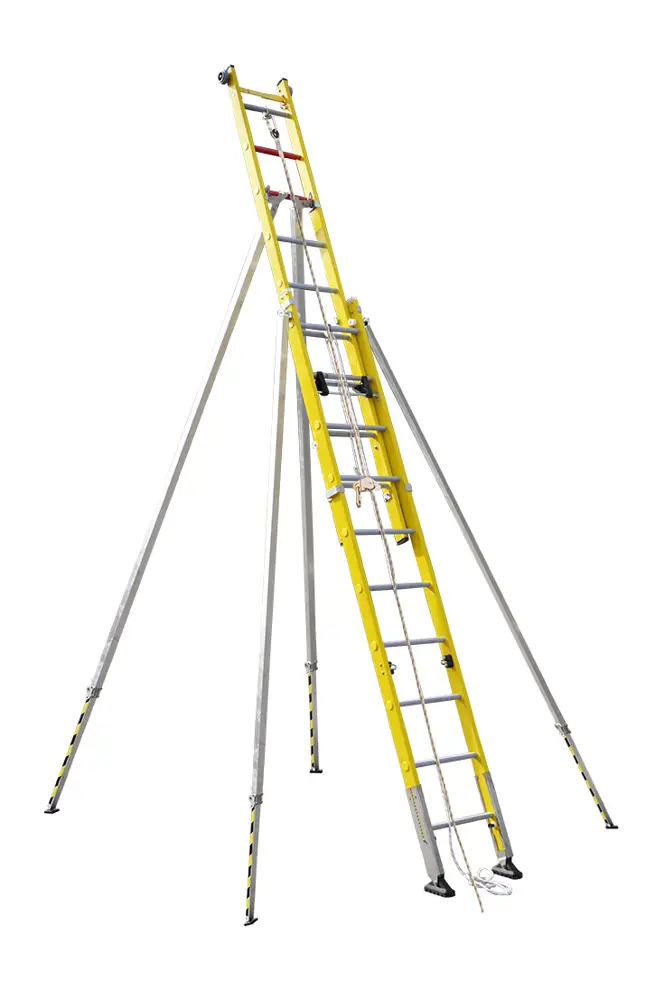

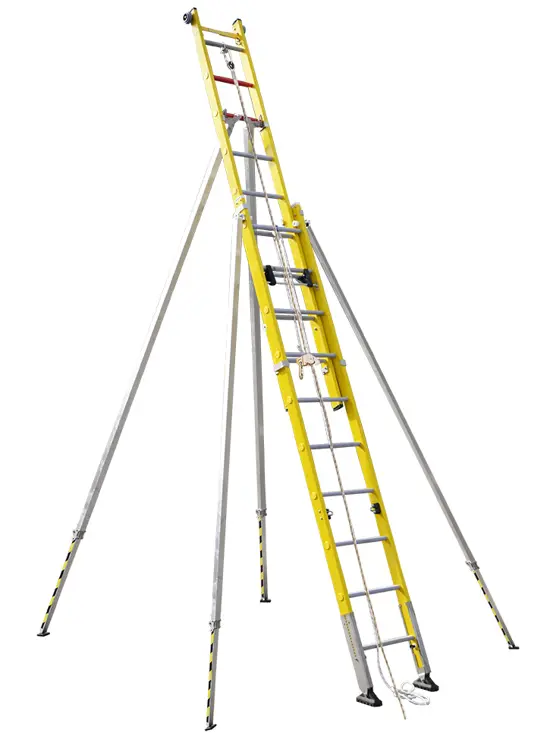

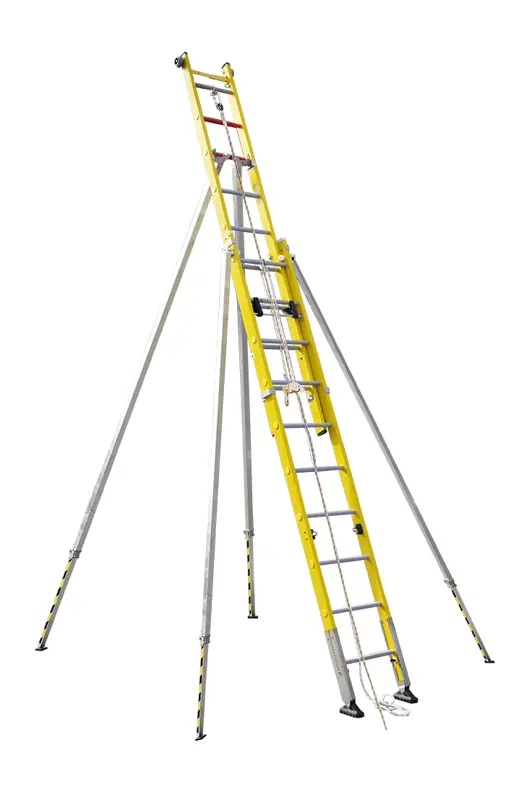

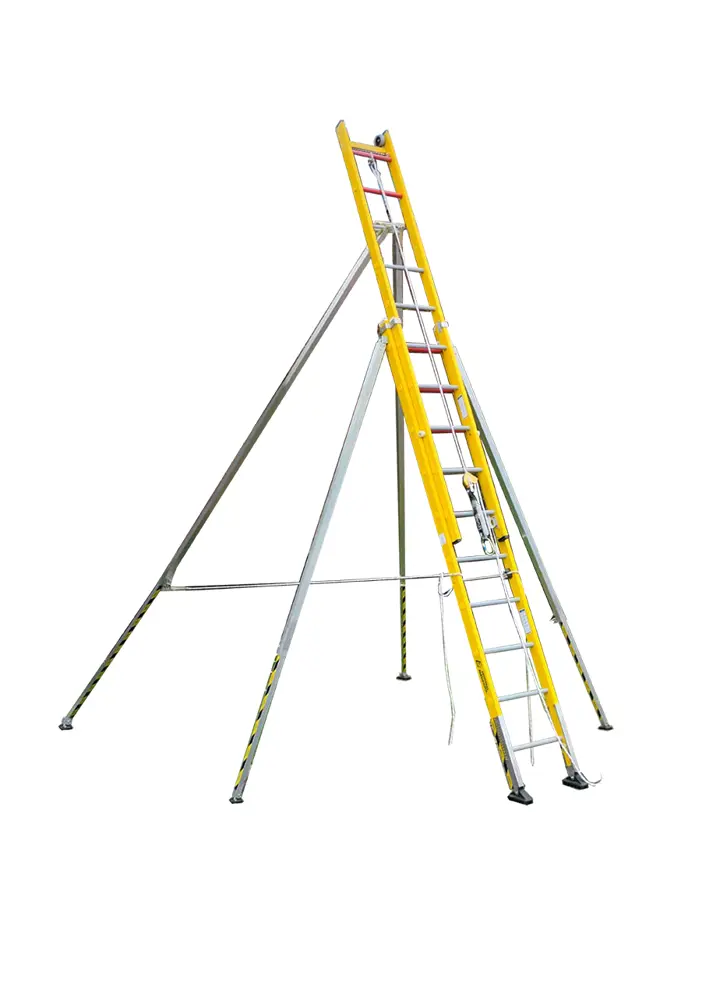

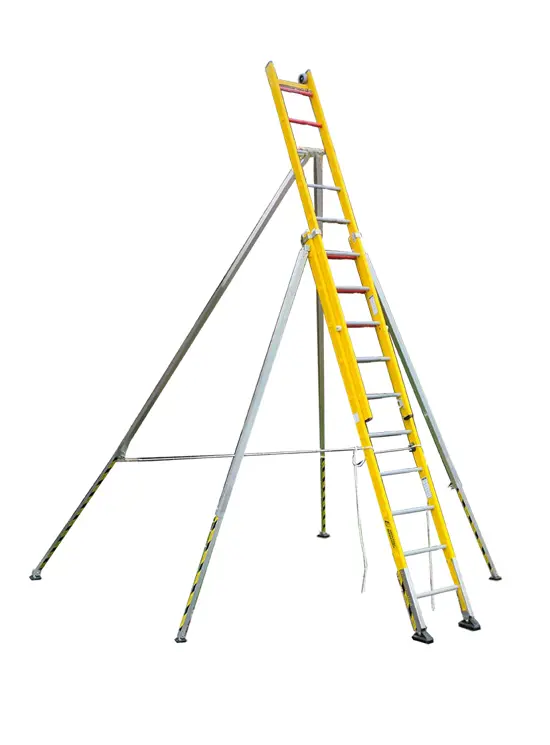

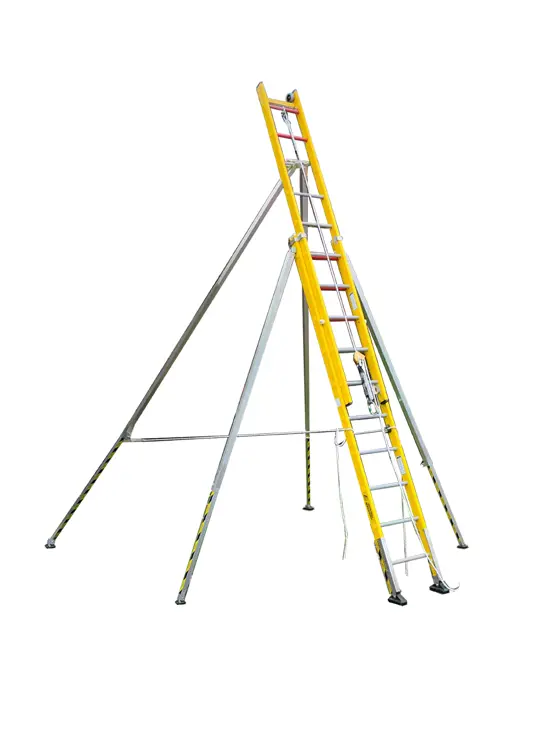

Together with its robust 4 adjustable telescopic aluminum stabilizers it forms an anti-tip pyramidal structure which, in the event of an operator falling, remains standing and holds the operator so that he remains hanging from the ladder (see video).

STANDARD EQUIPMENT

Anchor point EN795 for lifeline (not included in the scope of delivery)

2 Height-adjustable legs for differences in height (stainless steel) with adjustable feet with ergonomic floor support

4 Telescopic stabilizers

First reinforced upper peg for anchoring fall arrest system (excluded from the supply)
2 Scroll wheels
Manual or rope elevation
Non-slip fiberglass rungs: 30 mm
Distance between rungs: 28 cm

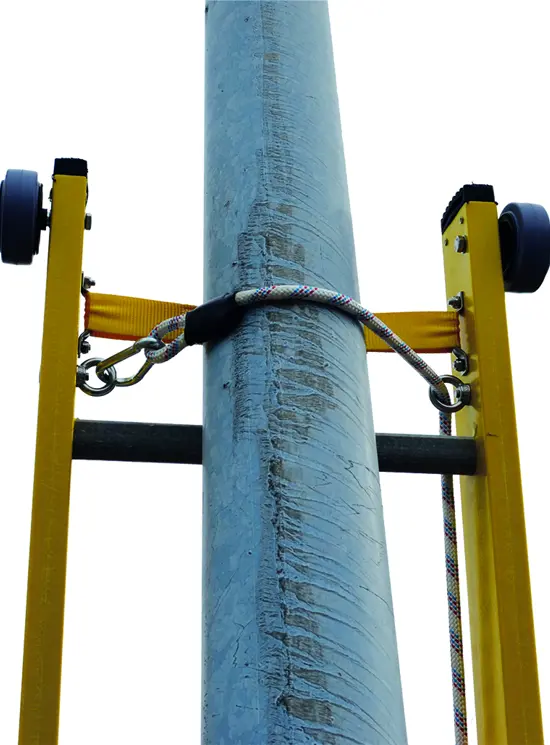

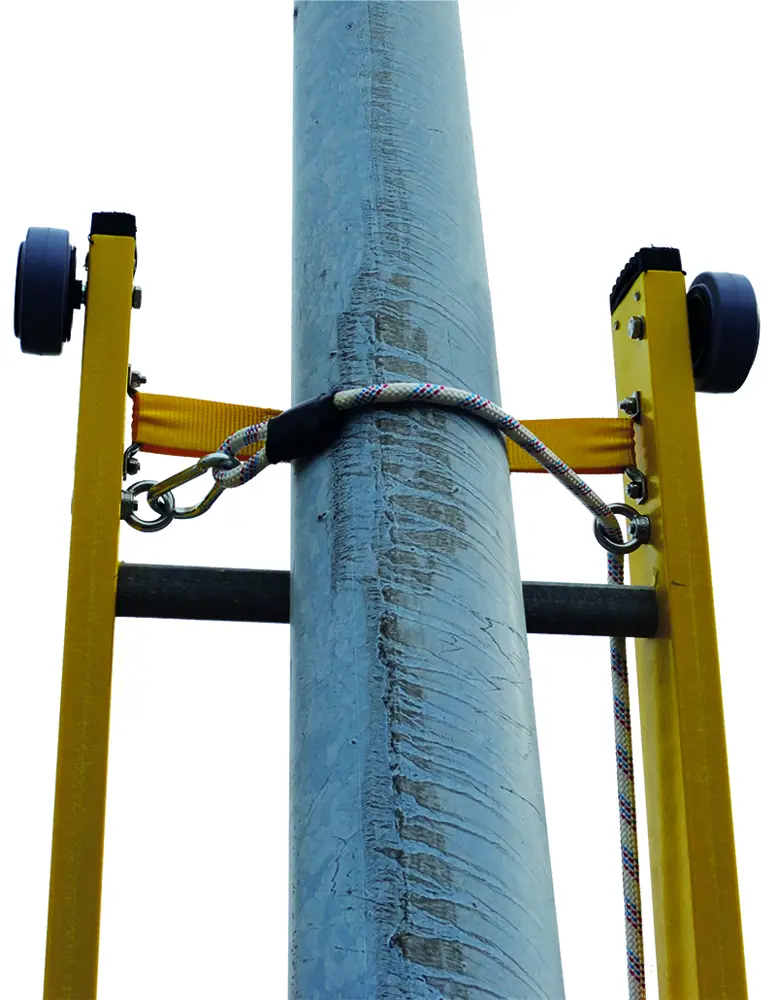

Pole support band

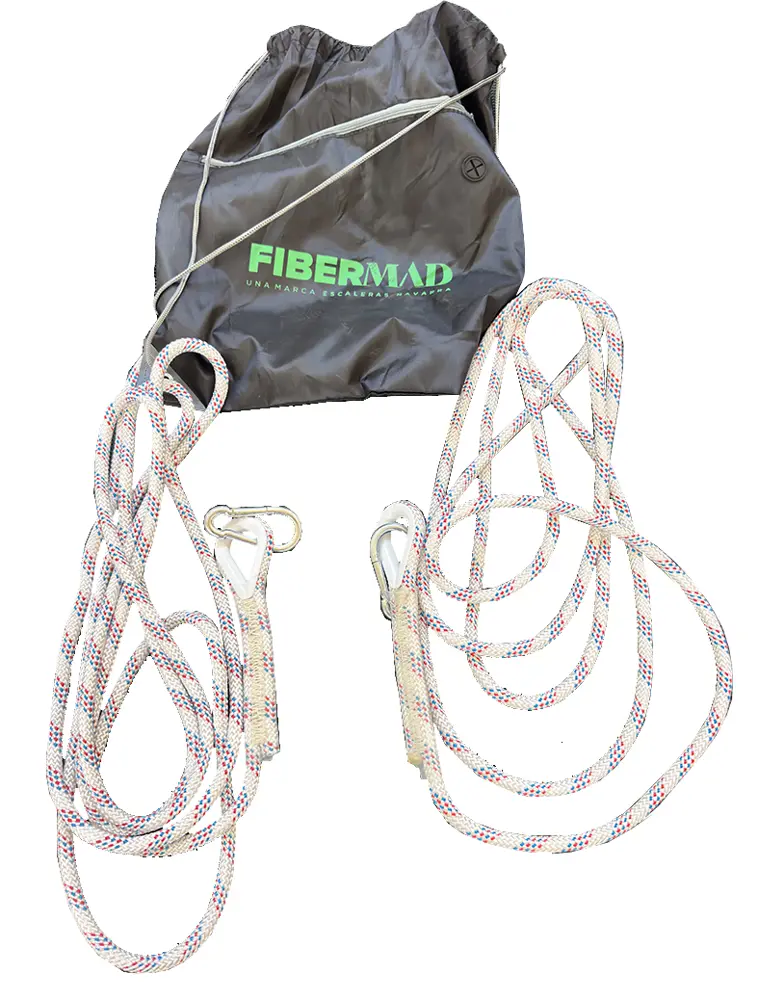

Bag with safety rope to tie the rope around the pole at the top and base

Rope kit

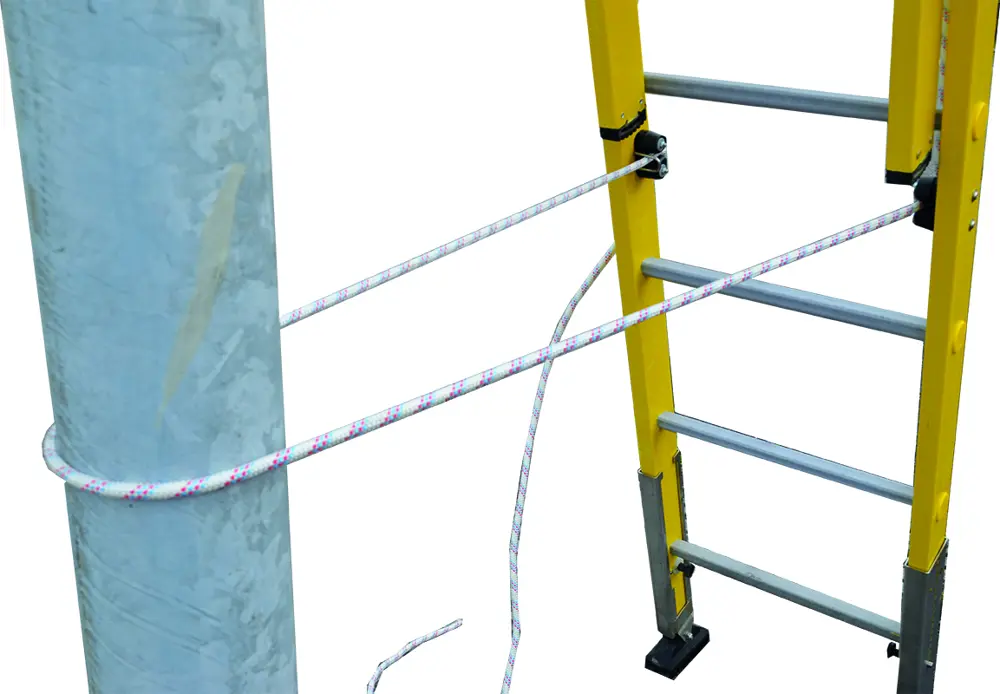

Rope in place

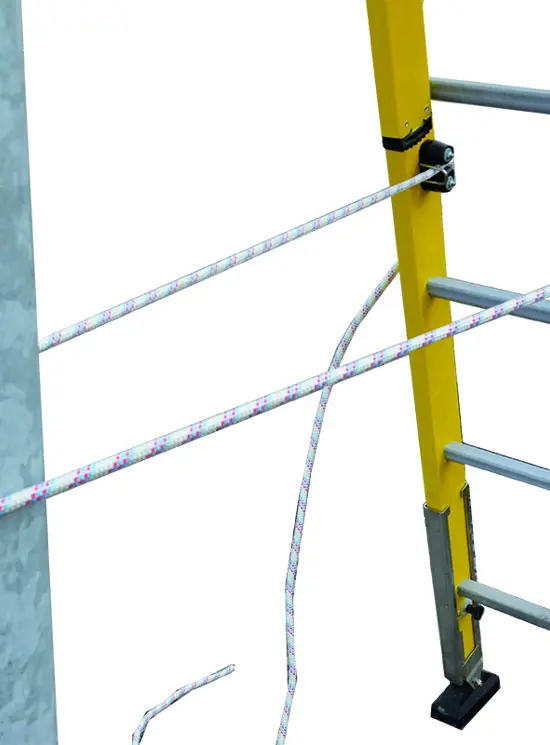

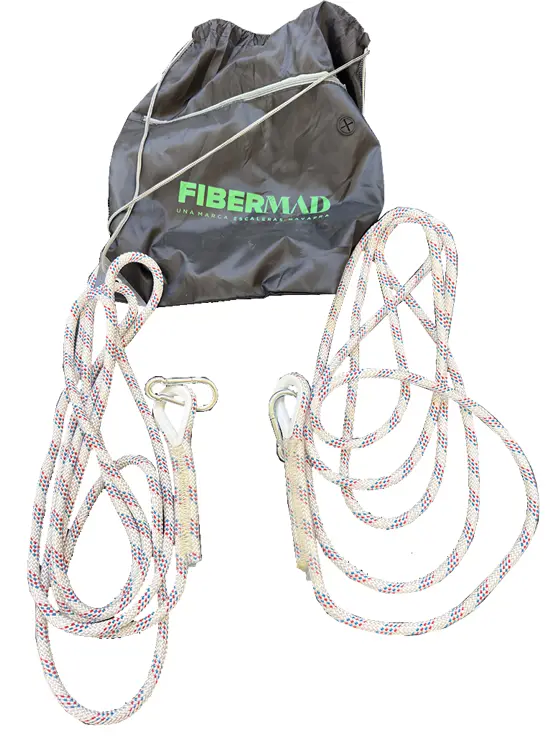

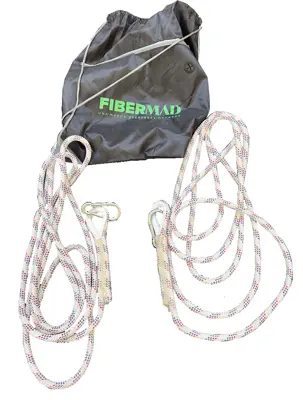

Bag with 2 ropes that connect the telescopic spreaders to the ladder to prevent them from moving

String kit

Ropes in place

OPTIONAL FALL ARREST KIT ON REQUEST: code FIBRASAFELINEAV11

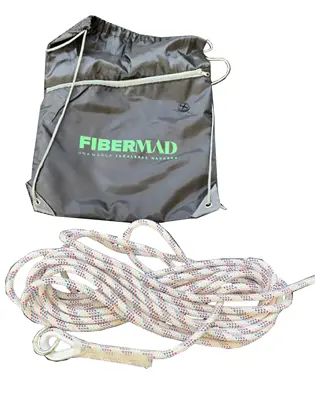

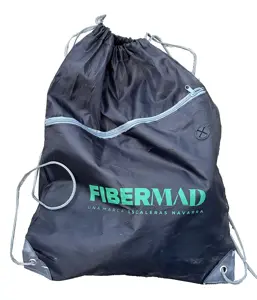

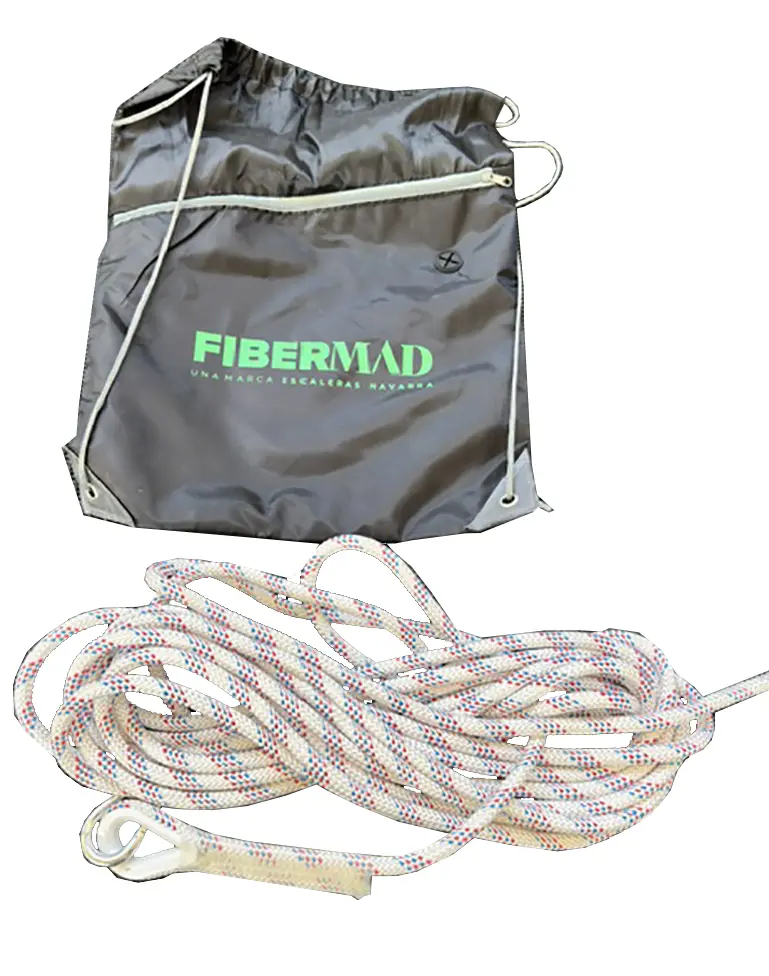

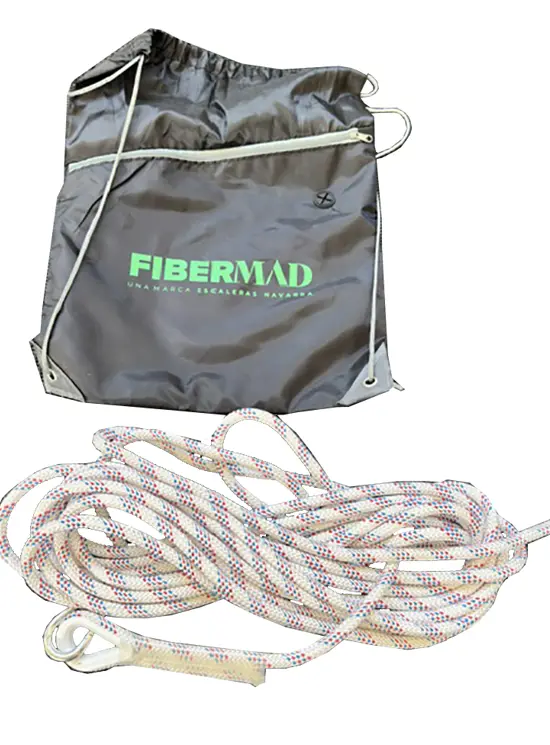

The FIBERMAD bag of the optional kit contains:

n.1 Certified fall arrest device
n.1 rope of 11 meters
n.2 carabiners for attaching to the ladder and to the fall arrest device:

HOMOLOGATION STANDARD: EN61478

STANDARDS IN THE CERTIFICATION PHASE: EN131

Fibrasafe international catalogue.pdf (1.2 MB)

Do you need more information?

Our experience is at your service to support you and recommend the right product.

Information request

One of our experts will contact you without any obligation.

LADDER WITH 2 SECTIONS WITH MANUAL EXTENSION (Attention!! FALL ARREST KIT EXCLUDED from the supply)
Cod.	Extension	Number Stabilizers	Number of logs x Number of pegs	Closed height (mm)	Height open (mm)	Weight (kg)
FIBRAFSP10	Manual	4	2x10	3010	4890	23
FIBRAFSP12	Manual	4	2x12	3570	6010	26

LADDER WITH 2 TRUNKS WITH EXTENSION WITH ROPE (Attention!! FALL ARREST KIT EXCLUDED from the supply)
Cod.	Extension	Number Stabilizers	Number of logs x Number of pegs	Closed height (mm)	Height open (mm)	Weight (kg)
FIBRAFSP10C	With rope	4	2x10	3010	4890	23
FIBRAFSP12C	With rope	4	2x12	3570	6010	26

LADDER WITH 2 SECTIONS WITH MANUAL EXTENSION (Attention!! FALL ARREST KIT INCLUDED in the supply)
Cod.	Extension	Number Stabilizers	Number of logs x Number of pegs	Closed height (mm)	Height open (mm)	Weight (kg)
FIBRAFSP10LV11	Manual	4	2x10	3010	4890	23
FIBRAFSP12LV11	Manual	4	2x12	3570	6010	26

LADDER WITH 2 TRUNKS WITH EXTENSION WITH ROPE (Attention!! FALL ARREST KIT INCLUDED in the supply)
Cod.	Extension	Number Stabilizers	Number of logs x Number of pegs	Closed height (mm)	Height open (mm)	Weight (kg)
FIBRAFSP10CLV11	With rope	4	2x10	3010	4890	23
FIBRAFSP12CLV11	With rope	4	2x12	3570	6010	26
