FIBRASAFE FSA Post

Max height 6.0 m.

It shows the validity of the guarantee in years

It shows the maximum weight capacity of a product

It is the European Standard for ladders

Suitable for heavy duty

Workstation. Self-supporting ladder in insulating fiberglass with certified hook for the untifall device. For use on wooden posts only

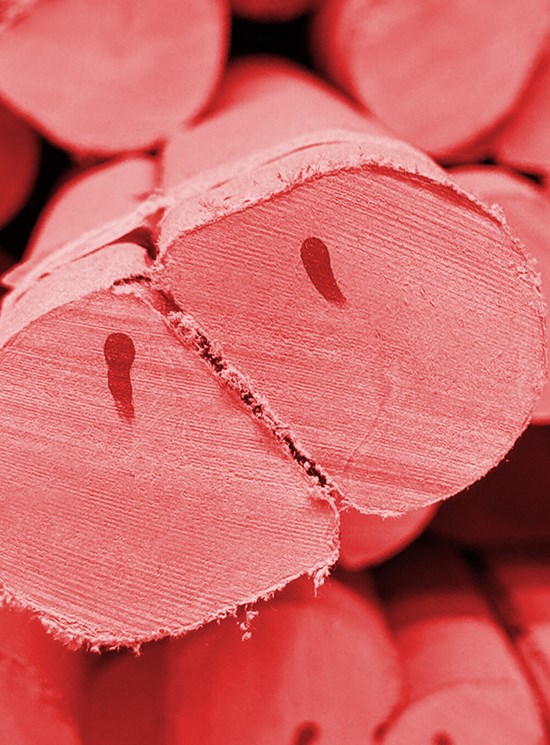

FSAP FIBRASAFE IS 100% FIBERGLASS (POSTS AND RUNGS)

The Fibrasafe FSAP series is an EN61478 Certified Workstations (tested at 100KV).
These are extension ladders in 2 sections in insulating fiberglass against electrical, magnetic and thermal agents.
Made of fiberglass, it is an antimagnetic ladder resistant to humidity, acids, corrosion and ultraviolet rays.
The ladder is equipped with 2 sliding wheels on the upper part that allow it to slide along the facade while it is opened.

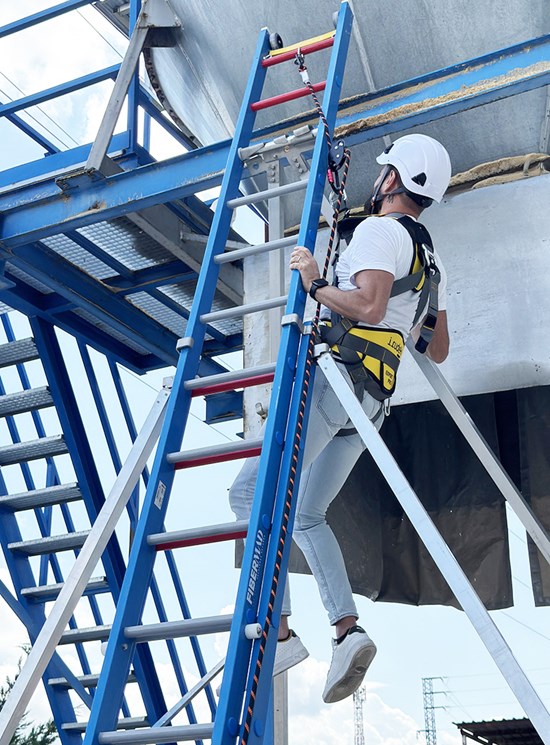

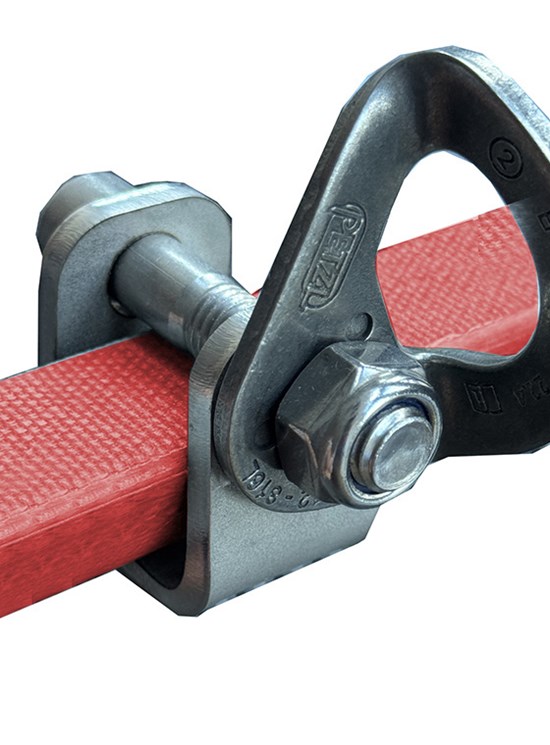

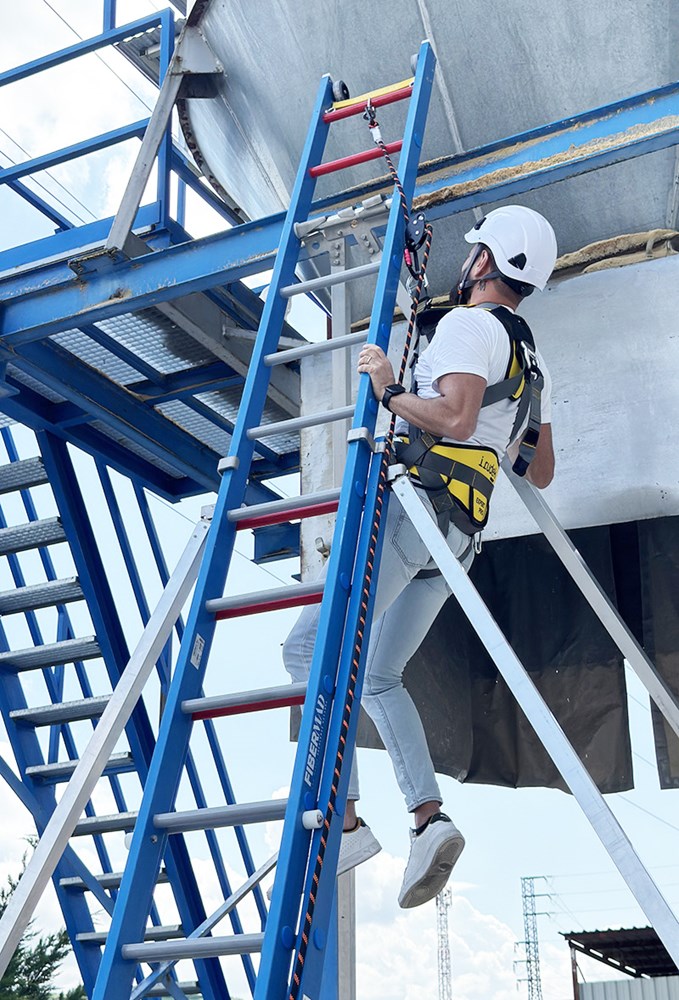

The EN795 certified hook is mounted on the reinforced rung of the ladder that allows the operator to attach their own fall arrest device with rope (PPE not included in the supply).

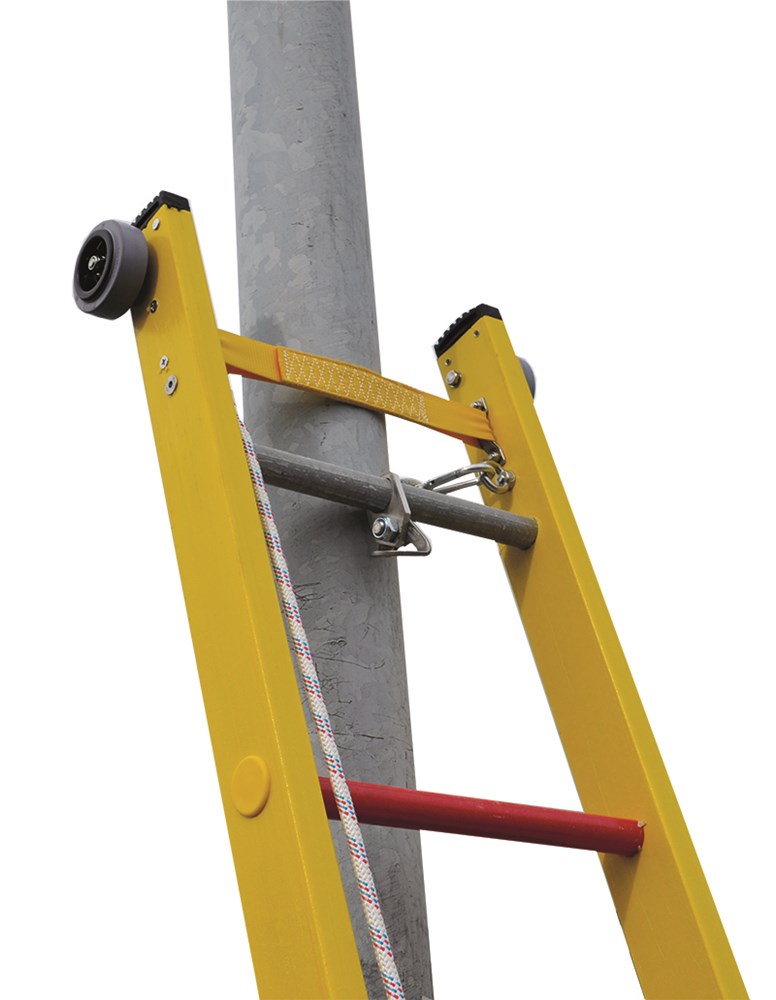

The hook is firmly mounted on the first rung at the top of the red ladder.
The red rungs visually indicate the limit at which the operator cannot stand with his feet.
The rung is specially reinforced and tested to withstand the stress resulting from the possible fall of the operator.

The ladders are equipped with 2 aluminum stabilizers.
Fiberglass is insulating against thermal and electrical agents.
It is also anti-magnetic, resistant to humidity, acids, corrosion and ultraviolet rays.
All ladders are equipped with sliding wheels.
All metal parts of the ladder are made of stainless steel which guarantees extra resistance and does not contaminate food, chemical and pharmaceutical environments.

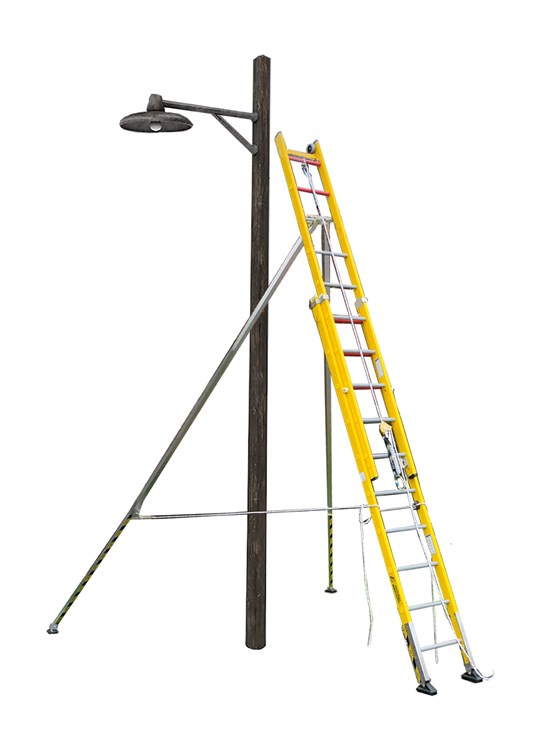

FSAP FIBRASAFE (use on wooden poles)

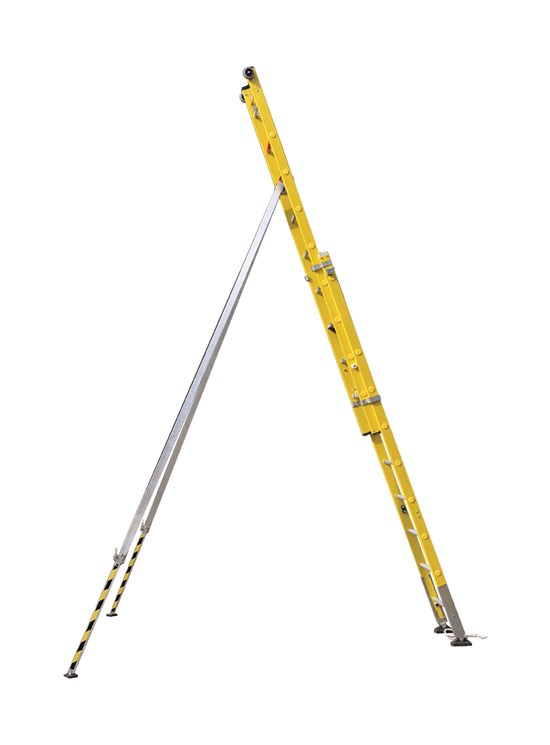

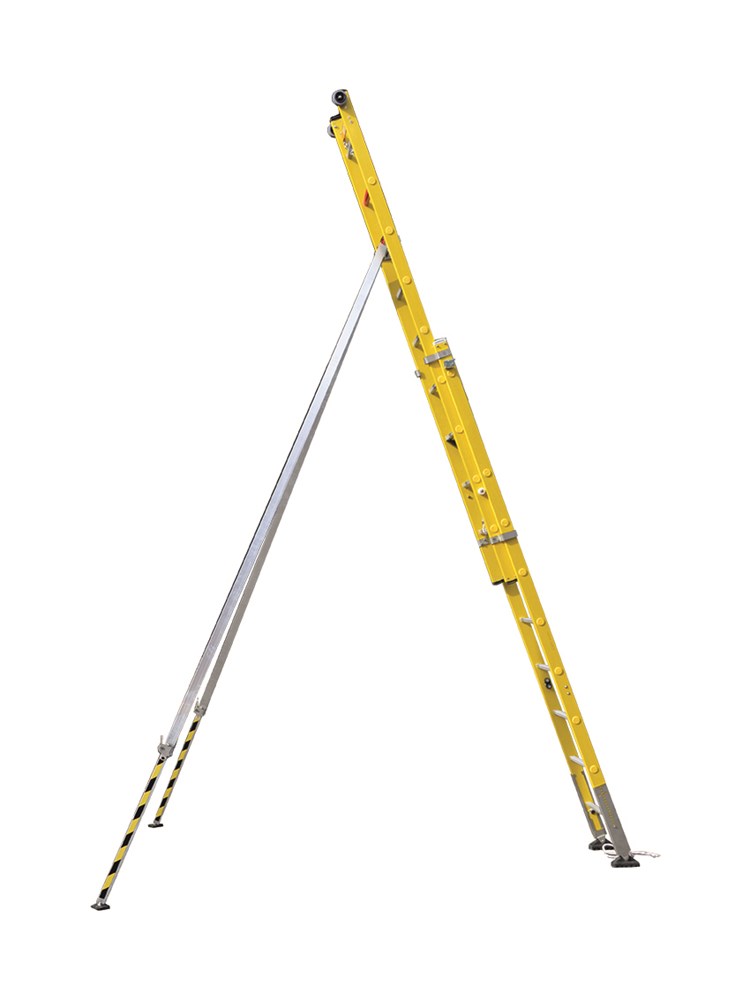

2 Quick-assembled, enlarged aluminum telescopic stabilizers that make the ladder self-supporting

WORK STATION AT HEIGHT

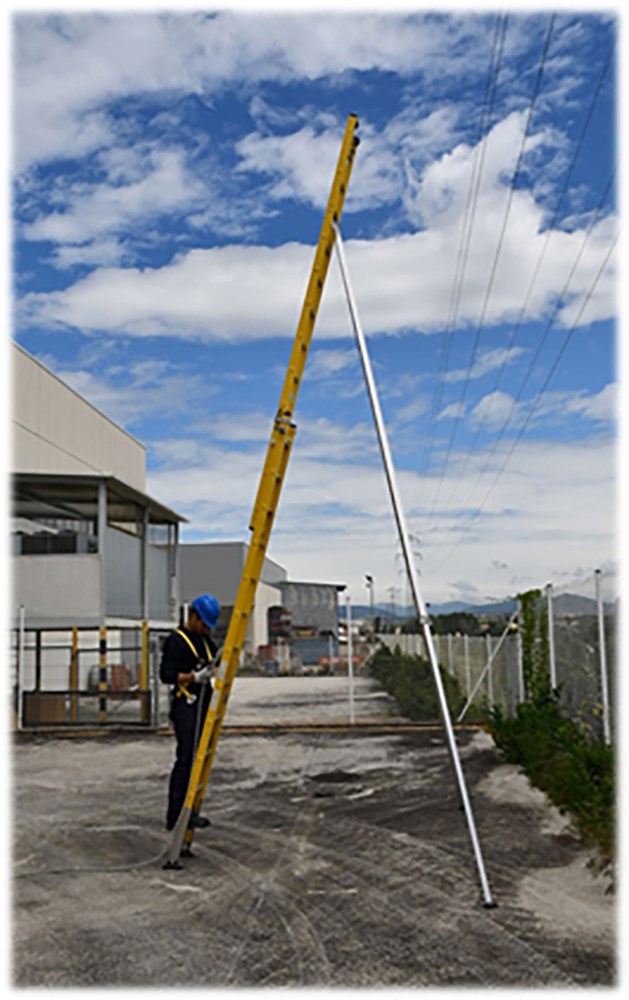

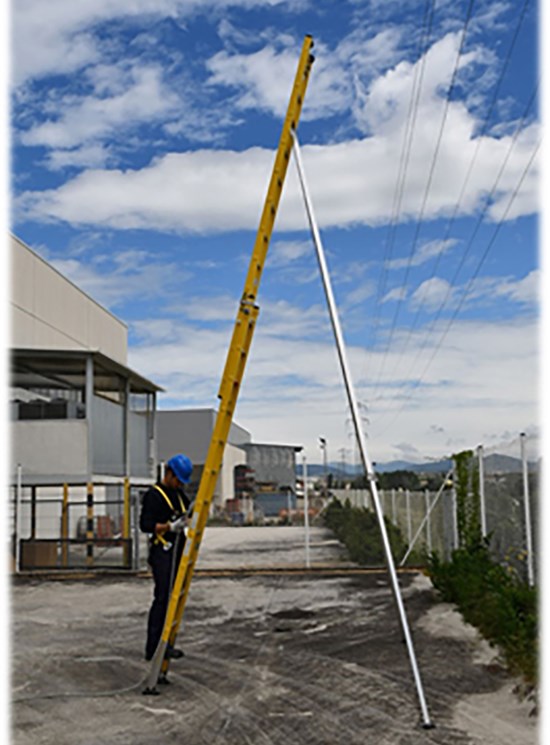

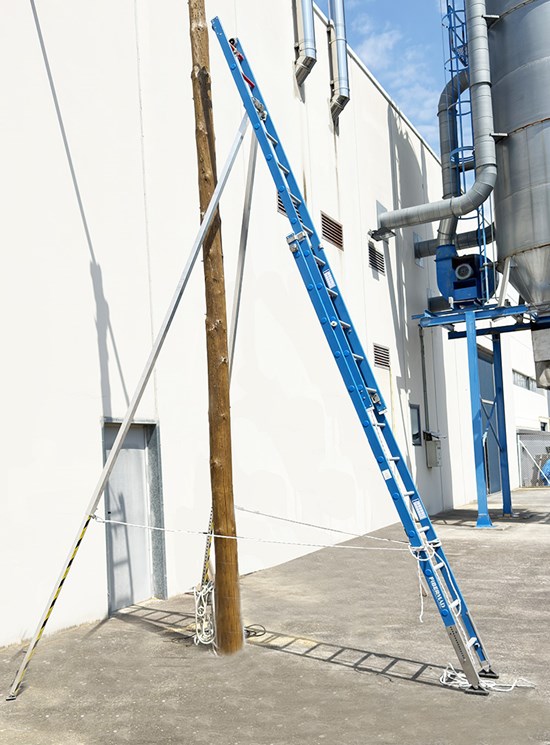

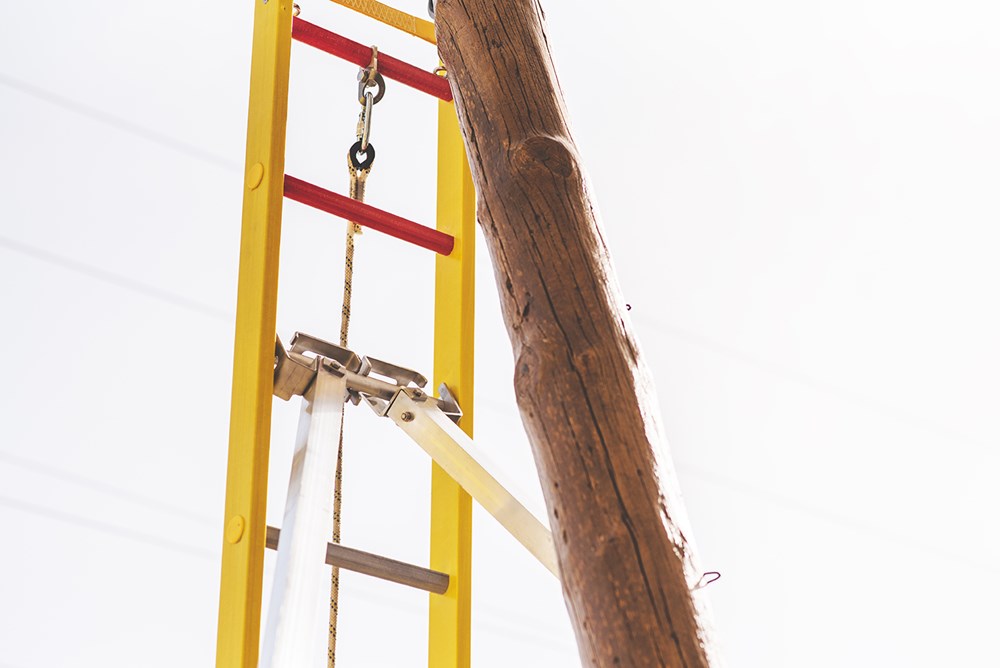

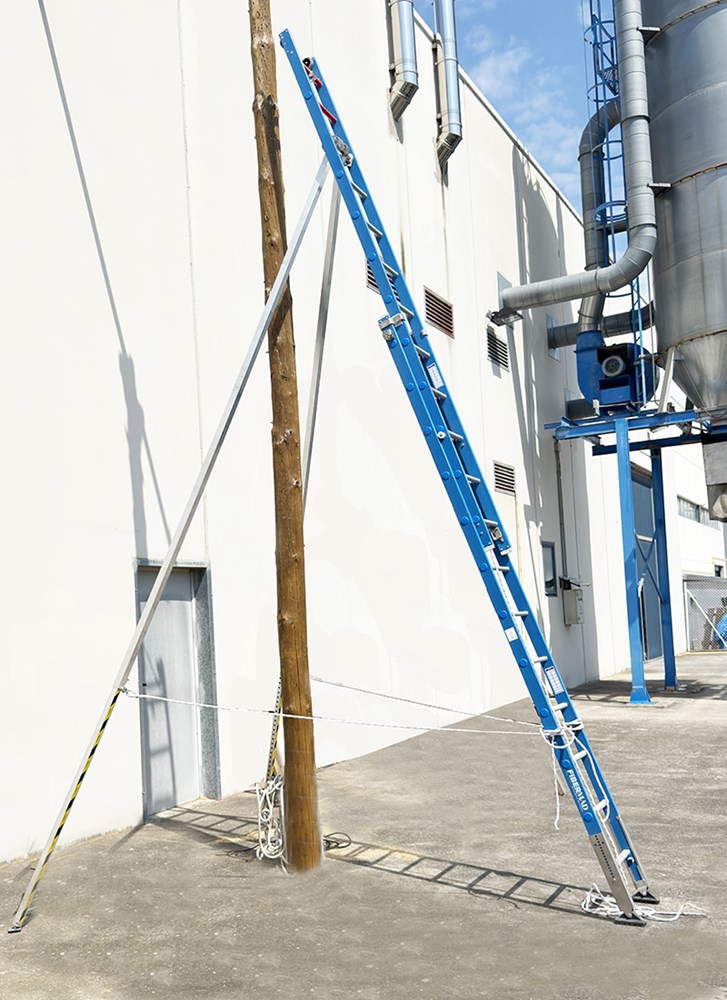

Self-supporting ladder designed for professional work on wooden light poles where it is not possible to rest the ladder on the pole.
Its self-supporting structure allows the operator to work in maximum safety conditions.

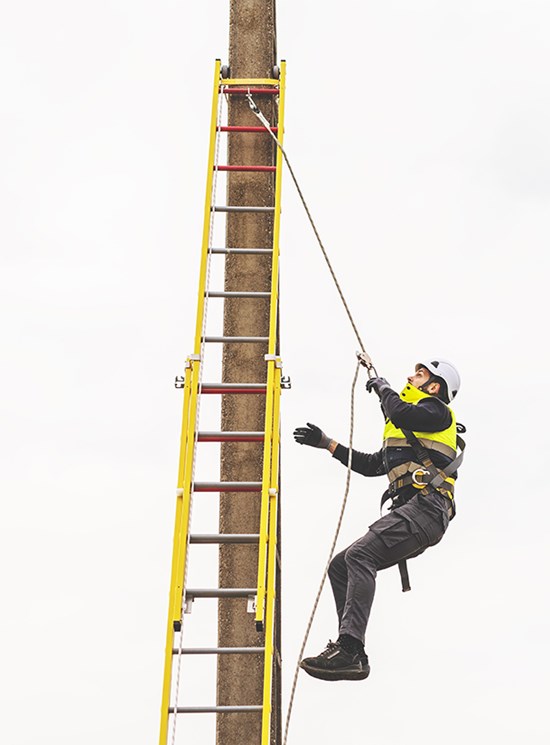

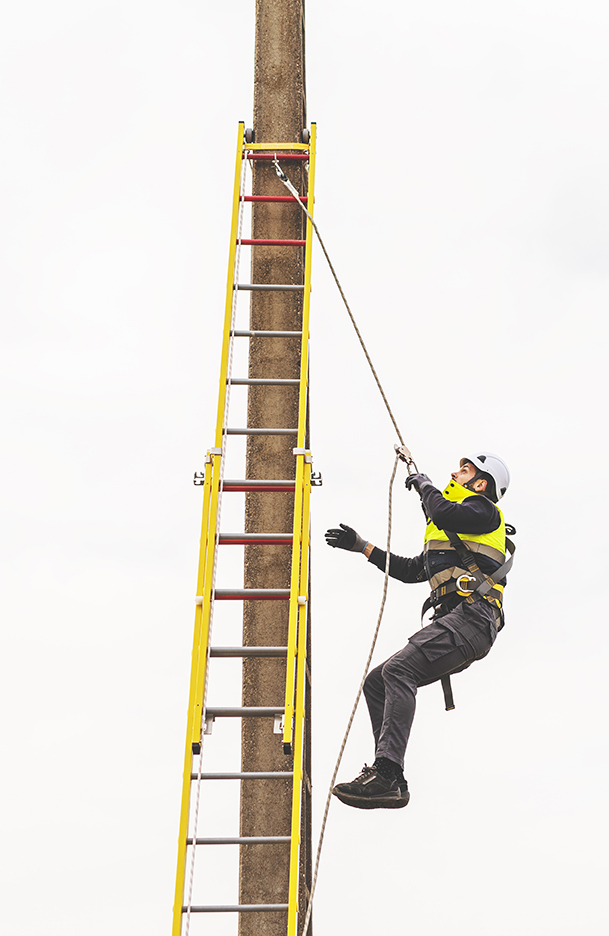

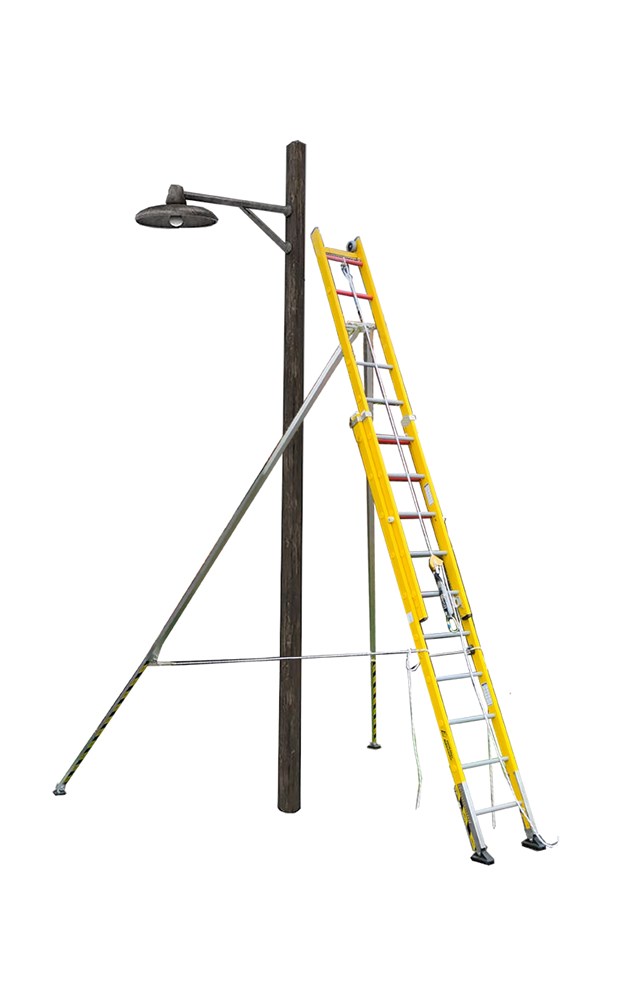

Together with its 2 long and sturdy aluminum telescopic brackets, it forms an anti-tipping pyramid structure that, in the event of the operator falling, remains upright and holds the operator so that he remains hanging from the ladder (see video).
The ladder must never be rested or connected to the wooden pole and is self-supporting.

STANDARD EQUIPMENT

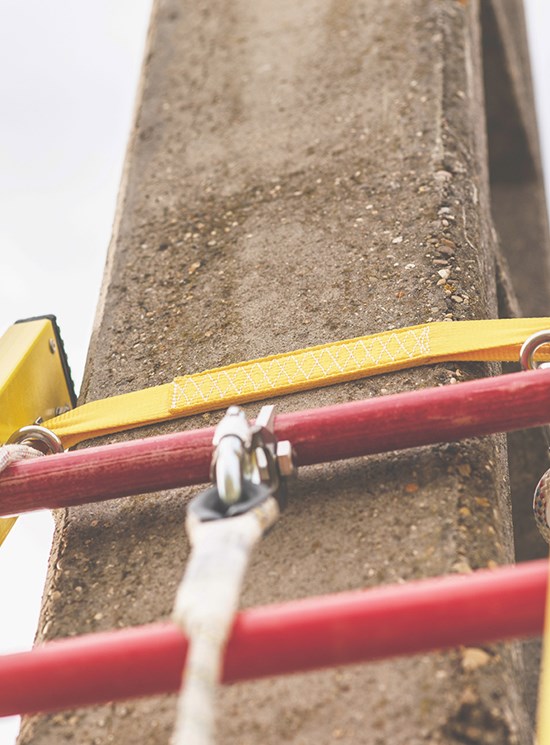

Soft straps to lie the ladder on the post (rigid device on demand)
Safety rope and eyebolts to tie the rope around the top and bottom of the post.

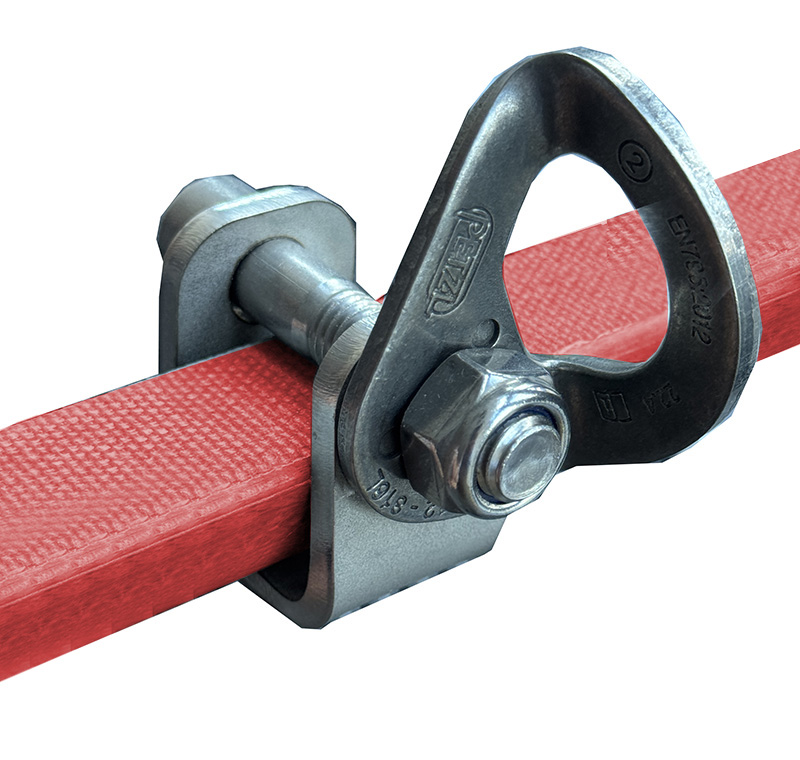

EN795 anchor point for lifeline
Aluminum telescopic extra strong side stabilizers
First top reinforced upper rung for anchoring the fall arrest system
Stainless steel metal components

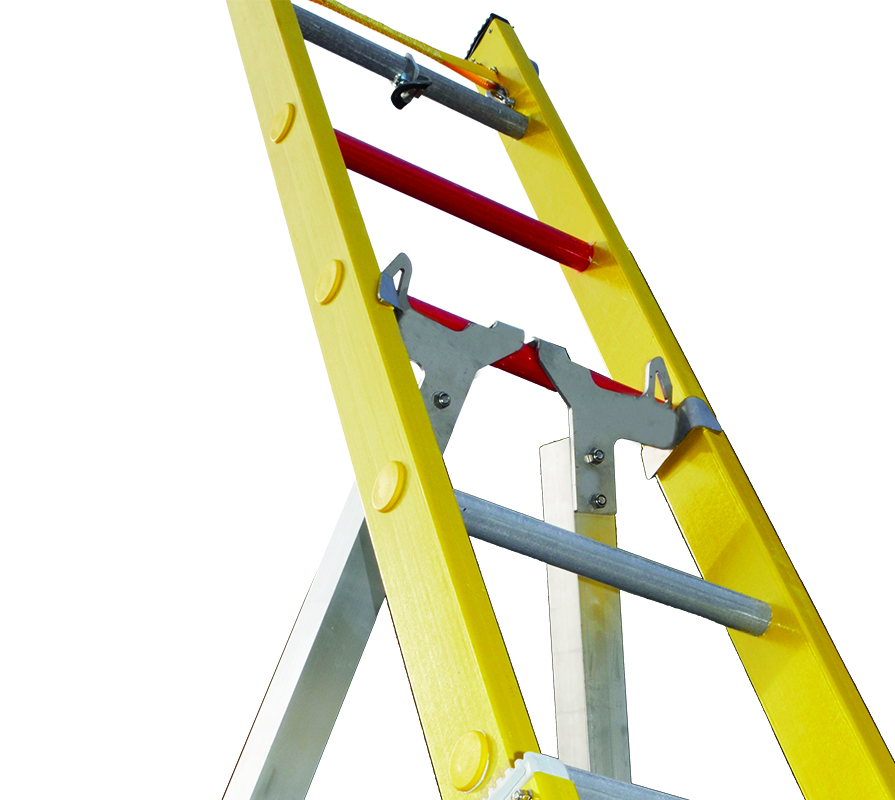

Third red reinforced upper rung for anchoring the aluminium stabilizers
Anchorage point of the lifeline

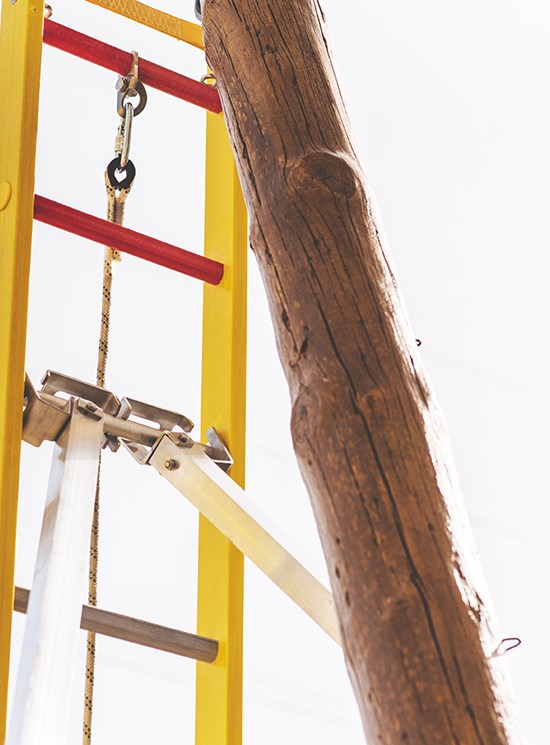

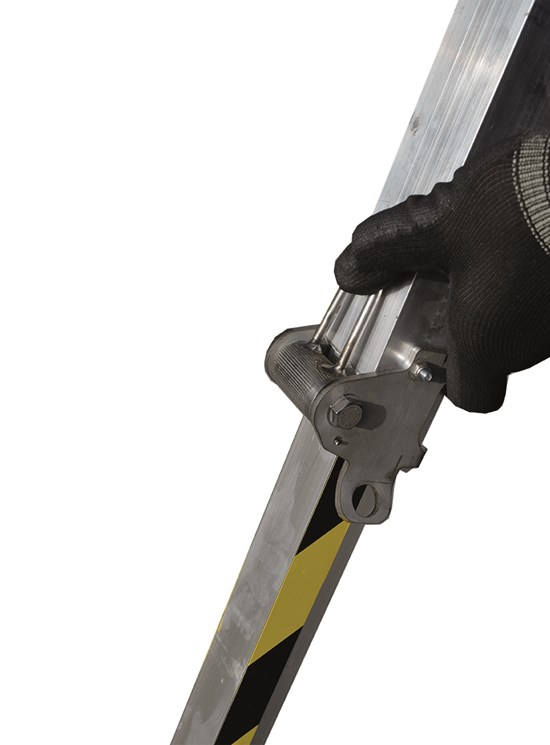

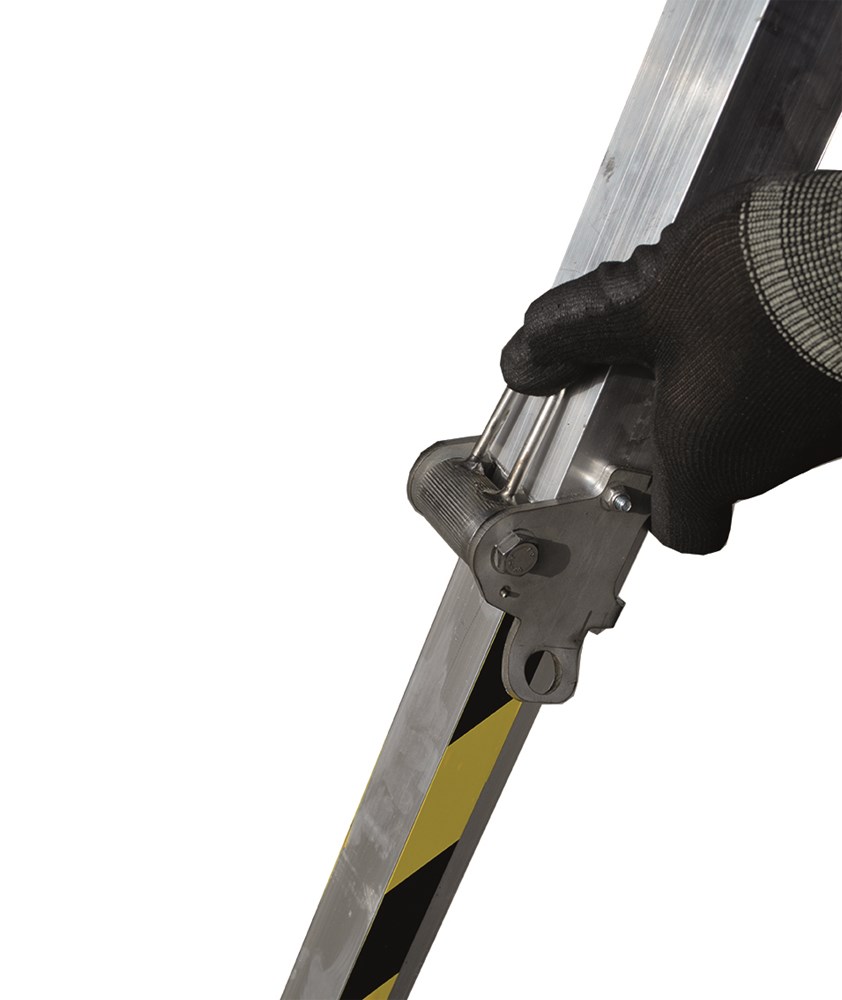

Quick anchoring of telescopic stabilizers
2 wheels

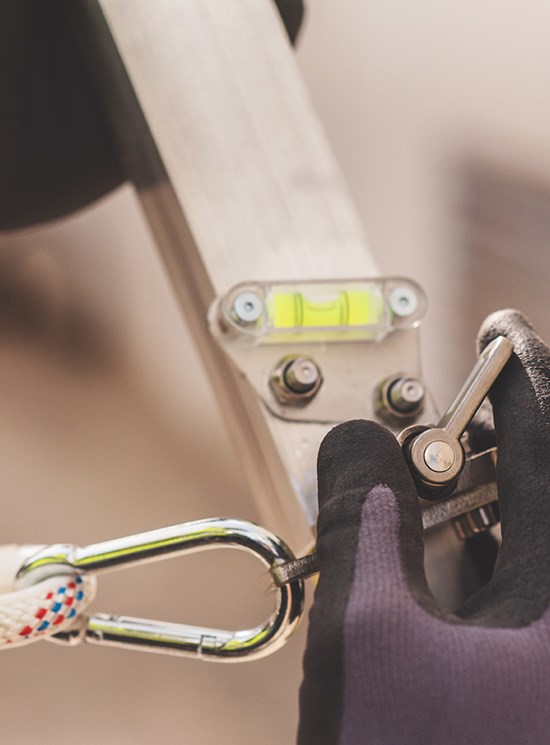

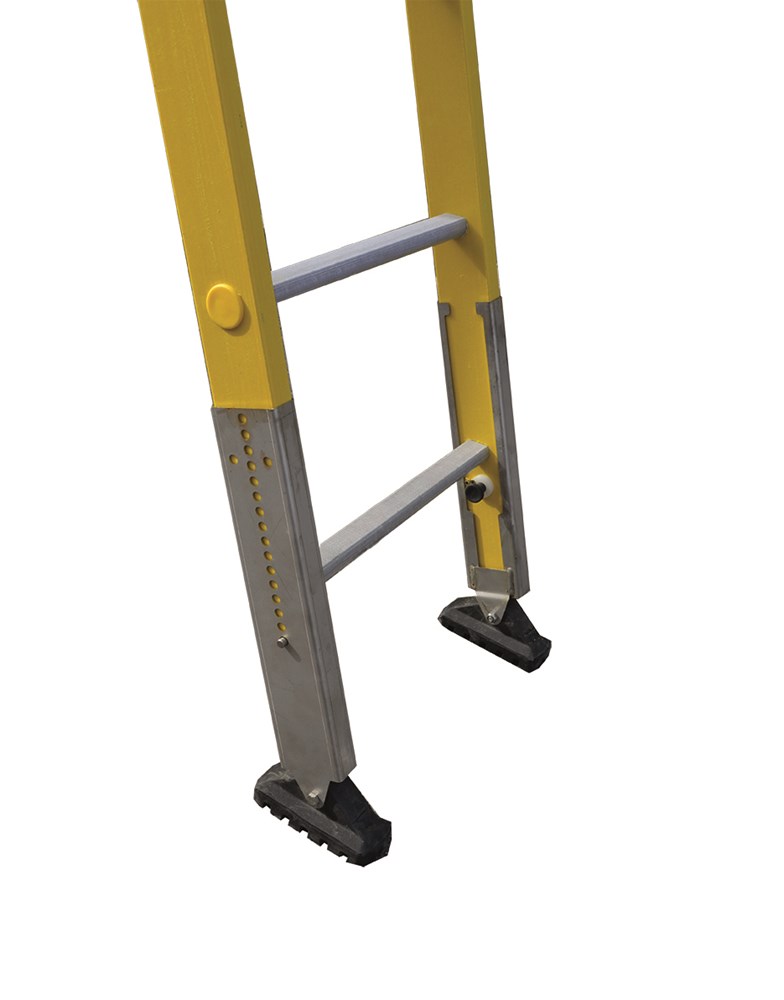

Height adjustable stainless steel legs for unevenness
Adjustable feet system with ergonomic ground support
Anchors for side light optional stabilizers necessary to use the adder against a wall

ON DEMAND:

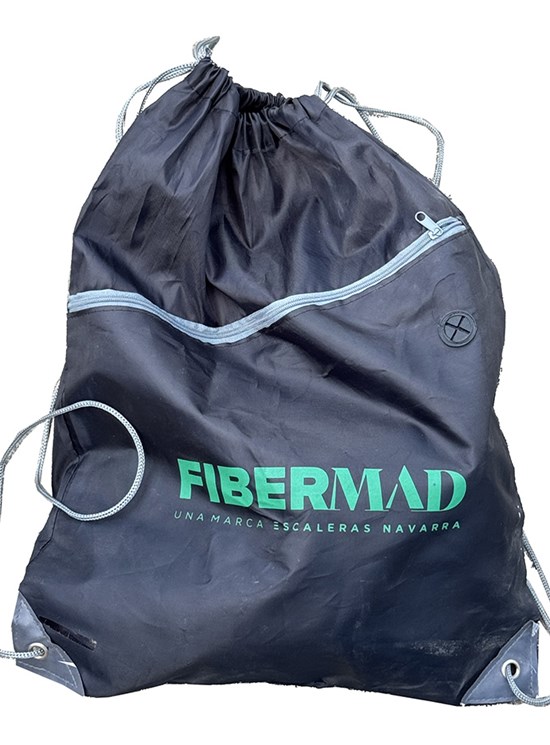

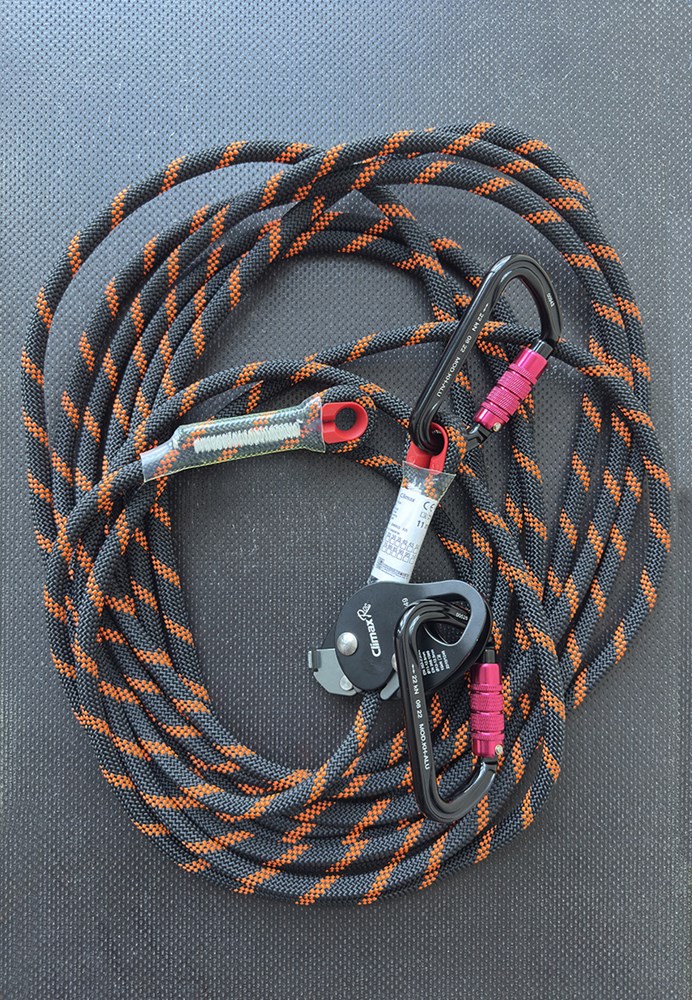

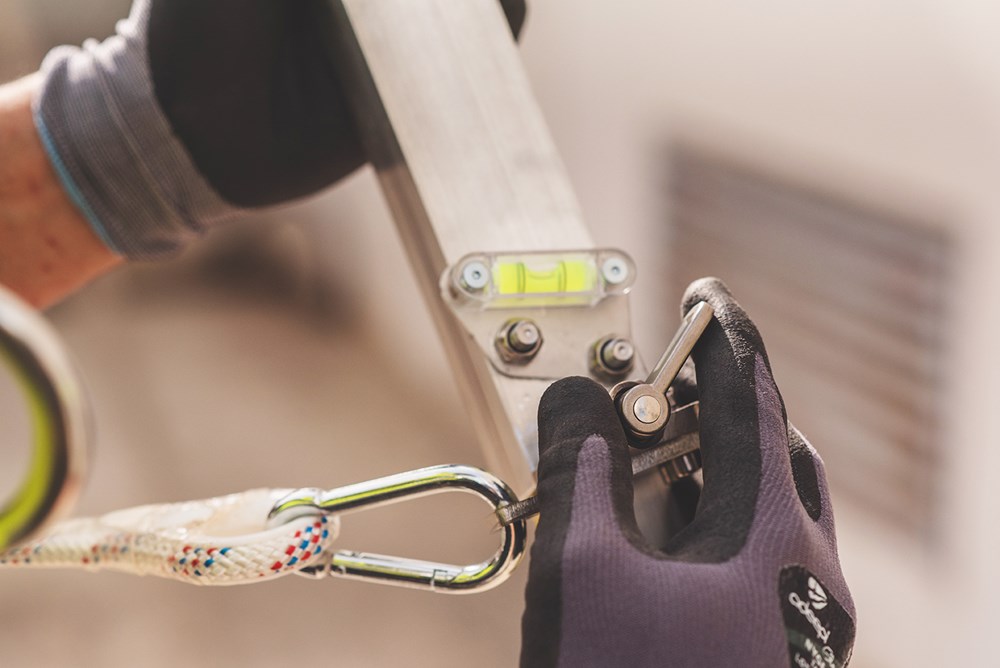

Rope bag with 2 carabiners for attachment to the ladder and fall arrest device

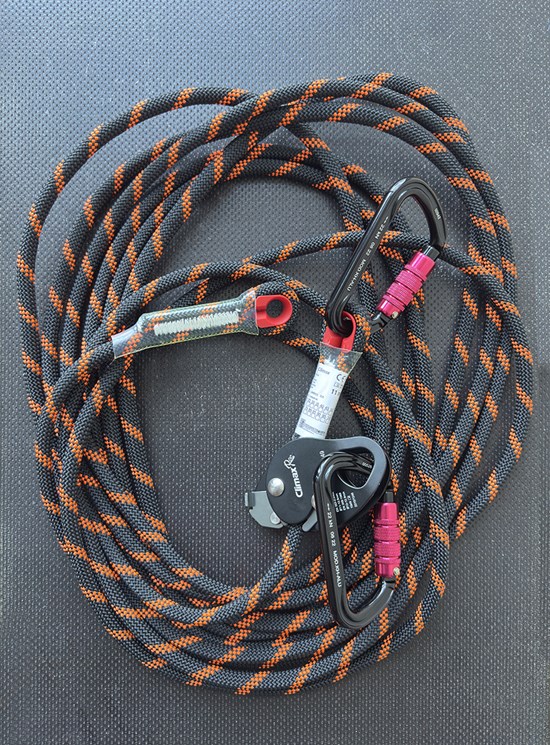

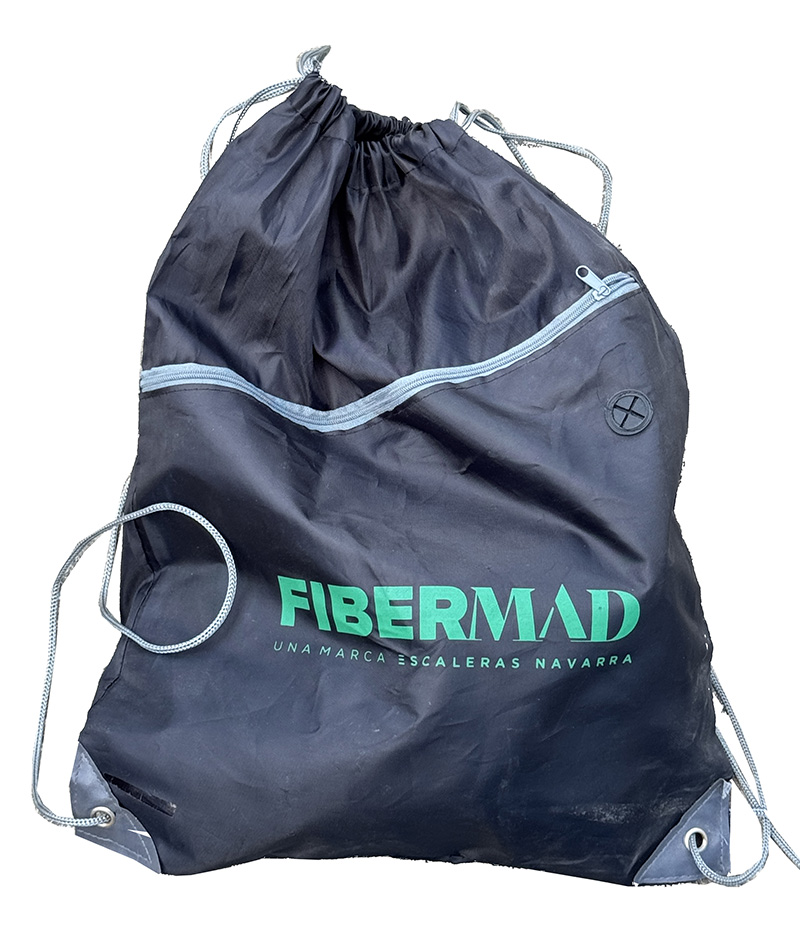

Bag with oversized rope with 2 carabiners for attachment to the ladder and the fall arrest device. The rope is double length.

The package includes a choke to be fixed to the first rung at the base of the ladder to allow the recovery of the operator in the event of illness or fainting.

Certified fall arrest device
Certified harness

EUROPEAN STANDARDS

EN61478
EN131

2 SECTIONS MANUAL EXTENSION
Cod.	Height closed (mm)	Height open (mm)	Weight (kg)
FIBRAFSAP10	3010	4890	23
FIBRAFSAP12	3570	6010	26

FIBRASAFE 2025.pdf (1.1 MB)
