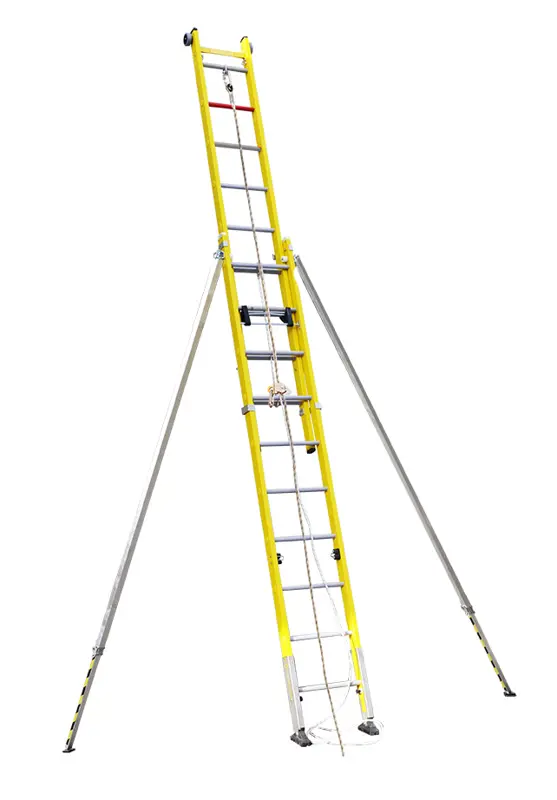

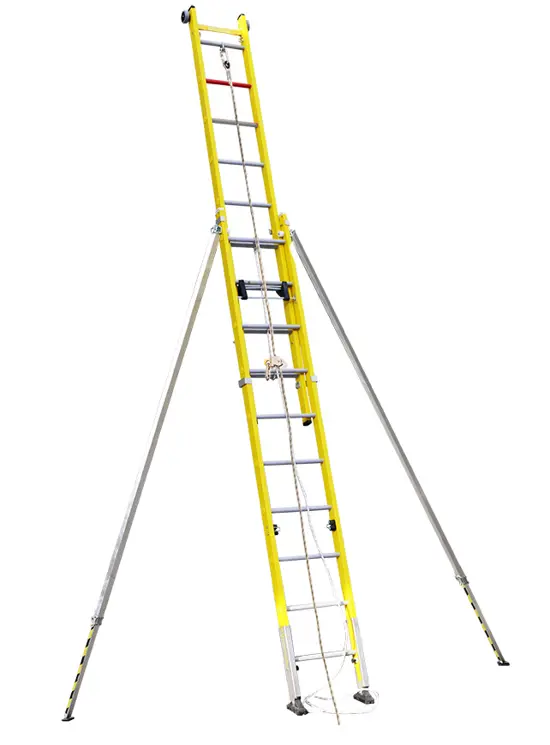

FIBRASAFE FSFP Façade and post
Max height 8.3 m.
Suitable for heavy duty

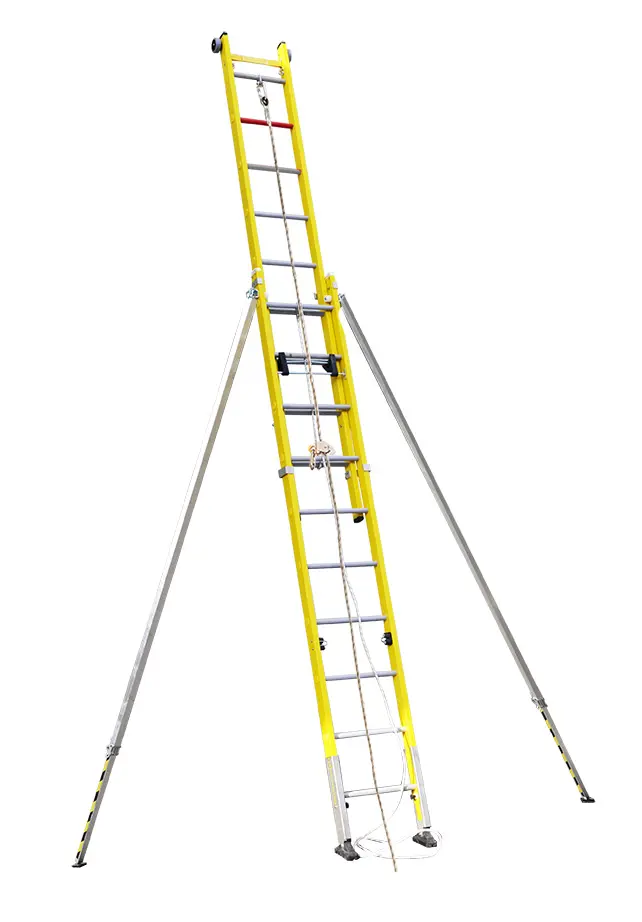

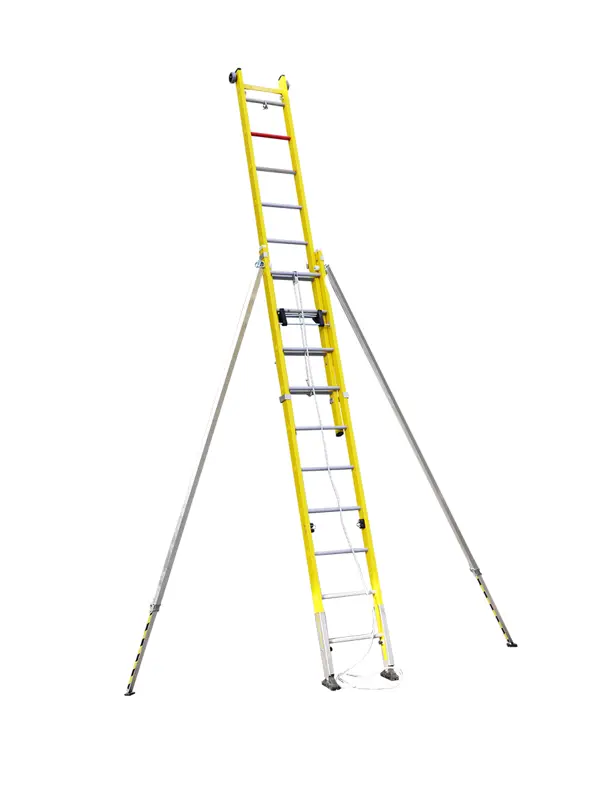

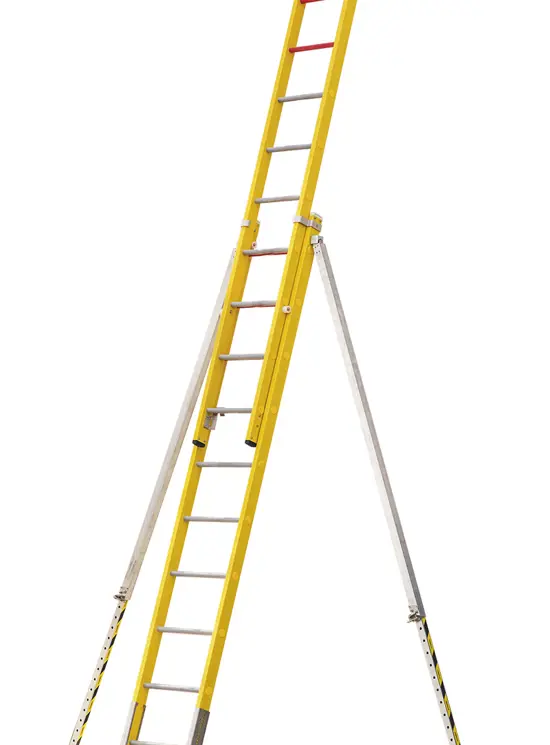

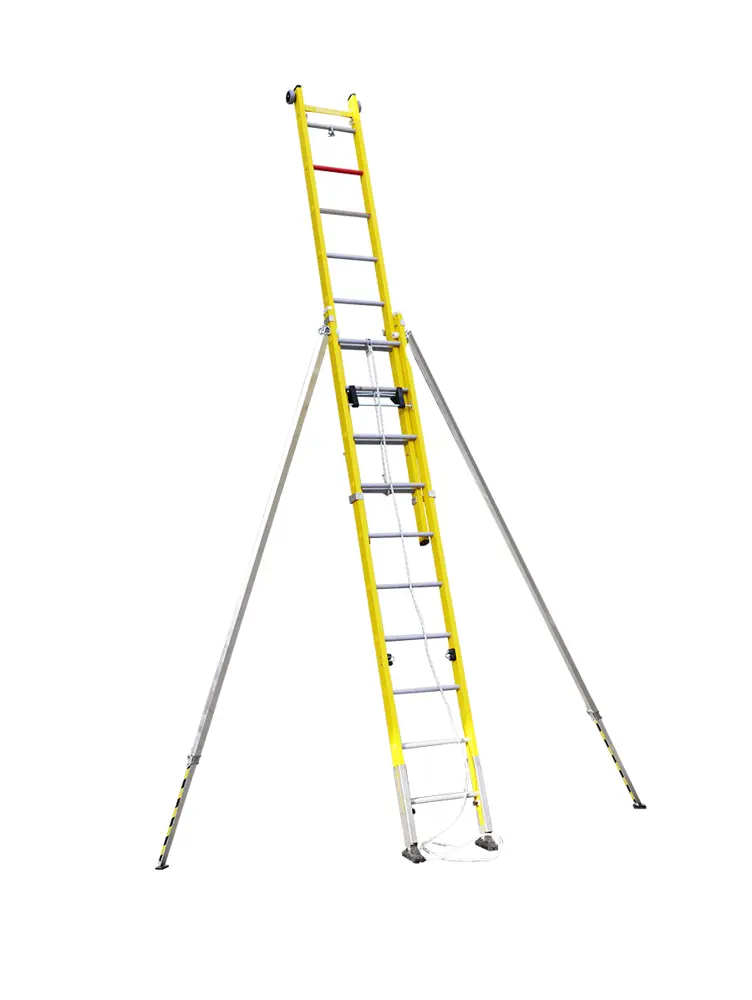

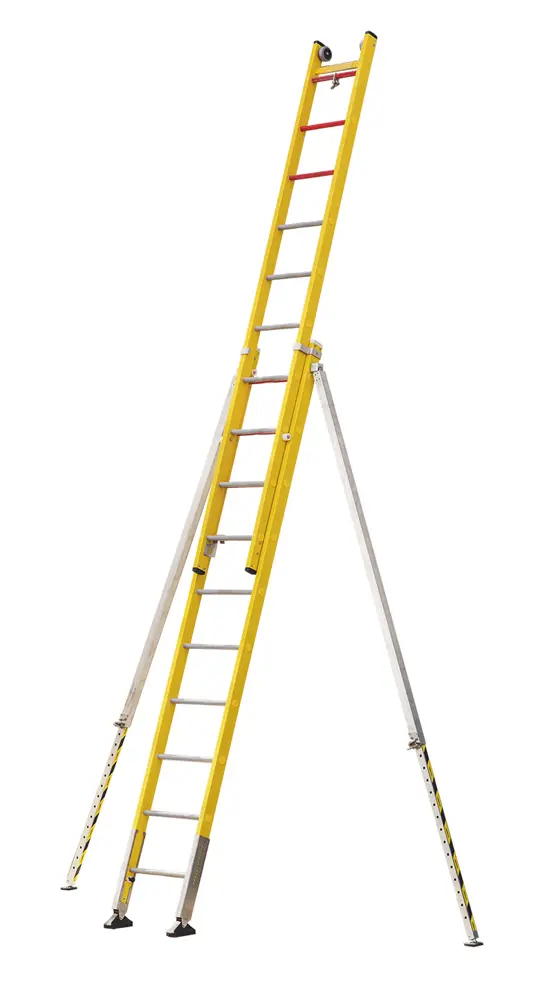

Workstation. Extension ladder in insulating fiberglass with anti-fall device. Lean to wall and solid post use.
FSFP FIBRASAFE IS 100% FIBERGLASS (POSTS AND RUNGS)
WORK STATION AT CERTIFIED HEIGHT and consists of an extension ladder in two extensible sections in insulating fiberglass against electrical and thermal agents.
Made of fiberglass, it is an antimagnetic ladder that is resistant to humidity, acids, corrosion and ultraviolet rays.
This extension ladder is not self-supporting, it must always be used leaning against the facade or solid posts (cement or steel).

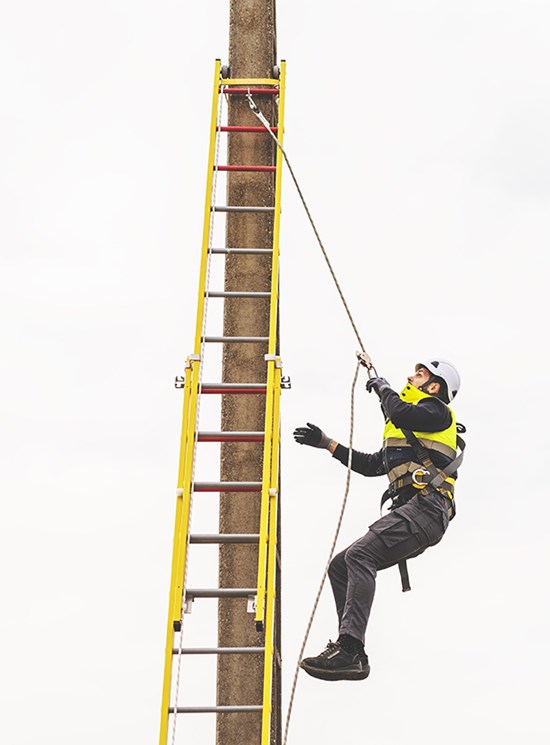

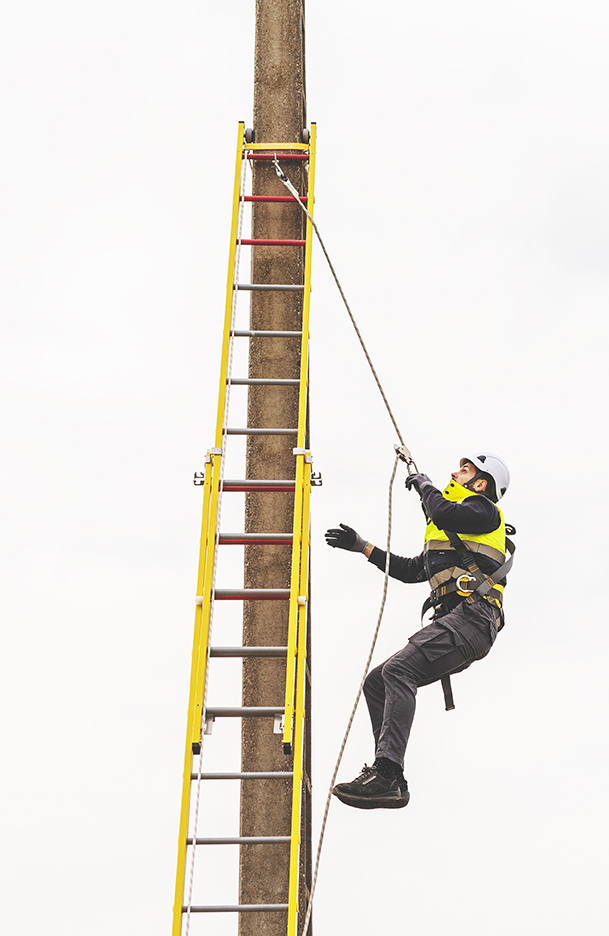

A fall arrest device with rope is mounted on the ladder (harness not included at the customer's expense).

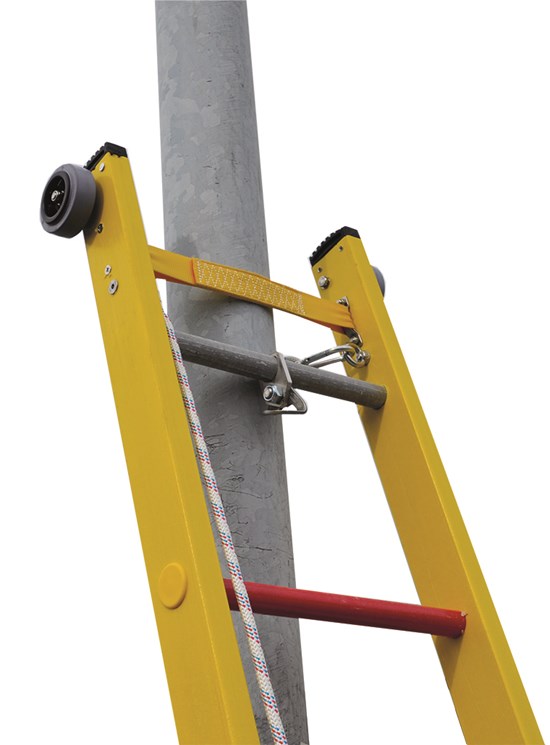

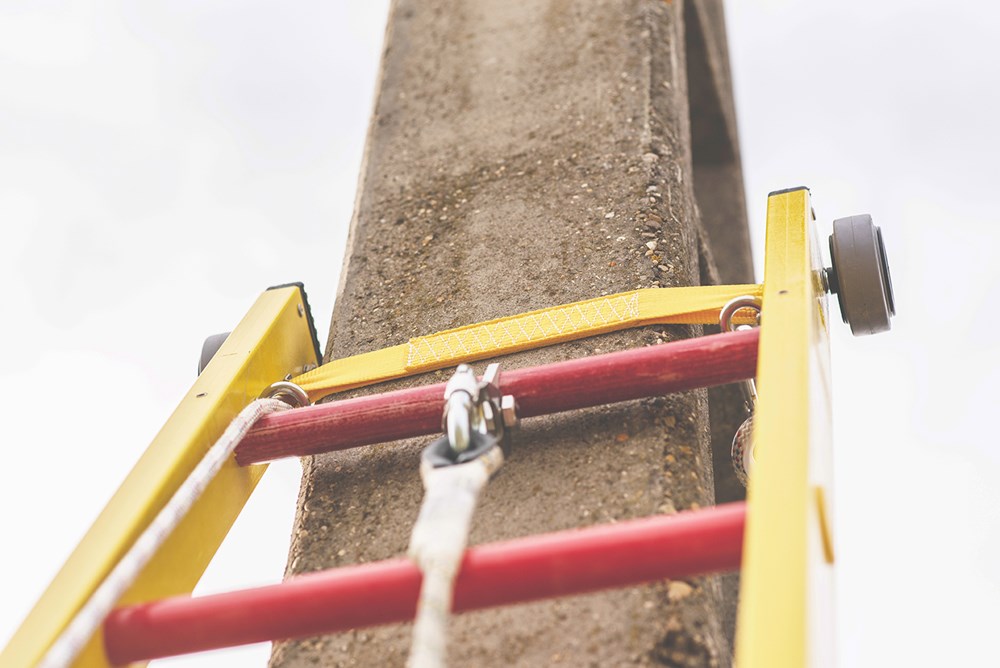

The device is anchored to the certified and reinforced third red rung of the ladder. Its smooth-running wheels at the top allow the ladder to slide along the facade as it is unfolded.
The ladder fittings are made of stainless steel which ensures extra strength and does not contaminate food environments.
TECHNICAL FEATURES
- Non-slip fiberglass rungs: 30 mm
- Distance between rungs: 28cm
- Stainless steel screws
STANDARD EQUIPMENT

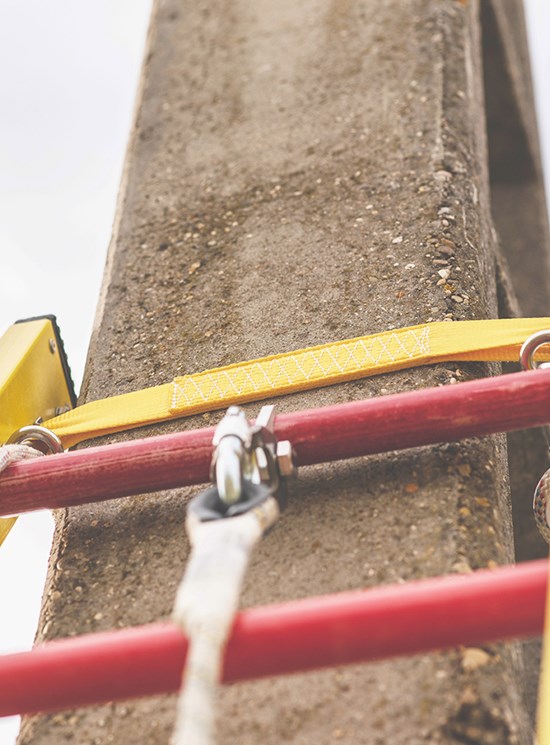

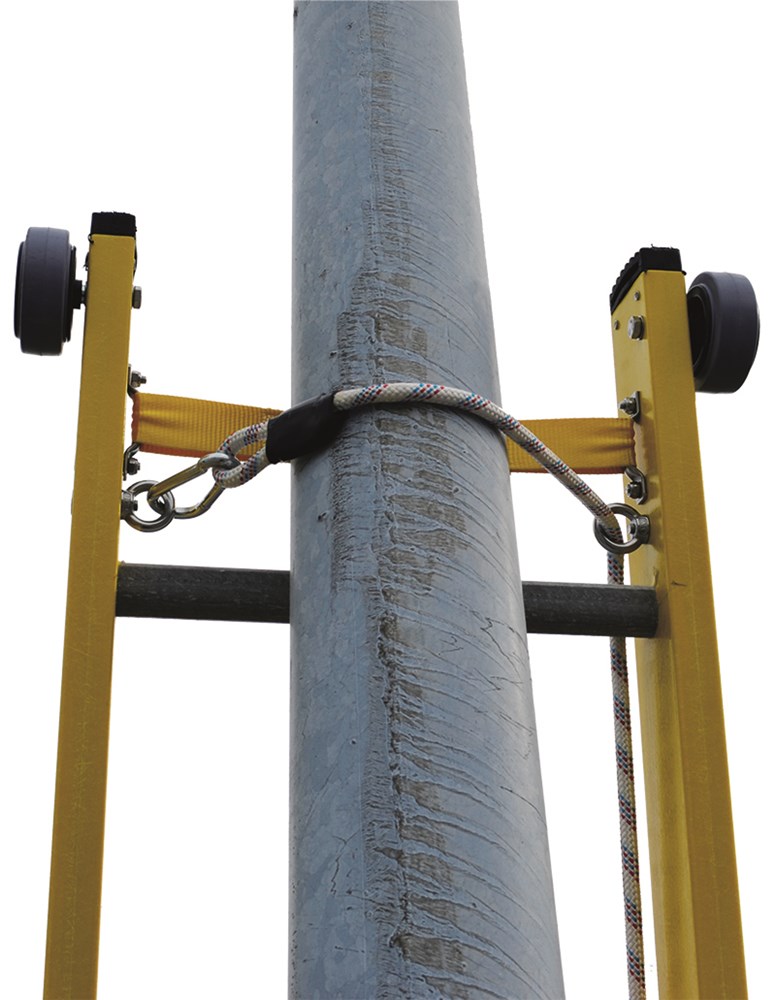

- Post support strap (optional rigid support cradle)

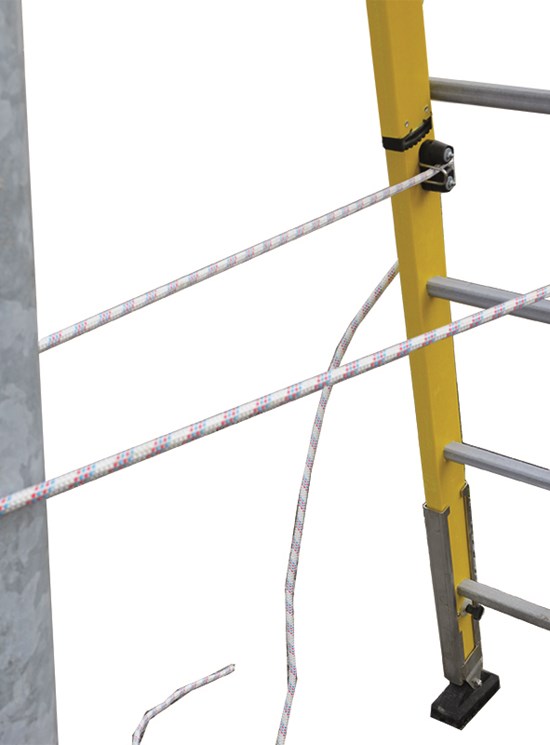

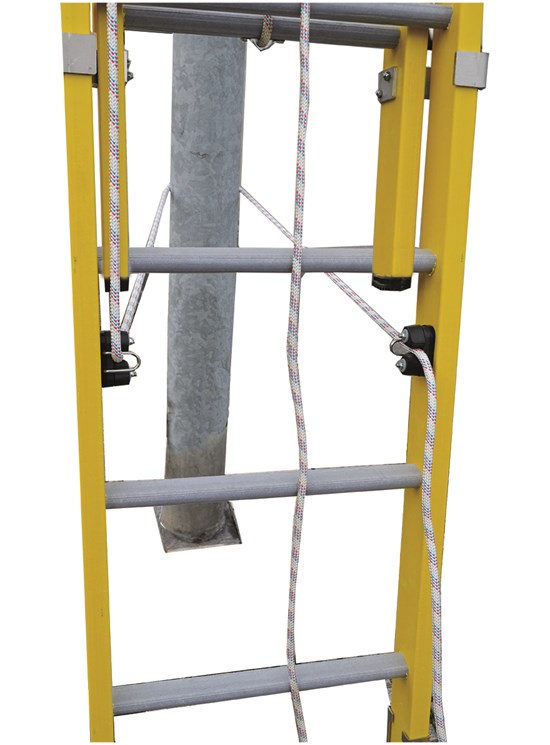

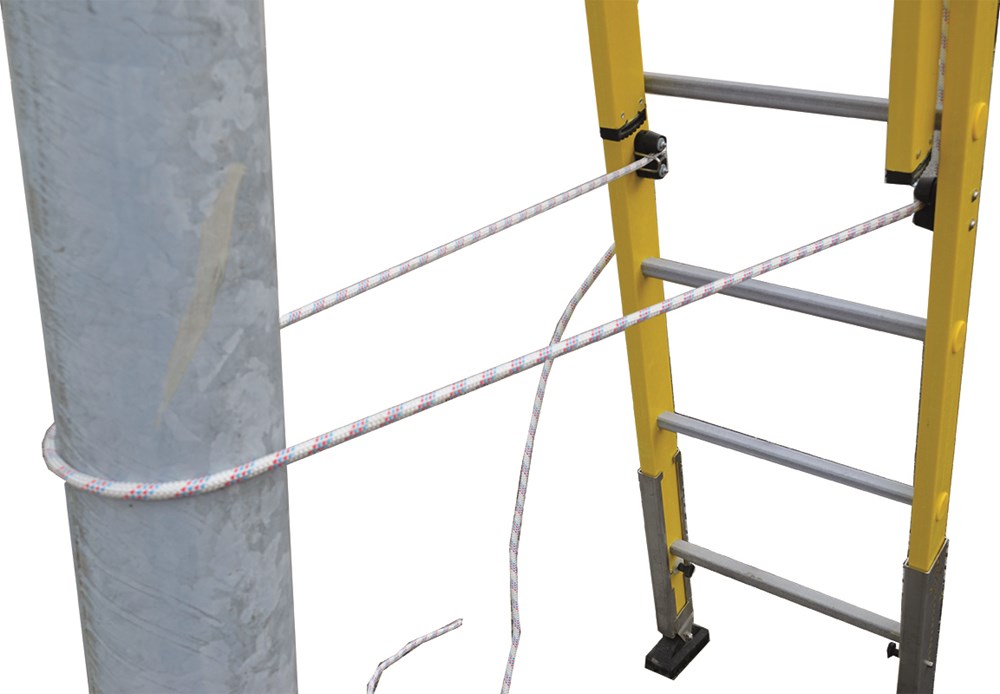

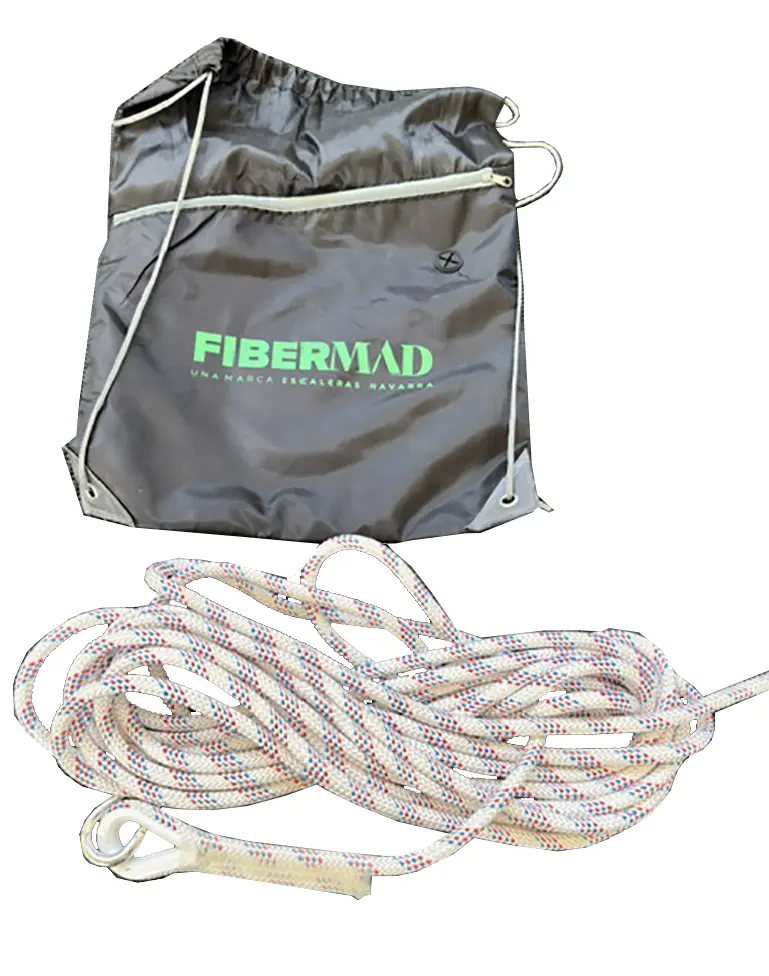

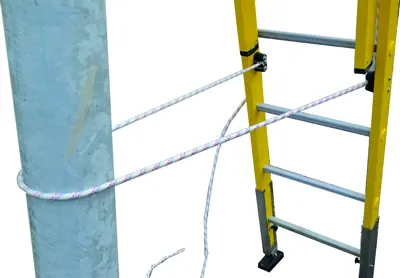

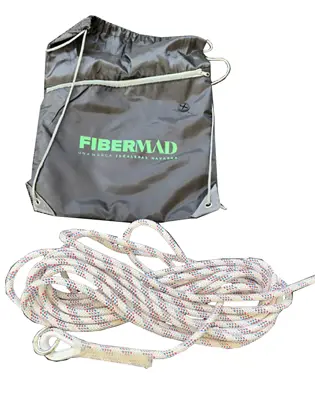

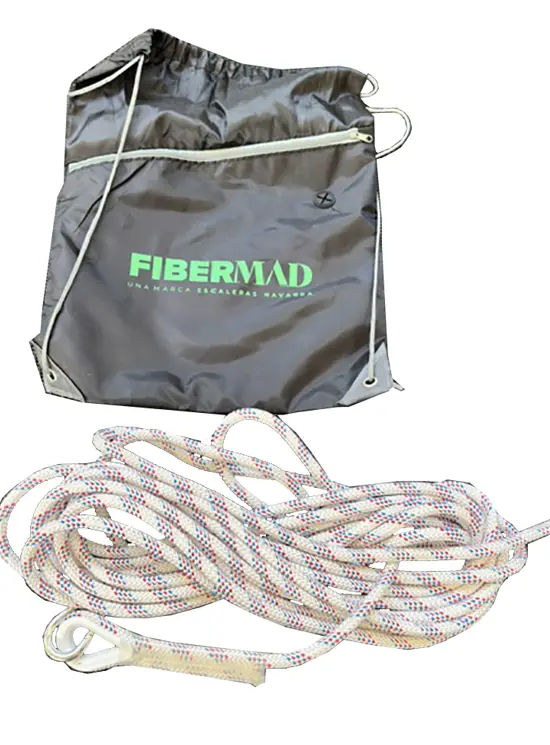

- Safety rope and eye bolts for tying the rope around the post (at the top and at the bottom)

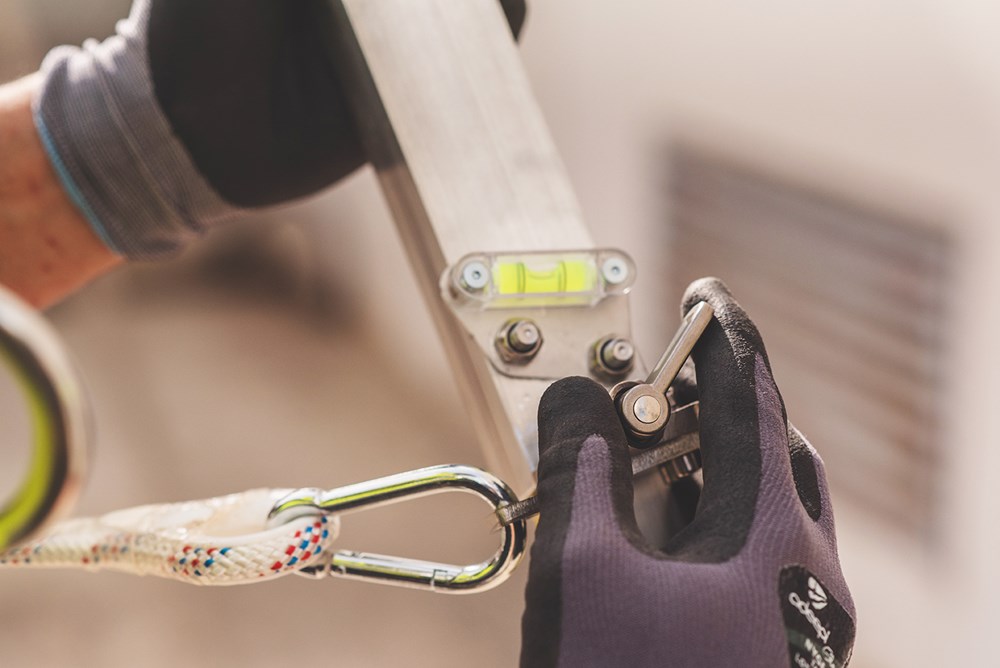

- EN795 anchor point for lifeline
- Aluminum telescopic side stabilizers
- Third red reinforced upper rung for anchoring the fall arrest system
- Anchorage point of the lifeline

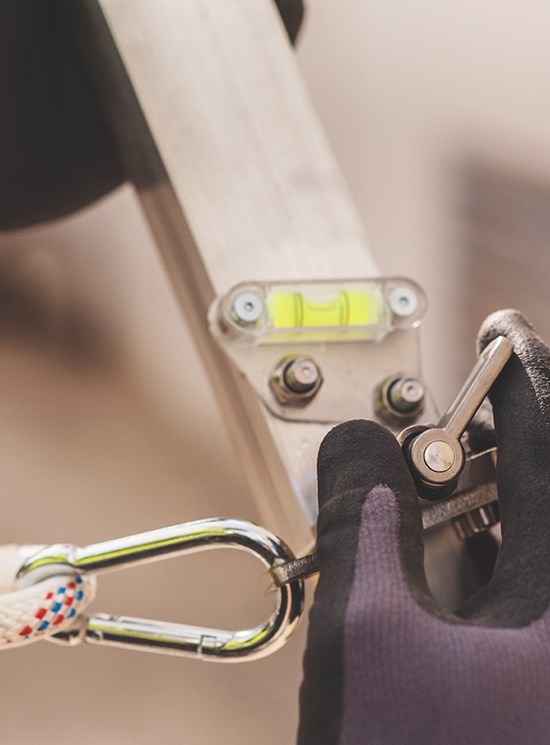

- Quick anchoring of telescopic stabilizers

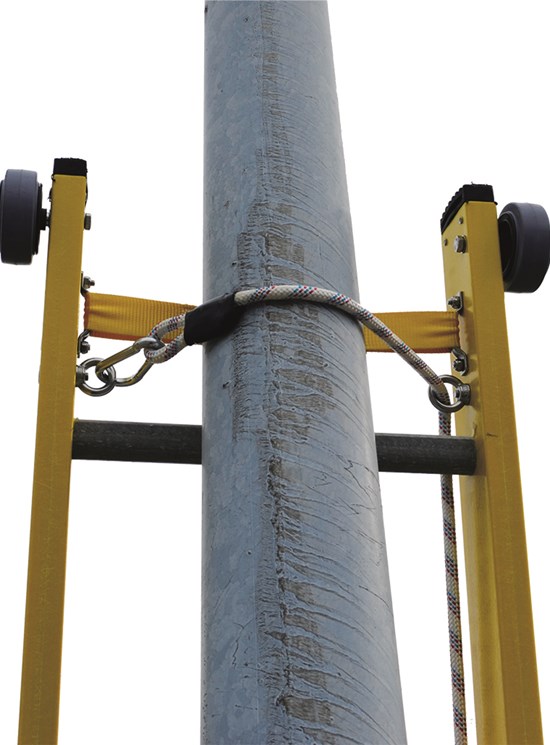

- Wheels for wall extension

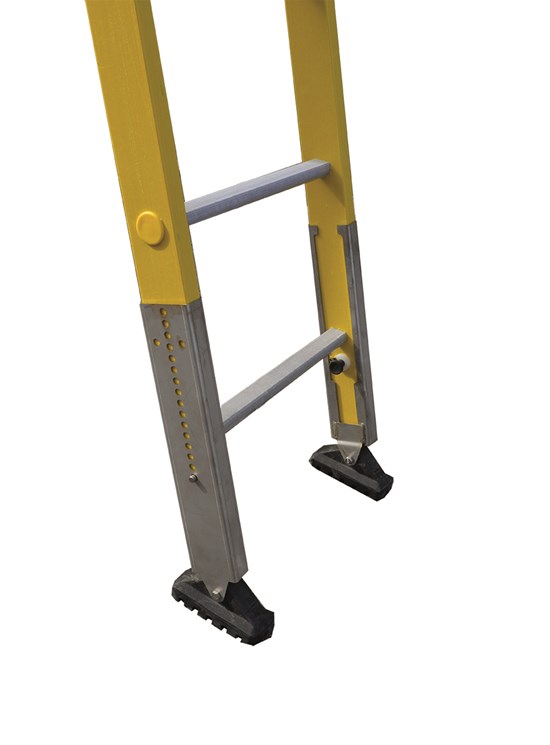

- Height adjustable legs for unevenness
- Adjustable feet system with ergonomic ground support
EUROPEAN STANDARDS
- EN61478
- EN795
- EN131
OPTIONAL

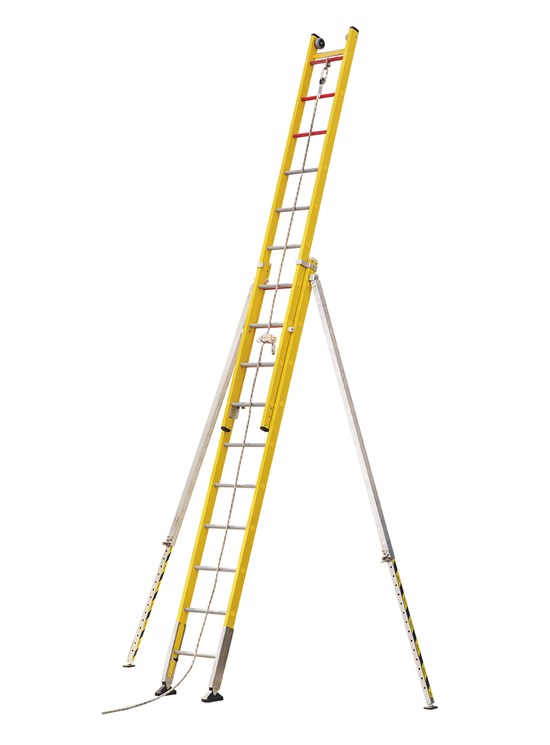

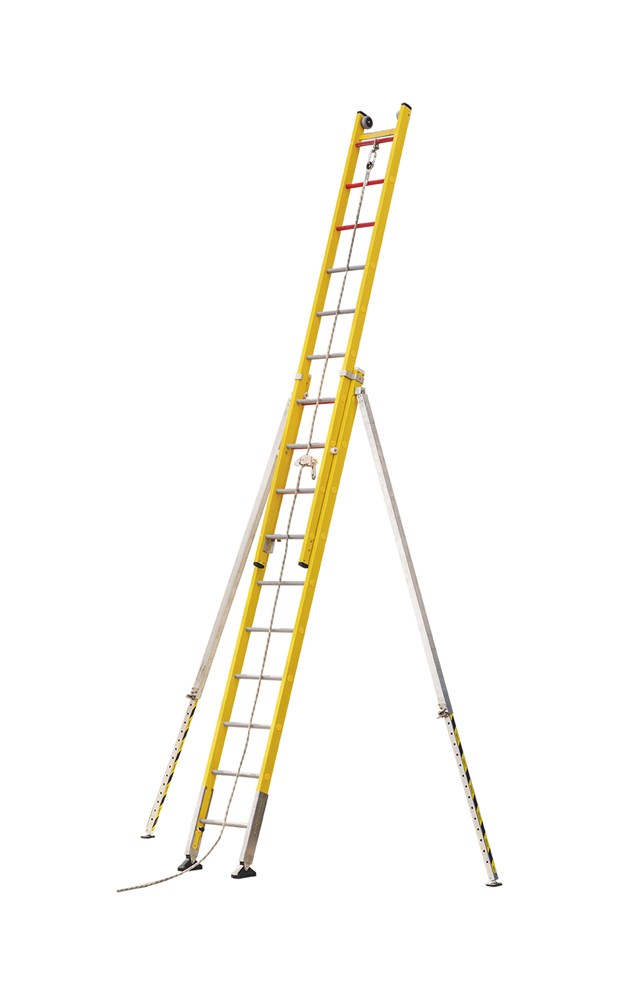

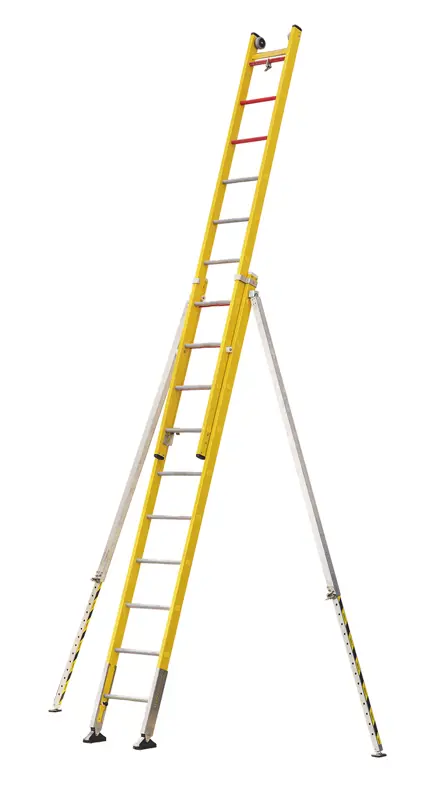

- The FSFP model is designed for mounting oversized aluminum stabilizers for use on wooden posts or in free spaces.
The third red rung is reinforced and prepared for the assembly of this type of stabilizers.
In this way the ladder, if needed, can become self-supporting being transformed into the superior model called FSP with the possibility of universal use as a
lean to wall ladder, on solid or either wooden poles and also in open spaces. In this case the working height will be limited as in the FSP model.
In this way the ladder, if needed, can become self-supporting being transformed into the superior model called FSP with the possibility of universal use as a
lean to wall ladder, on solid or either wooden poles and also in open spaces. In this case the working height will be limited as in the FSP model.
- Rigid support cradle for the post

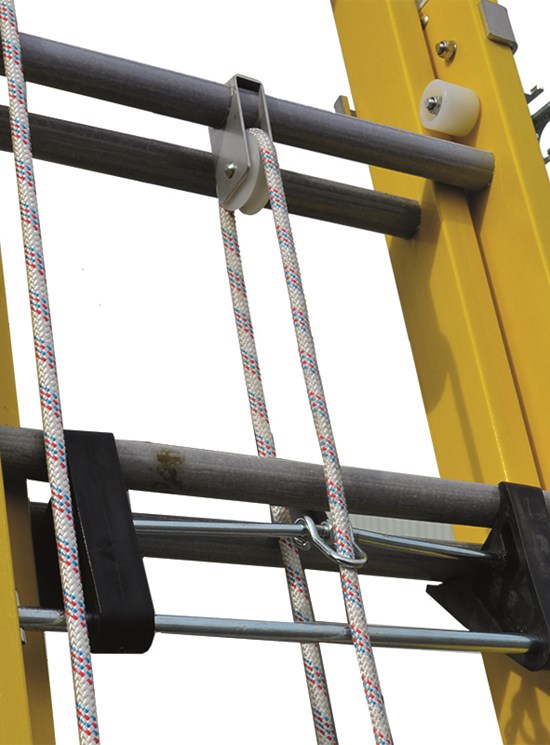

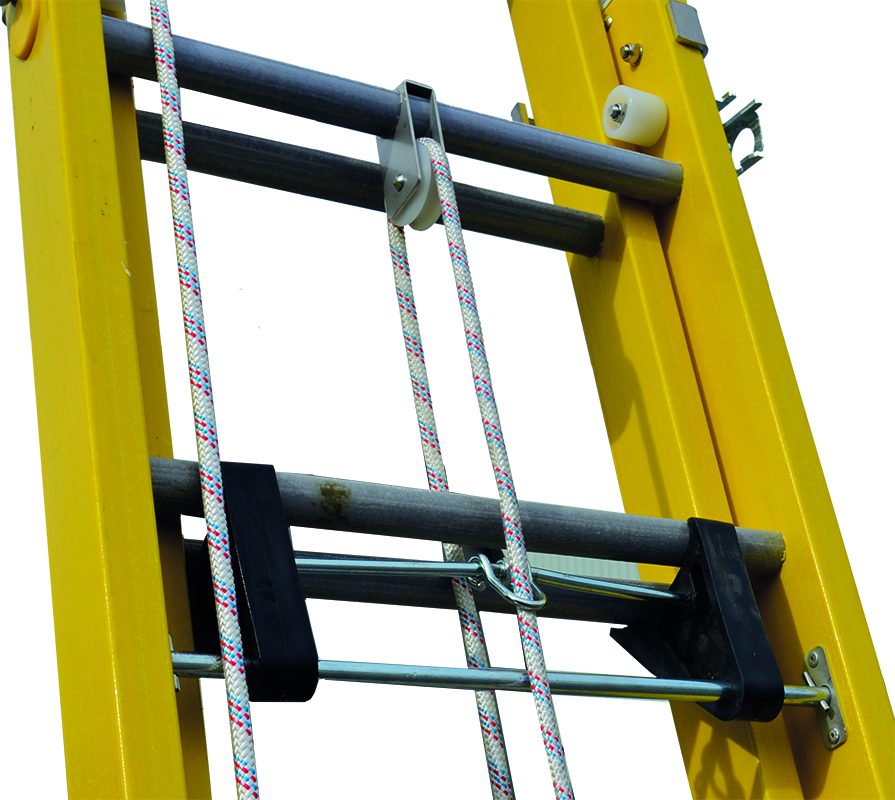

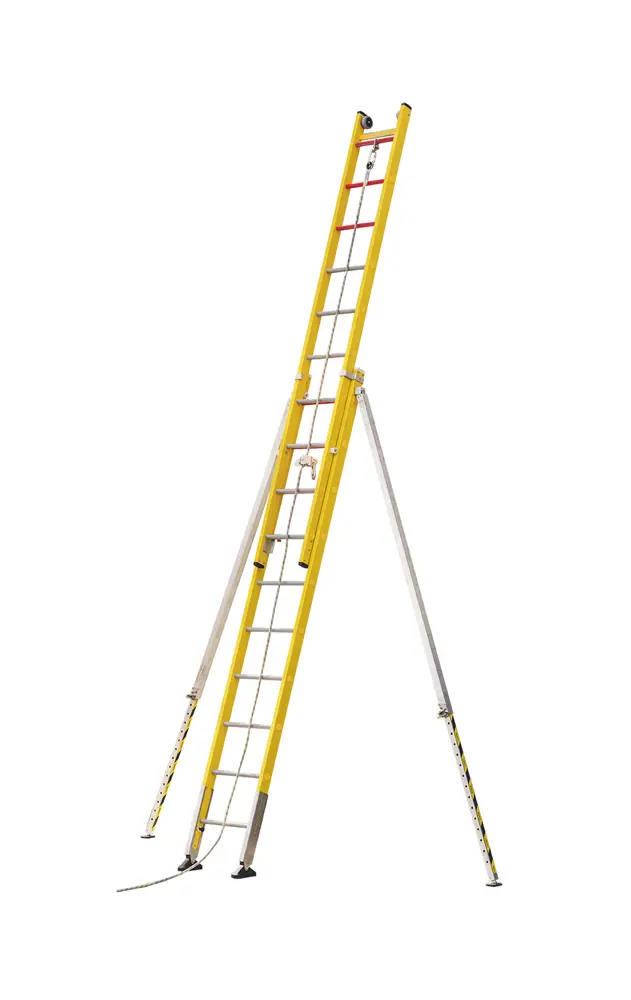

- Version with rope for lifting the second section
2 SECTIONS MANUAL EXTENSION |
||||
Cod. |
Height closed (mm) |
Height open (mm) |
Weight (kg) |
|
FIBRASAFAF10 |
3010 |
4980 |
23 |
|
FIBRASAFA11 |
3290 |
5540 |
25 |
|
FIBRASAFA12 |
3580 |
6010 |
26 |
|
FIBRASAFA13 |
3850 |
6650 |
27 |
|
FIBRASAFA14 |
4100 |
7200 |
29 |
|
FIBRASAFA15 |
4400 |
7750 |
37 |
|
FIBRASAFA16 |
4700 |
8300 |
40 |
|
2 SECTIONS ROPE EXTENSION |
||||
FIBRASAFA10F |
3010 |
4980 |
26 |
|
FIBRASAFA11F |
3290 |
5540 |
27,5 |
|
FIBRASAFA12F |
3580 |
6010 |
29 |
|
FIBRASAFA13F |
3850 |
6650 |
30,5 |
|
FIBRASAFA14F |
4100 |
7200 |
32 |
|
FIBRASAFA15F |
4400 |
7750 |
40 |
|
FIBRASAFA16F |
4700 |
8300 |
42 |
|
|
