FIBRASAFE FSF Façade

Max height 8.3 m.

Producted in compliance with the European standard for dielectric fiberglass ladders for voltages up to1000V AC and 1500V C.C. It defines the tests and sizing

It shows the maximum weight capacity of a product

It is the European Standard for ladders

Suitable for heavy duty

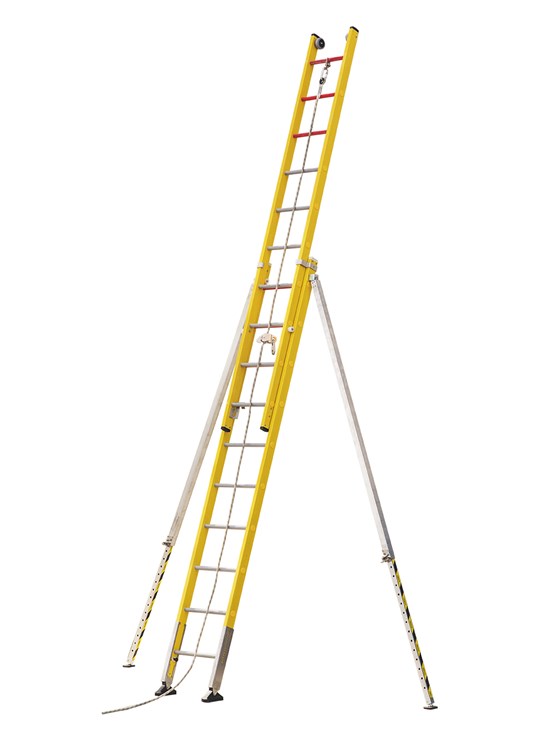

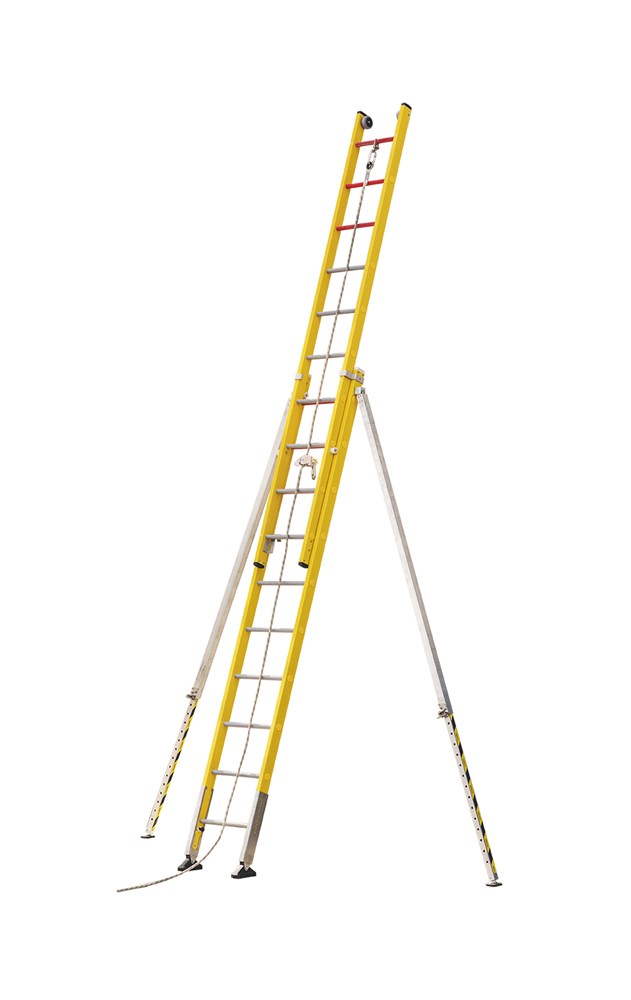

Workstation. Extension ladder in insulating fiberglass with anti-fall device. Façade use.

FSF FIBRASAFE IS 100% FIBERGLASS (POSTS AND RUNGS)

WORK STATION AT CERTIFIED HEIGHT and consists of an extension ladder in two extensible sections in insulating fiberglass against electrical and thermal agents.

Made of fiberglass, it is an antimagnetic ladder that is resistant to humidity, acids, corrosion and ultraviolet rays.

This extension ladder is not self-supporting, it must always be used leaning against the wall.

It is not designed for use on poles.

A fall arrest device with rope is mounted on the ladder (harness not included at the customer's expense).

The device is anchored to the certified and reinforced first top red rung of the ladder.

Its smooth-running wheels at the top allow the ladder to slide along the facade as it is unfolded.

The ladder fittings are made of stainless steel which ensures extra strength and does not contaminate food environments.

Ideal for telephone companies.

TECHNICAL FEATURES

Non-slip fiberglass rungs: 30 mm
Distance between rungs: 28cm
Stainless steel screws

STANDARD EQUIPMENT

EN795 anchor point for lifeline
Aluminum telescopic side stabilizers
First red reinforced upper rung for anchoring the fall arrest system
Anchorage point of the lifeline
Quick anchoring of telescopic stabilizers
Wheels for wall extension
Height adjustable legs for unevenness
Adjustable feet system with ergonomic ground support
Anchors for side uprights

EUROPEAN STANDARDS

EN61478
EN795
EN131

Information request

OPTIONALS

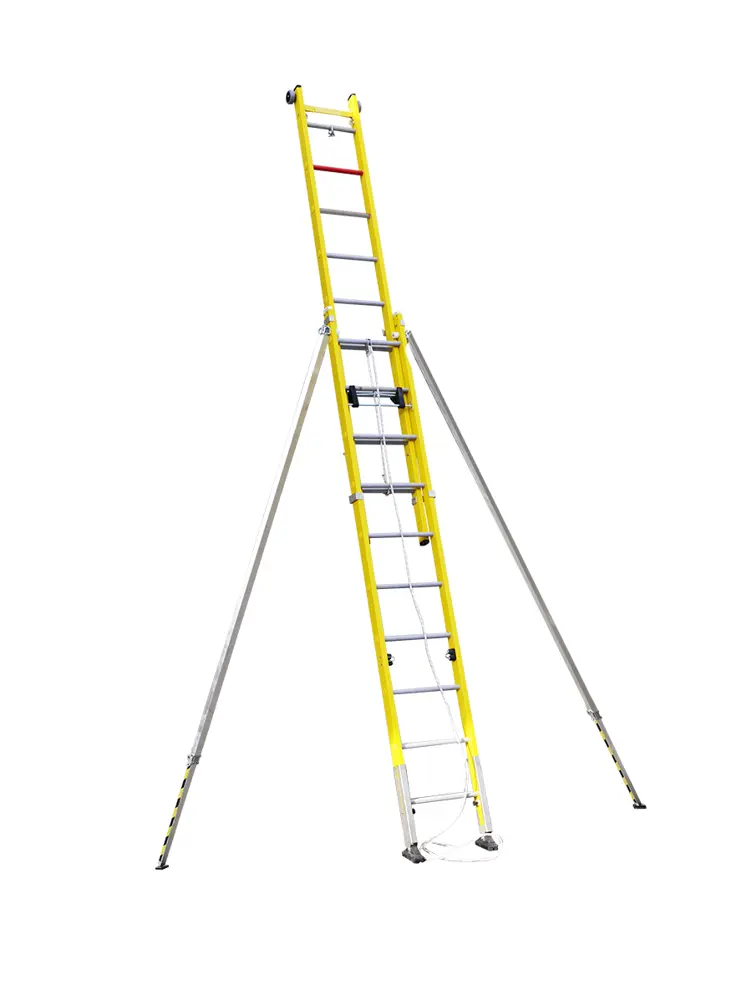

Version with rope for lifting the second section

2 SECTIONS MANUAL EXTENSION
Cod.	Height closed (mm)	Height open (mm)		Weight (kg)
FIBRASAFAF10	3010	4980		23
FIBRASAFA11	3290	5540		25
FIBRASAFA12	3580	6010		26
FIBRASAFA13	3850	6650		27
FIBRASAFA14	4100	7200		29
FIBRASAFA15	4400	7750		37
FIBRASAFA16	4700	8300		40
2 SECTIONS ROPE EXTENSION
FIBRASAFA10F	3010		4980	26
FIBRASAFA11F	3290		5540	27,5
FIBRASAFA12F	3580		6010	29
FIBRASAFA13F	3850		6650	30,5
FIBRASAFA14F	4100		7200	32
FIBRASAFA15F	4400		7750	40
FIBRASAFA16F	4700		8300	42
