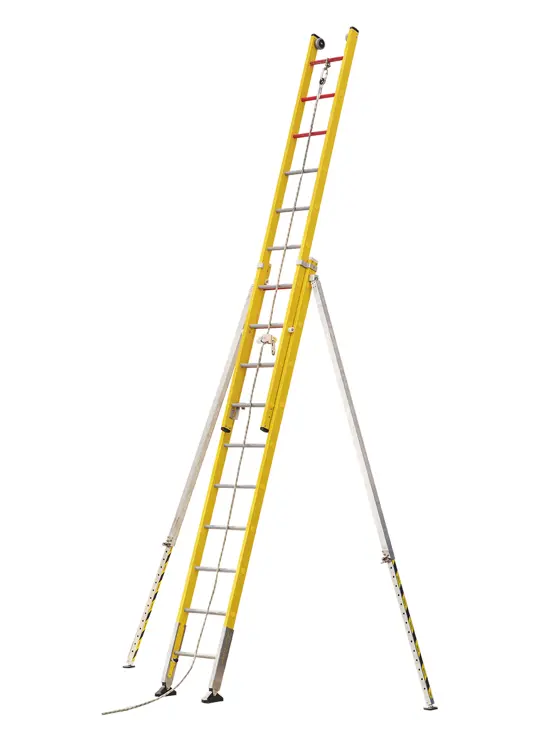

FIBRASAFE FSF (Façade)

Name: FIBRASAFE FSF (Façade)
Brand: Svelt

Max height 8.3 m

Suitable for heavy duty

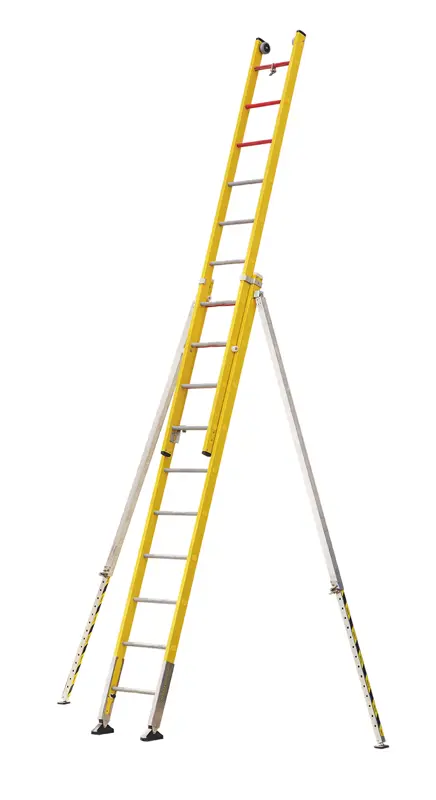

100% insulating fiberglass workstation (uprights/rungs). Attachment point for fall arrest PPE. Use against the façade.

100% FIBERGLASS LADDERS (UPRIGHTS AND RUNGS)

The Fibrasafe series is EN61478 Certified Workstations (tested at 100KV).

These are extension ladders in 2 fiberglass sections insulating against electrical, magnetic and thermal agents.

Made of fiberglass, it is an antimagnetic ladder resistant to moisture, acids, corrosion and ultraviolet rays.

The staircase is equipped with 2 sliding wheels at the top that allow it to slide along the façade as it is opened.

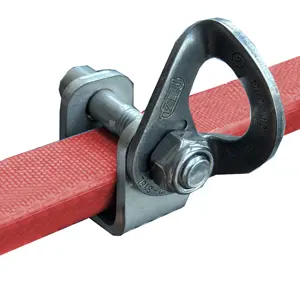

The EN795 certified hook is mounted on the reinforced rung of the ladder which allows the operator to hook his fall arrest device with a rope (PPE excluded from the supply).

The hook is securely mounted on the first rung at the top of the red colored ladder.

The red rungs visually indicate the limit at which the operator cannot stand with his feet.

The peg is specially reinforced and tested to withstand the strain resulting from the operator falling.

WORKSTATION AT HEIGHT

It consists of an extendable fiberglass extension ladder in two sections insulating against electrical, magnetic and thermal agents.

Made of fiberglass, it is an antimagnetic ladder resistant to moisture, acids, corrosion and ultraviolet rays.

It is ideal for telephone companies and can only be used against the wall.

It is not designed for use on poles.

The EN795 certified coupling is mounted on the ladder which allows the operator to hook his fall arrest device with a rope (PPE excluded from the supply).

The hook is securely mounted on the first rung at the top of the ladder which is red.

The peg is specially reinforced and tested to withstand the strain resulting from the operator falling.

The staircase is equipped with 2 sliding wheels at the top that allow it to slide along the façade as it is opened.

STANDARD EQUIPMENT

Anchor point EN795 for lifeline (not included in the scope of delivery)

2 Height-adjustable legs for differences in height (stainless steel) with adjustable feet with ergonomic floor support

2 2 x quick-mount aluminum telescopic side stabilizers

First reinforced upper peg for anchoring fall arrest system (excluded from the supply)
2 Scroll wheels
Manual or rope elevation
Non-slip fiberglass rungs: 30 mm
Distance between rungs: 28 cm

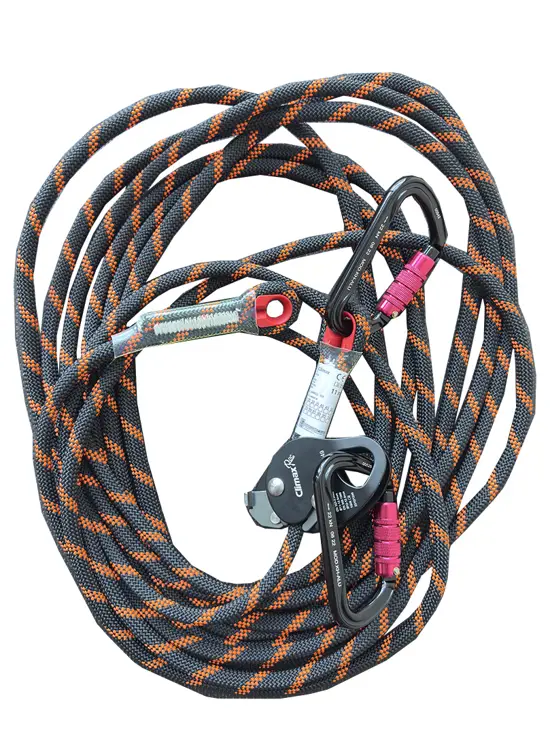

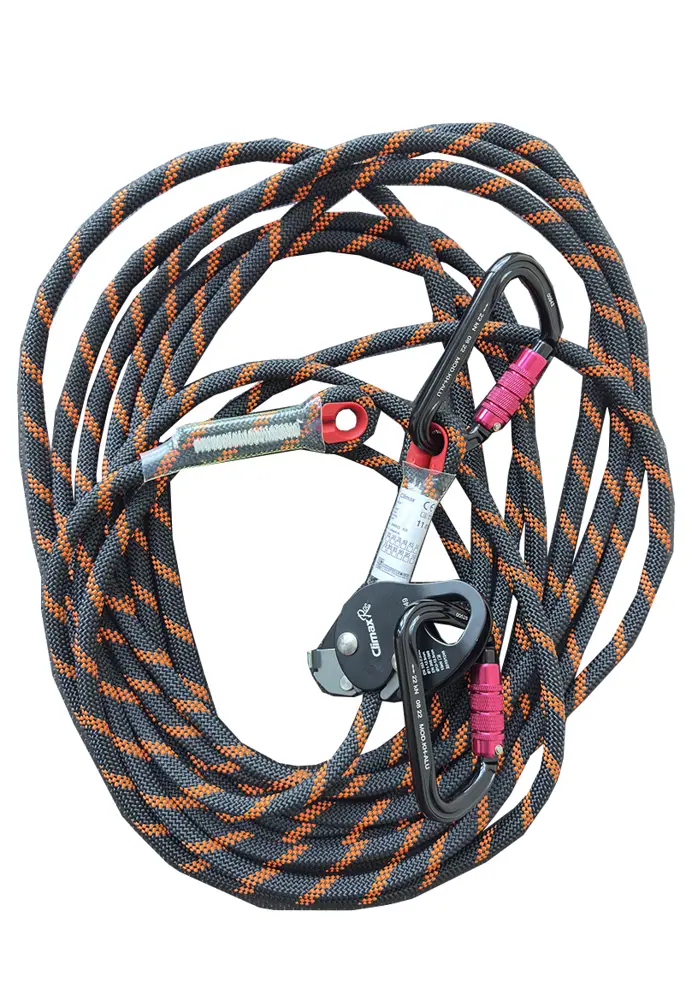

OPTIONAL FALL ARREST KIT (ON REQUEST): code FIBRASAFELINEAV11

The FIBERMAD bag of the kit contains:

n.1 Certified fall arrest device
n.1 rope of 11 meters
n.2 carabiners for attaching to the ladder and to the fall arrest device:

HOMOLOGATION STANDARD: EN61478

STANDARDS IN THE CERTIFICATION PHASE: EN131

DELIVERY TIME APPROX. 15 WORKING DAYS

(Attention!! the FALL ARREST KIT is excluded from the supply)

Fibrasafe international catalogue.pdf (1.2 MB)

Do you need more information?

Our experience is at your service to support you and recommend the right product.

Information request

One of our experts will contact you without any obligation.

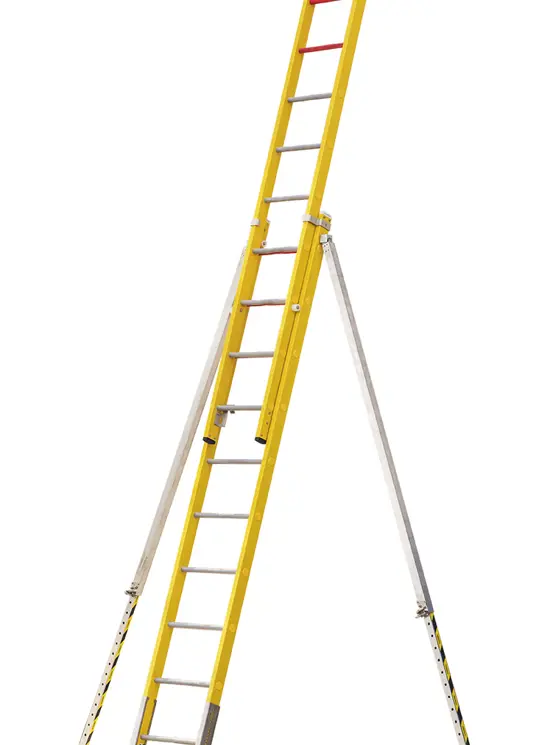

MANUAL FSF (2-SECTION LADDER WITH MANUAL EXTENSION)						(Attention!! FALL ARREST KIT EXCLUDED from the supply)
Cod.	Number of logs x Number of rungs	Height closed (mm)	Height open (mm)		Weight (kg)
FIBRAFSF10	2x10	3010	4890		23
FIBRAFSF12	2x12	3570	6010		26
FIBRAFSF14	2x14	4130	7130		29
FIBRAFSF16	2x16	4690	8250		40

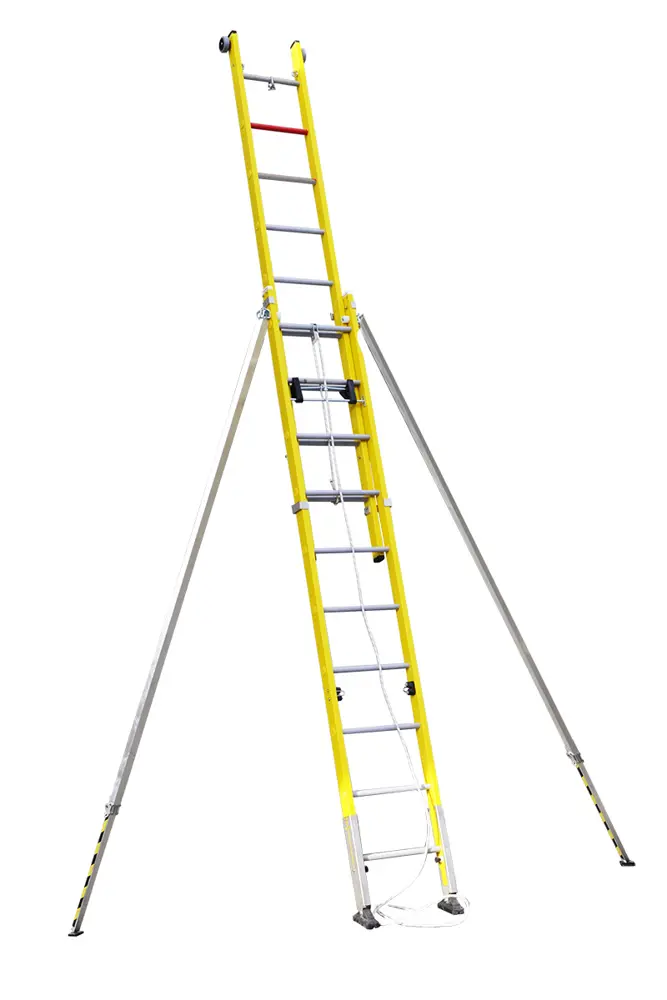

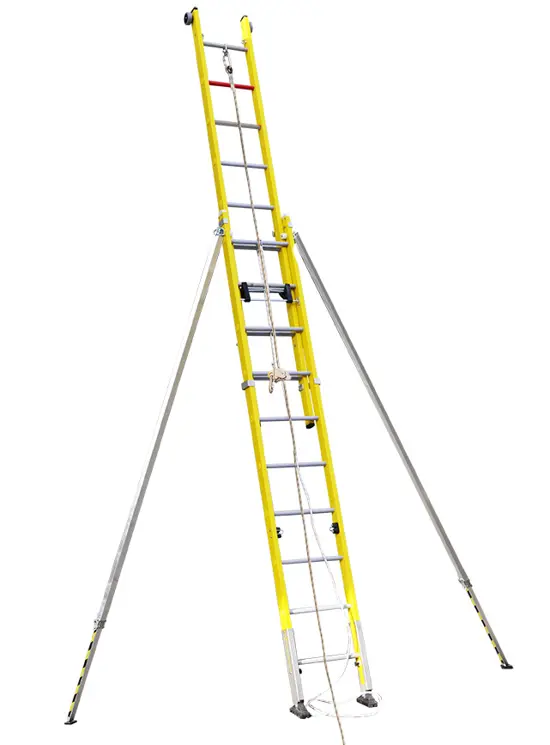

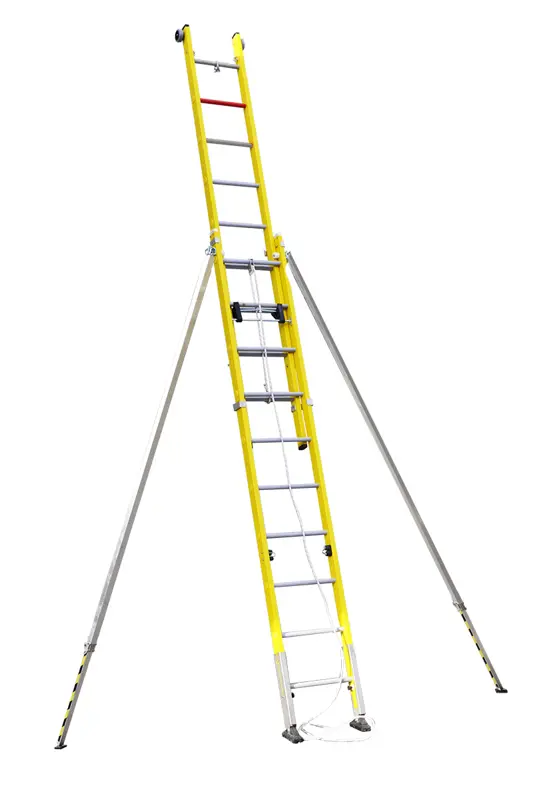

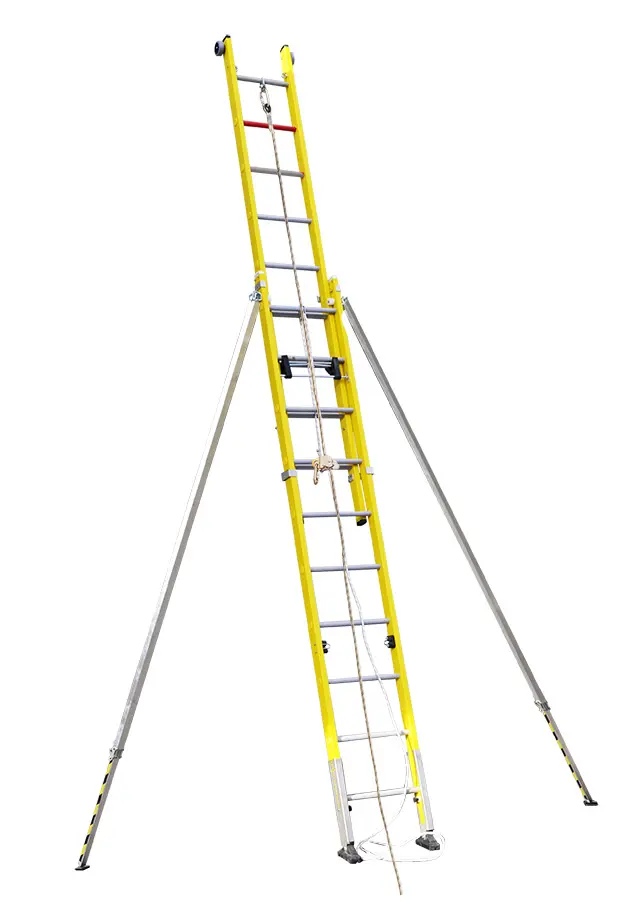

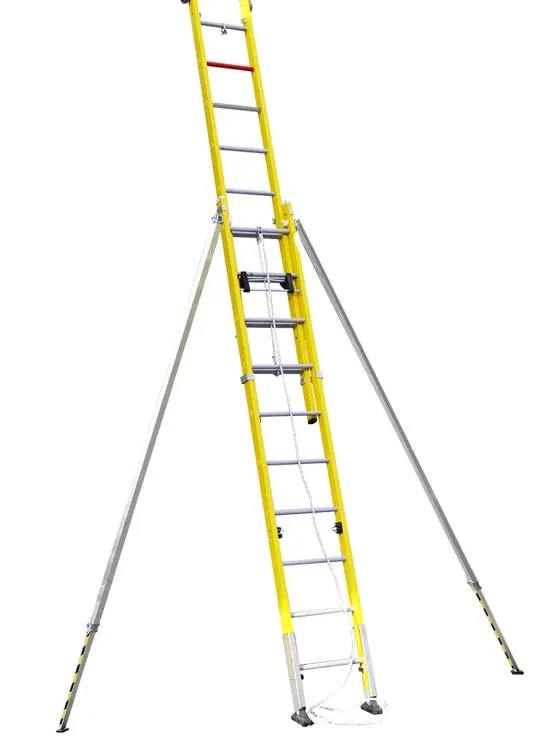

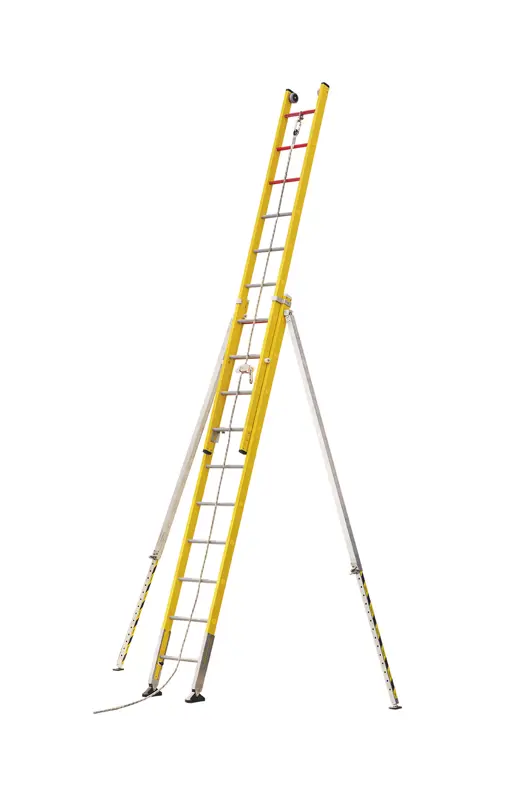

FSF WITH ROPE (LADDER WITH 2 TRUNKS WITH EXTENSION WITH ROPE)
Cod.	Number of logs x Number of rungs	Height closed (mm)	Height open (mm)		Weight (kg)
FIBRAFSF10C	2x10	3010		4890	26
FIBRAFSF12C	2x12	3570		6010	29
FIBRAFSF14C	2x14	4130		7130	32
FIBRAFSF16C	2x16	4690		8250	42

MANUAL FSF (2-SECTION LADDER WITH MANUAL EXTENSION)						(Attention!! FALL ARREST KIT INCLUDED in the scope of delivery)
Cod.	Number of logs x Number of rungs	Height closed (mm)	Height open (mm)		Weight (kg)
FIBRAFSF10LV11	2x10	3010	4890		23
FIBRAFSF12LV11	2x12	3570	6010		26
FIBRAFSF14LV11	2x14	4130	7130		29
FIBRAFSF16LV11	2x16	4690	8250		40
FSF WITH ROPE (LADDER WITH 2 TRUNKS WITH EXTENSION WITH ROPE)
Cod.	Number of logs x Number of rungs	Height closed (mm)	Height open (mm)		Weight (kg)
FIBRAFSF10CLV11	2x10	3010		4890	26
FIBRAFSF12CLV11	2x12	3570		6010	29
FIBRAFSF14CLV11	2x14	4130		7130	32
FIBRAFSF16CLV11	2x16	4690		8250	42
