Castellana Maxi Fiberglass

Climbing ramp 55°
Warranty 5 years
It shows the validity of the guarantee in years
Flow 150 kg
It shows the maximum weight capacity of a product
Flow 1 person
It shows the number of people who can climb the structure at the same time
Compliant D.Leg. 81/08
All our products conforms to the standads in force
European Standards EN 131
It is the European Standard for ladders
Suitable for heavy duty

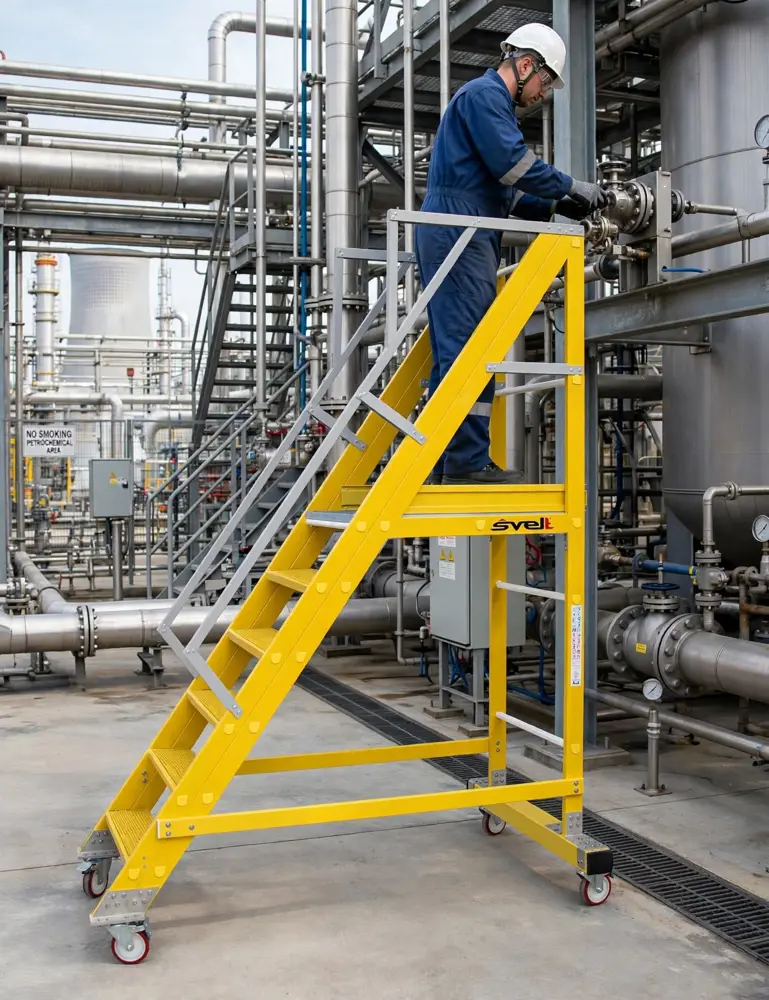

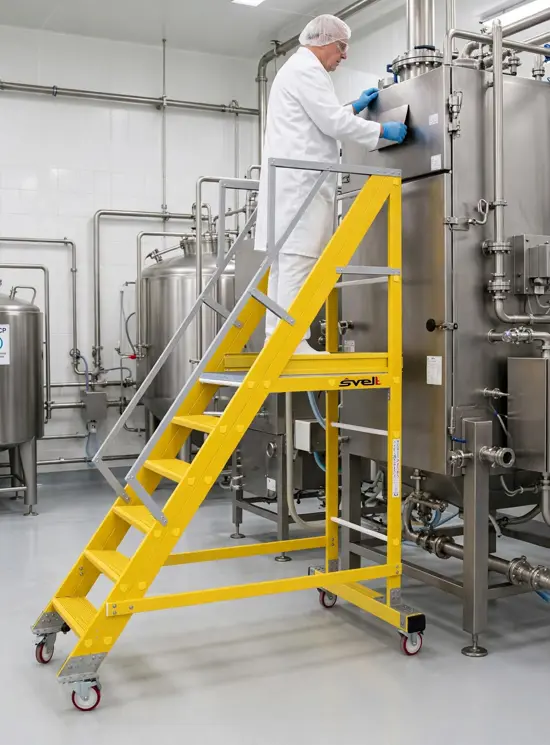

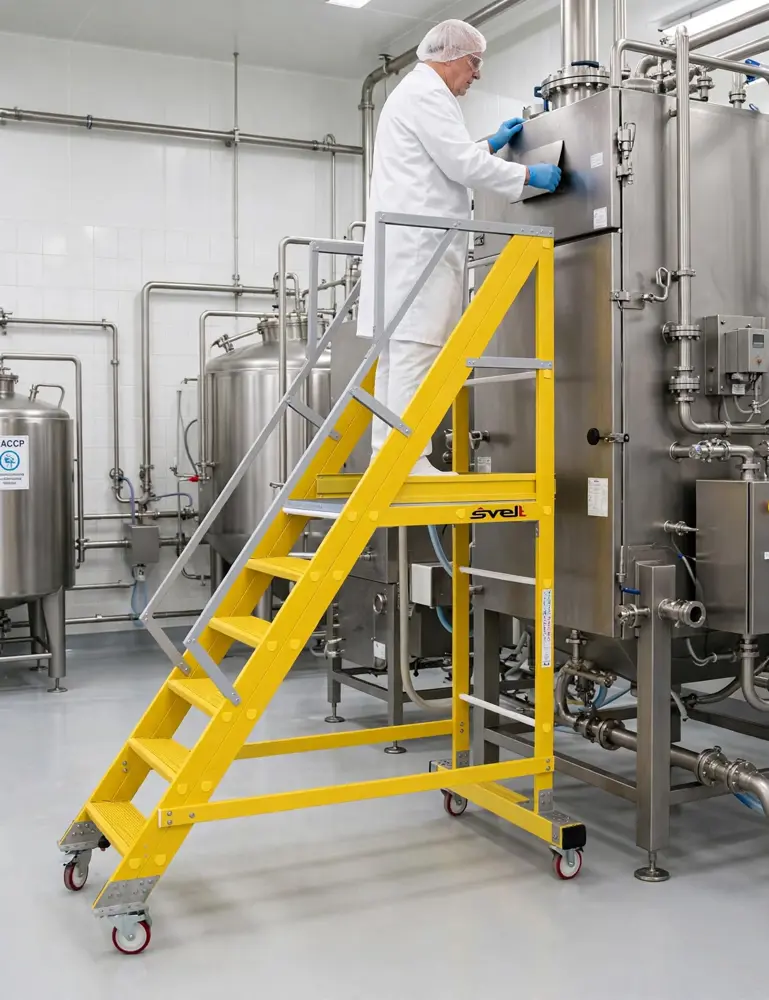

Mobile platforms ladders in fiberglass - 55°ramp

Single-sided warehouse stepladder with platform, handrails a guardrail.
Made entirely of fiberglass.
Suitable for applications in chemical and food companies and in situations where metal stairs are not usable.
It is supplied completely assembled

  •  Electrical and thermal insulation
  •  Antimagnetic and highly resistant to humidity, acids, corrosion and ultraviolet rays
  •  605x805 mm fiberglass tramex platform
  •  Distance steps 28 cm
  •  Depth of fiberglass steps 82 mm
  •  Climbing ramp inclination angle 55º
  •  Guardrail m 1
  •  Equipped with 4 anti-fingerprint wheels diam. 125 mm with foot brake
  •  Steps with non-slip rubber inserts
  •  Fasteners / accessories in stainless steel
  •  Insulation tests performed at 100 KV according to European Standard UNE-EN 61478

Dimensions:
steps  plat. hight tot. hight w. hight   Base    weight
    n.           m           m            m           m          Kg
    3           0,76          1,82          2,76    1,00x1,35    45,00
    4           1,00          2,05         3,00    1,00x1,50    50,00
    5           1,22          2,28          3,22    1,00x1,67    56,00
    6           1,45          2,51           3,45   1,20x1,82     64,00
    7           1,68          2,74          3,68    1,40x1,98    69,00
    8           1,91           2,97          3,91    1,50x2,14     77,00
