E3 combination ladder

Max heigh m 11,90

This product has successfully passed the test of the German quality control body TÜV according to the European Standard on ladders

It shows the validity of the guarantee in years

It shows the maximum weight capacity of a product

It is the European Standard for ladders

Suitable for heavy duty

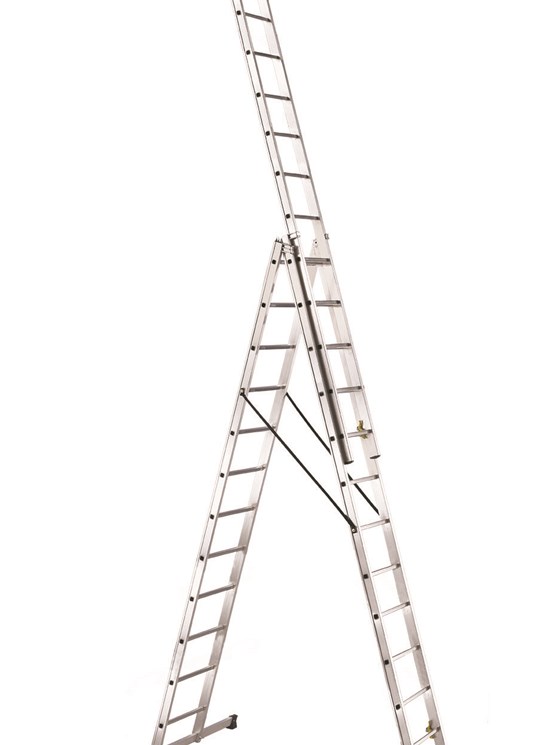

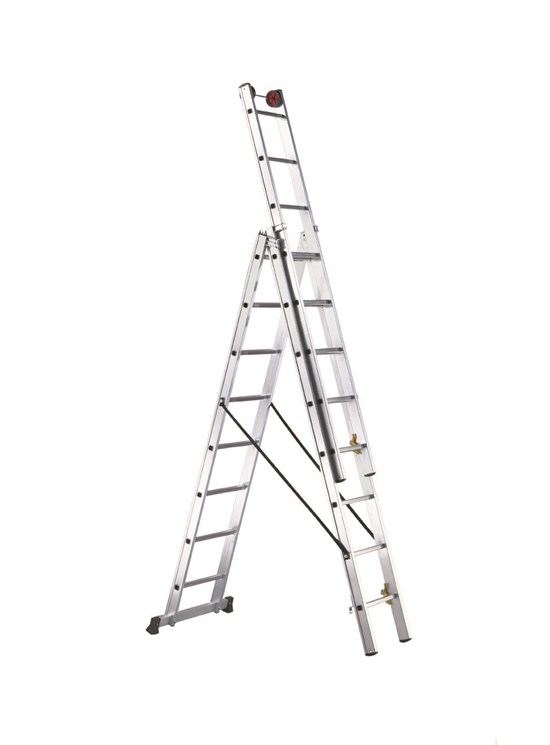

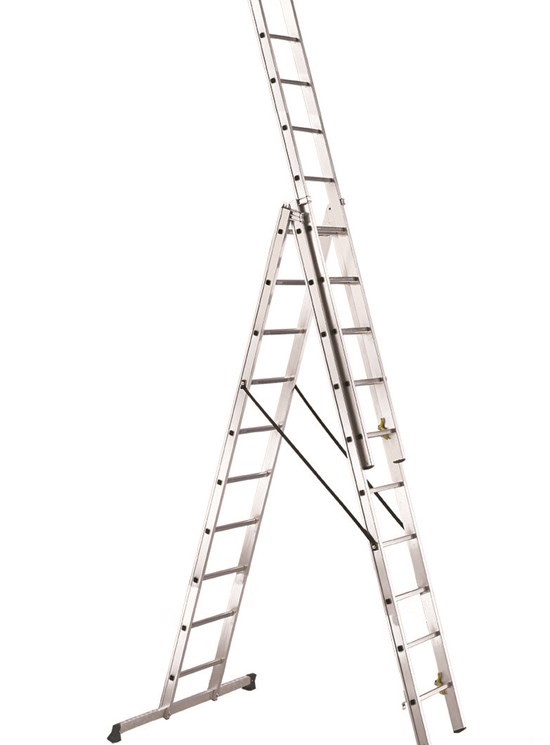

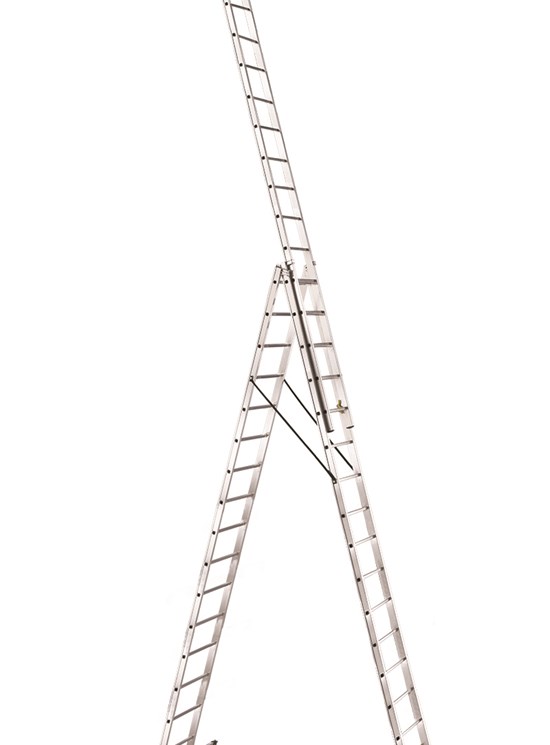

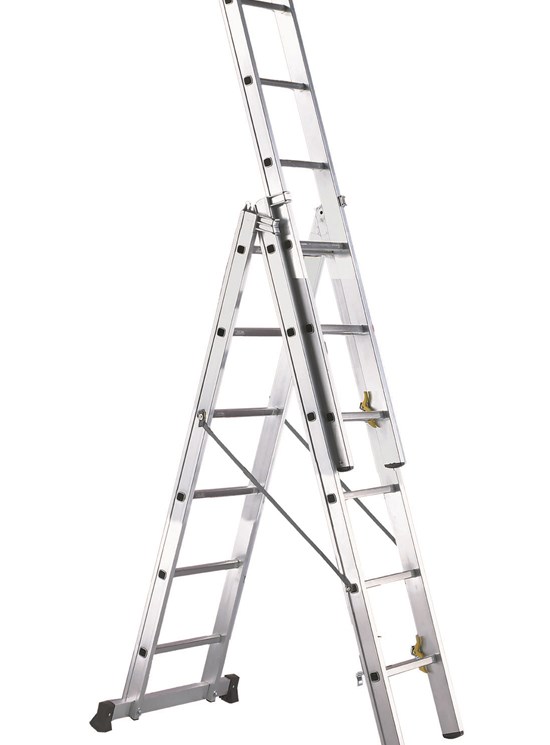

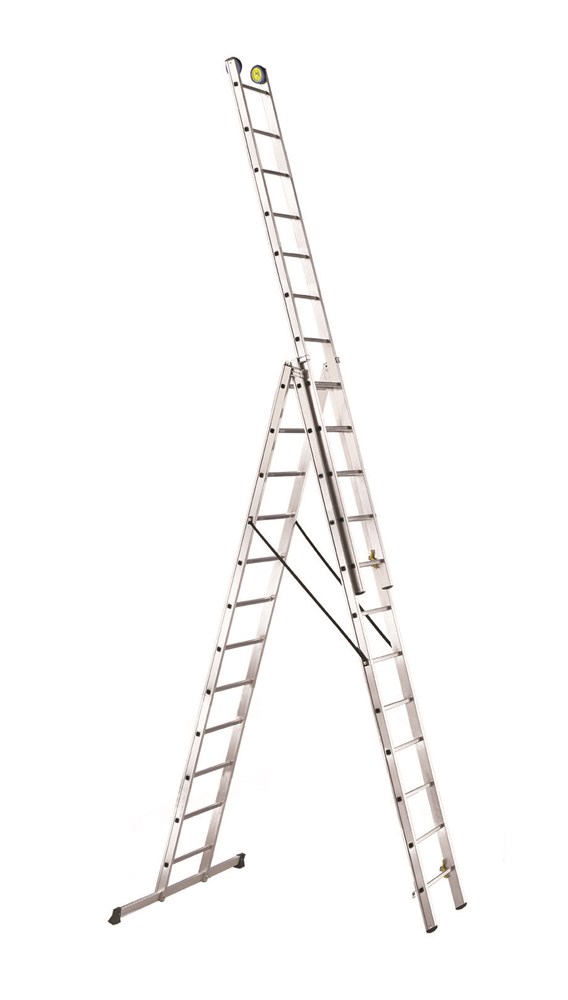

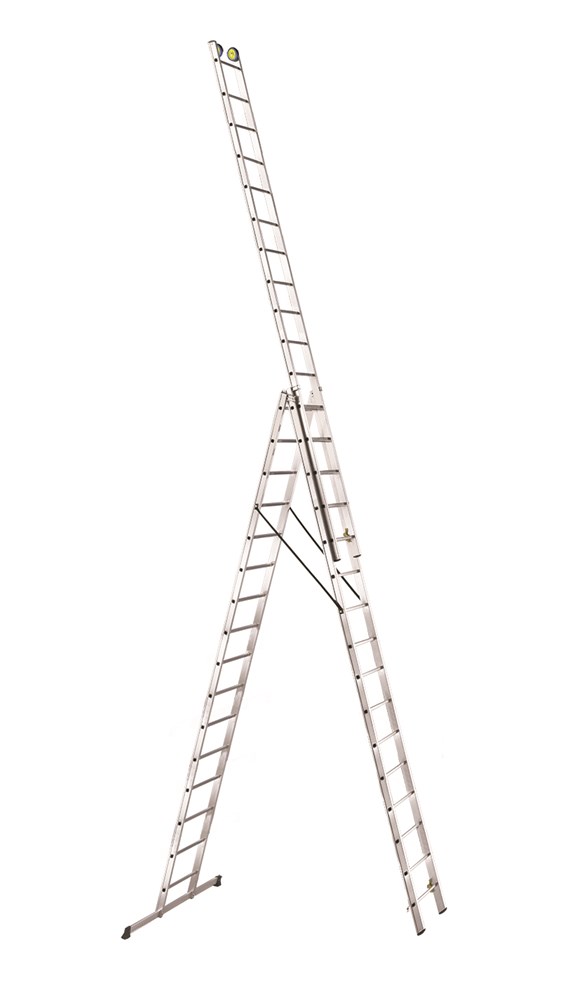

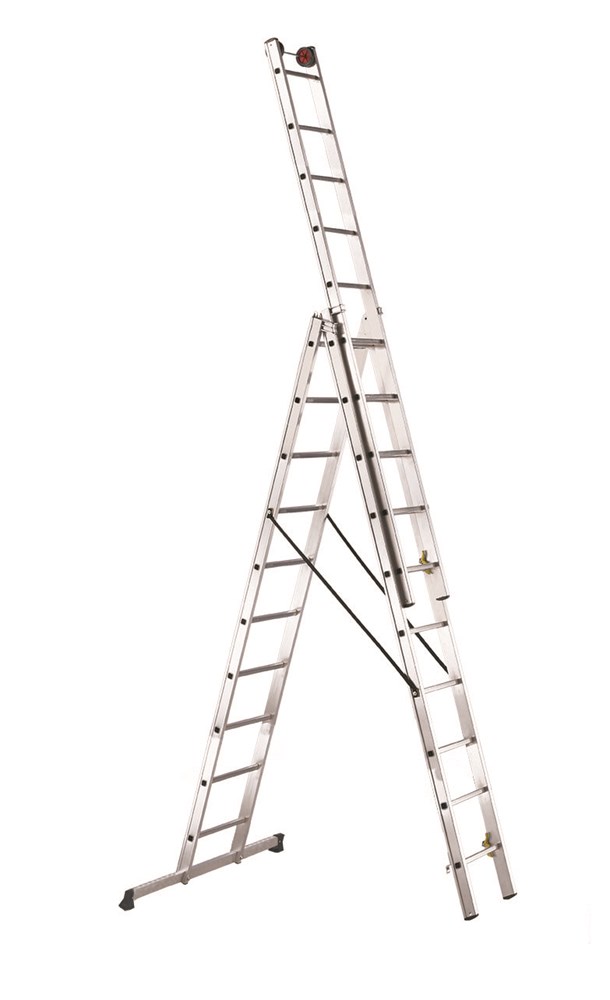

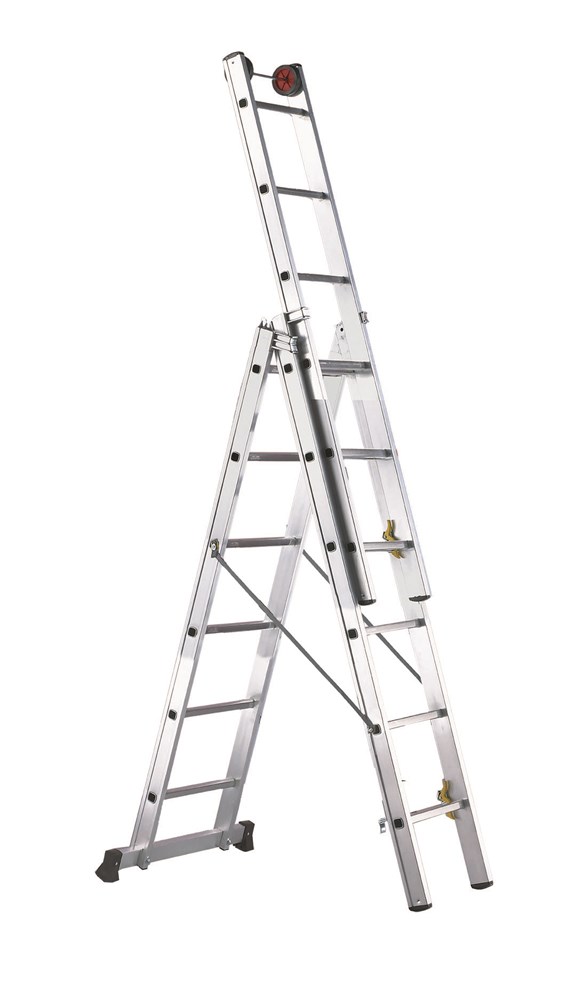

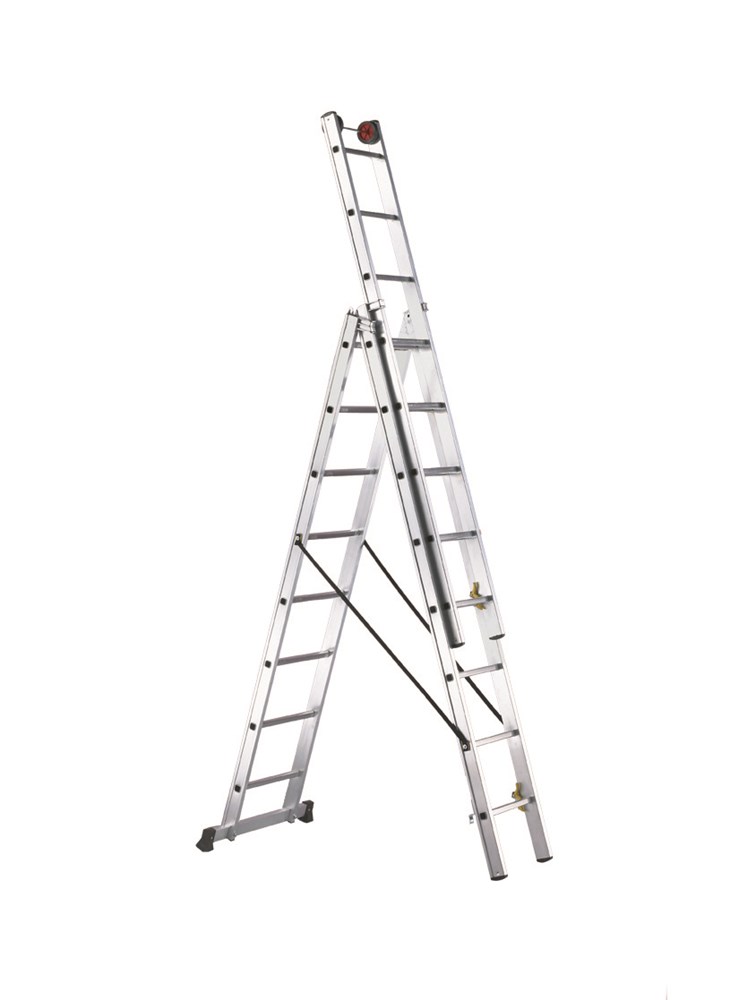

Combination ladder in 3 sections, A frame and lean on the wall positions available. Extension wheels, base stabilizer, fixed straps to prevent accidental opening

The Euro Series is built in ribbed aluminium, in compliance with EN131 standards and tested by the German TÜV.

It is the medium-high range series with excellent equipment, comfort and sizing.

Euro 2 is a series of transformable ladders in extruded ribbed aluminum for professional use built with an advanced automatic edge-wrapping system that permanently fixes the steps to the uprights with a "sandwich" effect.

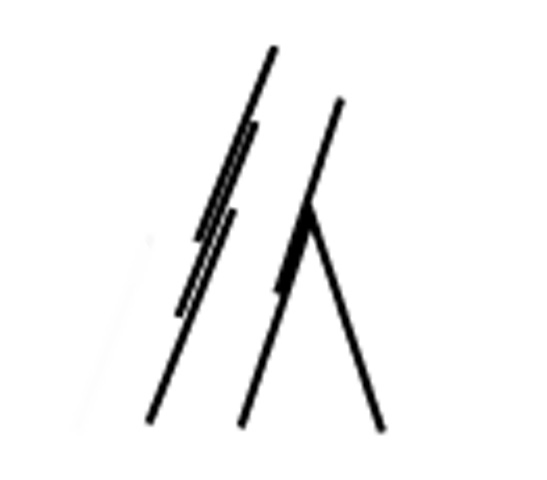

With 2 sections that can be used leaning to the wall and in A frame position.

It is available in the manual version or with rope (E3F).

Base stabilizer
Keys for assembling the stabilizer
Internal nylon reinforcement in the stabilizer seat
Accidental anti-opening straps

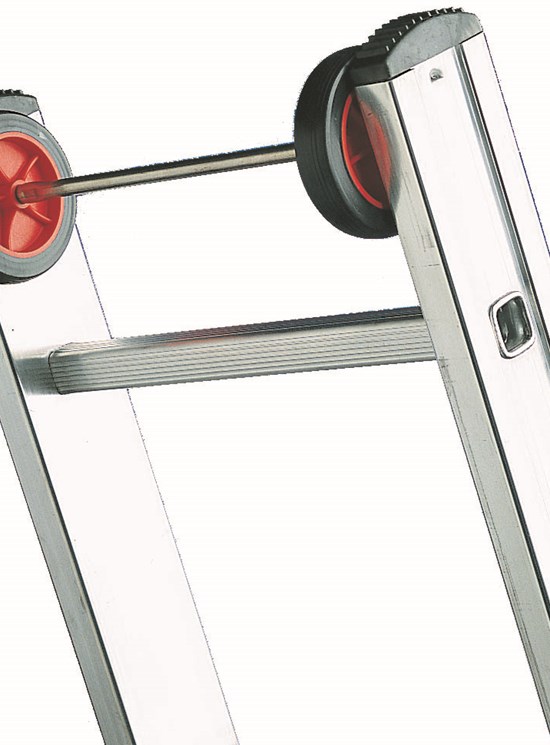

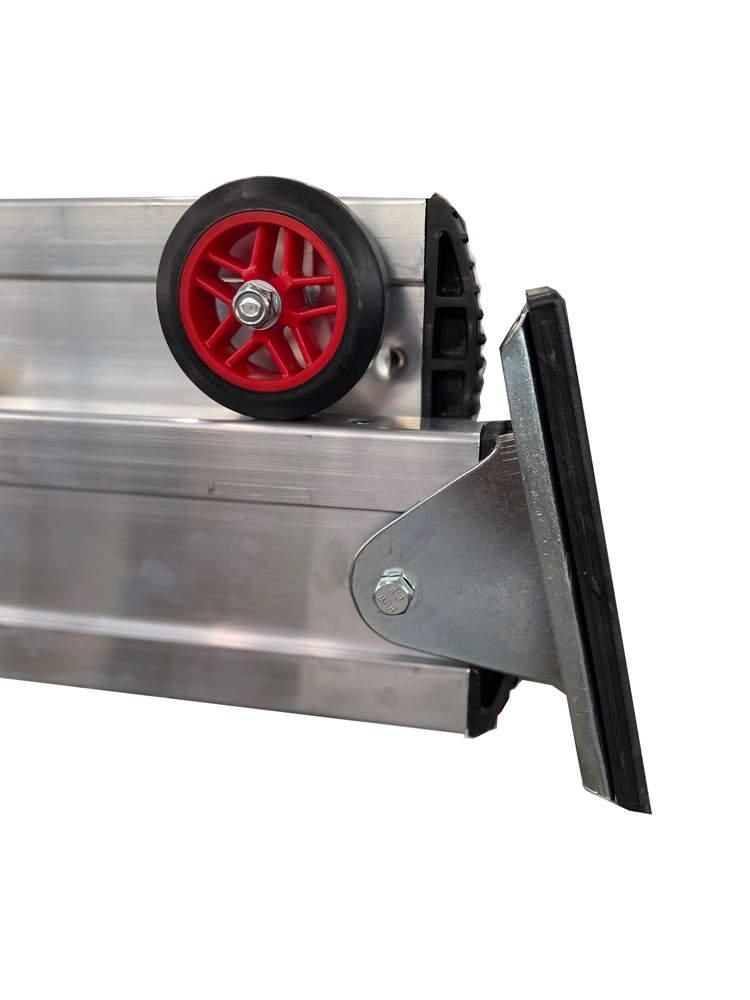

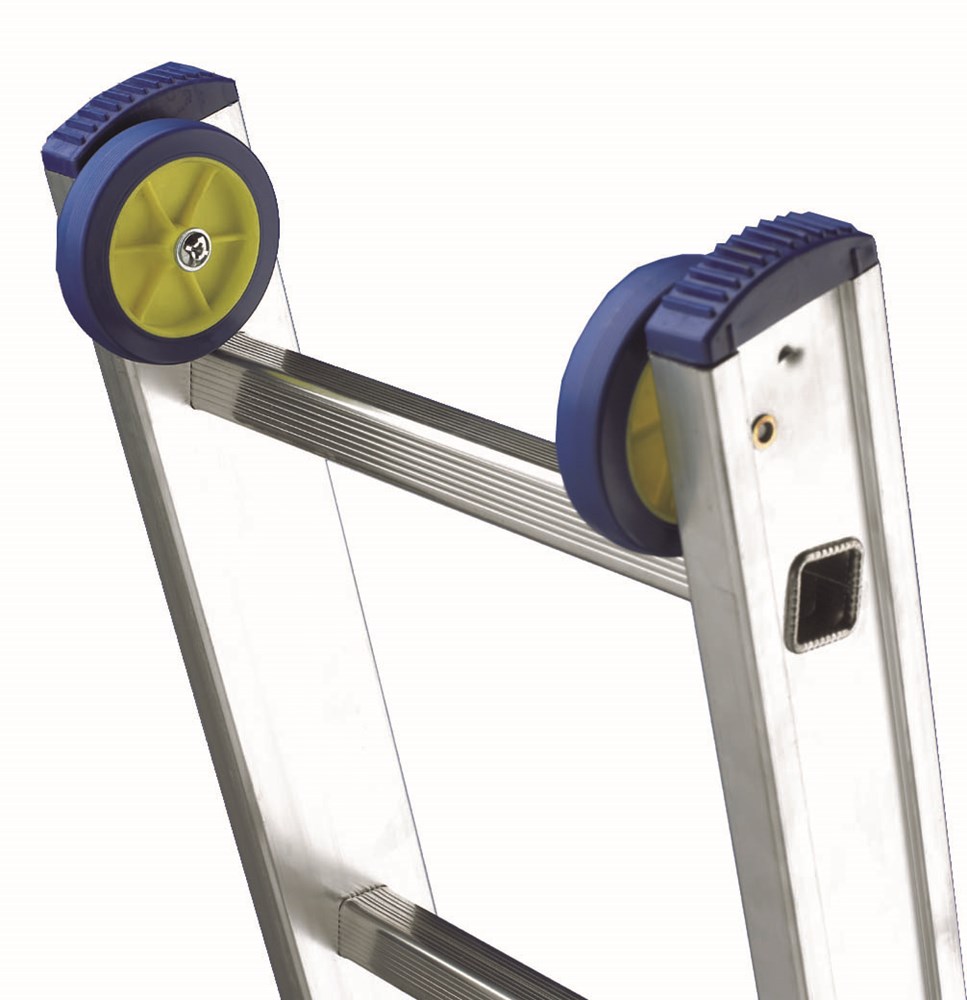

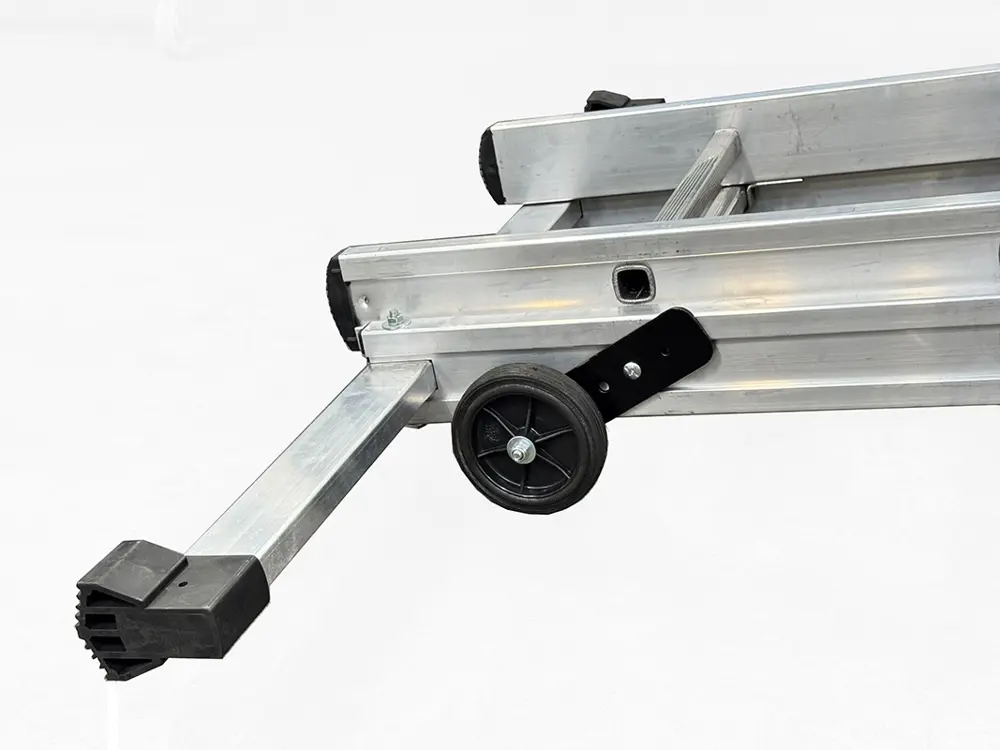

Scroll wheels

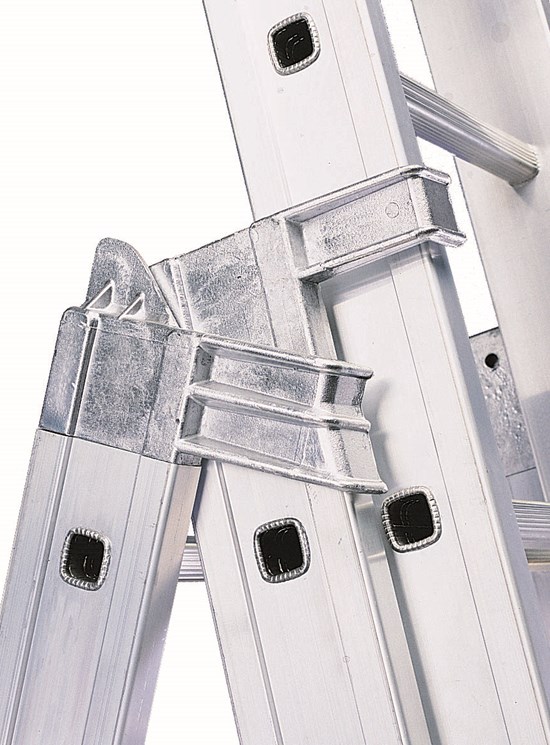

Opening hinges in aluminum (clamshell casting)
Non-slip rubber feet
Accidental anti-unthreading device
Anti-thread cap beyond the safety height
Labels and use and maintenance manual
Test certificate according to Italian and European regulations

Also available with rope for extension use only. E3F with rope cannot be used in A frame position.

Available also in fiberglass FIBERGLASS V3

TECHNICAL FEATURES

Code	Rungs number for each section	Closed height m	A frame height m	Leaning height m	Proflie mm	Weight Kg
SCE3000	3x06	1.8	1.7	4.1	57x27	12.0
SCE3005	3x07	2.1	2.0	4.9	57x27	13.5
SCE3R010	3x08R	2.4	2.3	5.75	67x27	17.5
SCE30020	3x10	3.0	2.9	6.85	67x27	20.5
SCE3R020	3x10R	3.0	2.9	7.45	84x27	22.5
SCE30030	3x12	3.5	3.4	8.55	84x27	26.5
SCE3R030	3x12R	3.5	3.4	9.1	100x27	28.5
SCE30040	3x14	4.1	4.0	10.2	100x27	32.5
SCE30050	3x16	4.6	4.5	11.9	115x27	40.0

I modelli da 3x14 e 3x16 pioli sono reperibili solo presso i RIVENDITORI AUTORIZZATI

SPARE PARTS

Safety hook: CONF2056

Z shape hook: CONF2057

Kit 2 wheels: CONF2055

Kit 2 wheels: CONF2023

Kit 2 safety belt::

code model

CONFSCINT0032	E 3X6
CONFSCINT0034	E 3X7
CONFSCINT0038	E 3X8 R
CONFSCINT0020	E 3X10
CONFSCINT0042	E 3X10 R
CONFSCINT0040	E 3X12
CONFSCINT0046	E 3X12 R
CONFSCINT0024	E 3X14
CONFSCINT0044	E 3X16

STABILZERS

model code code screws

EURO 3X6 GR SALLAR34 SALLARV070

EURO 3X7 GR SALLAR34 SALLARV070

EURO 3X8R GR SALLAR34 SALLARV080

EURO 3X10 GR SALLAR36 SALLARV080

EURO 3X10R GR SALLAR36 SALLARV100

EURO 3X12 GR SALLAR37 SALLARV100

EURO 3X12R GR SALLAR37 SALLARV120

EURO 3X14 GR SALLAR37 SALLARV120

EURO 3X16 GR SALLAR37 SALLARV130
