Uplift stair climber handtruck wheel

Warranty 2 years
It shows the validity of the guarantee in years
Flow 120 kg
It shows the maximum weight capacity of a product
Tek Up
TekUp products offer lightness and handiness at a competitive price respecting all safety requirements according to the laws in force.
Suitable for light duty

6 Solid rubber wheels with plastic hub and roller bearings

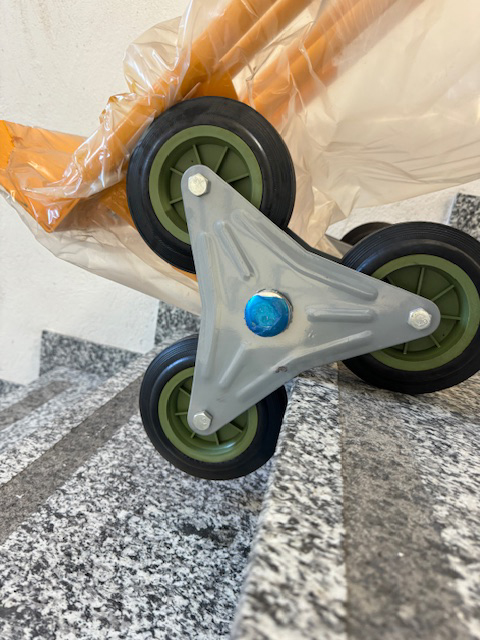

The stairclimber TEKUP line is equipped with 6 solid rubber wheels with plastic hub.
The wheels can be purchased as spare parts and mounted on trolleys already on the market.

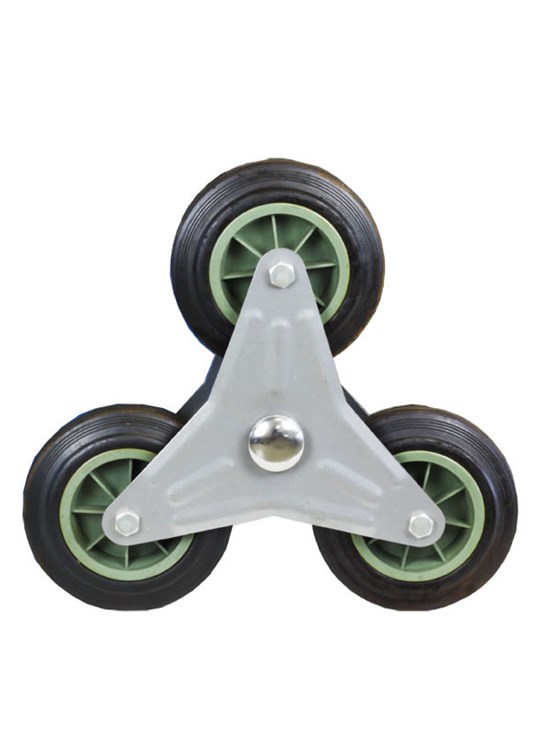

THREE 3 WHEELS STAR SUPPORT PLASTIC DISC D.150X40

DESCRIPTION:
3 Nylon wheels with riveted plastic center, solid black rubber ring with trapezoidal profile mounted on a star support in stamped and galvanized sheet metal with central hub.



TECHNICAL FEATURES

  • RING HARDNESS: 82 + - 4 Shore A.
  • Wheel diameter 150 mm
  • Hub hole diameter 20 mm
  • Hub length 60 mm
  • Axle height from the ground to the center of the axle mm 126
  • Axle height from center of axle to upper wheel edge mm 179
  • Fork hole width and diameter mmxmm 10x52
  • ORIENTATIVE USE: Trolleys with manual translation for medium loads
  • THEY CONTACT WITH: greases, oils, hydrocarbons, chlorinated and aromatic solvents.



SUITABLE FOR THE FOLLOWING FLOORS:
1) tiles
2) asphalt
3) cement-resins
4) dirt road
5) grilled
6) with shavings

Weight 3.79 kg
