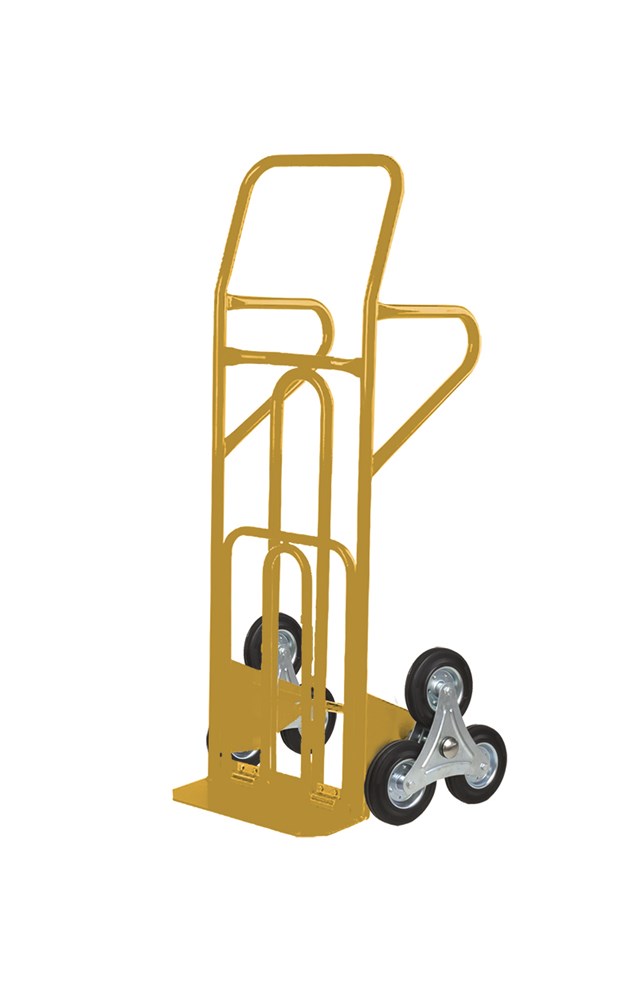

Superlift Stair Climbing Trolley

Capacity Kg 250

Il D.Lgs.206/2005 richiede al produttore di garantire che i prodotti siano sicuri anche dove non esistono norme vigenti aventi come obiettivo la sicurezza dei prodotti stessi. In Italia per esempio non esistono norme nazionali o europee che regolarizzano: carrelli e cavalletti manuali, rampe da carico, passaggi protetti, casse in alluminio

It shows the validity of the guarantee in years

It shows the maximum weight capacity of a product

Suitable for heavy duty

Steel stair climbing trolley - oversized folding platform. Made in Italy wheels with iron hub and reinforced steel plate shaped for protruding steps

Professional trolley in epoxy powder coated steel.

Ideal for use in the presence of bleachers or stairs that it easily overcomes through the 6 rotating wheels.

Six wheels with solid rubber ø 150 mm.

The structure is made of sturdy welded tubulars with ø 25 mm.

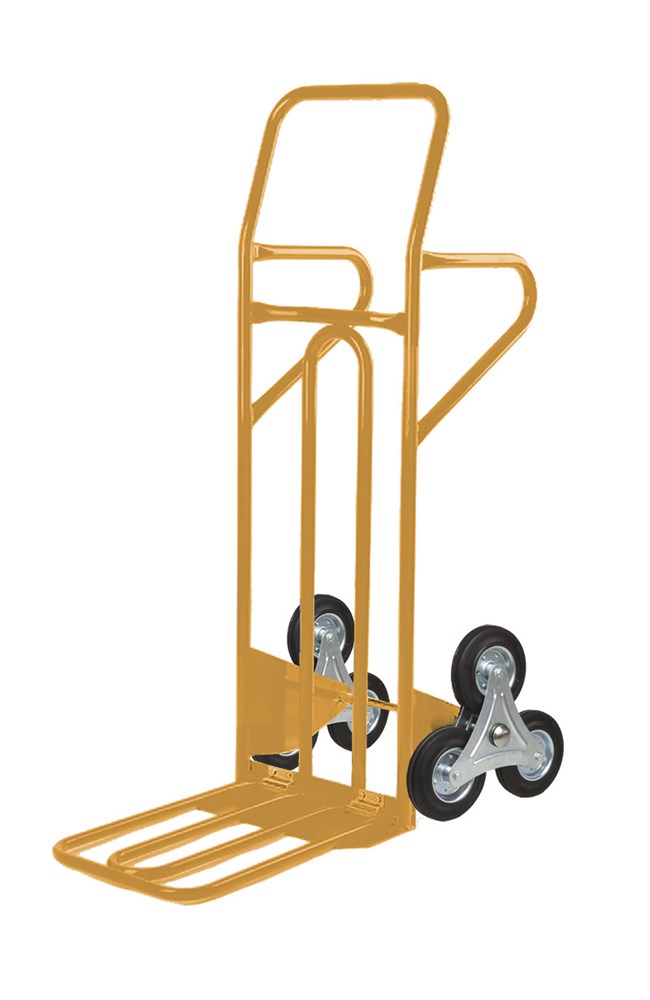

Equipped with an oversized folding platform.

Internal tubular frame reinforcements.

Equipped with ergonomic oversized grab bars for lifting integrated into the frame.

REACH

The load capacity on the top is 250 kg.

When used on stairs, the load capacity drops to 120 kg.

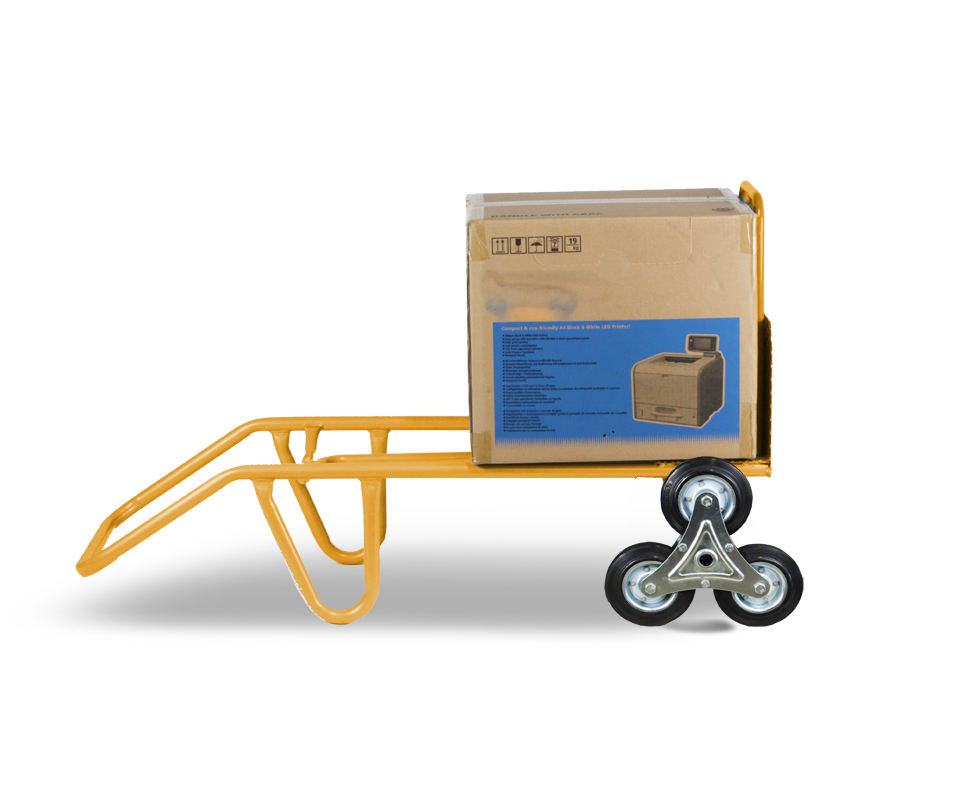

OBSTACLE-FREE PLATFORM

The wheels of the trolley are positioned at the rear of the trolley so as not to hinder any bulky load placed on the platform.

HORIZONTAL LOAD

Model equipped with perfectly bubble horizontal loading supports. Can be used as a picking bench.

Climbs steps up to 16 cm high with a top overhang of up to 2 cm

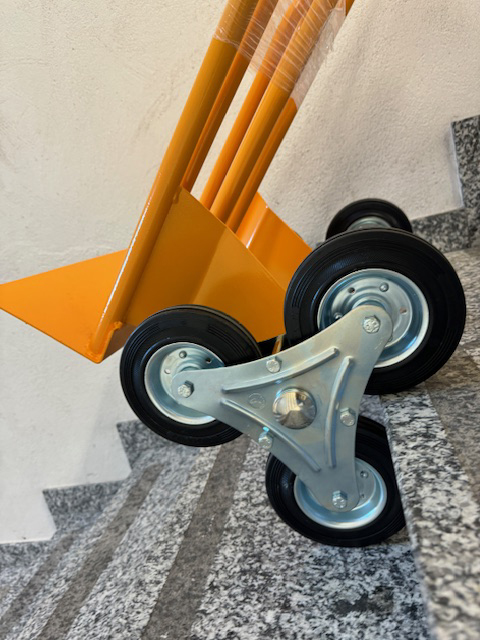

Six 150 mm diameter solid rubber wheels mounted on moulded steel reinforced plates that allow passage over steps up to 16 cm high with a top protrusion of up to 2 cm. As you can see in the photo, the metal plate does not touch the edge of the protruding step which is preserved from scratches and breaks.

Wheels	solid rubber/iron hub and roller bearings, ø mm 150x40
Structure	Frame with additional vertical reinforcement and integrated lifting handles
Platforms	1 oversized tipper + 1 standard fixed
Transport dimensions	width 450 mm x height 1280 mm x depth (including wheels) 560 mm
Weight	Kg 18
Tube profile	ø 25 mm
Fixed platform length	mm 150
Length of folding platform	mm 480
Flat flow rate	Kg 250
Staircase Reach	Kg 120
CARSUPERLIFT	SHOP

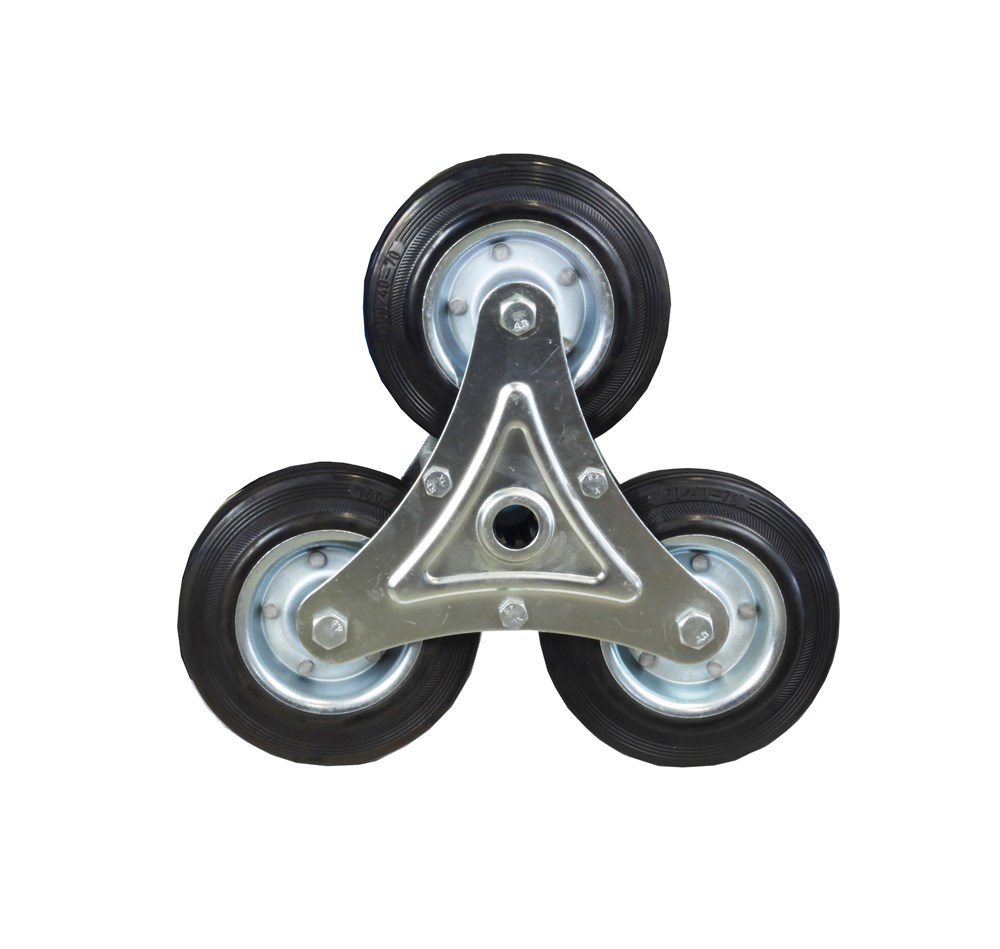

RUOTA000 Replacement SUPERLIFT star wheel	SHOP
RUOTA016 kit n.2 spare star wheels (steel hub)	SHOP

Regulations

This product complies with Legislative Decree 206/2005 (consumer code)
The safety and range of this product have been tested and verified by the manufacturer.
The structure is designed for professional use.

Manuale Carrelli Saliscale.pdf (137.3 KB)
