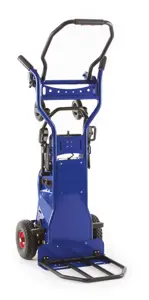

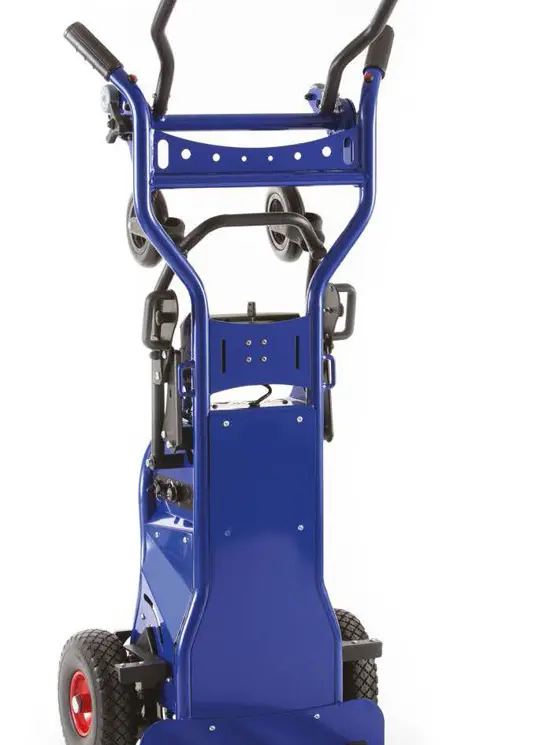

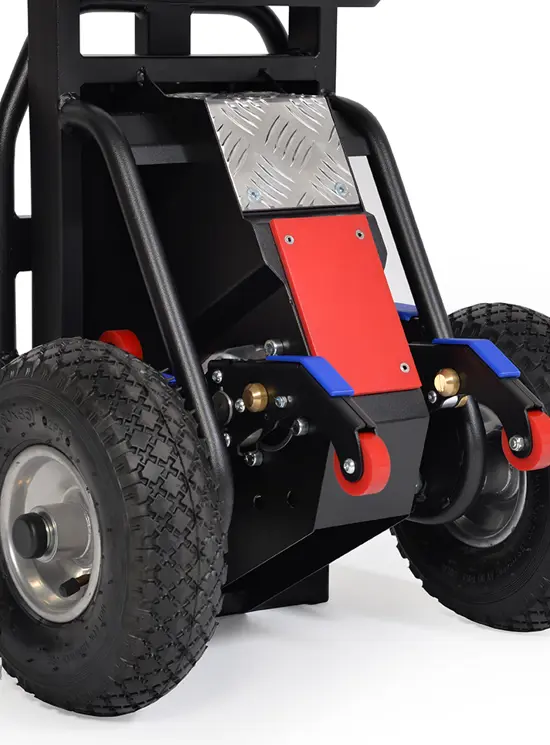

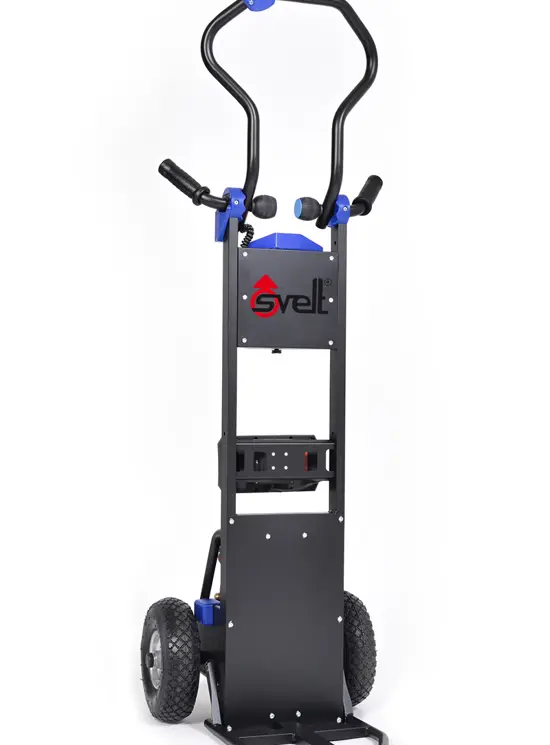

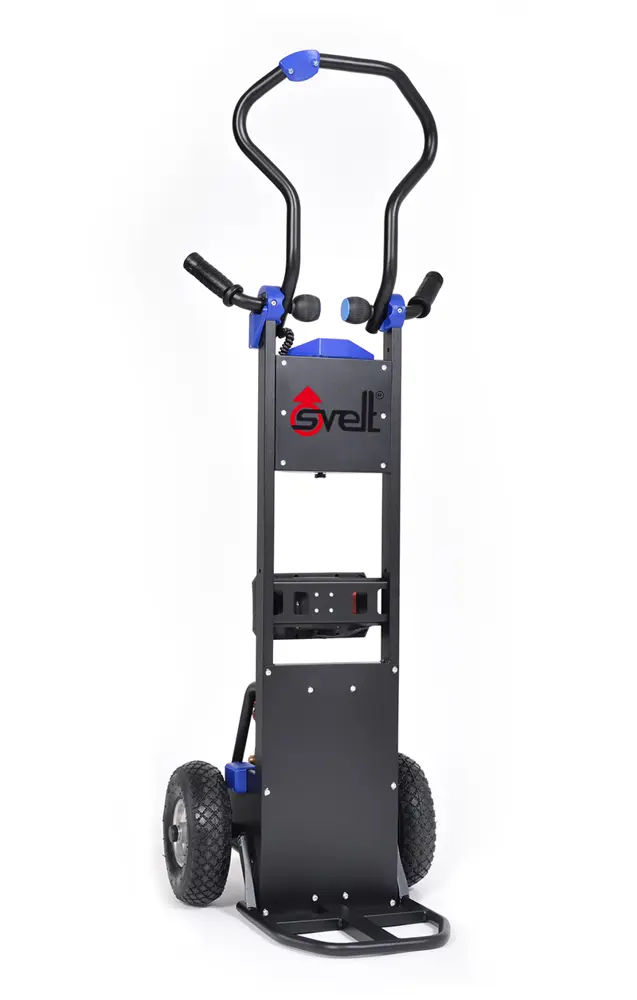

Electric Stair Climbing Trolley D-Light

Max capacity Kg 150

It shows the validity of the guarantee in years

CE mark

Suitable for heavy duty

Electric stair climbing trolley, ergonomic with automatic load inclination, standard foldable platform 31x27 cm, capacity 150 kg

✅ PROMPT DELIVERY!!

Electric stair climber for transporting goods on all types of stairs

Accidents at work are always numerous and in addition to the victims they also cause considerable repercussions for the companies involved.

One of the most affected sectors is transport.

It is very easy to get hurt while transporting a washing machine, refrigerator or even worse a cupboard or safe to scale.

These are heavy, bulky and above all dangerous loads for themselves and their employees, as well as for anyone nearby.

Occupational diseases are also on the rise.

Back pain or a tear could become chronic with consequences for the worker and the company.

The electric stair climber is the vehicle that allows you to work safely with a very low investment.

Our freight stair climbers definitively solve the problems of stair transport once and for all.

Doing manual work does not mean having to break your back or put yourself in danger.

If you don't want to do it for professionalism, do it for yourself.

The new D-Light is completely renewed and redesigned according to the real use of our customers.

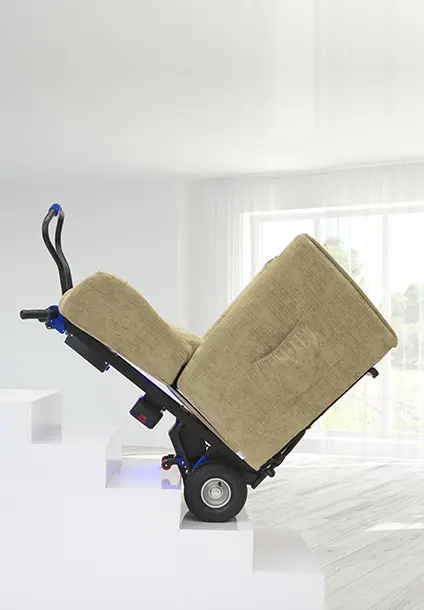

The new stair climber is the ideal tool for transporting goods to the floor, on all types of stairs. The evolution is called D-Light which, thanks to its small size and reduced weight, allows goods to be loaded more easily up to a maximum of 150 kg.

To speed up the descent operations, the new system can allow the user to tackle the empty descent without the aid of electric handling.

The electric stair climber is designed, built and tested for handling loads on flat ground and on fixed stairs, in indoor environments for civil, commercial and light industrial use.

The machine is manufactured in compliance with the relevant Community Directives applicable at the time of its placing on the market.

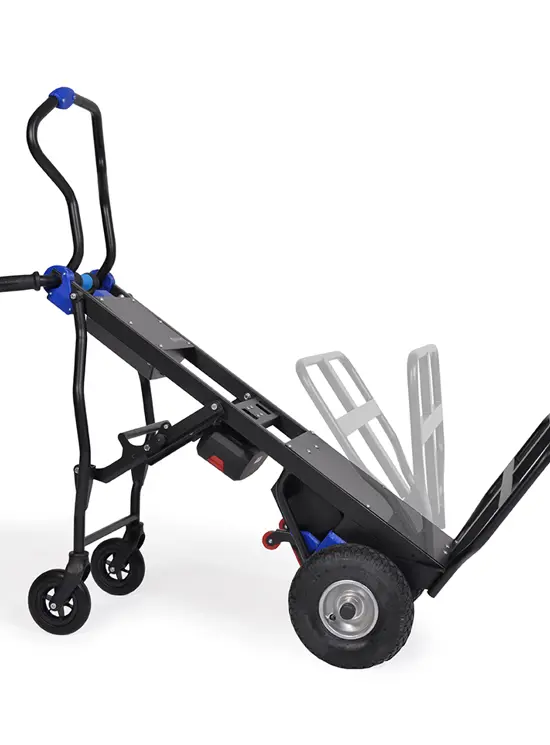

This version, the only one under 30 kilograms, allows the operator to work safely but faster thanks to the vacuum descent system without mechanical and electrical movement.

The innovation has led to greater manoeuvrability and ease of use thanks also to the new step recognition system that does not provide for the automatic locking of the wheel present in the previous version of the D series.

STANDARD EQUIPMENT

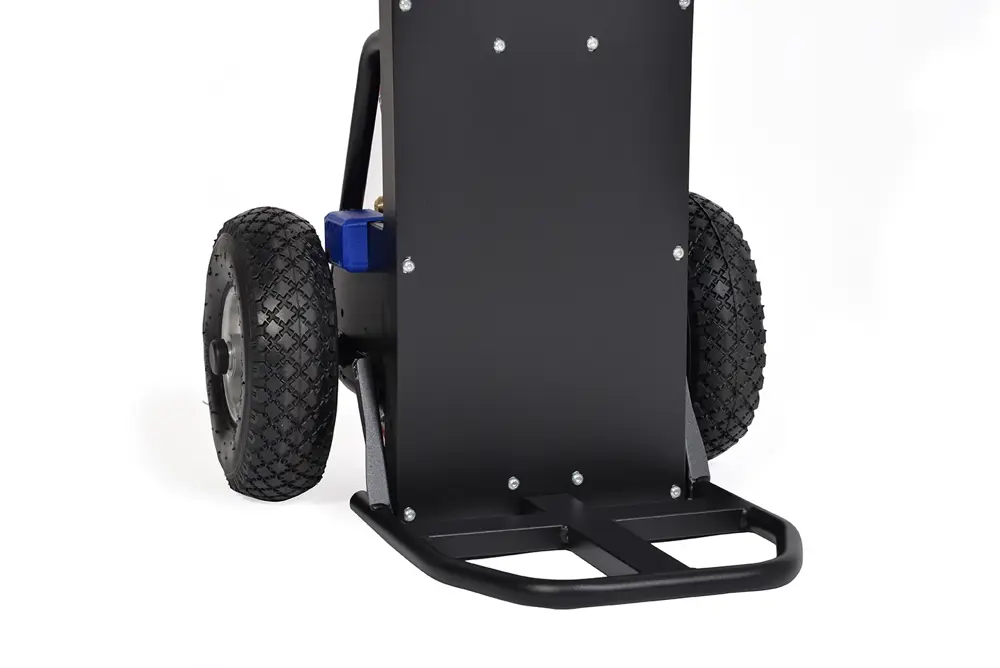

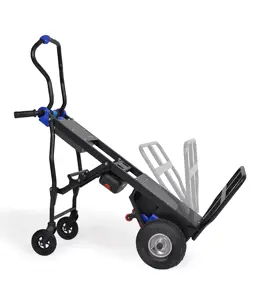

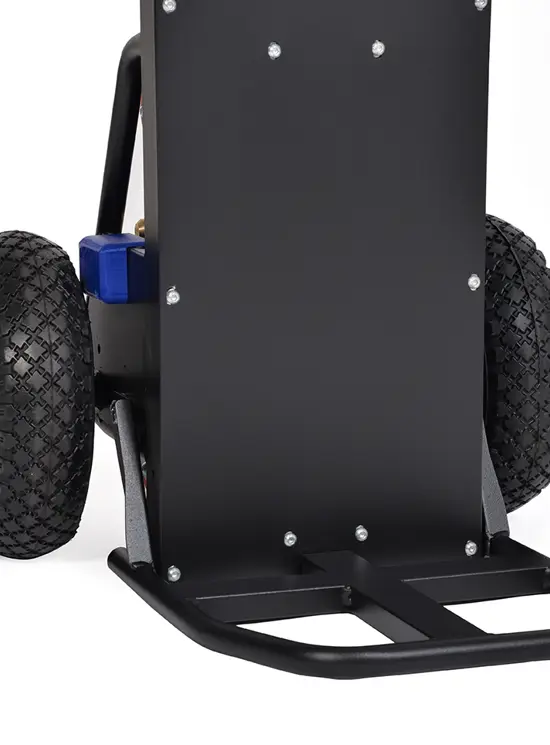

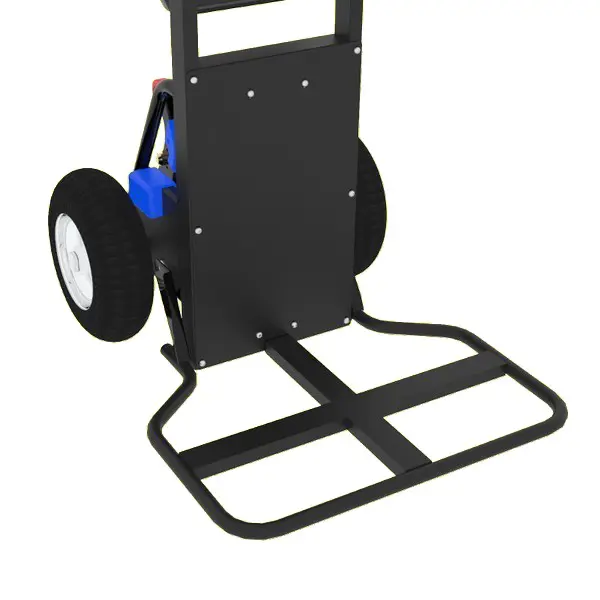

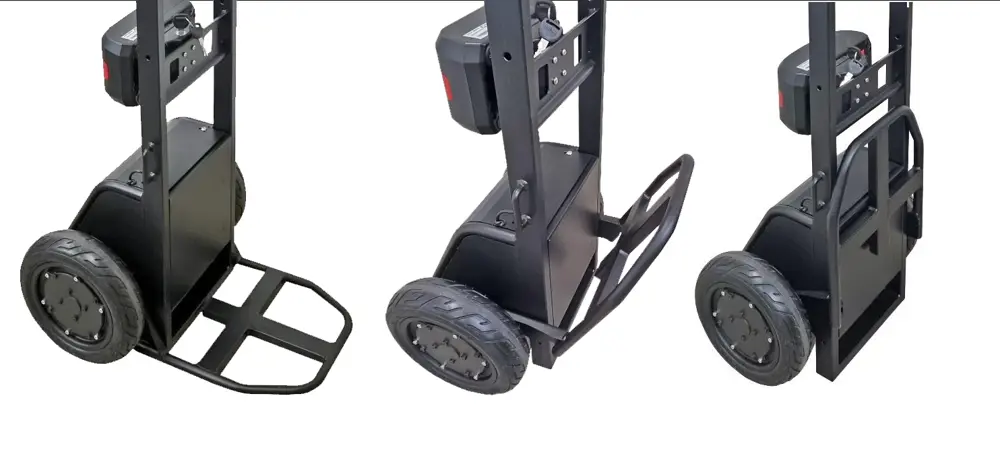

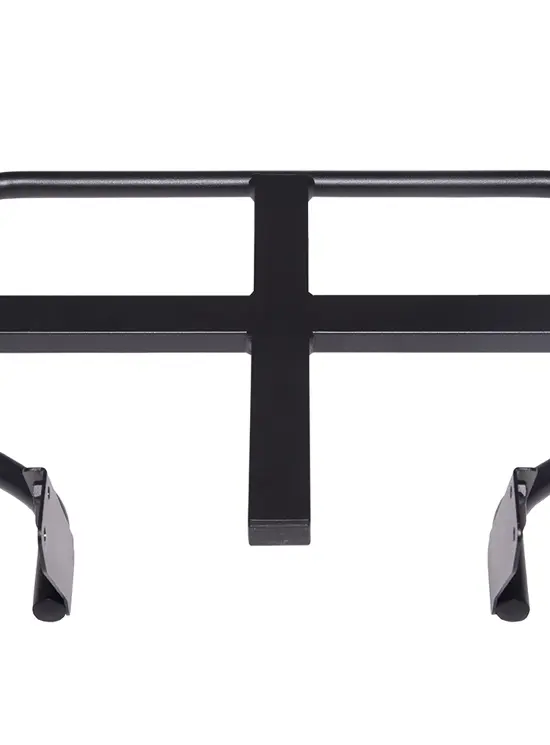

Standard foldable platform 31x27 cm

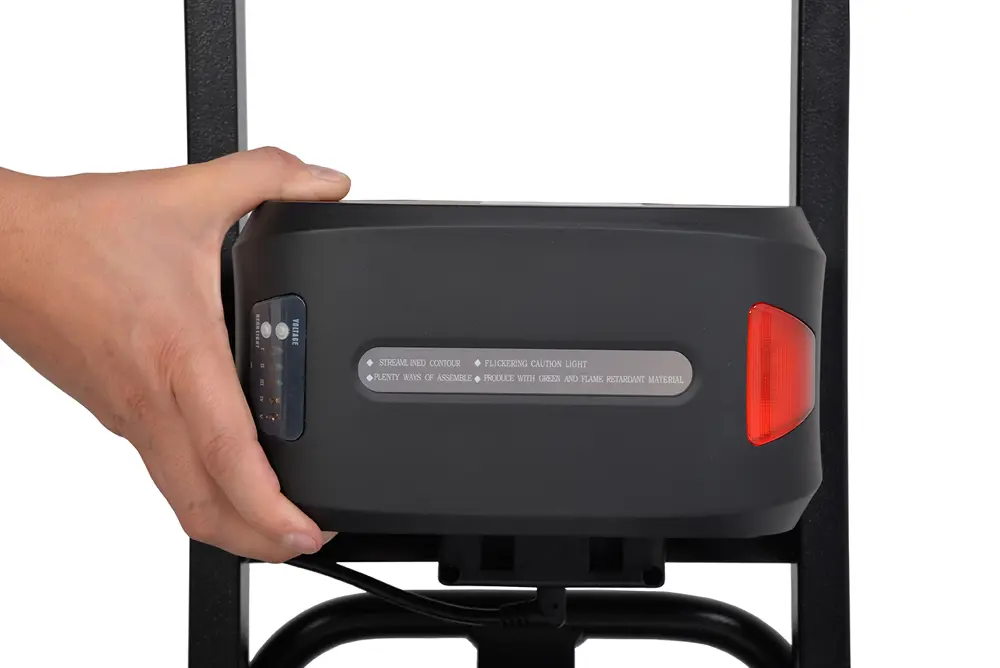

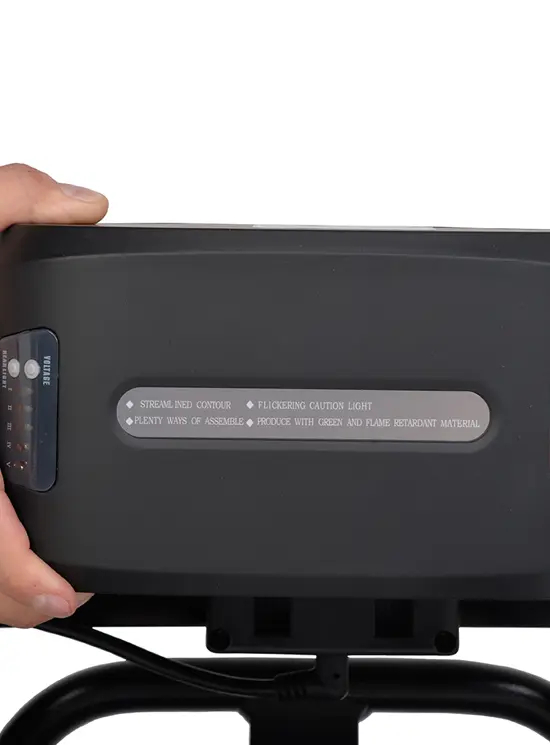

Removable lithium battery 24V - 13Ah

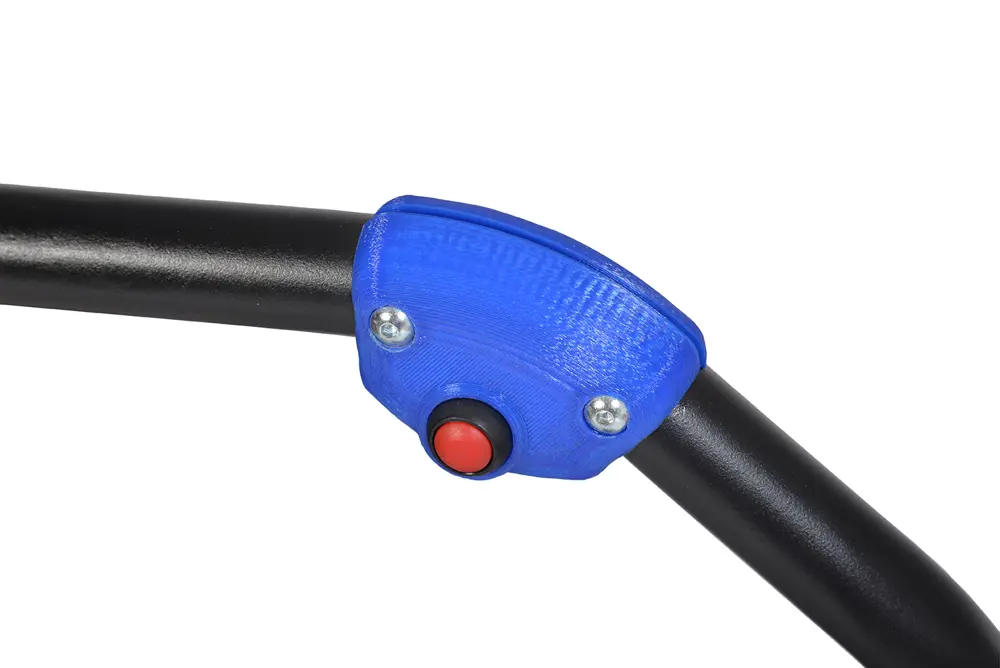

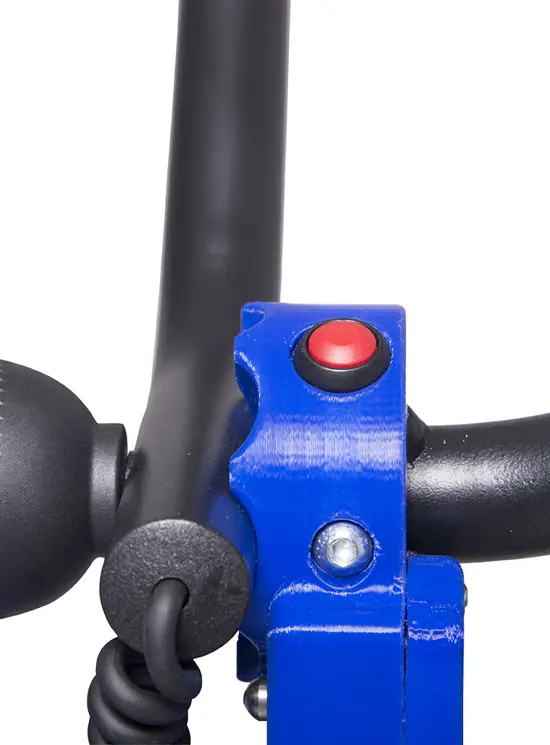

Rudder movement button

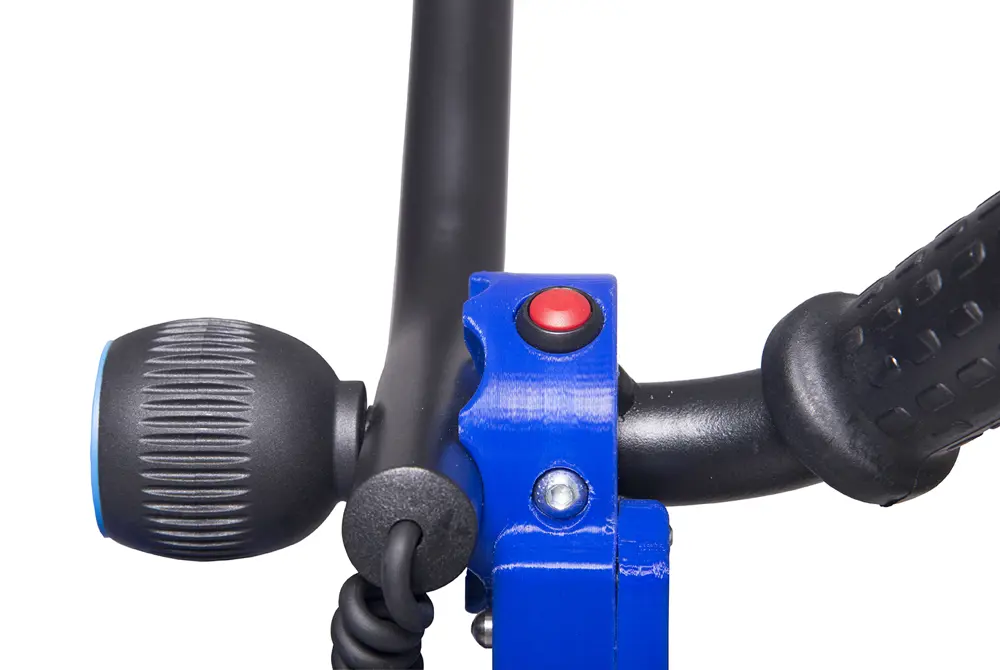

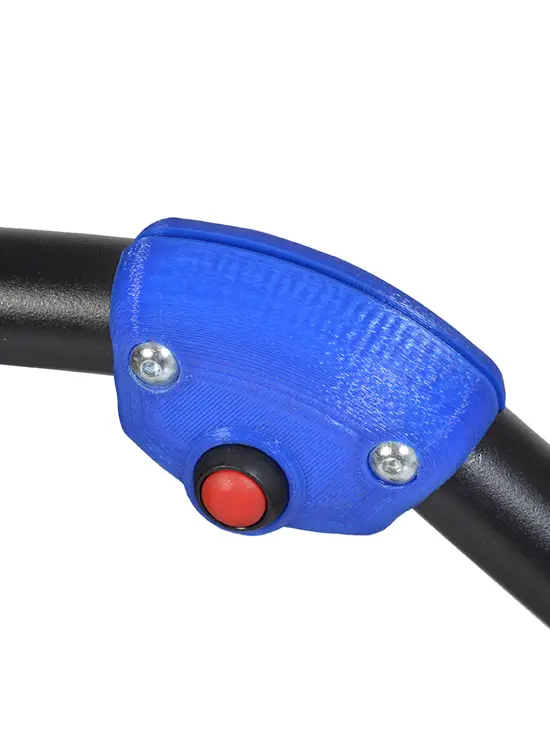

Machine body movement button: allows the machine to be moved when the tiller is folded and facilitates movement in the last step during the ascent phase

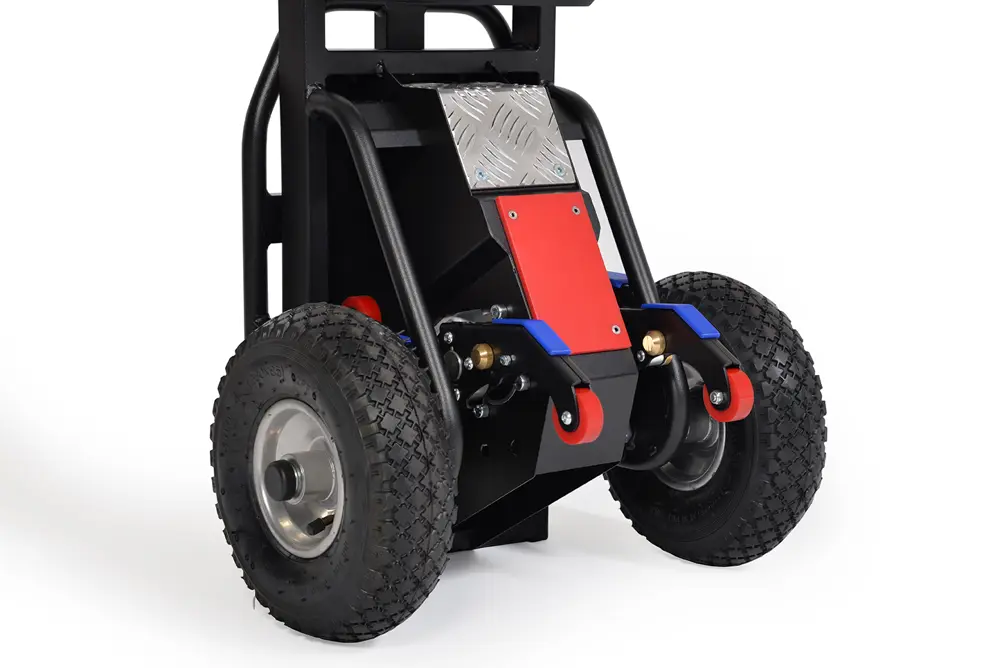

Lifting levers: system that allows the machine to be raised and lowered electrically.

The levers increase safety and ease of use, thanks to the recognition of the step edge.

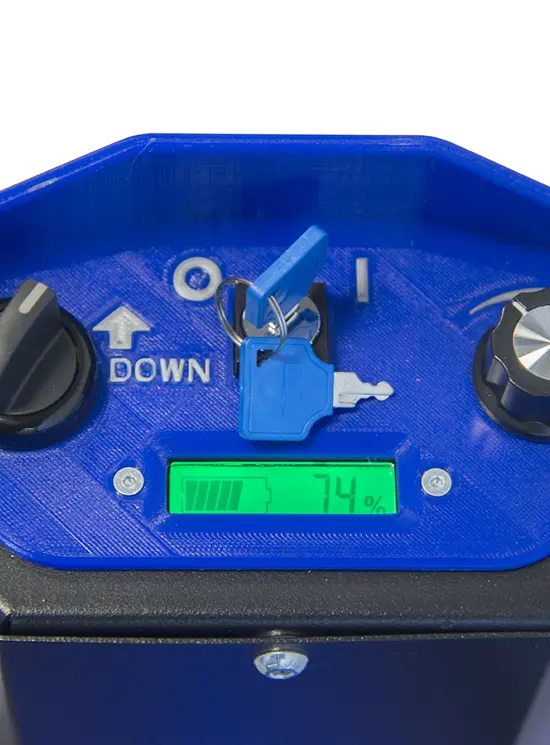

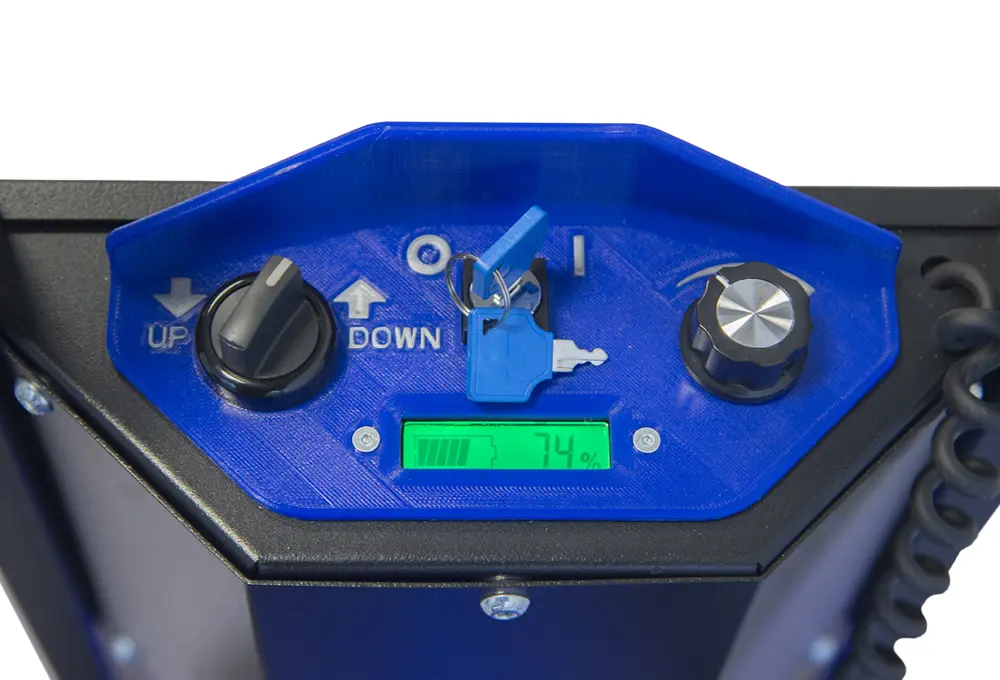

Control panel: Descent up selector / Ignition key / Potentiometer / Battery indicator

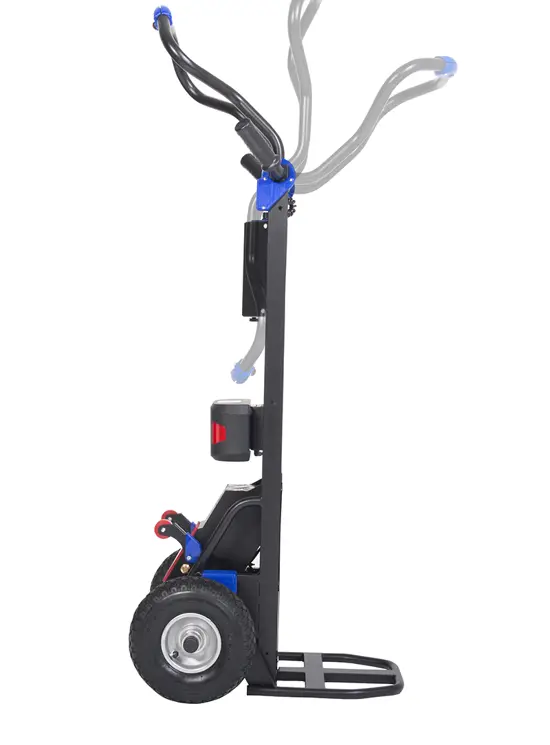

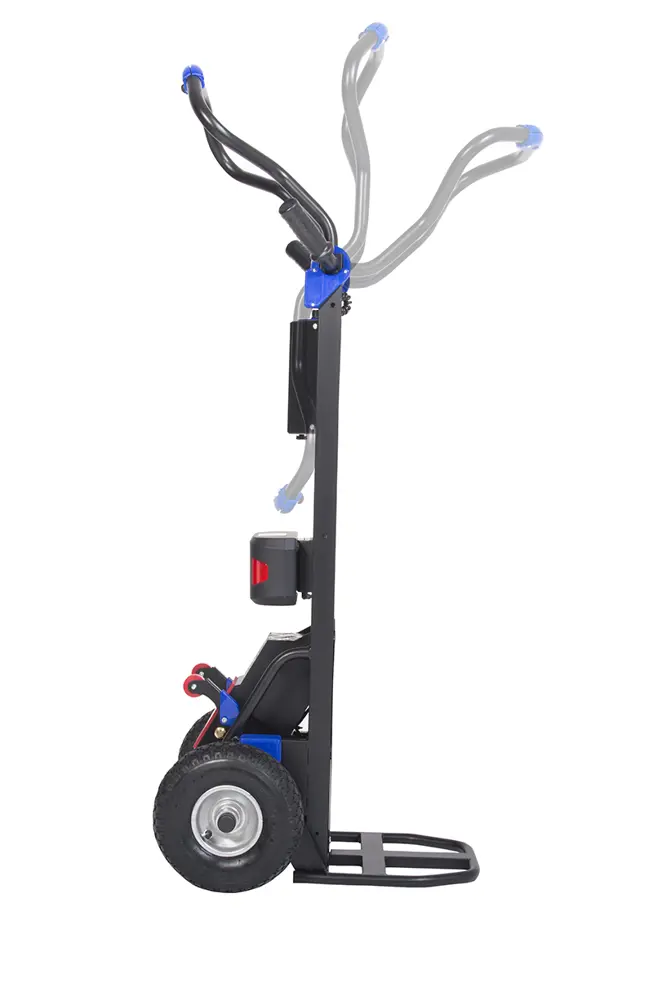

Adjustable drawbar in various positions: allows you to increase the handling and safety of the D-Light according to the type of load transported.

OPTIONAL

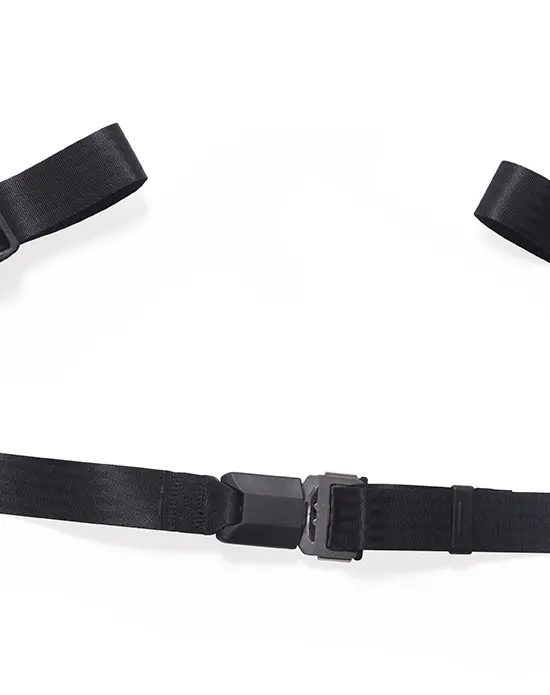

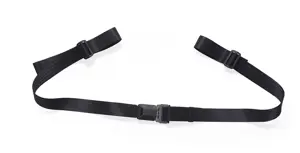

Strap to tie the load

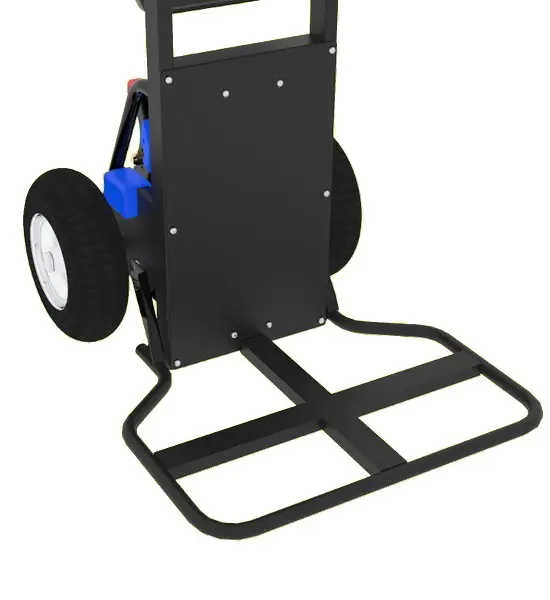

Oversized platform XL 52x36 cm

Sheet metal platform cm 46x16

XL sheet metal platform cm 52x39

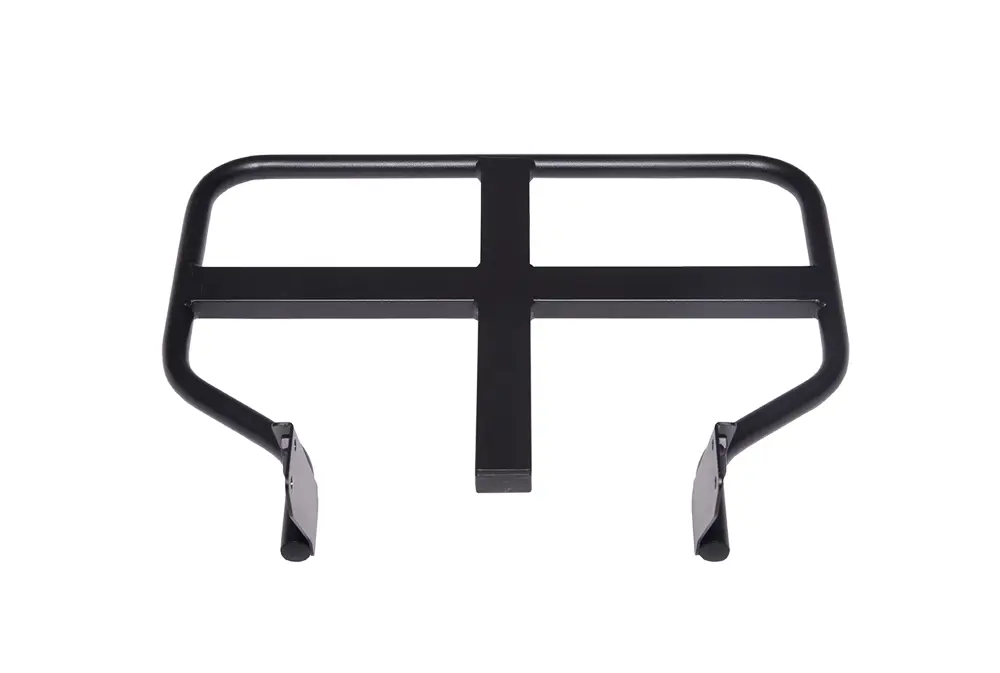

Rear Trolley (4.2 Kg)

Electrically elevating platform for self-loading and unloading from vehicles

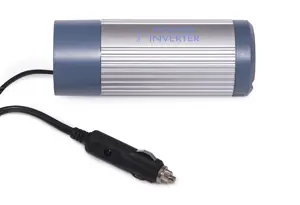

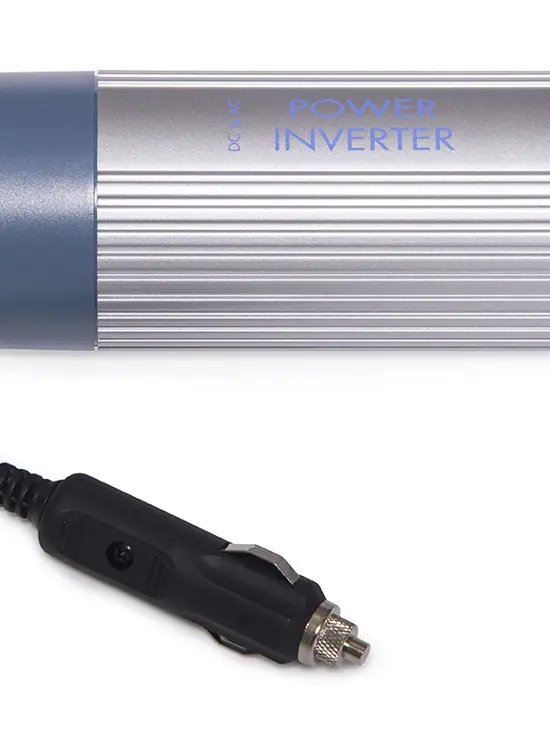

Car charger that allows you to charge the battery of the D-Light. Input 12VDC - output 230VAC/50Hz

REACH

150 Kg

SPECIFICATIONS

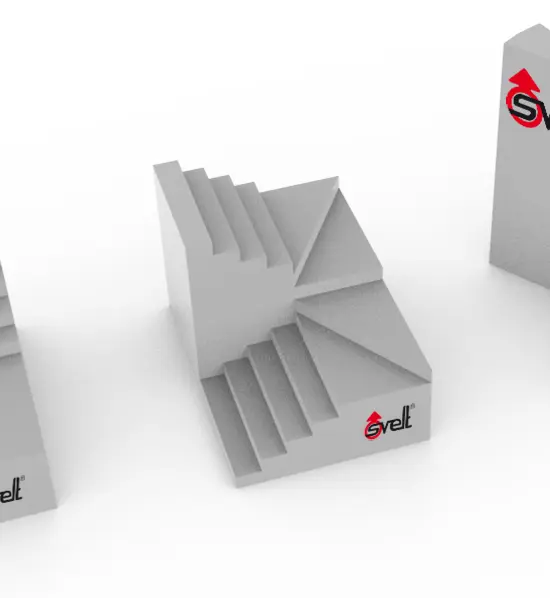

Minimum overall dimensions on L-shaped landing: 100x70 cm
Minimum overall dimensions on "U" landing: 100x170 cm
Minimum stair width measurement: 55 cm
Maximum step height: 22 cm
Total weight: 28.7 kg
Body weight: 26.7 kg
Lithium battery weight: 2kg
Max speed: 30 steps/min
Battery life: 750 steps
Motor power: 350 W
Maximum dimensions: 150 × 58 × 51 cm
Battery charger power supply (IN): 100-240 Vac - 50/60Hz - 1.6 A
Battery charger power supply (OUT): 29.4 Vdc – 3.0 A

D-Light SPEED version available with electric flat translation system.

With this version, the operator does not have to push the trolley which will move autonomously by means of 2 motorized wheels.

Useful for covering large distances with considerable weight.
Very comfortable also combined with the rear trolley.

D-Light 250 version available with increased capacity to 250 KG.

Equipped with lithium batteries, this version is more massive and structured for operators who have to carry "important" weights.

As an accessory, the rear trolley is also available for this model to be able to use the trolley in an inclined position for transporting bulky loads (refrigerators, wardrobes) on flat ground.
