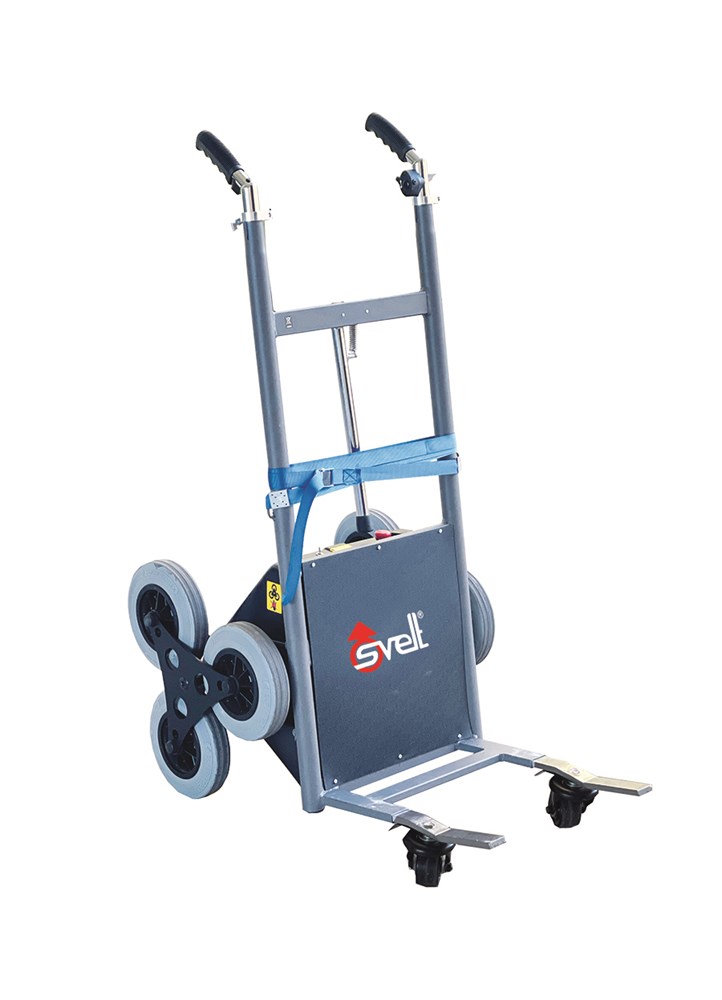

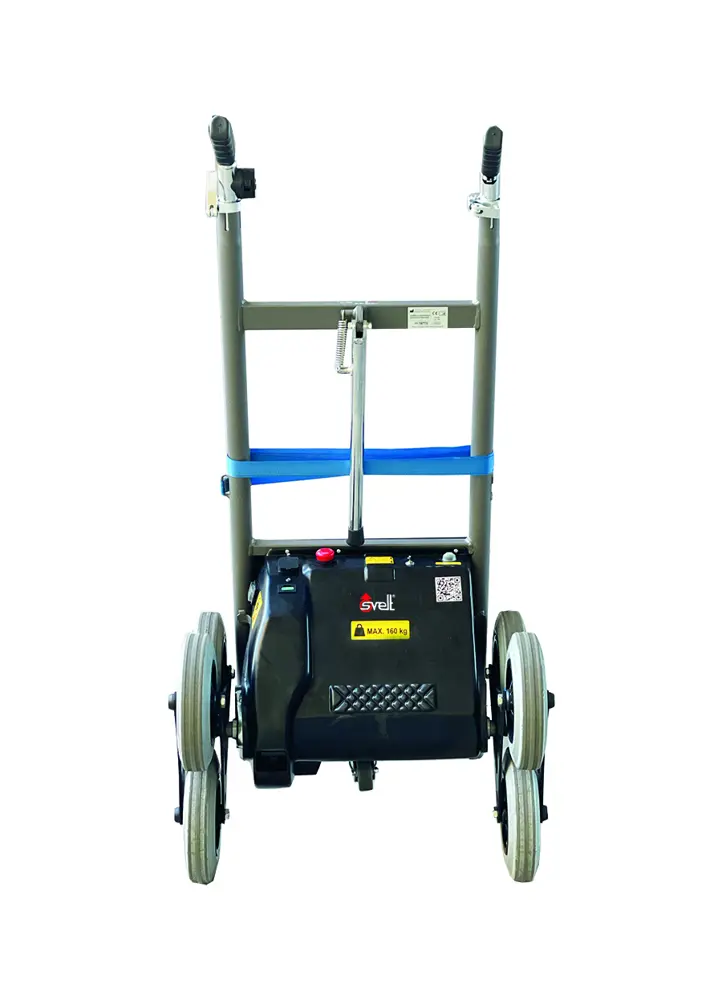

Electric Heavy Duty Stairclimber Handtruck

Electric Heavy Duty Stairclimber Handtruck

Capacity max Kg. 160

It shows the validity of the guarantee in years

CE mark

Suitable for heavy duty

Professional electric stairclimber handtruck with star wheels, ergonomic, with accessories for household appliances, fixtures and doors.

Professional electric stairclimber for the transport of bulky and heavy loads on all types of stairs

PREMISE

Accidents at work are always numerous and in addition to the victims they also cause significant repercussions for the companies involved.
One of the most affected sectors is transport.

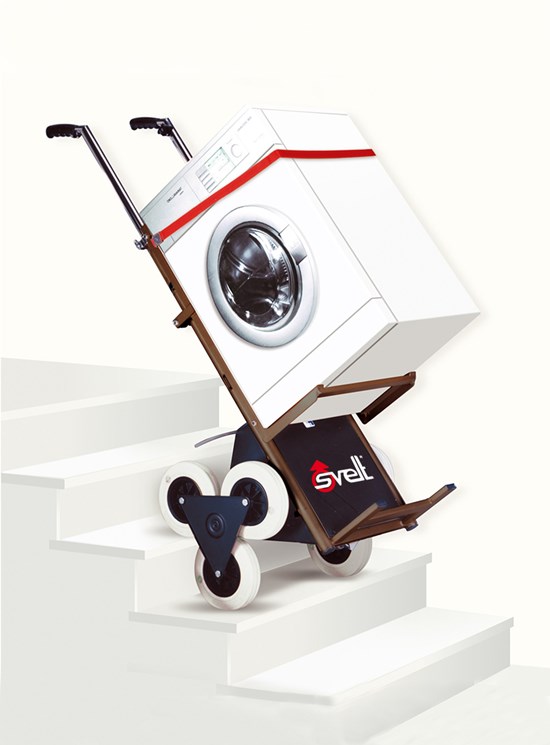

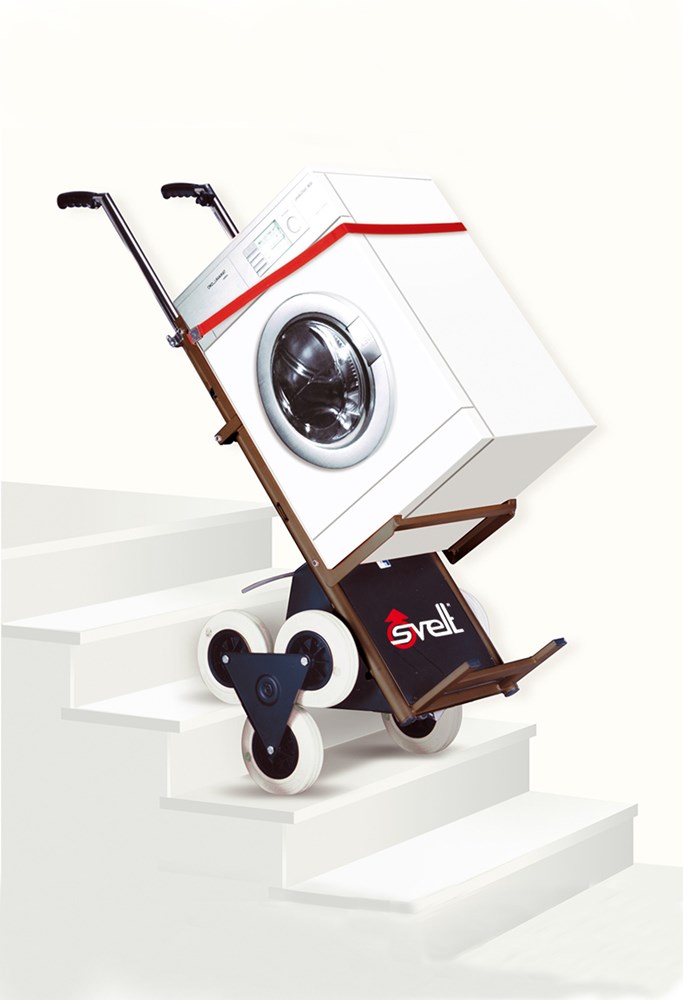

It is very easy to get hurt when transporting a washing machine, a refrigerator or, even worse, a wardrobe or a safe up a ladder.
These are heavy, bulky and above all dangerous loads for you and your employees, as well as for anyone nearby.
Occupational diseases are also on the rise.
Back pain or a strain could become chronic with consequences for the worker and the company.
The Svelt Industrial Electric Stair Climber is the means that allows you to work safely with a very low investment.
Our electric stair climbers definitively solve stair transport problems once and for all.
Doing manual labor doesn't mean you have to break your back or put yourself in danger.
If you don't want to do it for professionalism, do it for yourself.

Stair climber with star wheels designed, built and tested in Italy for moving bulky and heavy loads on fixed ladders of any kind.
Thanks to its small dimensions and narrow curve radius, it allows goods weighing up to 160 kg to be mounted on ladders.
Made in compliance with the Machinery Directive and with CE mark.
More than 10,000 machines are present on the market demonstrating great product reliability.

IDEAL FOR:

Appliance retailers
Installers of armored doors, doors and windows
Couriers carrying heavy goods
Vending machine and heavy cabinet dealers
Operators who have to mount heavy goods on ladders

HOW DOES IT WORK:

Load and secure the weight with the supplied strap
Press the up or down button
Accompany the action of the trolley with minimal effort even by just one person
It does all the trucking both up and down (no need to push, pull or hold)
The central control unit keeps the travel speed constant regardless of the weight transported
The traction system is electronic and by means of an electric motor it is transferred to the star wheels which rotate going up/down the ladder
It can be used on straight, spiral and goosefoot staircases.

STANDARD EQUIPMENT

Transmission with toothed belt and reducer with hardened and casehardened steel gears.
Electric travel controls positioned on the driving handles (up/down)
Telescopic and height-adjustable guide handles

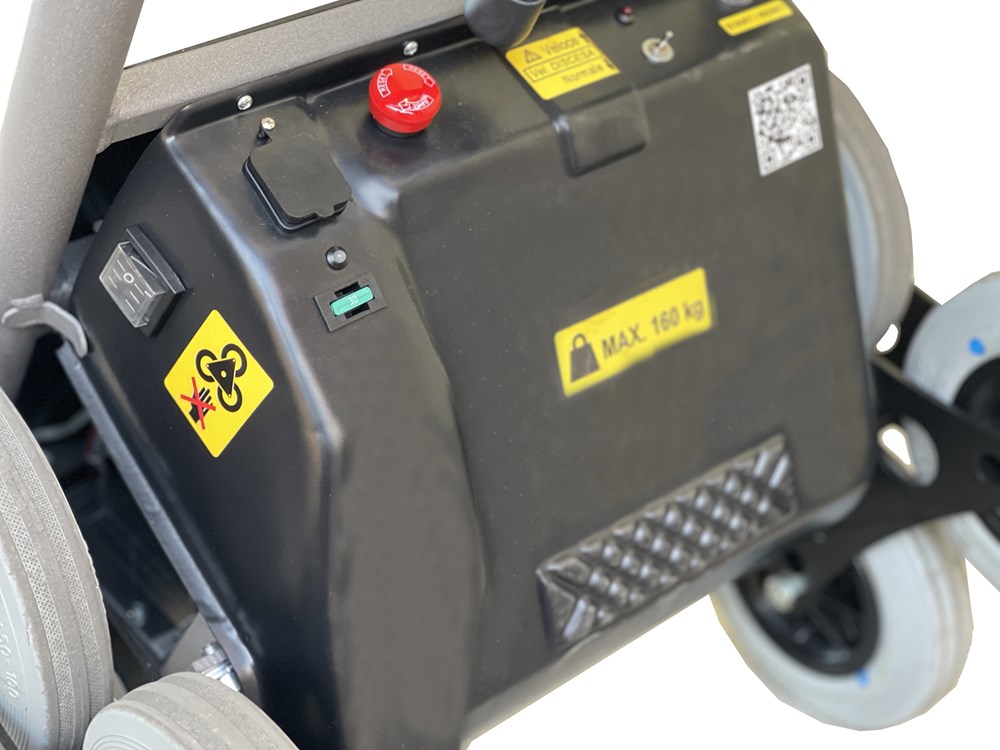

On/off button
Top quality anti-fingerprint star wheels. Not too elastic to avoid the rebound effect and not too hard to avoid damaging the floors.

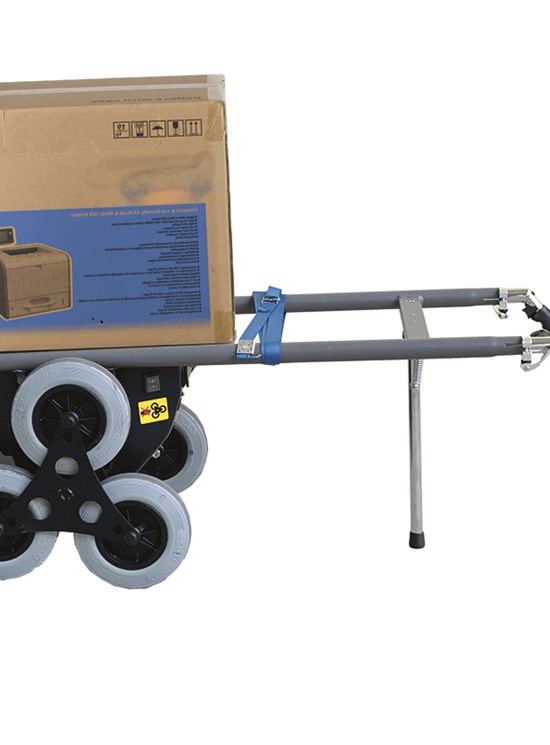

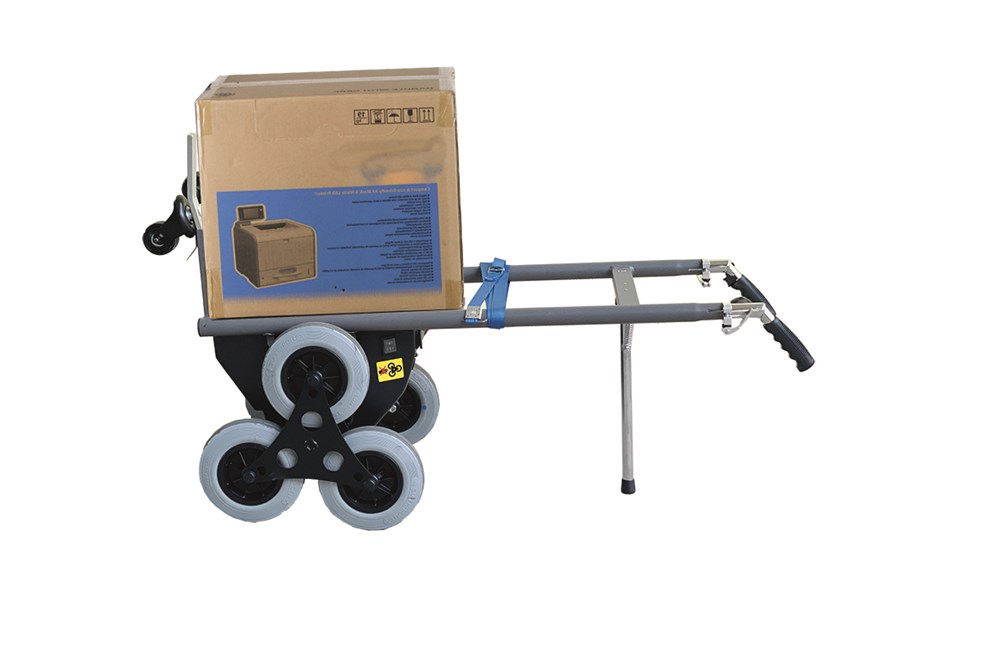

Tip that allows the horizontal position for the load

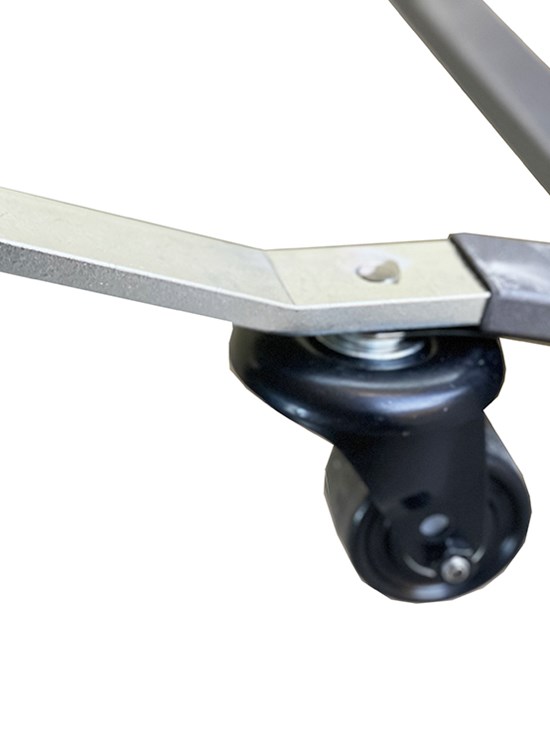

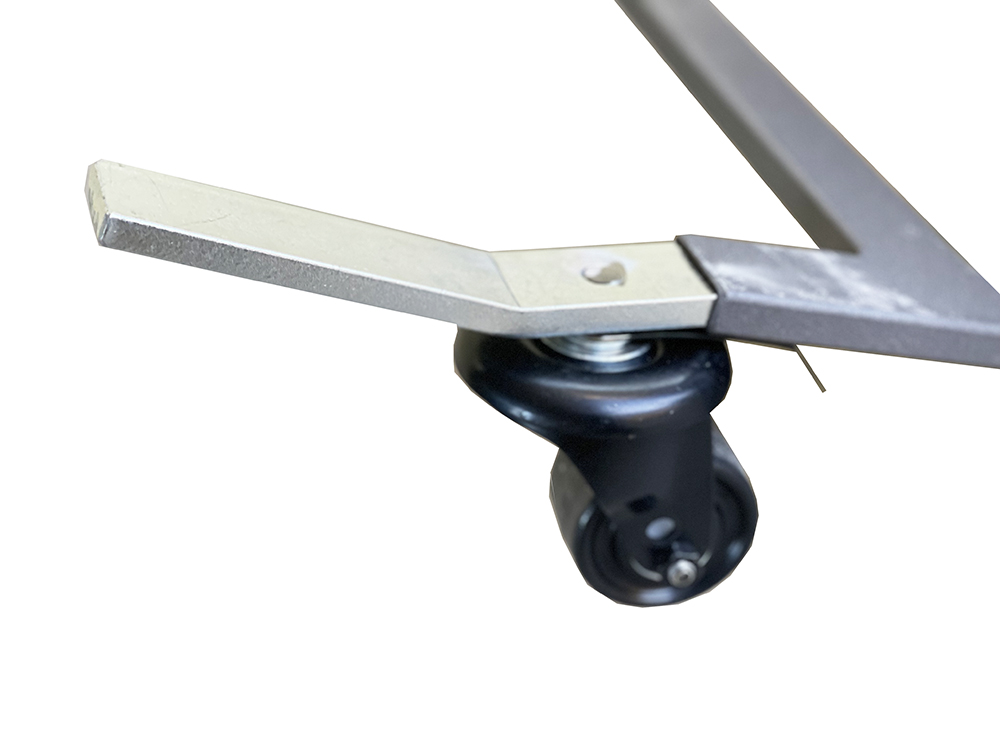

Front wheels that reduce the curve radius even further

SAFETY EQUIPMENT

Automatic safety device: intervenes in the event of the transmission belt breaking, blocking the movement of the wheels
Negative electromagnetic brake with automatic activation
Tilt sensor. It blocks the descent if the inclination is too low and the probability of overturning exceeds the permitted limit.
Step sensor present. Stop the descent if you feel an excessive vacuum below the wheel.

TECHNICAL FEATURES

Minimum height: 110 cm (handles completely closed) for transporting low products
Maximum height: 220 cm (handles fully open) for transporting cabinets or tall products
Width: 56 cm
Maximum step height that can be overcome: 20 cm
Minimum step height that can be overcome: 4 cm
Minimum step depth that can be overcome: 15 cm
Total weight: 48kg
Maximum climbing speed: 4 seconds per step
12 V - 33 Ah battery
Battery autonomy with continuous climbing and maximum range: 3000 steps
Electronic battery charger 230VAC/50Hz 0.5A.
Motor power: 12 V DC 150W
Transport dimensions: 110x56 cm

MAXIMUM CAPACITY

160 kg

OPTIONAL

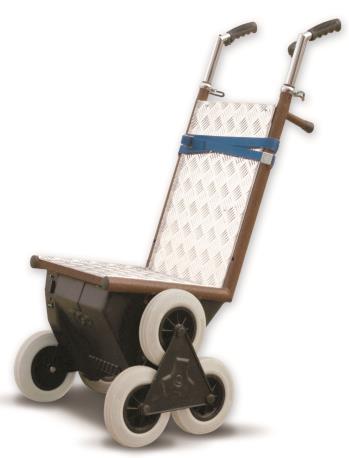

Additional chassis with lifting platform with manual crank winch for balanced transport of washing machines and heavy, low loads.
The frame can be assembled in 10 minutes. It is used to raise the center of gravity of low and heavy loads to facilitate transport on stairs, reducing the tipping effect.

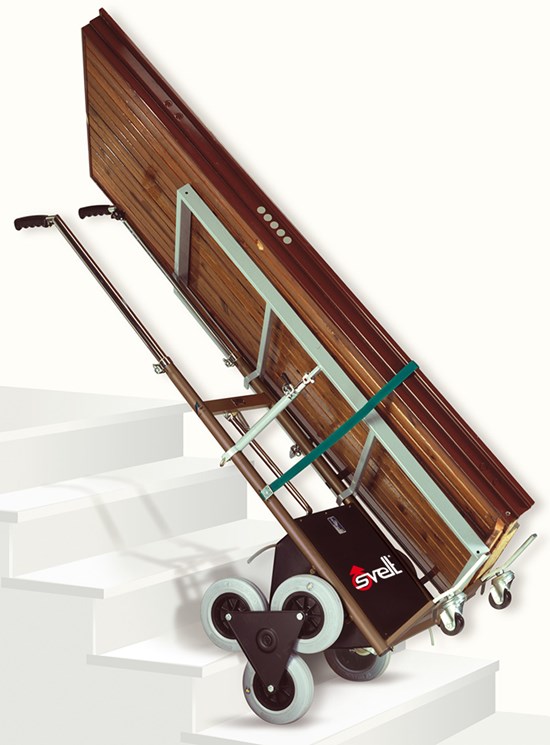

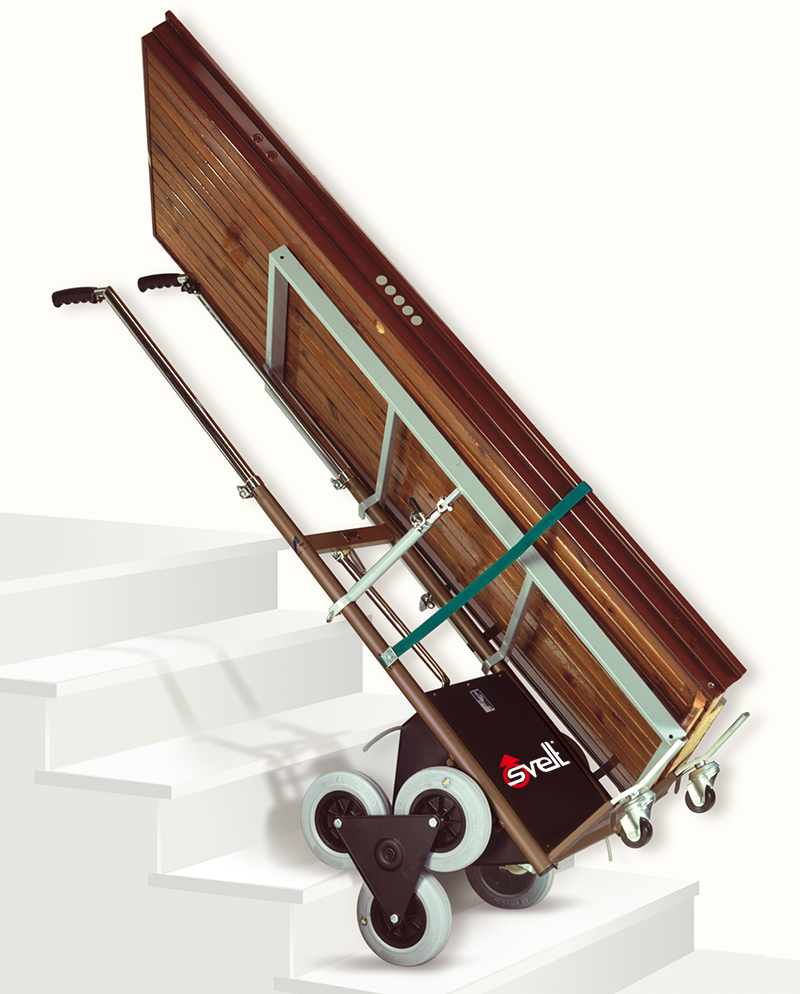

Frame for the transport of armored doors, doors and windows

code: CARSALISCEINSP

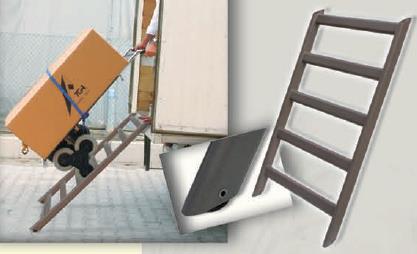

Ladder for loading and unloading from vehicles

CARSALISCEINSC5 5 steps

CARSALISCEINSC7 7 steps

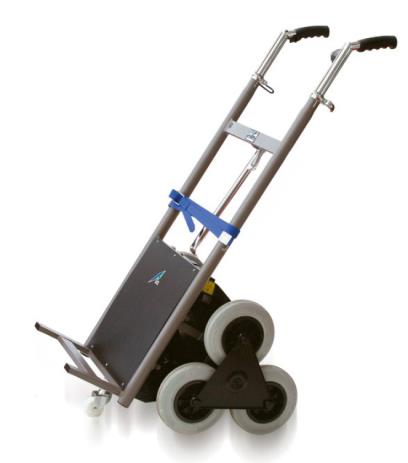

Compact model with high center of gravity to facilitate transport on stairs, reducing the tipping effect of low and heavy loads (bags of cement, washing machines, etc.)

CARSALISCEINC

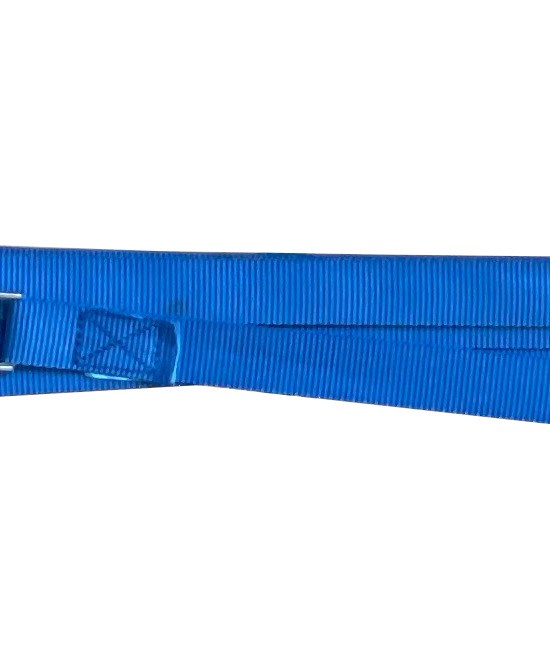

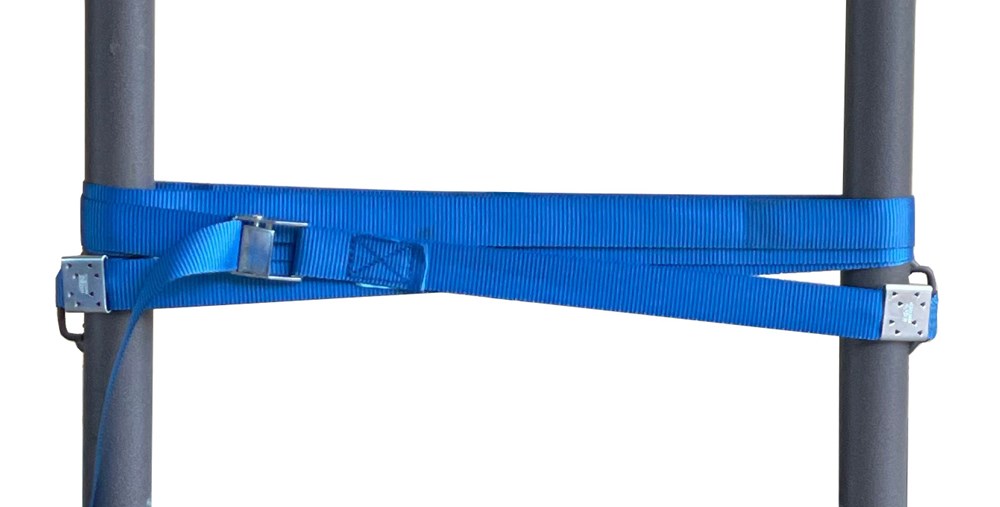

Safety strap for securing loads. It is sewn to the appropriate hooks on the frame.
