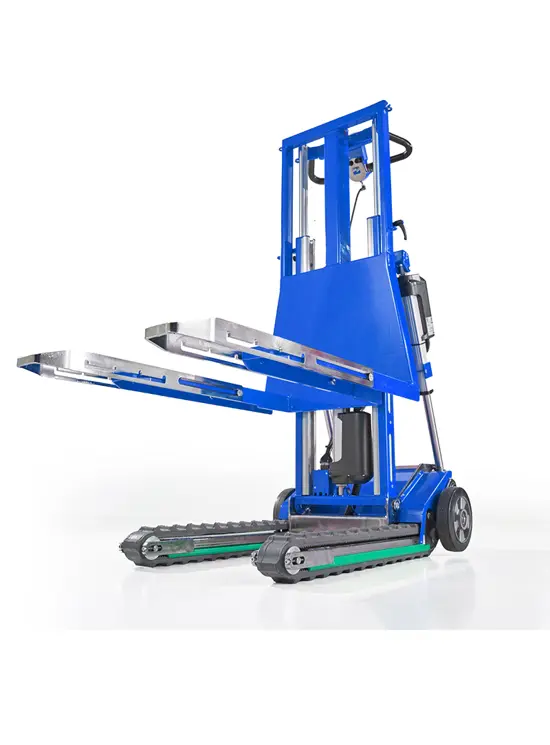

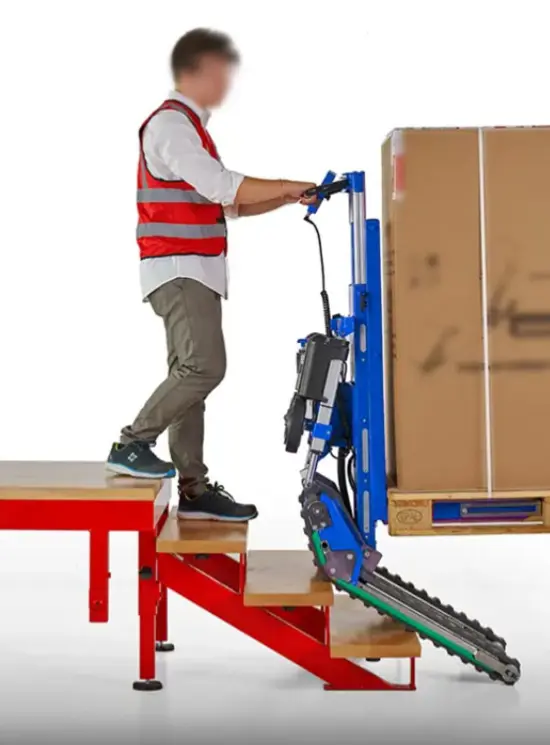

Electric Stair Climber Pallet Truck
Capacity Kg 450
It shows the validity of the guarantee in years
CE mark
Suitable for heavy duty

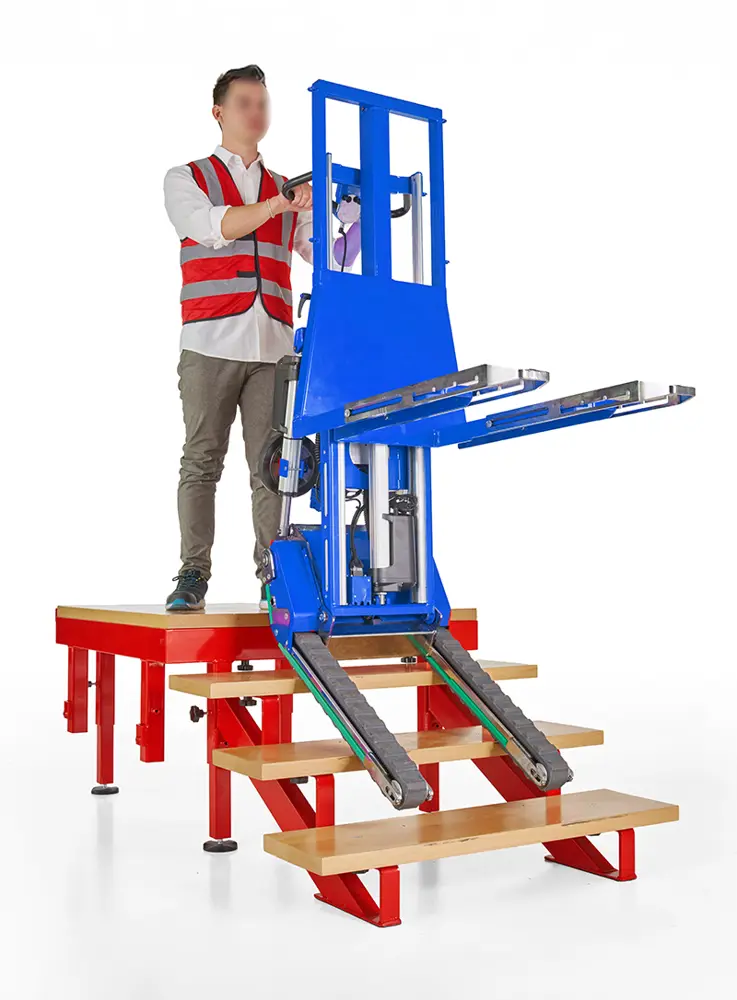

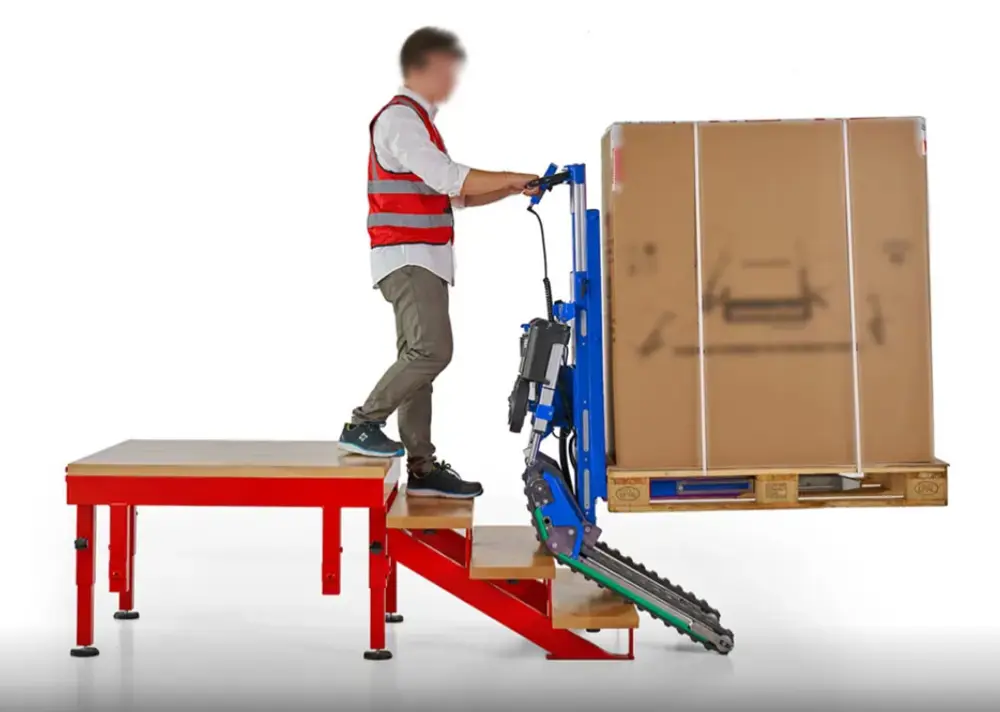

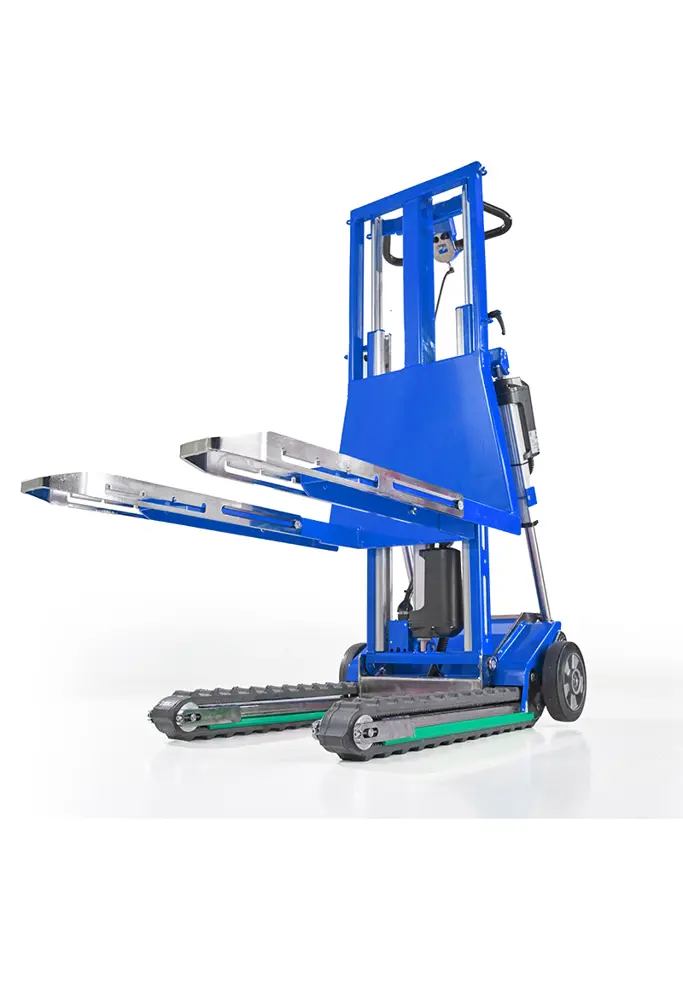

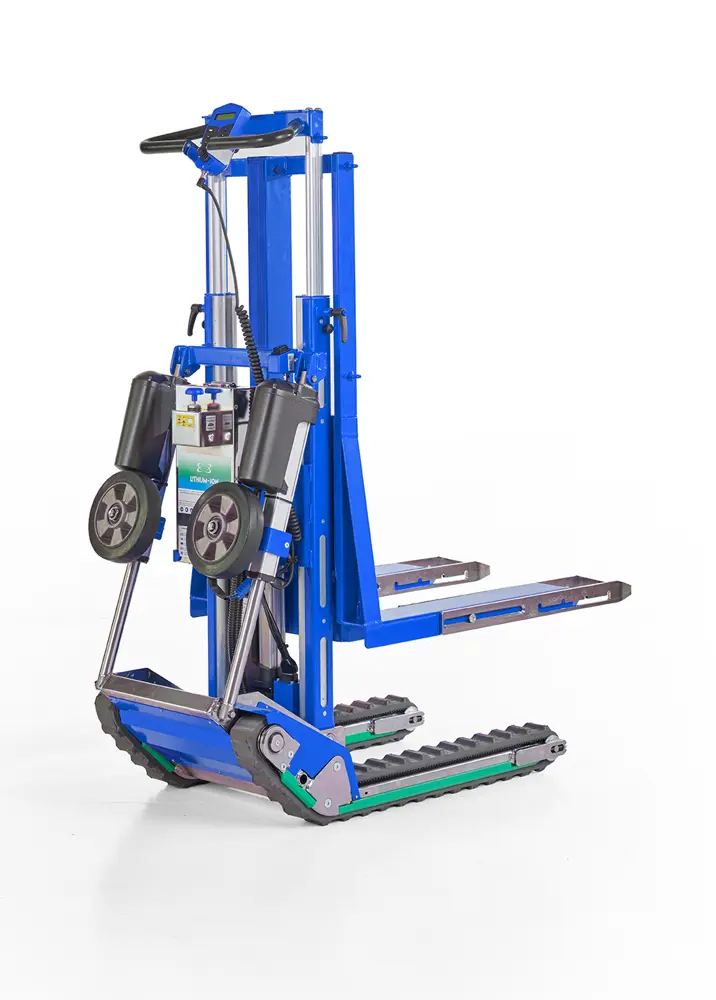

Electric pallet truck stair climber in painted steel. Max fork height 684 mm - Max capacity Kg 450
Electric pallet truck lift made of steel stairclimbers designed for professional use for lifting pallets of objects and equipment.
Electric lifting and handling.
It has a maximum capacity of 1000 kg and a installation height from a minimum fork height of 85 mm up to a maximum fork height of 800 mm.
It weighs 160 kg and is equipped with millimeter precision, robustness and ease of transport in all working conditions.
Lifting by electric and manual pump and descent by means of manual only rudder release lever.
TECHNICAL FEATURES
- MAXIMUM CAPACITY 450 kg
- WIDTH mm 590
- DEPTH mm 1079
- MINIMUM HEIGHT OF THE HANDLE FROM THE GROUND mm 1173
- MAXIMUM HEIGHT OF THE HANDLE FROM THE GROUND mm 1913
- WEIGHT WITHOUT BATTERY Kg 129
- SPEED 0.15 m/sec.
- MINIMUM SPACE OF ROTATION ON LEVEL mm 1206
- MAXIMUM LIFTING HEIGHT mm 684
- FORK WIDTH mm 142
- MINIMUM FORK LENGTH mm 684
- MAXIMUM FORK LENGTH mm 924
- DISTANCE BETWEEN FORKS mm 305
- IP54 RATING
FUEL SYSTEM AND PURCHASE CODES
The pallet truck can be supplied with 2 types of battery. Automatic battery charger.
- Stair climbing pallet truck with Lead Gel Battery 24 V 20 Ah - Kg 17 - Duration 3 hours - COD. TRANSPSALISC/P
- Stair climbing pallet truck with Lithium Battery................ 24 V 55 Ah - Kg 9 - Duration 8 hours - COD. TRANSPSALISC/L
EQUIPMENT:
- Nr.1 Fastening strap to tie the load
- Nr.1 Battery box chosen with corresponding battery charger
- Nr.1 EC Declaration of Conformity
- Nr.1 User Manual and Maintenance Manual
CERTIFICATIONS
- Directive 2006/42/EC
- Directive 2014/30/EU
- Directive 2011/65/EC
- EN ISO 7010:2020
- EN ISO 12100:2010
- EN 60204-1:2018
- EN ISO 13849-1:2015
- EN ISO 13849-2
- EN 61000-6-2:2005+AC:2005
- EN 61000-6-4:2007+A1:2011
- EN ISO 3691-5:2015/A1:2020
- EN 60529:1991+A1:2000+A2:2013
STANDARD WARRANTY
- 12 months on electrical and mechanical parts
- 6 months on lead gel battery
- 12 months on lithium battery
