Compact 90

Max capacity Kg 90

Il D.Lgs.206/2005 richiede al produttore di garantire che i prodotti siano sicuri anche dove non esistono norme vigenti aventi come obiettivo la sicurezza dei prodotti stessi. In Italia per esempio non esistono norme nazionali o europee che regolarizzano: carrelli e cavalletti manuali, rampe da carico, passaggi protetti, casse in alluminio

It shows the validity of the guarantee in years

Suitable for light duty

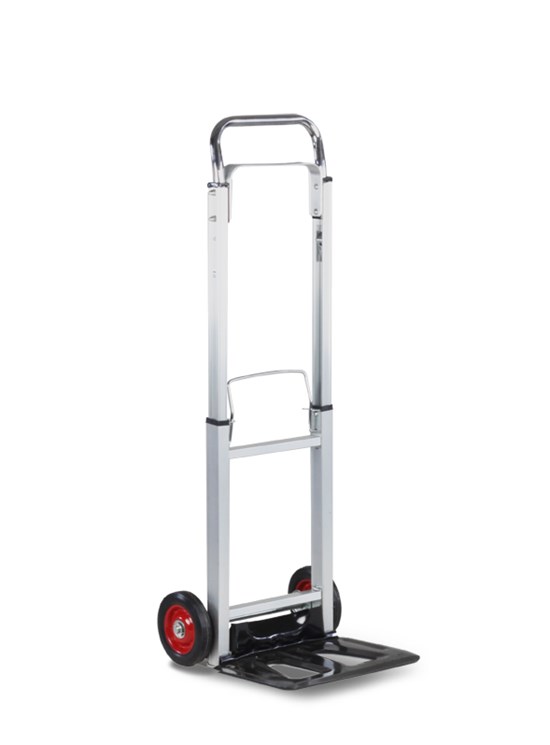

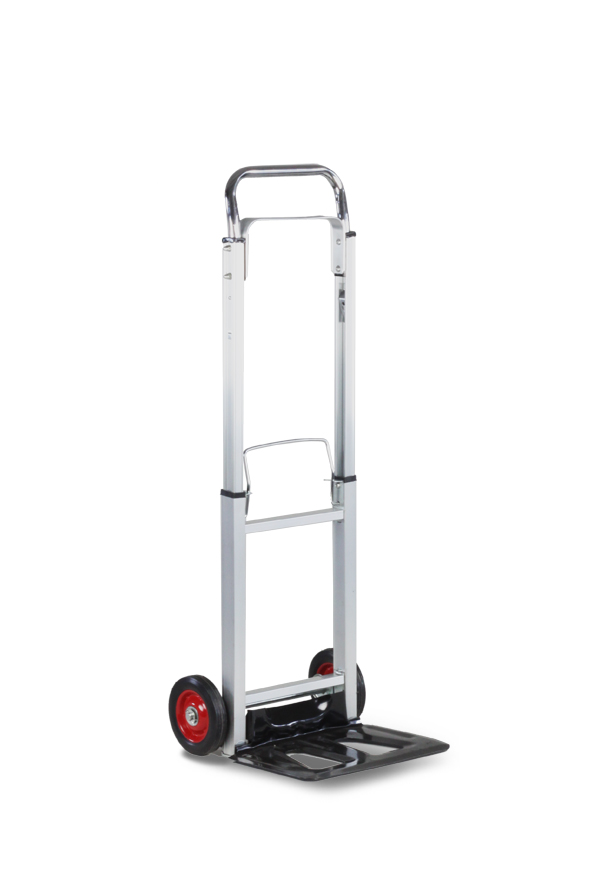

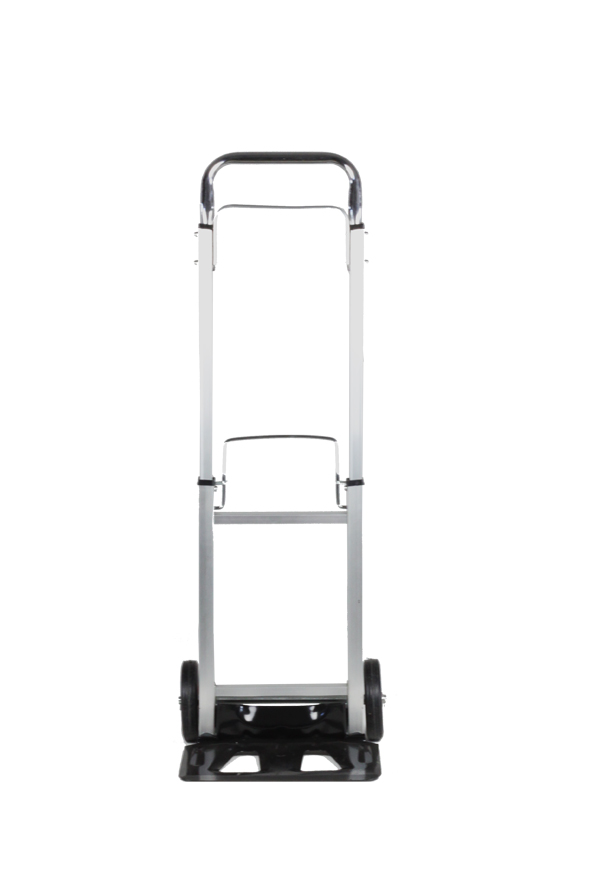

Compact steel ancd aluminium handtrack with folding telescopic handle, total height 1100 mm - height closed 720 mm

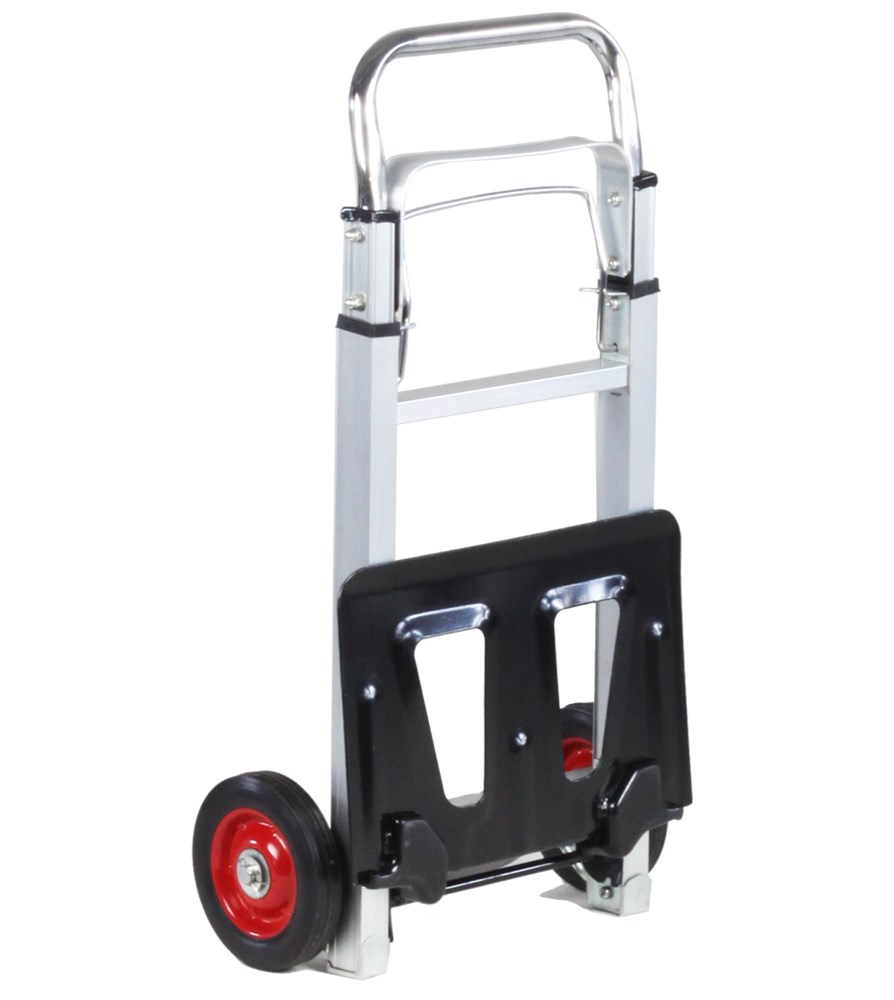

Compact handtrack with folding telescopic handle suitable for light duty (domestic use). Manufactured in aluminium, it can carry crates, packages,
bottles, boxes, and objects up to 90 kg of weight. It is easy to transport and store. Tilting steel platform 24x34 cm.

Technical Specifications

Max capacity 90 kg
Weight 5 kg
Width (distance between wheels) 370 mm

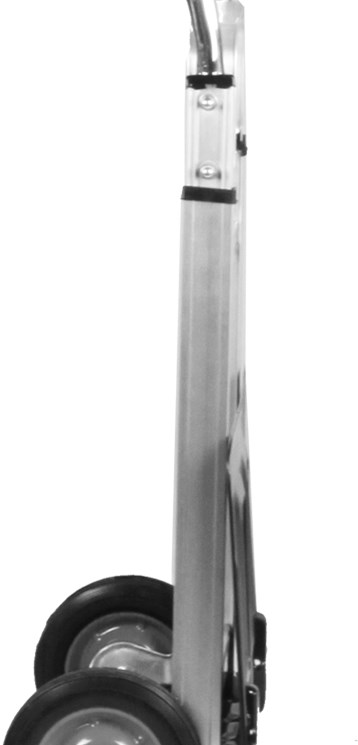

Thickness when closed 190 mm
Total height 1100 mm – Height closed 720 mm
Packaging: Cartoon box
Frame material: aluminium
Platform material: painted steel
Handle material: galvanised steel

Components

Handle telescopic closing

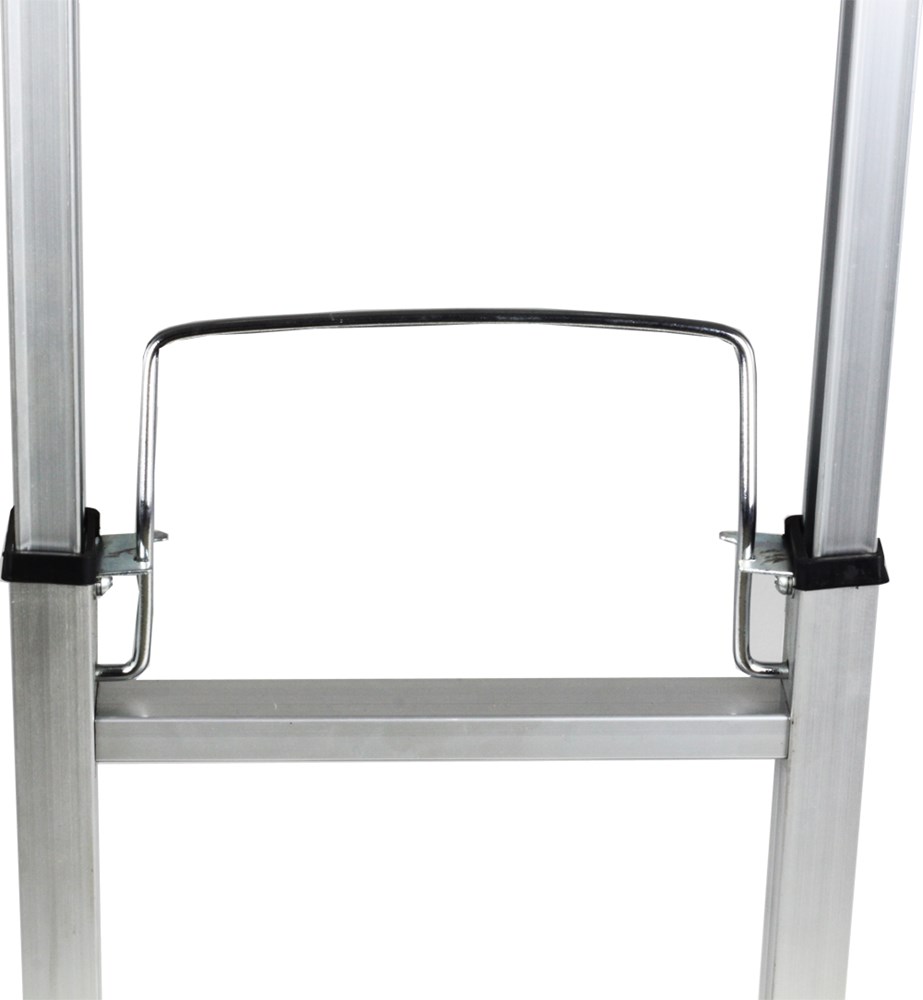

Telescopic handle in galvanised steel

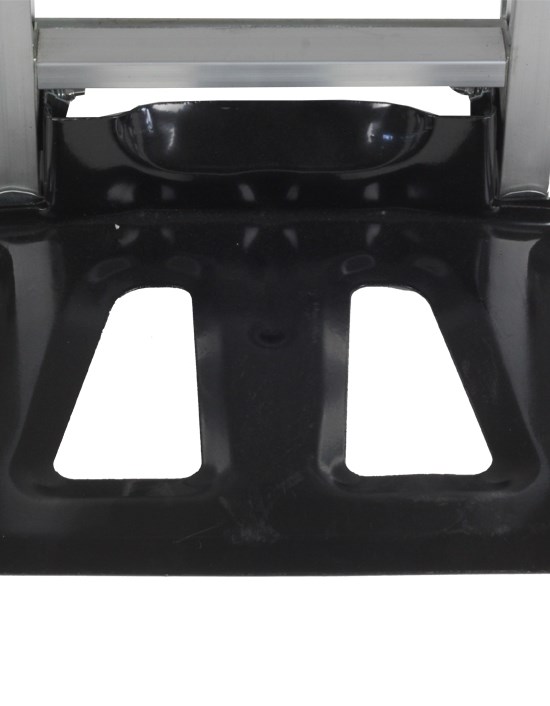

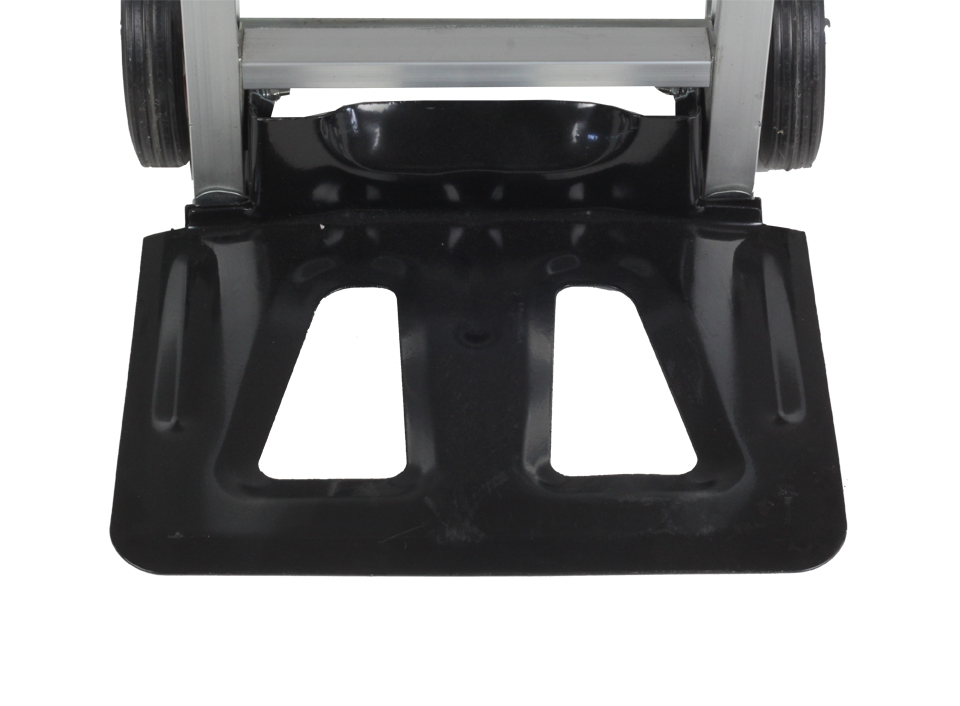

Tilting platform in painted steel mm 240x340

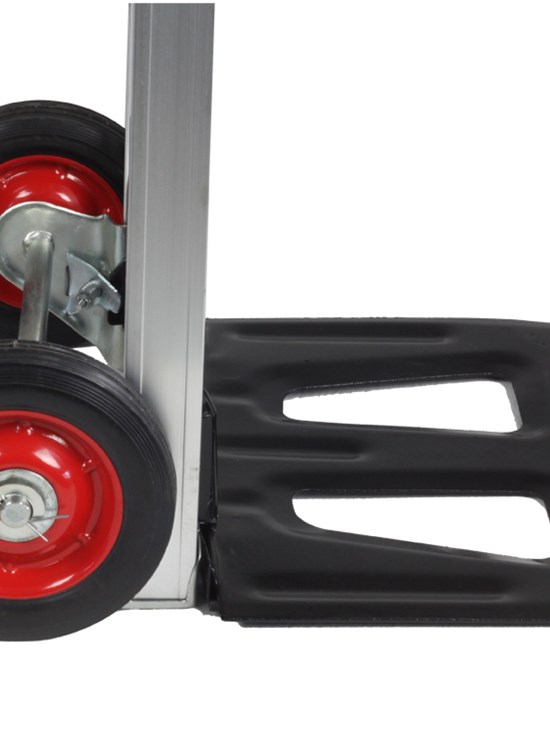

Run-flat tyres diameter 150 mm with ball bearings

Main elements:

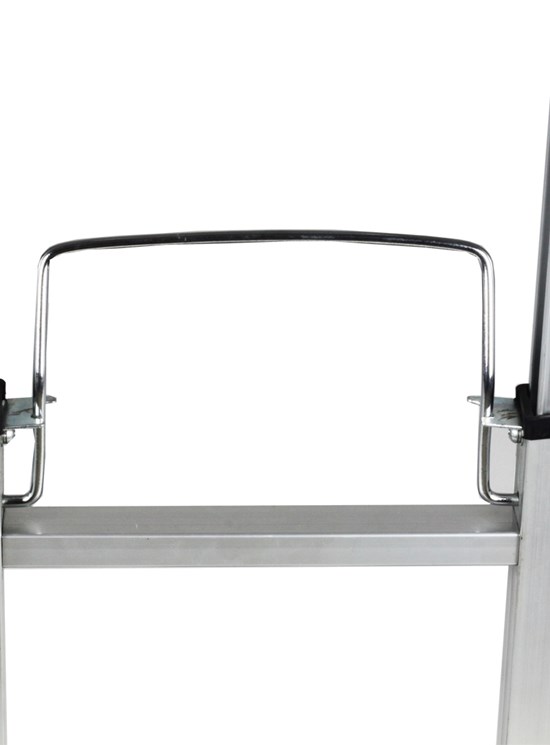

Opening/closing system of the handle allows easy operations from open to close
Design that adjusts the centre of gravity of loads for balanced transport and greater manoeuvrability
Ergonomic telescopic handle with easy grip
Top quality aluminium structure with strong steel platform

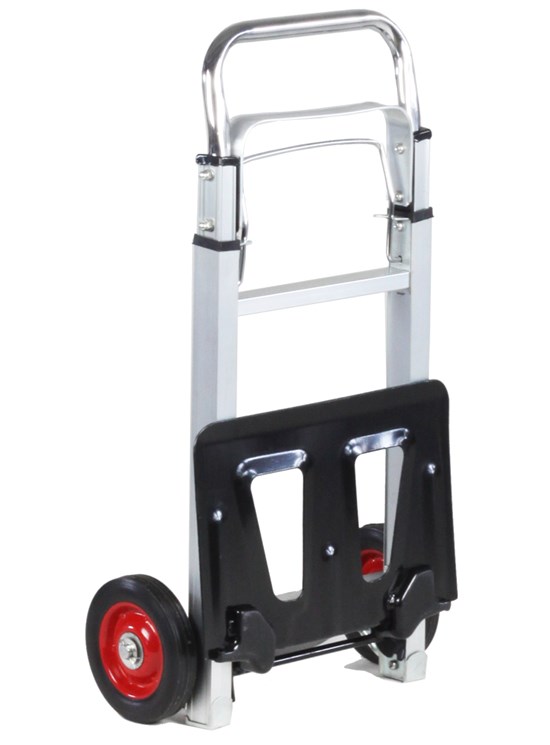

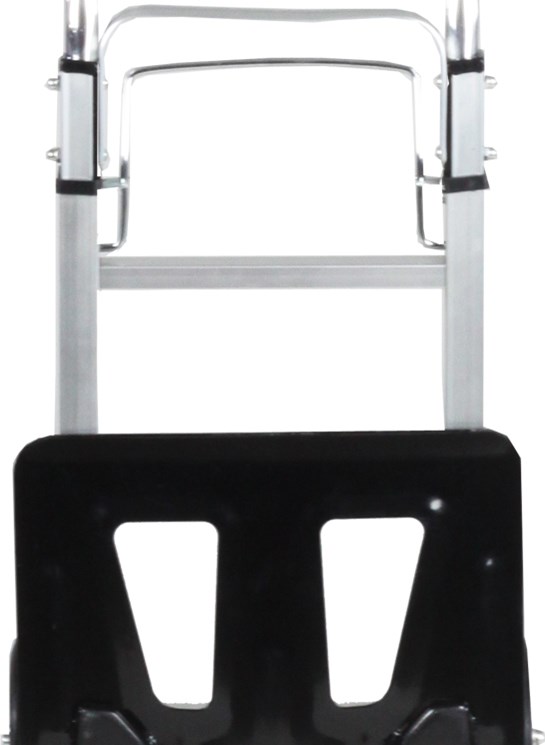

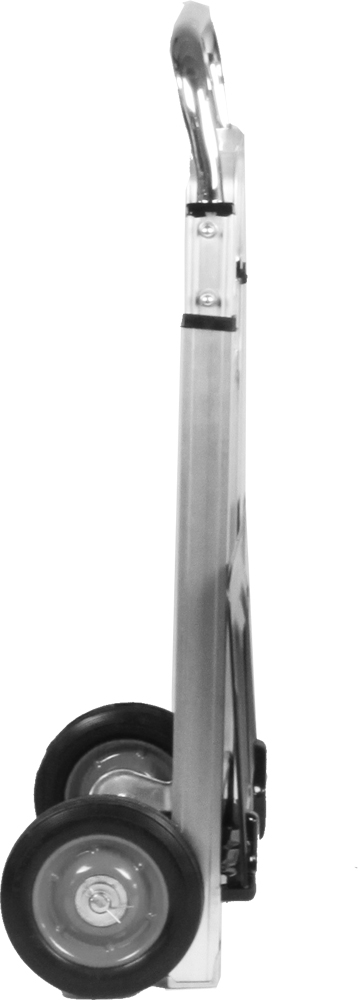

When closed, it stands thank to its supports
