U1 WITH STABILIZER

It shows the validity of the guarantee in years

It shows the maximum weight capacity of a product

It is the European Standard for ladders

Ecoline brand name is the right answer to a rising demand for ladders and scaffoldings for both domestic and DIY use. Ecoline series respects all the safety requirements according to the laws in force

It is shown on products tested by TÜV SÜD PRODUCT SERVICE, the German Quality Standard organization, and certify they conform to EN131 for ladders and UNIEN14183 for stools.

Suitable for light duty

Single section ladder with stabilizer for domestic and DIY use, No. of rungs: 12 to 20, Non-skid rubber feet, Capacity kg 150

Extension ladders in ribbed aluminium suitable for DIY with standard structure and components.

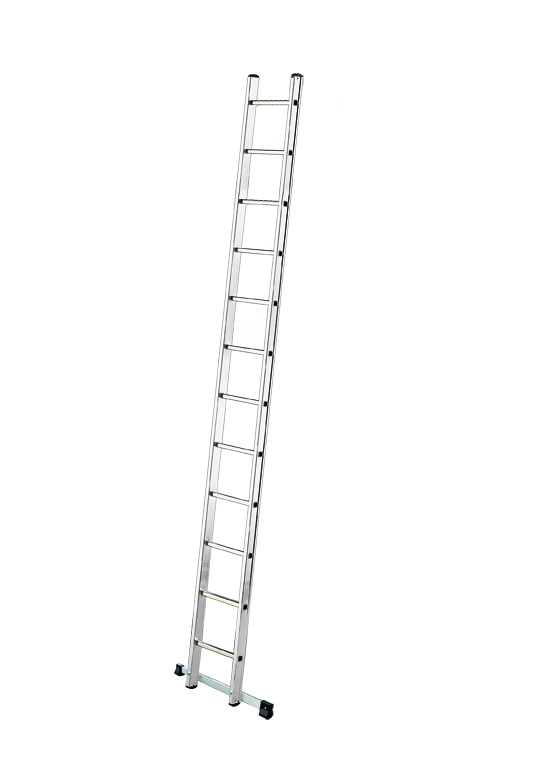

Light and strong single section ladder with stabilizer.

TECHNICAL FEATURES

No. of rungs: 12 to 20
Section width: 36 cm
Height: m 3,42 to m 5,67

STANDARD PARTS

Assembly and use instructions
Flanged rung 25 mm
Non-ski rubber feet
Capacity kg 150
Distance between steps cm 28
Rung section 27x27 mm

Base stabilizer mandatory according to the European Standard EN131/1/2015 for models above m 3.
U1 models over 3 m are prepared for the installation of the stabilizer by the customer.

TECHNICAL FEATURES

Cod.	rungs number	Height m	Profile mm	Weight Kg	Lunghezza allargatore cm
ASUNIV1X12	12	3,42	57X27	5,5	897
ASUNIV1X14	14	4,02	57X27	6,5	897
ASUNIV1X16	16	4,57	67X27	8,5	897
ASUNIV1X18	18	5,12	67X27	9,5	1017
ASUNIV1X20	20	5,67	84X27	11,5	1017

Catalogo Serie Universal.pdf (376.6 KB)
