PID 8.5 with tracks

Max working height 8,65 m.
Warranty 1 year
It shows the validity of the guarantee in years
Flow 200 kg
It shows the maximum weight capacity of a product
CE mark
Suitable for heavy duty

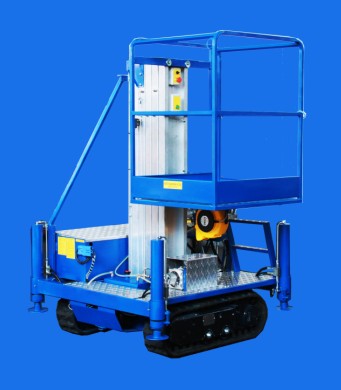

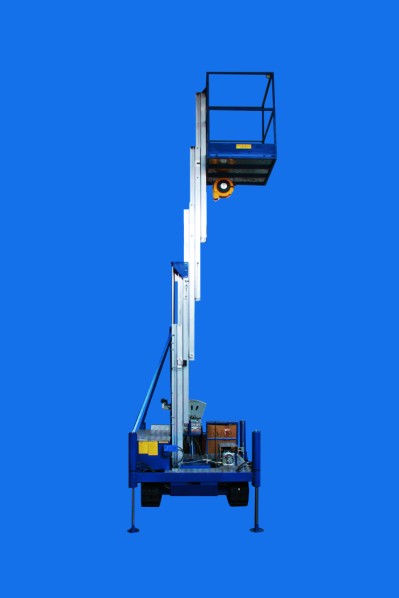

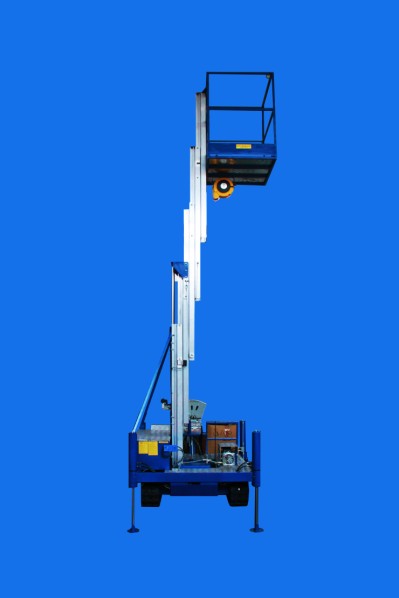

Vertical aerial platform self-propelled with tracks for special construction site

With DC power is the self-propelled crawler PID Special.

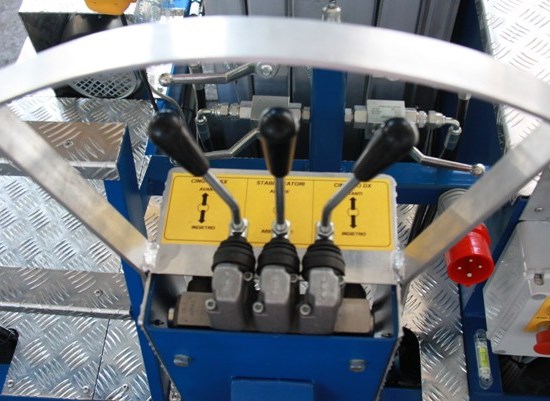

Controlled from the ground for the translation and the drum by push-button controls with easily manageable for the elevation.
The reduced dimensions allow you to go through a very small space.
Can also rotate on itself with curve radius equal to 0.
The supporting column is mounted on self-lubricating nylon rollers to allow a smaller game and therefore greater stability. This is also in extreme temperatures (hot and cold).

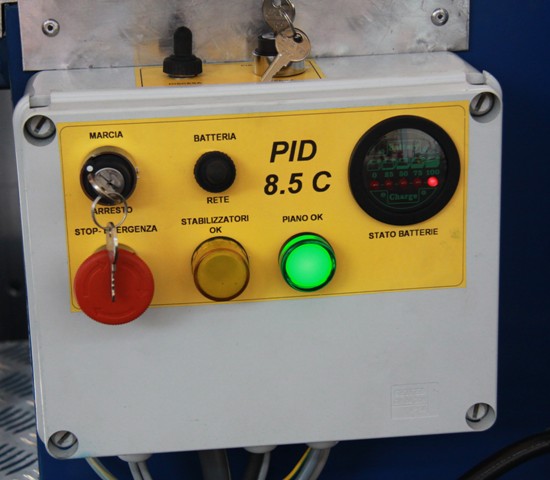

The leveling jacks are independent and one indicator light of consensus communicate if they are positioned correctly.

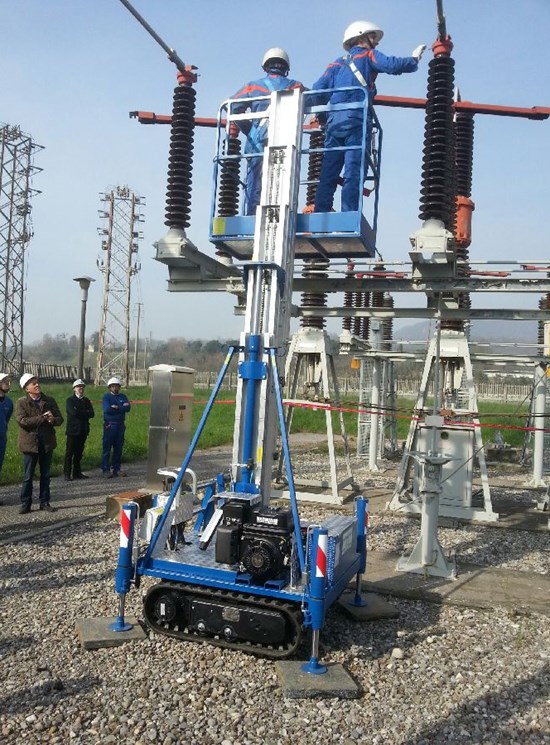

An ideal machine for construction sites.

• Maximum height: 6.65 m
• Max working height: 8.65 m max
• Height 2.16 m closed
• Width 1.43 m
• Length 1,43 m
• Dimensions with open stabilizers m 1,43 x1, 43 (outriggers not)
• Working platform m 0,80 x0, 90
• Total weight Kg 1060

• Approved for indoor and outdoor use

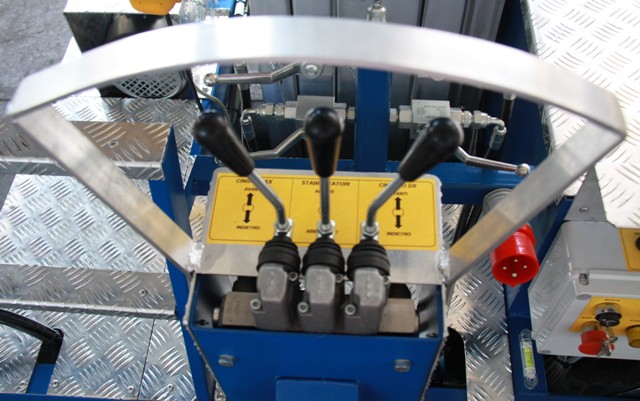

• Controls drive and emergency button on the drum and frame
• Key lock general machine

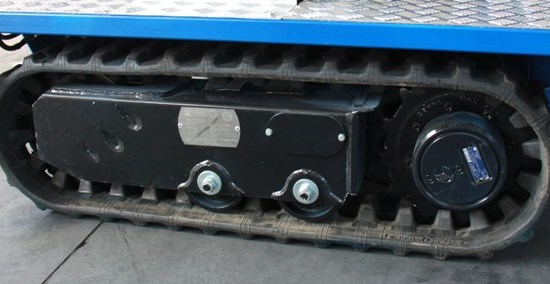

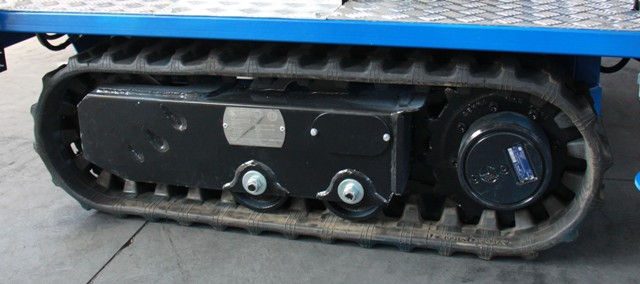

• Chains high safety factor
• Rubber

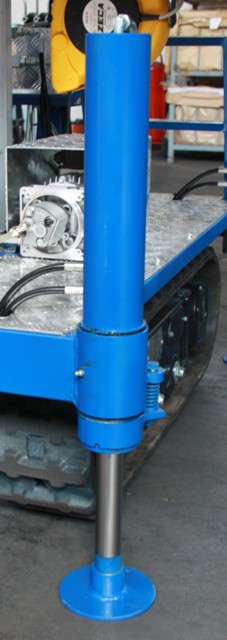

• Independent hydraulic stabilizers
• Piston with double plating and pre-chamber oil recovery
• safety device for mechanical locking
• Double locking safety device for hydraulic leak
• Robust aluminum sled elevation flexural controlled

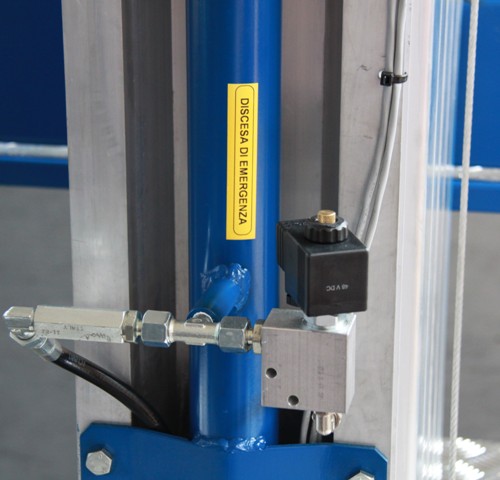

• Emergency lowering valve

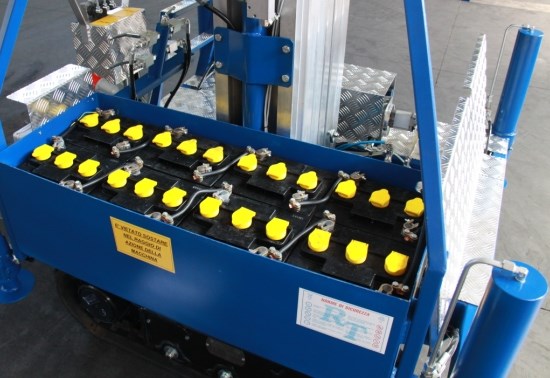

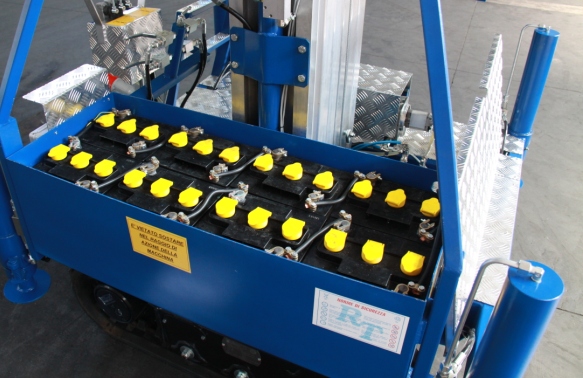

• Power supply DC 48V with 8 batteries armored with automatic charger

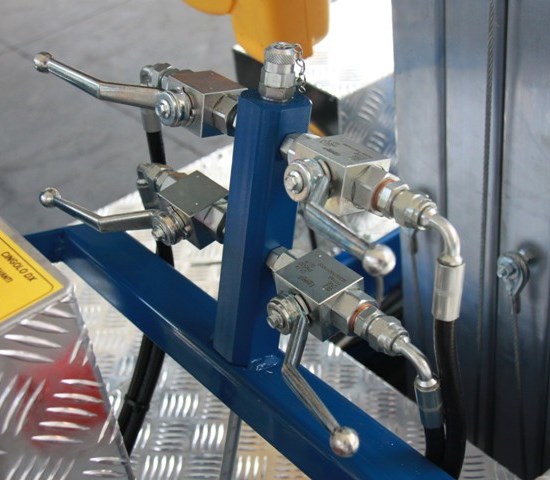

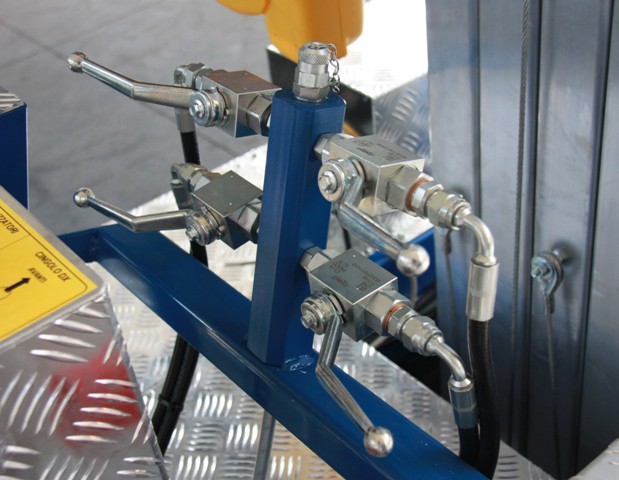

• Valves for forklift and crane

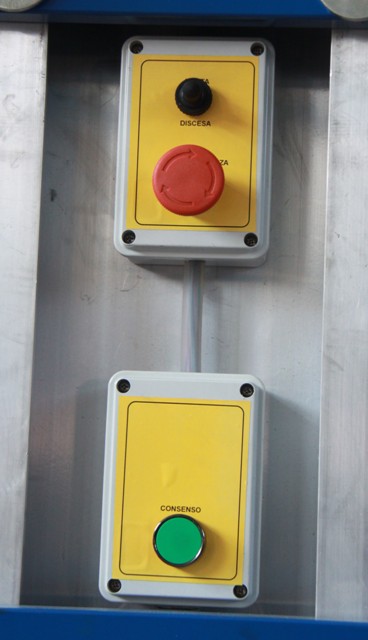

• Emergency stop button on the control panel to ground and platform
• Automatic parking brake
• Lifting speed 40 seconds at max height
• Capacity for 2 persons (200 kg)

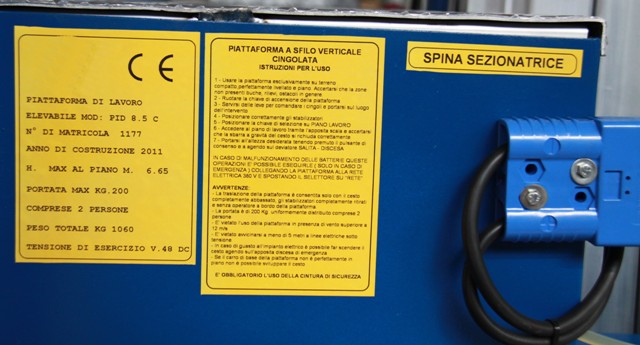

• Labels and manual of use and maintenance
• Test certificate according to the Italian and European regulations (CE)

The level of A-weighted emission sound pressure is less than 70 dB (A)

The vibration total value to which it is exposed the hand-arm system is less than 2.5 m/s2
The highest root mean square value of weighted acceleration to which the whole body is exposed is less than 0.5 m/s2

• Electrical power 220V and / or compressed air at high altitude
