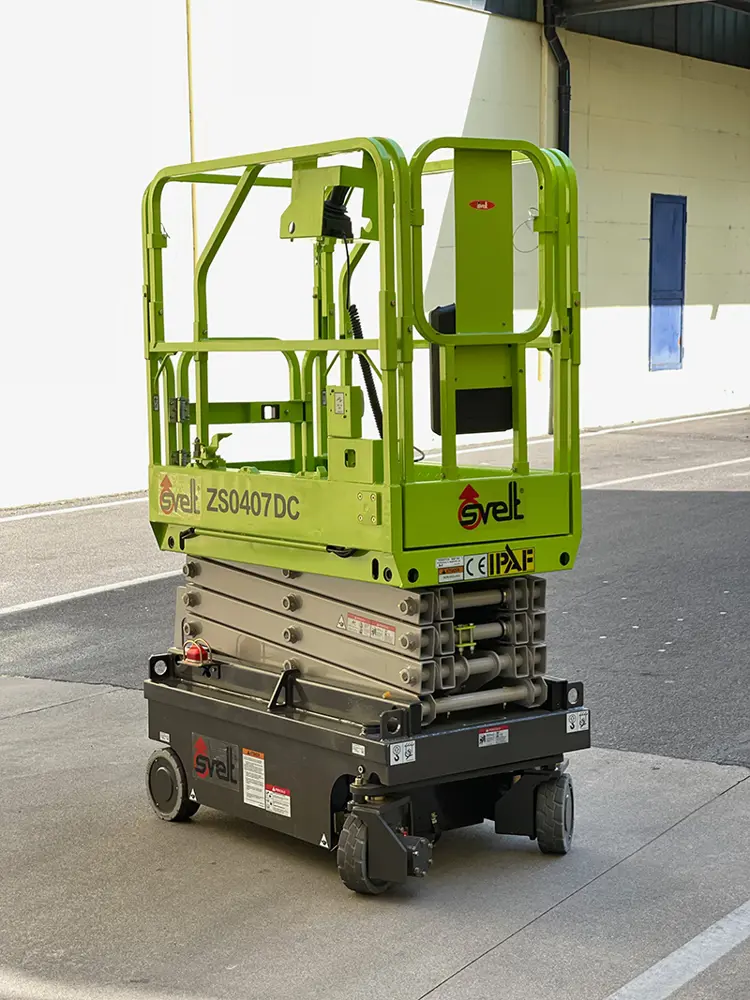

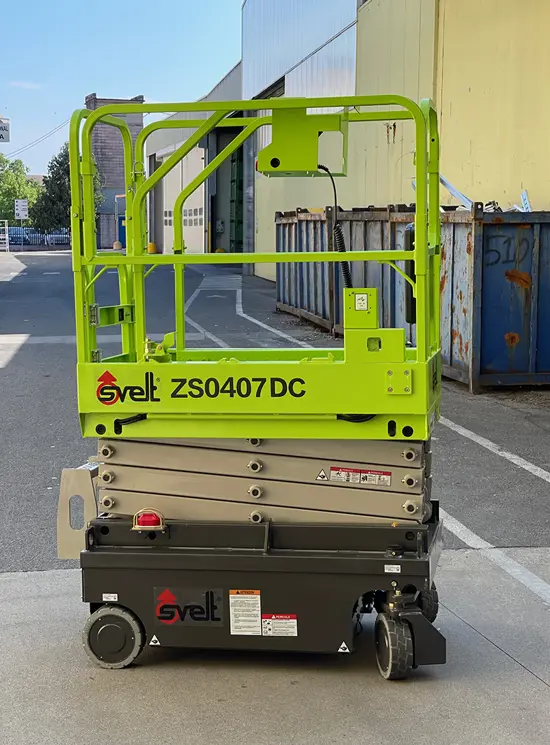

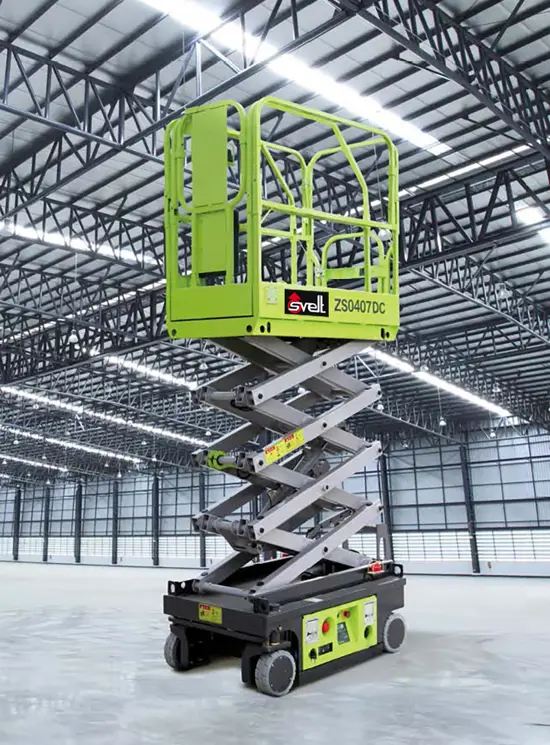

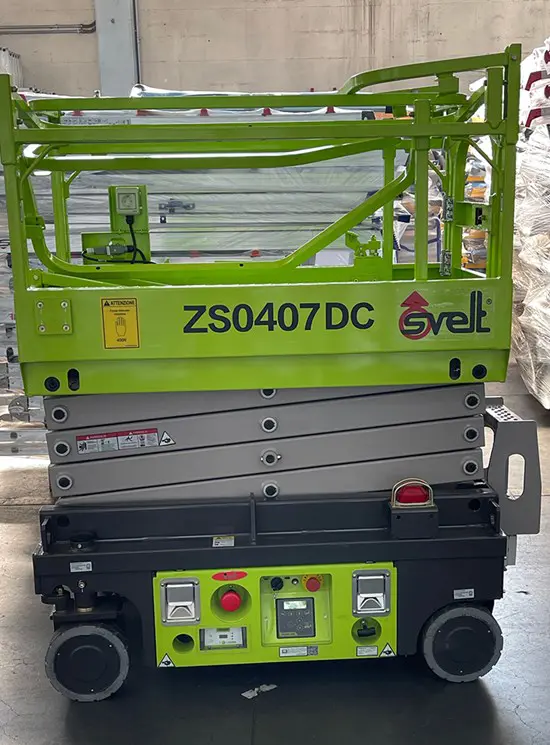

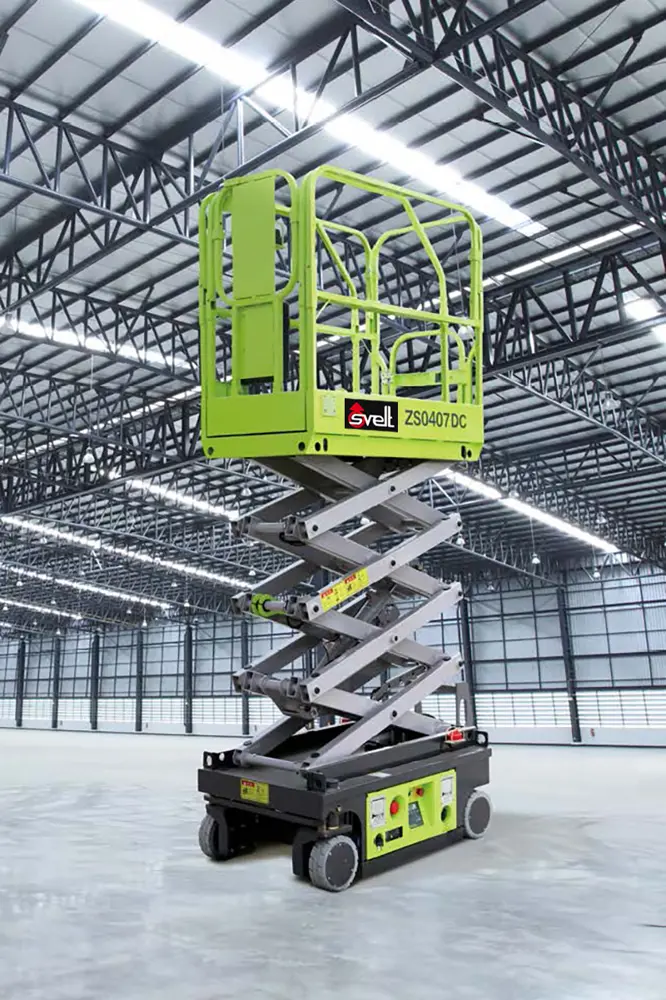

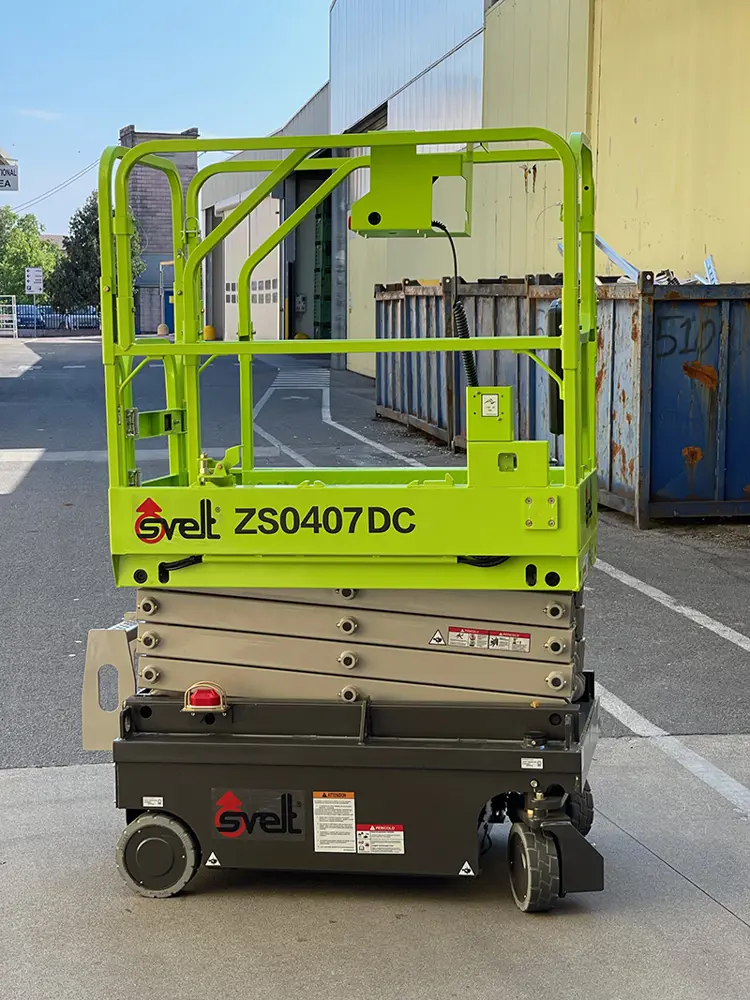

Svelt Mini Scissor

H. Work m 5.95

It shows the validity of the guarantee in years

CE mark

Suitable for heavy duty

Ultra-compact self-propelled scissor lift platform with remote monitoring management on request

✅ PROMPT DELIVERY!!

Strengths

Direct electric drive efficiency that almost doubles the hydraulic pump drive.
Compact size ideal for low-altitude and narrow-access applications.
Lightweight: only 895 kg.
Climbs slopes of 25% in closed position.
Maximum working height of 5.95 m

Cost-effectiveness

Design of modularized and divided parts ideal for maintenance.
Removable battery compartment for easy use.

Smart connectivity

Remote Monitoring and Rental Management allows you to quickly acquire the status of your equipment and complete the management of online operation.

STANDARD EQUIPMENT

Safe travel at maximum height

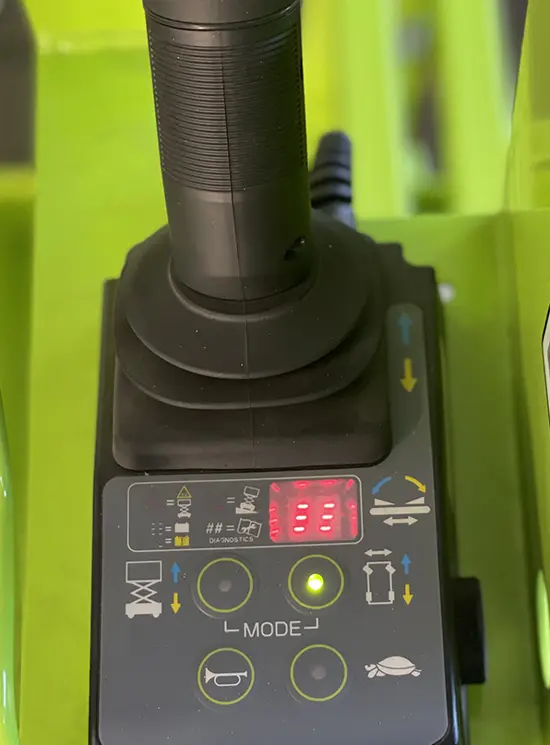

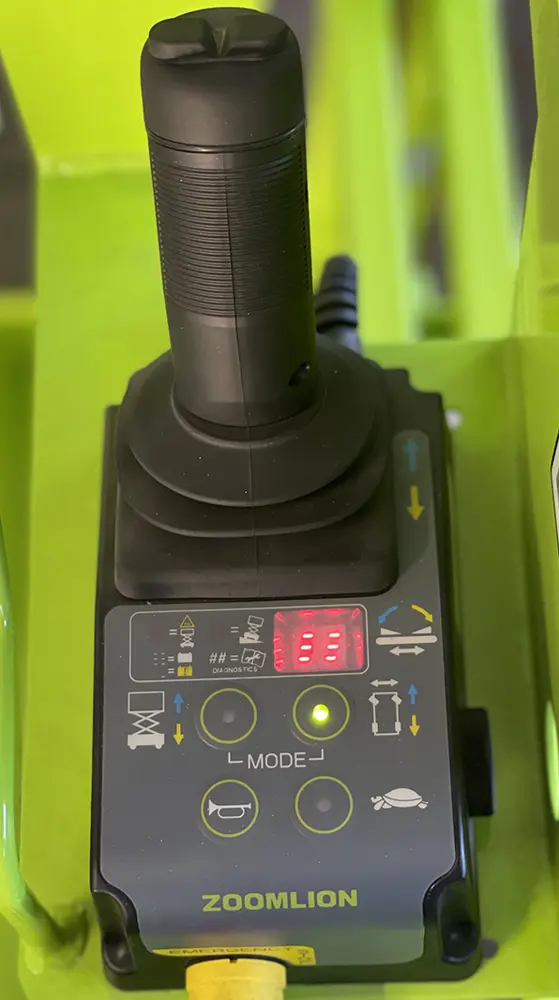

Proportional controls

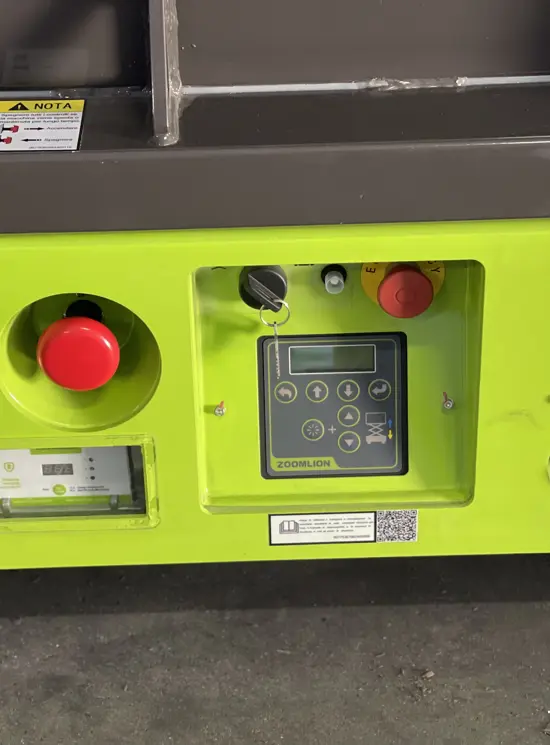

On-board diagnostics
Charging protection system

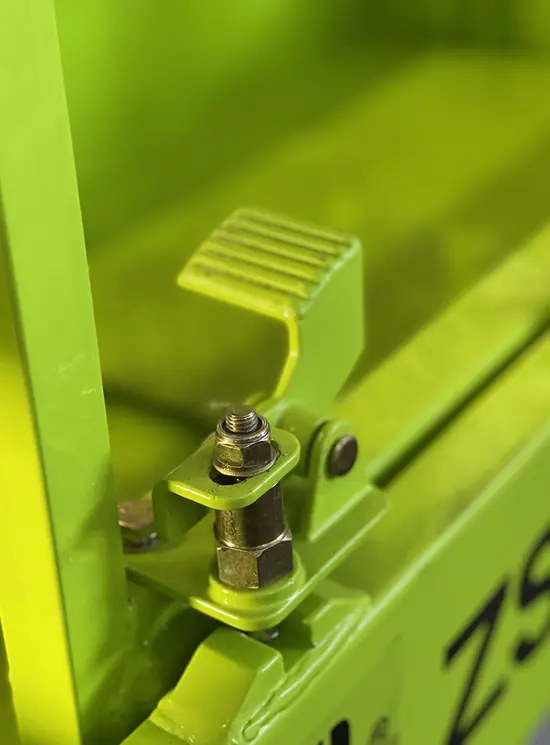

Support for the maintenance of the pantograph

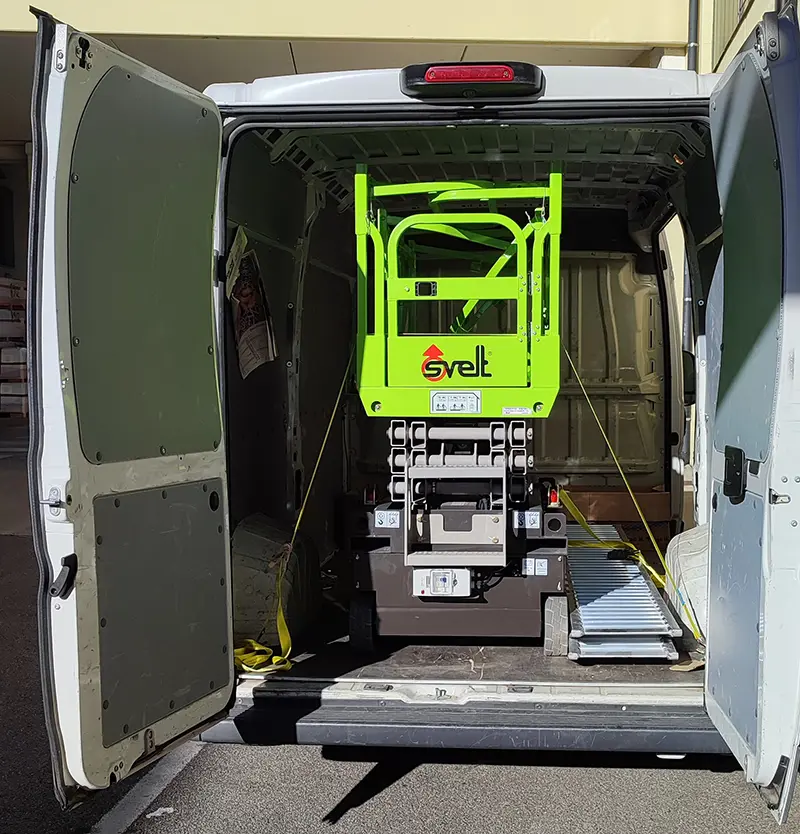

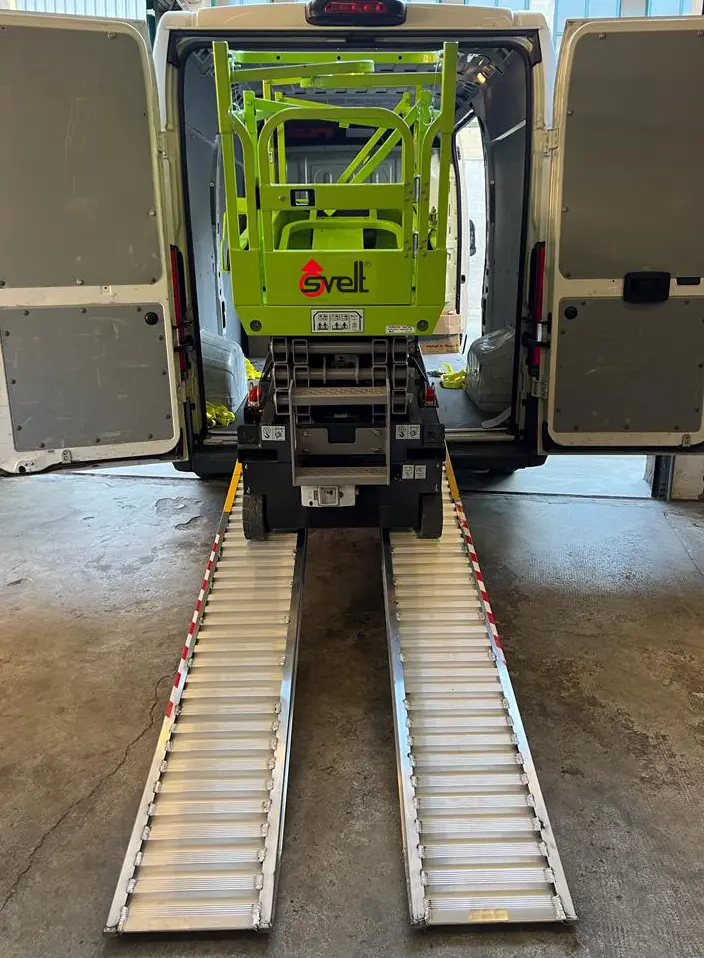

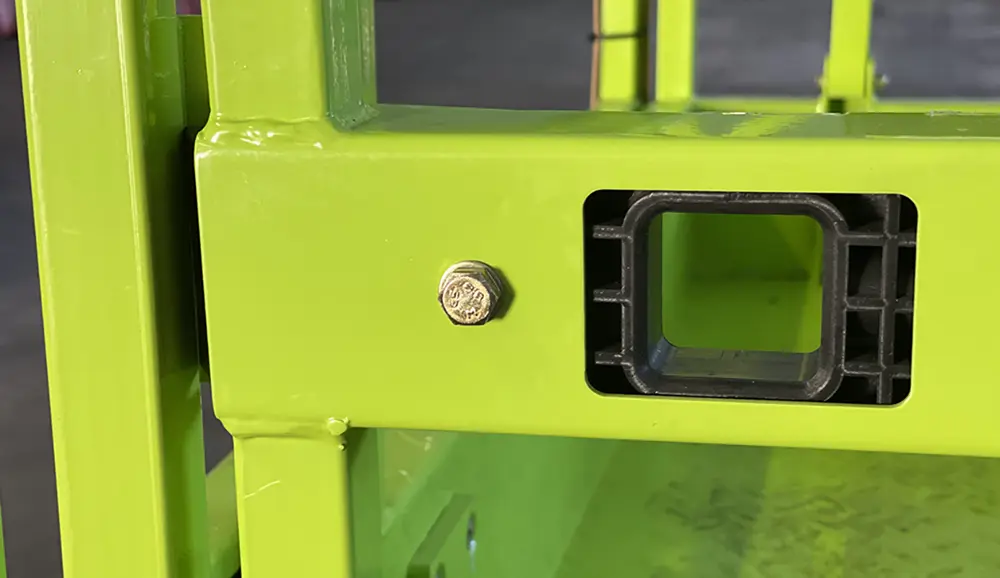

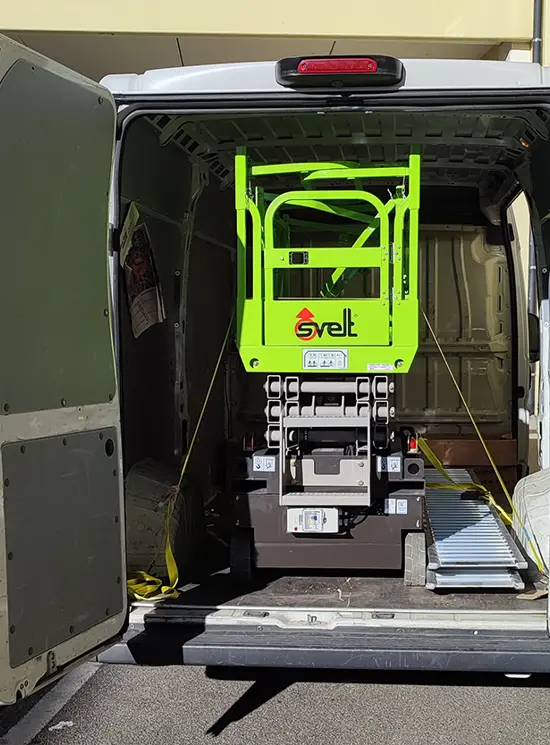

Front fork insertion compartments for lifting and loading on a van
GPS positioning and tracking system
Extendable cantilevered basket m 0.6

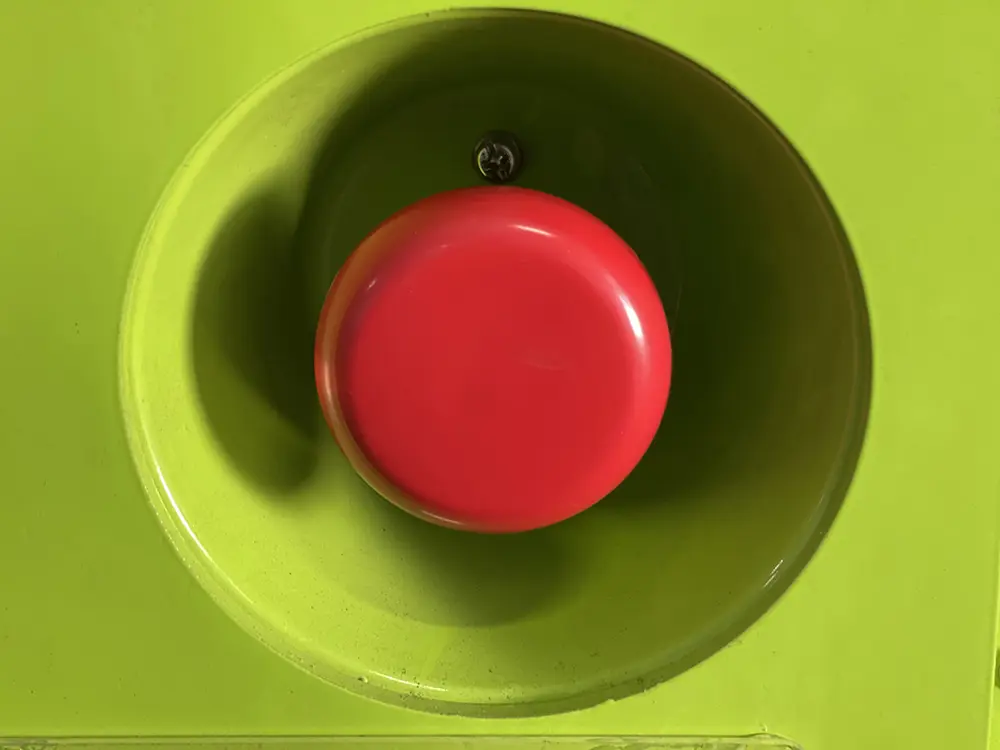

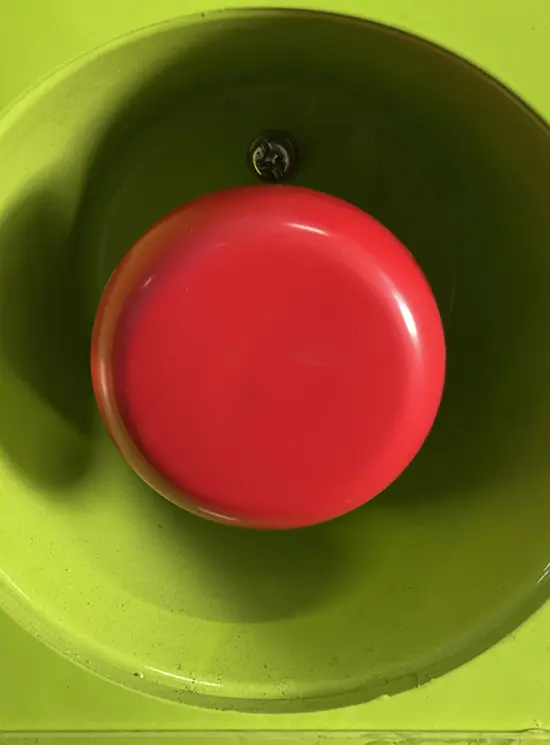

Emergency lock button on frame and platform

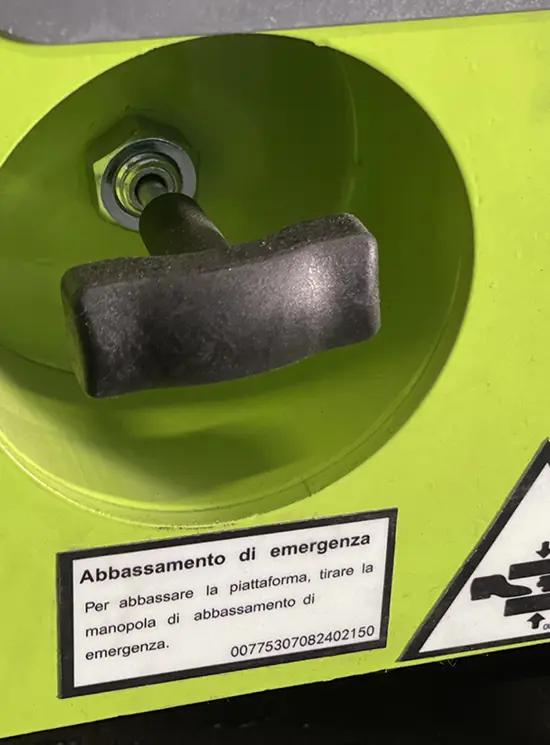

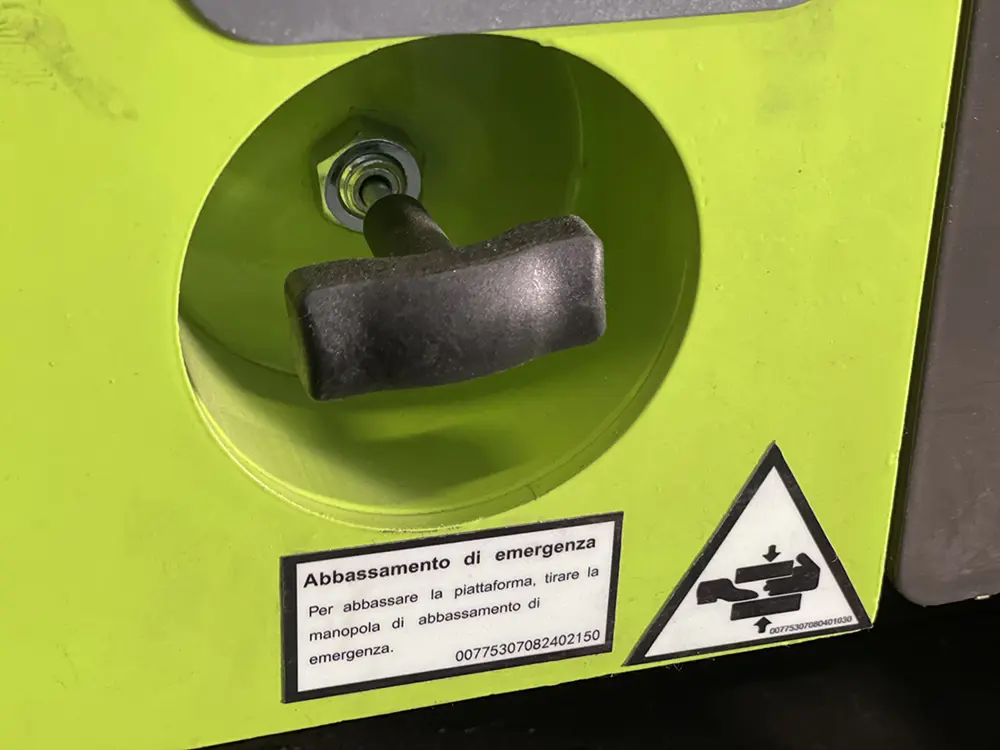

Emergency descent valve and limitation valves for driving at height
Automatic parking brake
Motion and up/down alarm

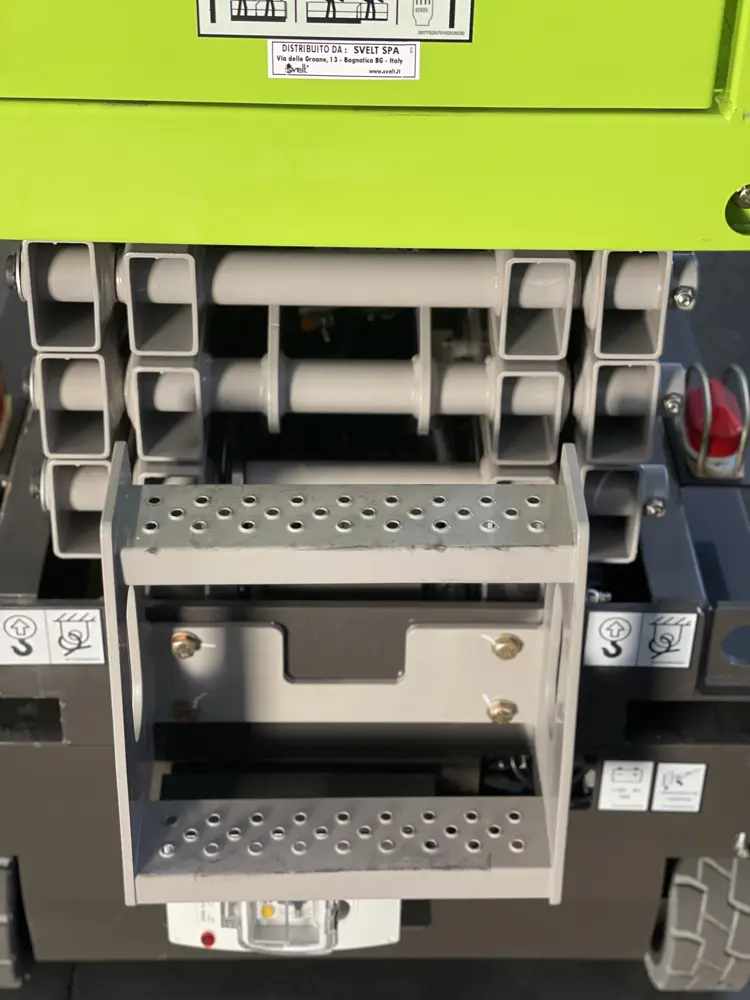

Easy access to the worktop
Non-slip walking surface
Quick-closing protective railings

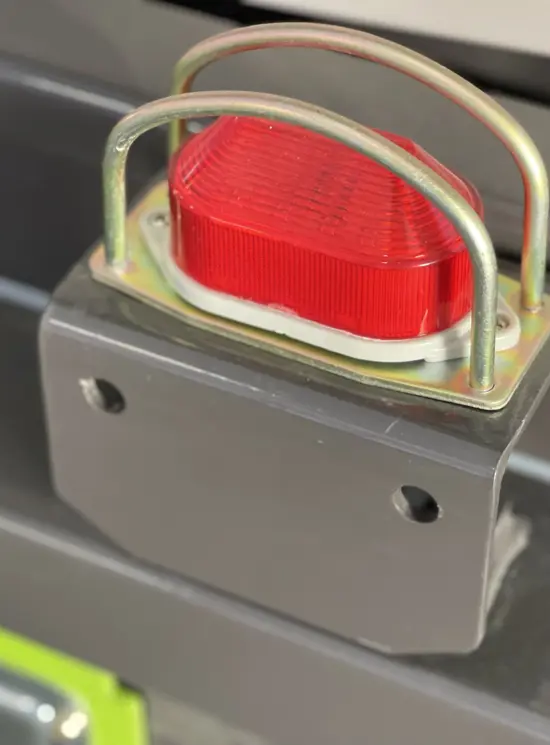

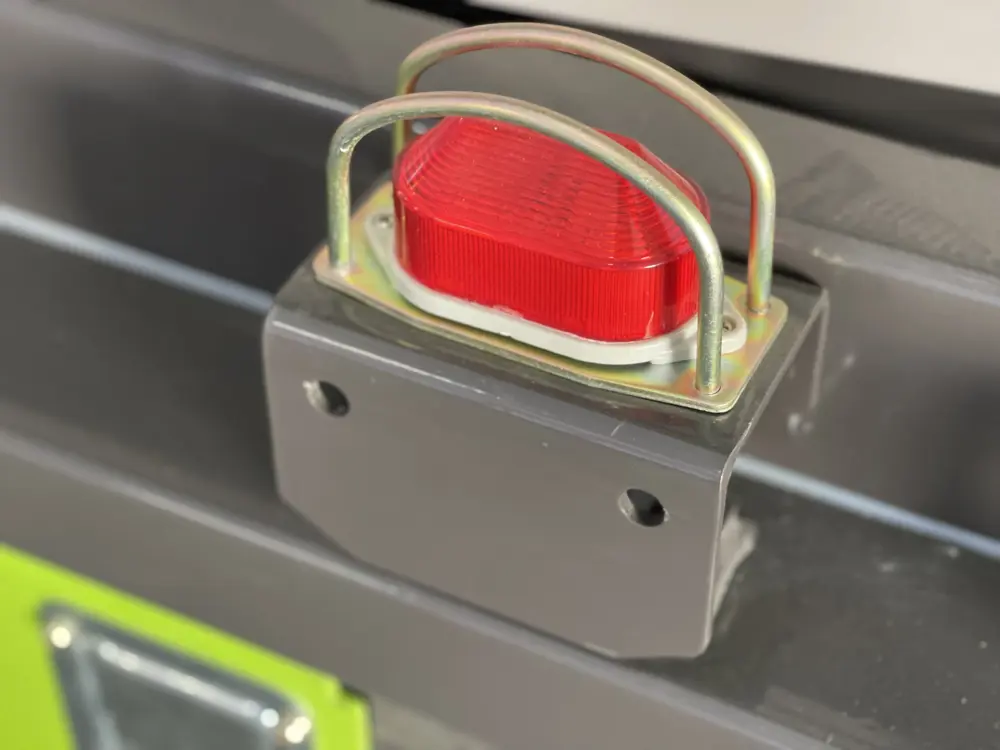

Flashing

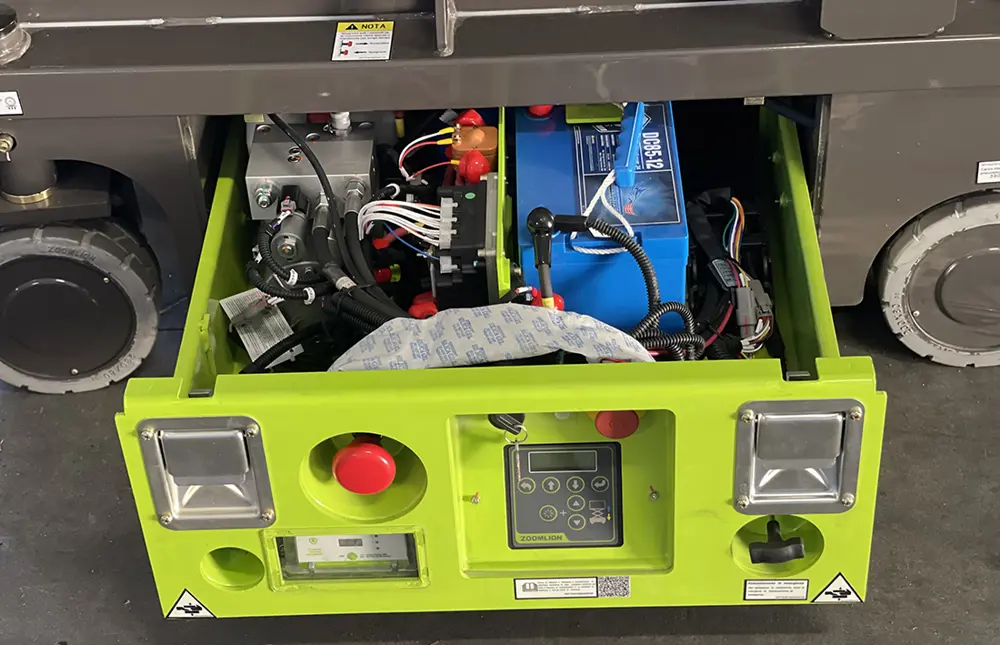

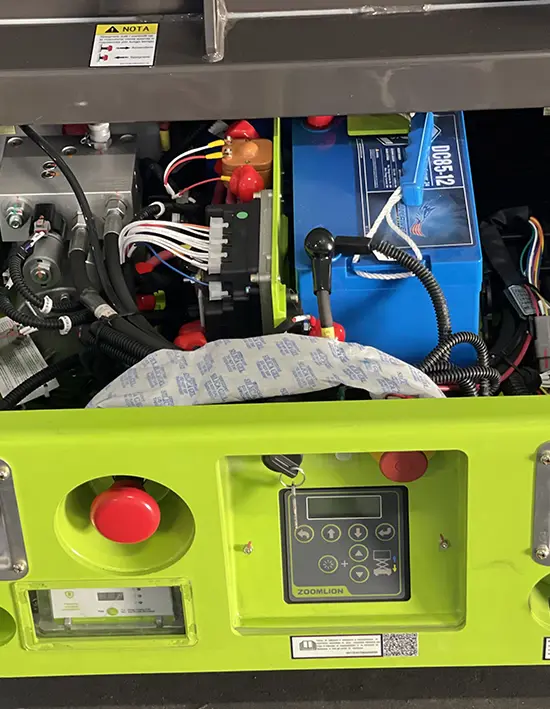

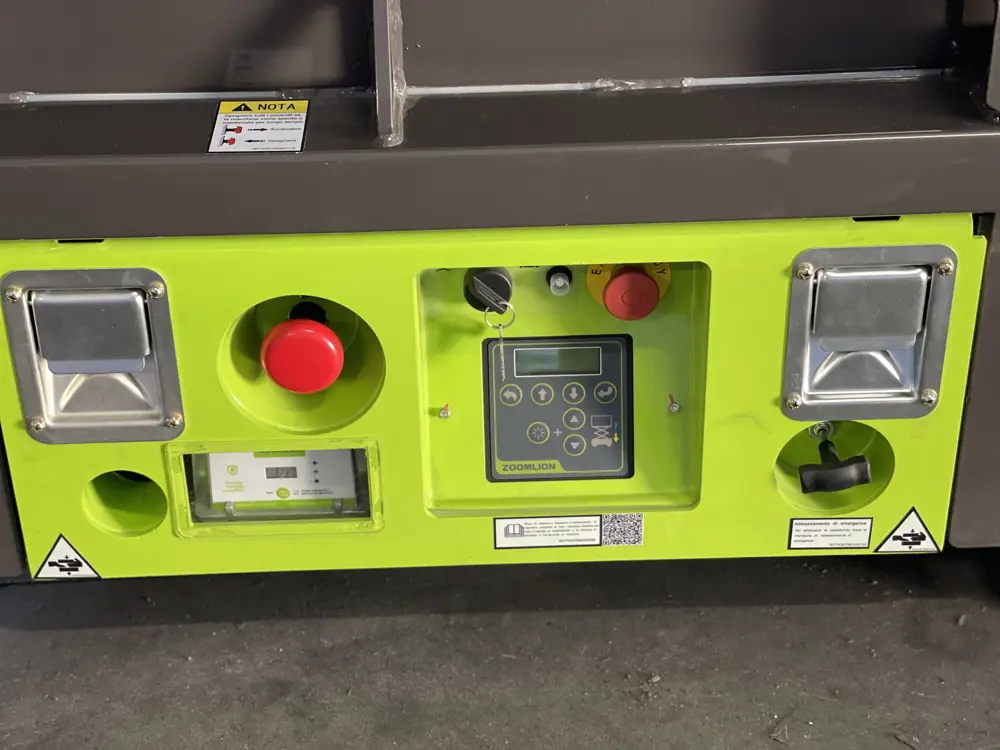

Easy access to components for routine maintenance (openable drawer)

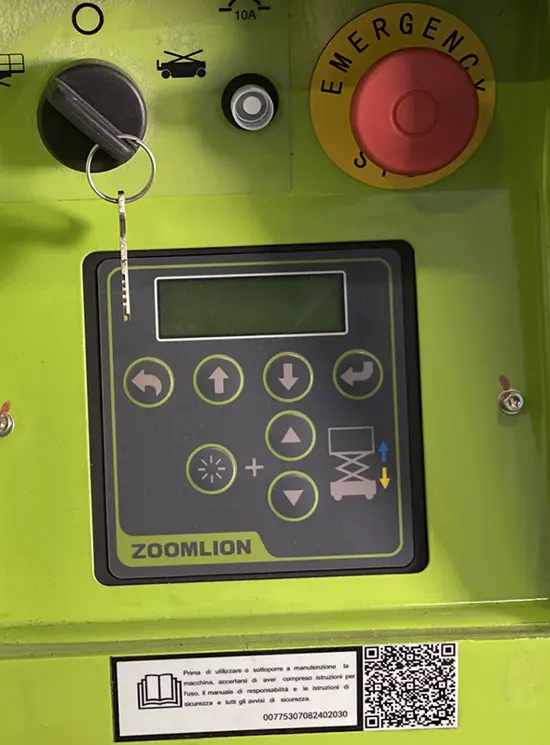

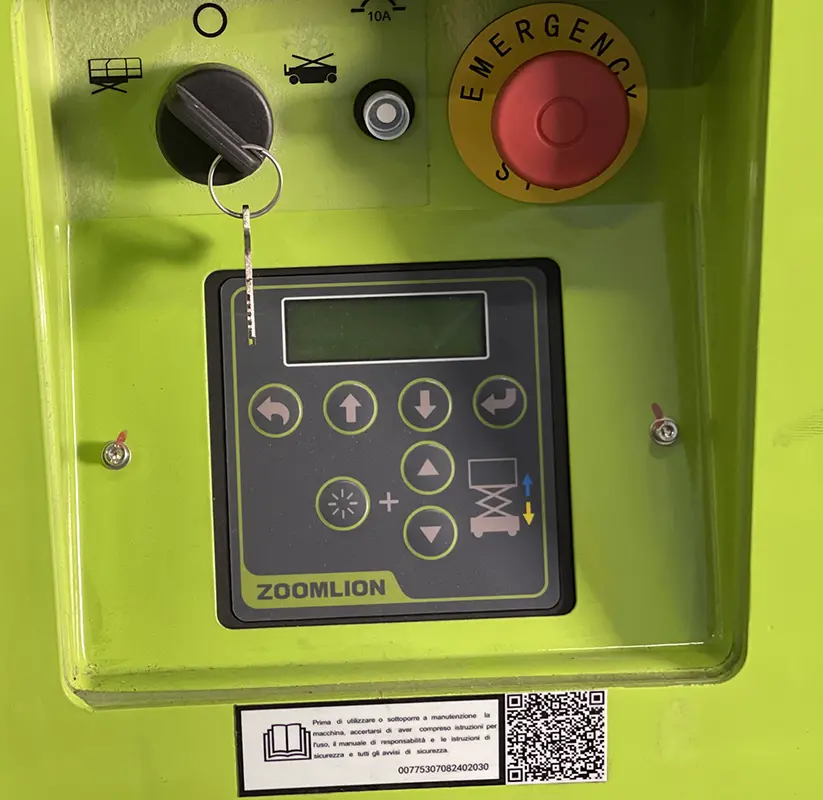

Control panel in removable platform
Hour counter and charge indicator
Hydraulic side skirts for protection against potholes with automatic opening
Anti-shearing system
Gate with automatic spring closure

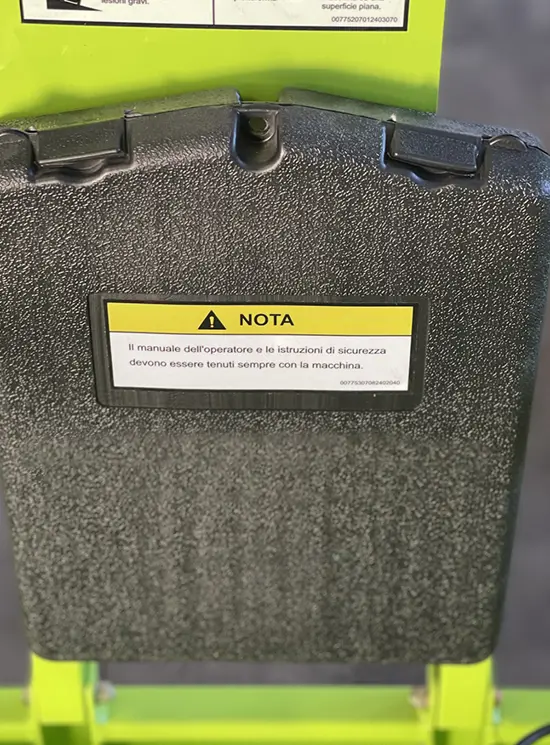

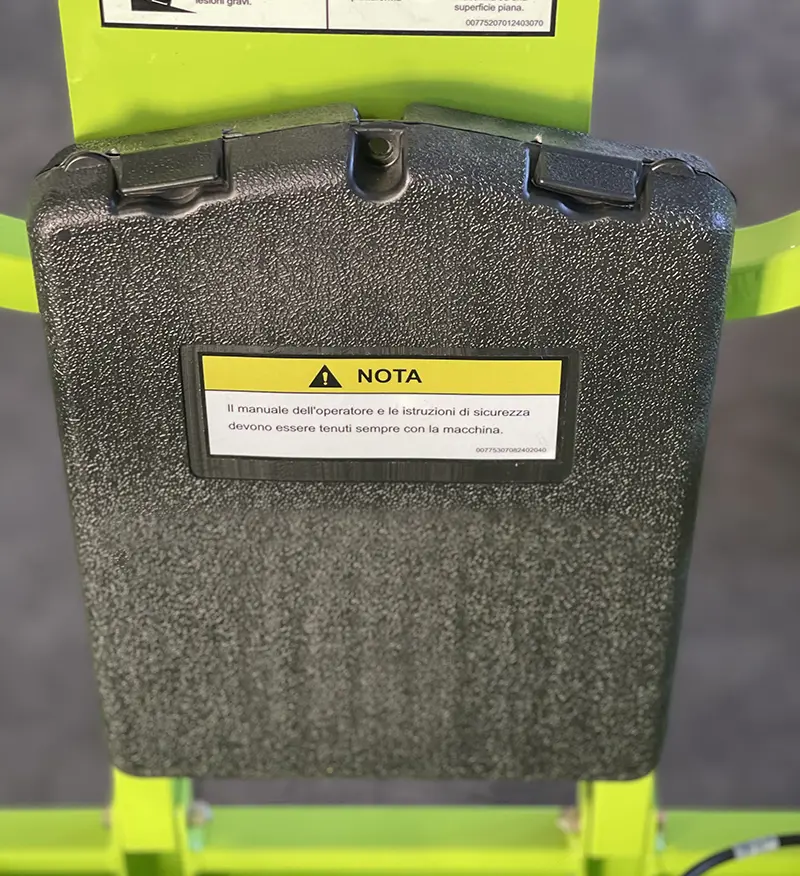

Labels and use and maintenance manual
CE Certificate

ON REQUEST

Platform Work Lights
Load Sensing System

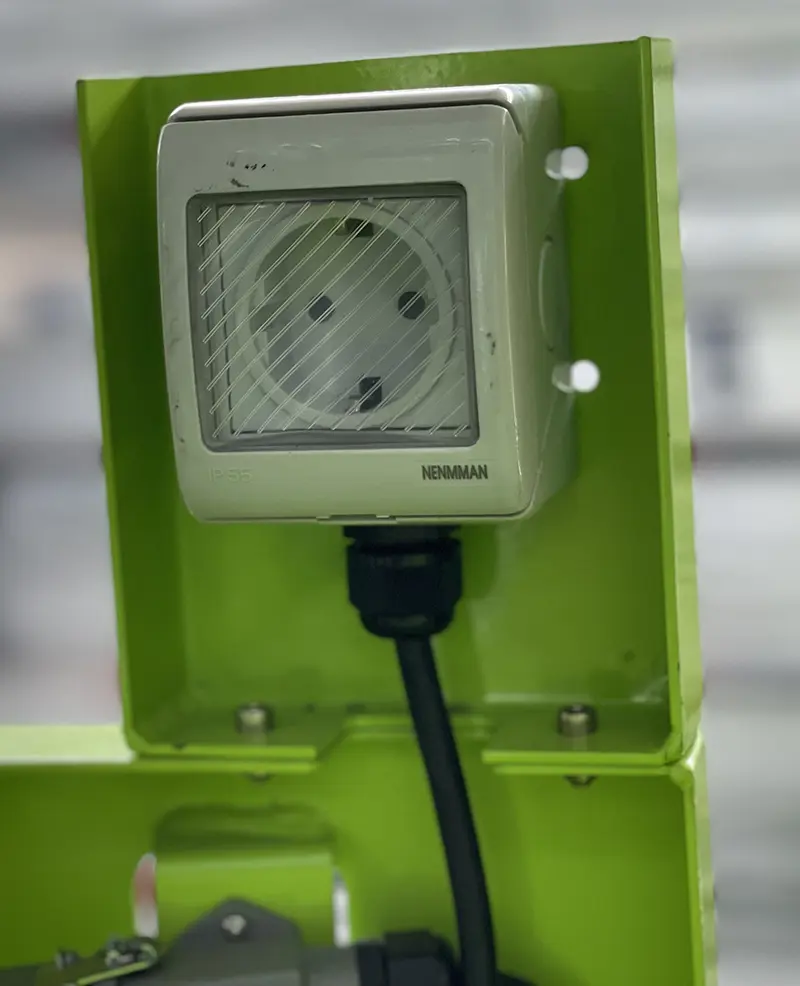

AC 220V power outlet on the platform
Compressed air system with platform connection
Horn
Lithium Battery
Remote Monitoring and Rental Management

ADVANTAGES OF LITHIUM BATTERIES

Having no memory effect, unlike standard batteries, lithium batteries allow them to be recharged at any time even without being completely discharged. If they are not completely discharged, standard batteries (with memory effect) would be ruined and their life would be shortened in the long run, as well as the duration of their charge. Lithium batteries have a longer life and duration even if they are recharged several times a day for jobs where you cannot afford to run out of batteries.

TECHNICAL FEATURES

Working height m 5.95
Walking height 3.95
Platform height - Raised 4.5m
Platform height - Closed 0.95m
Platform length 1.29m
Platform width 0.7m
Platform extension (cantilever basket) 0.6m
Overall height (raised railings) 2.05m

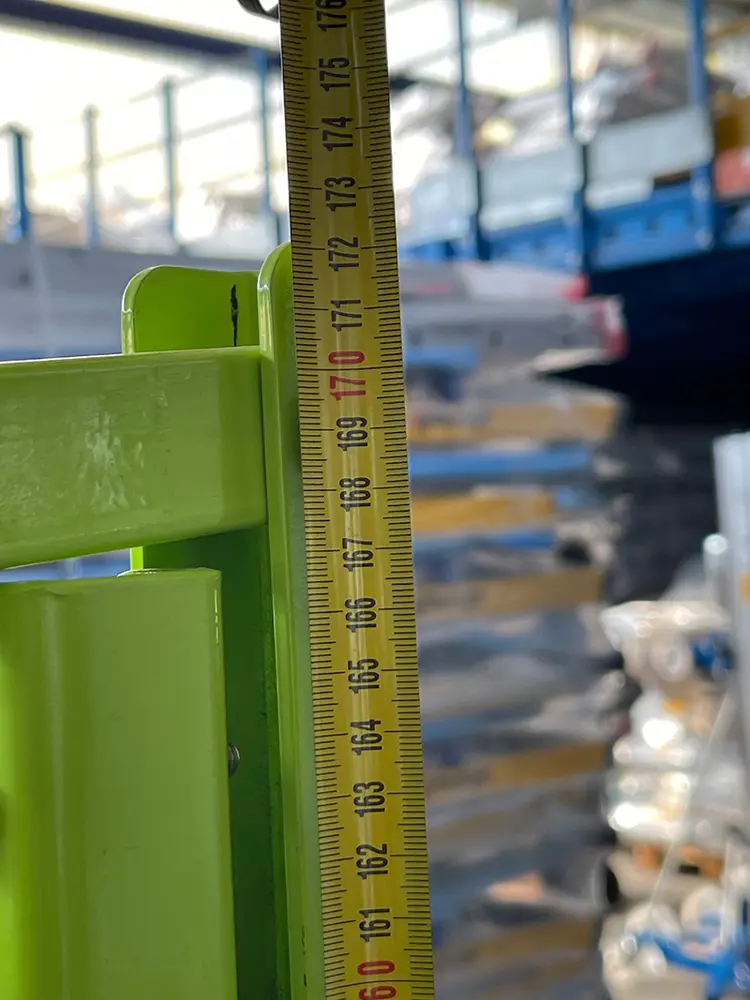

Overall height (parapets lowered) 1.7m
Overall length 1.44m
Overall width 0.76m
Wheelbase 1.05m
Minimum ground clearance (closed) 0.06m
Minimum ground clearance (raised) 0.017m
Platform capacity 240kg
Extendable top capacity 100kg
Maximum number of workers 2
Transmission speed (closed) 4km/h
Transmission speed (lifted) 0.8km/h
Bend radius (internal) 0.4m
Bend radius (external) 1.6m
Lifting motor 24V/1.2KW
Drive motor 24V/0.45KW
Ascent/descent time 23/25s
Inclination (gradeability) 30%
Max working slope (lateral/vertical) 1.5°/3°
Proportional Control Command
Transmission Rear wheels
Rear Wheel Brake

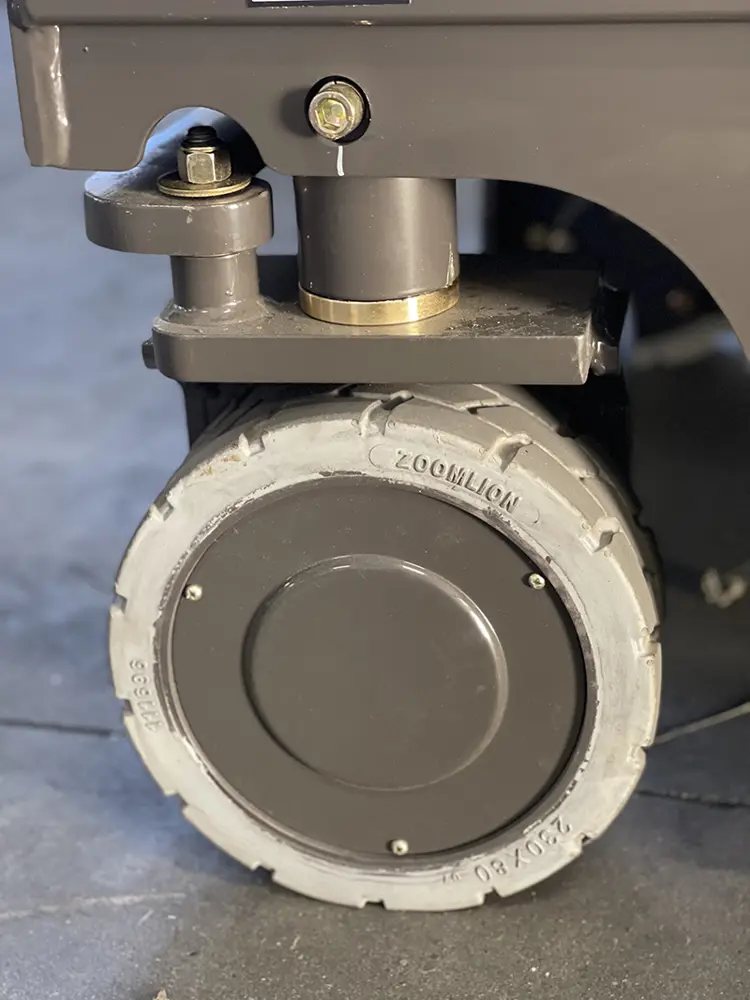

Tires Ø 230mm x 80mm
Battery ZS0407DC 2×12V/85Ah
ZS0407DC-Li Battery Optional 102Ah Lithium Battery
24V/15A charger
Total weight 895kg

SVELT MINISCISSOR SCHEDA TECNICA.pdf (538.9 KB)
