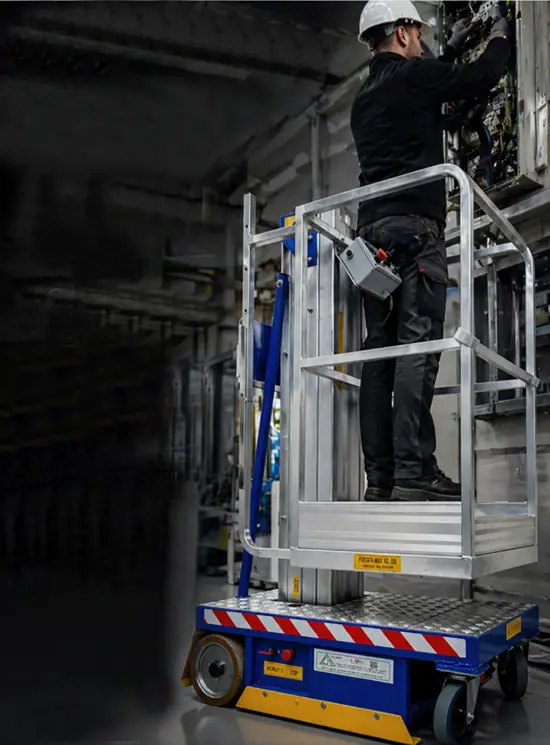

Microlift ZT Selfpropelled

Working hight m 5,00
Warranty 1 year
It shows the validity of the guarantee in years
Flow 200 kg
It shows the maximum weight capacity of a product
Flow 1 person
It shows the number of people who can climb the structure at the same time
CE mark
Suitable for heavy duty

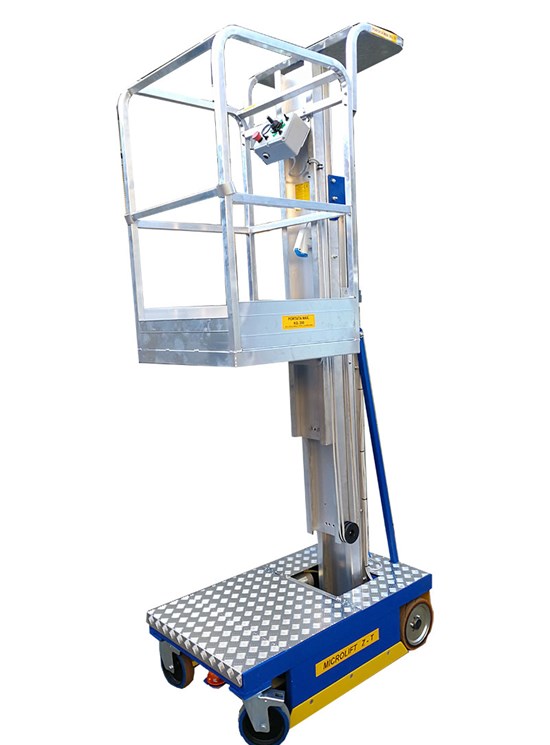

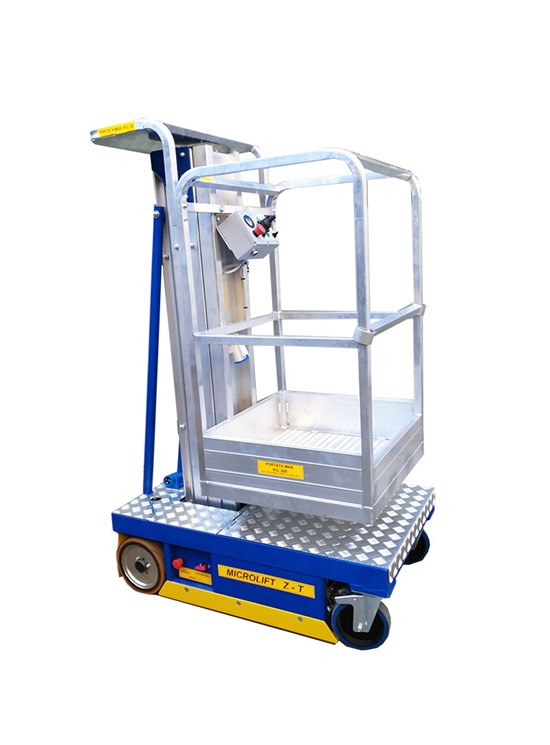

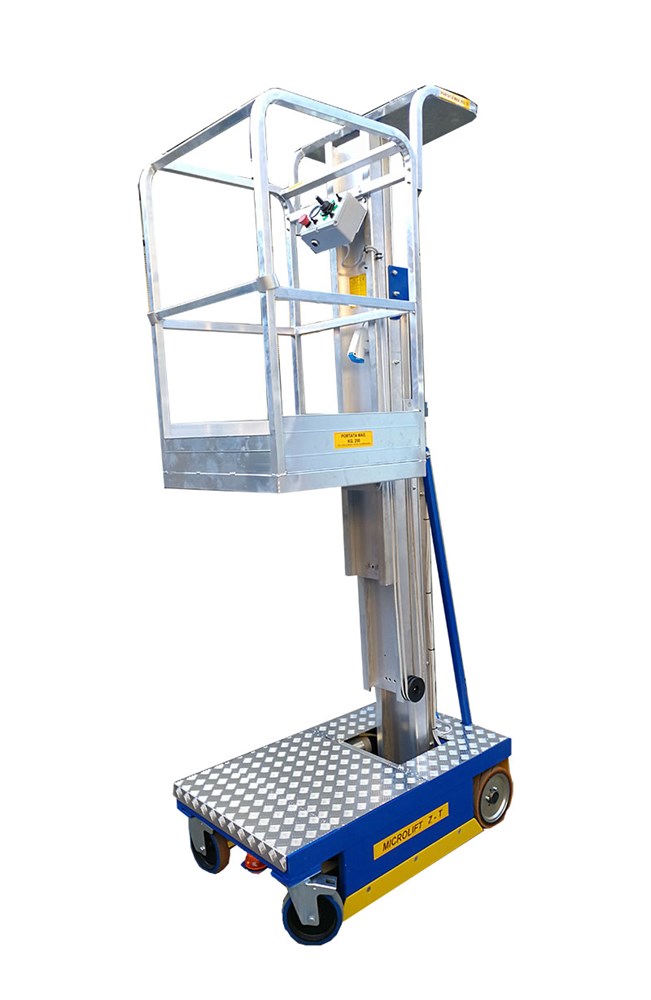

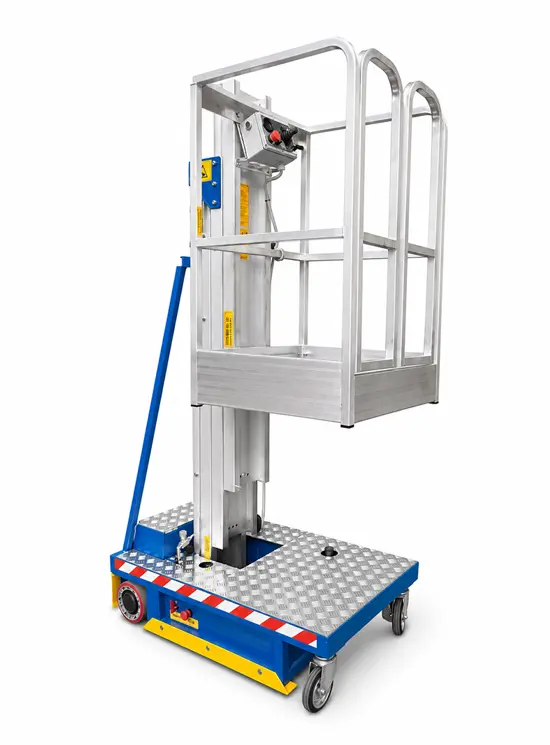

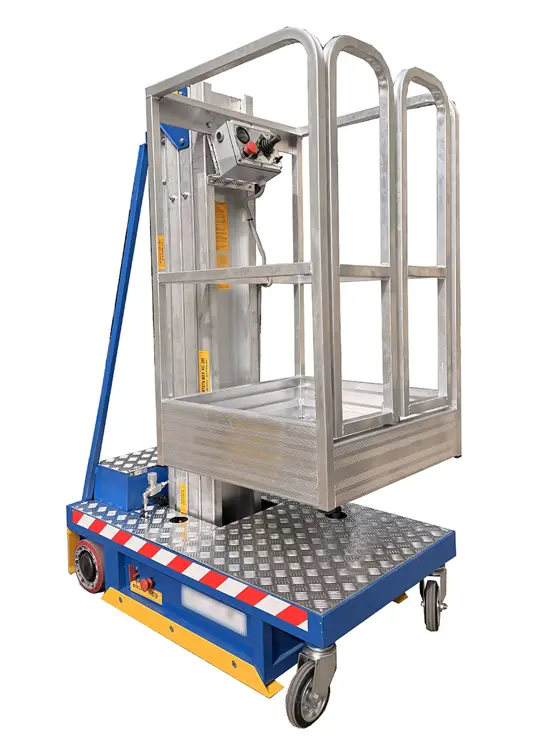

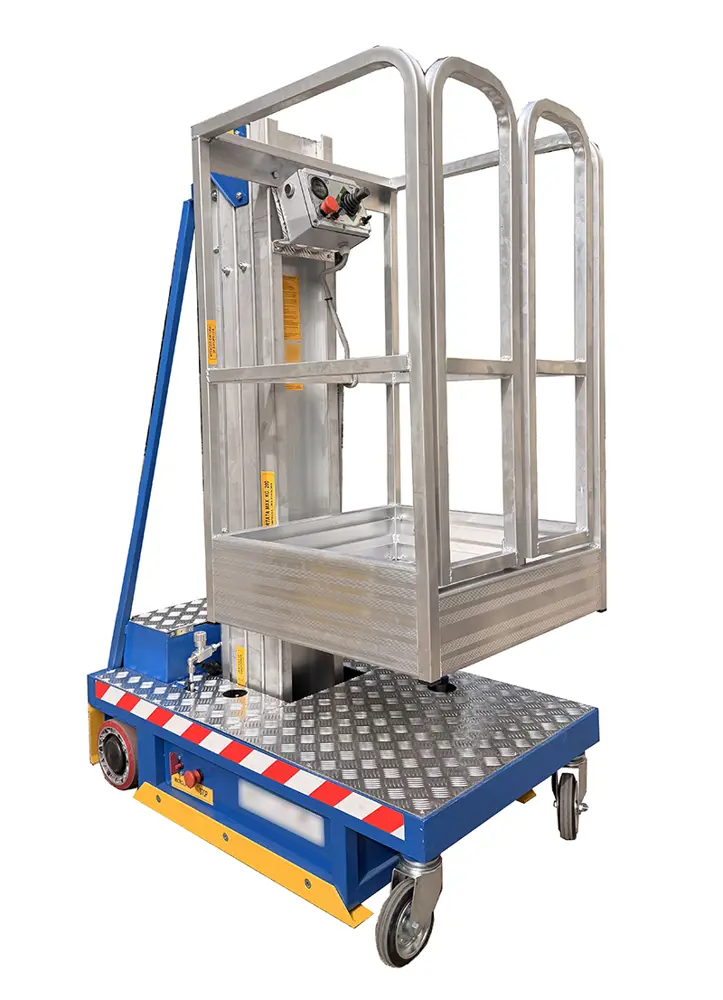

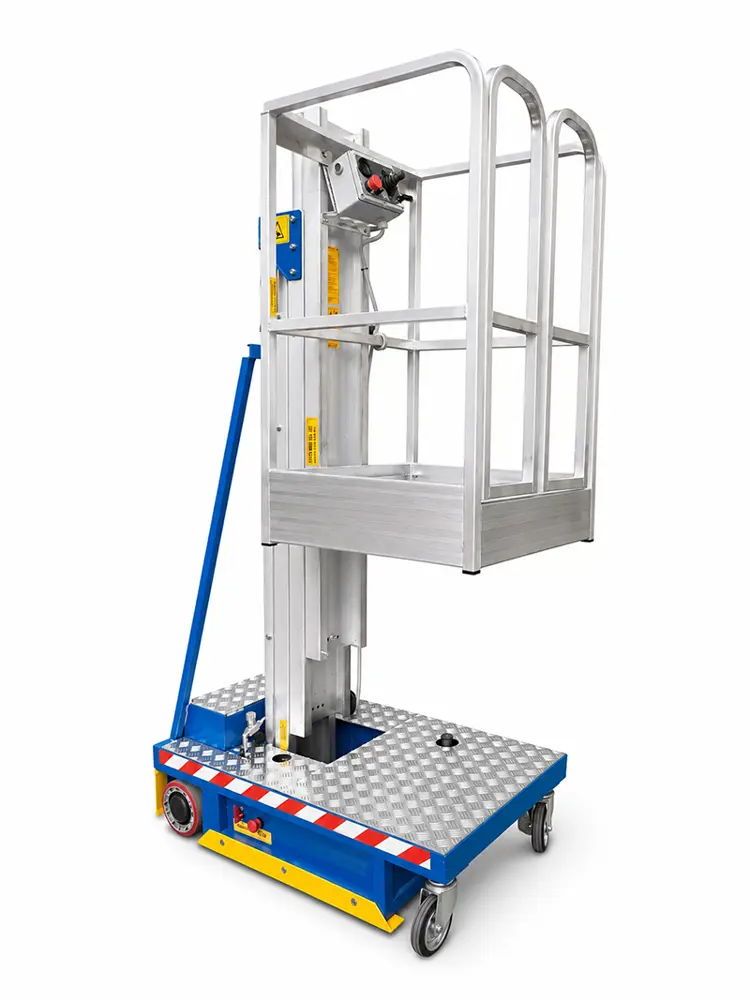

Ultra-compact self-propelled vertical aerial platform

Compact dimensions make it easily transportable on small vans thanks to its extremely low weight but with the convenience of being able to move with the platform up to 3 meters from the ground.

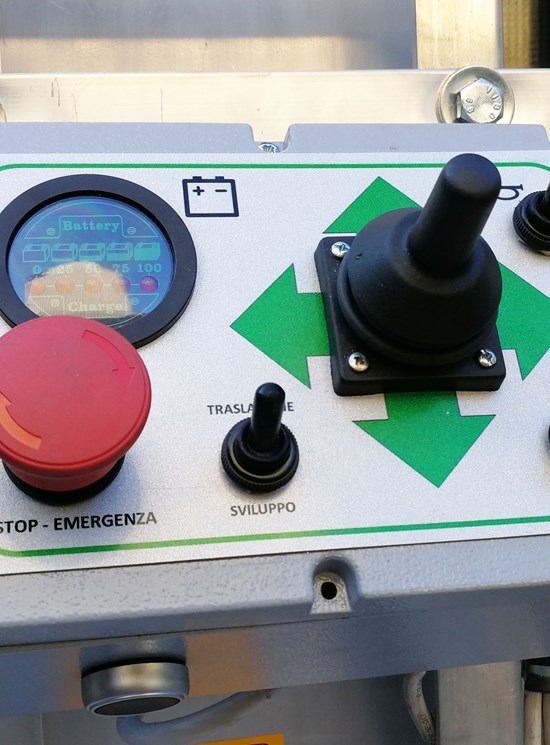

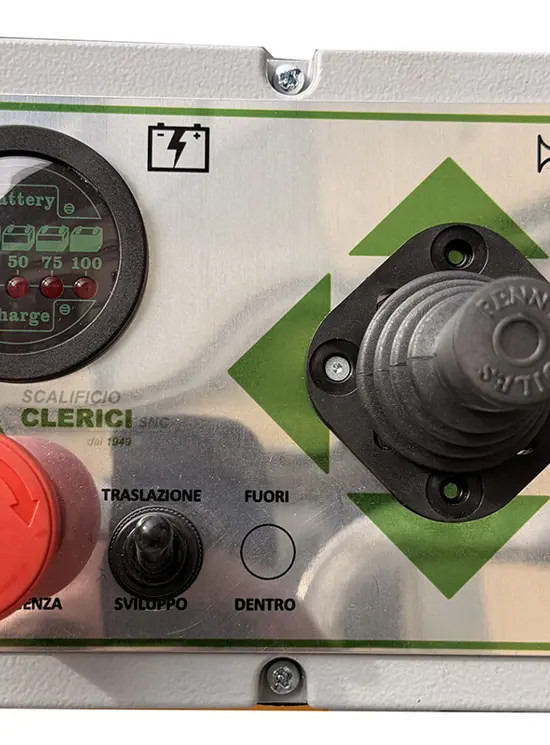

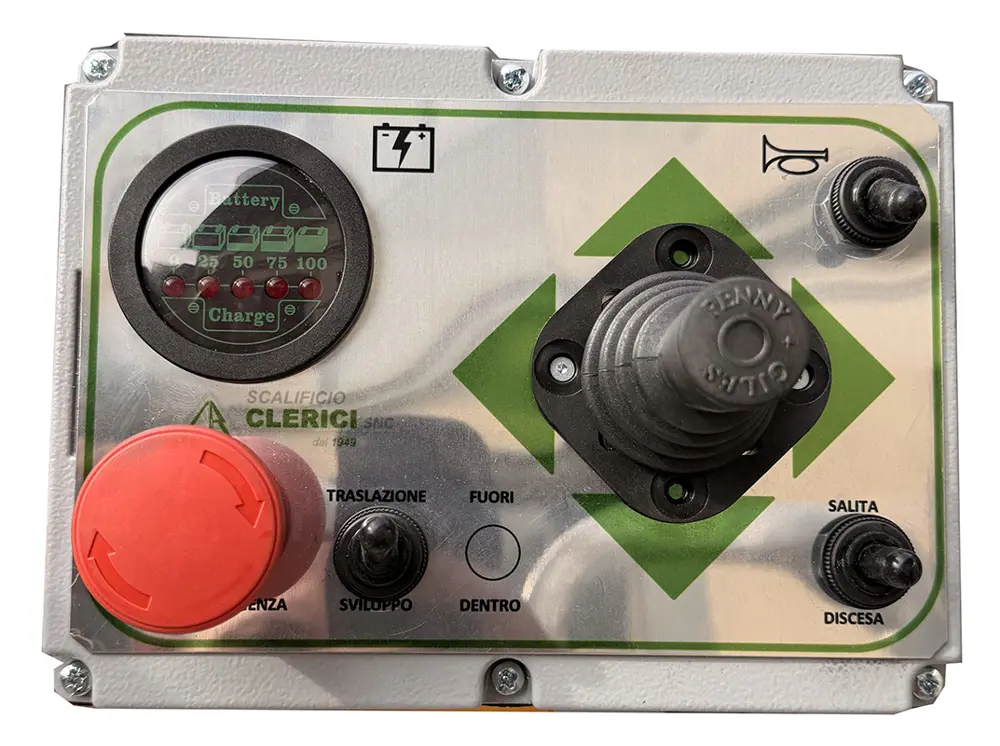

Two powerful 450 W motors each guarantee excellent, very progressive and intuitive traction which, combined with the joystick with proportional controls, ensures precise maneuvers and excellent adjustment of the translation speed.

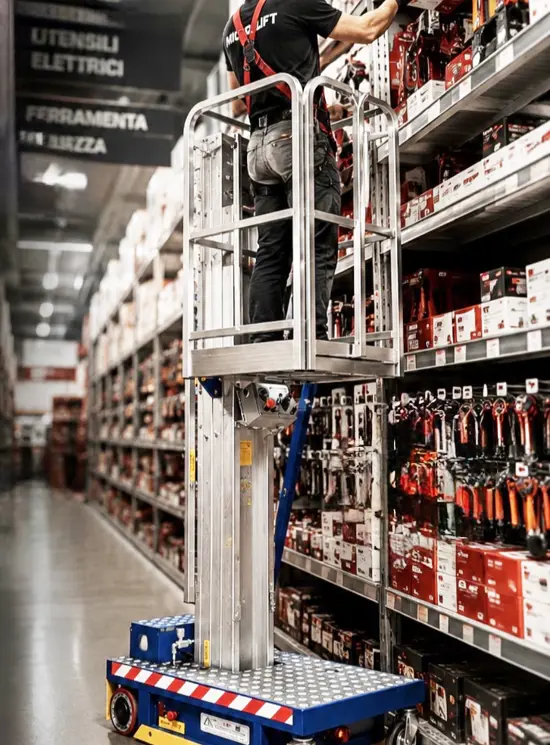

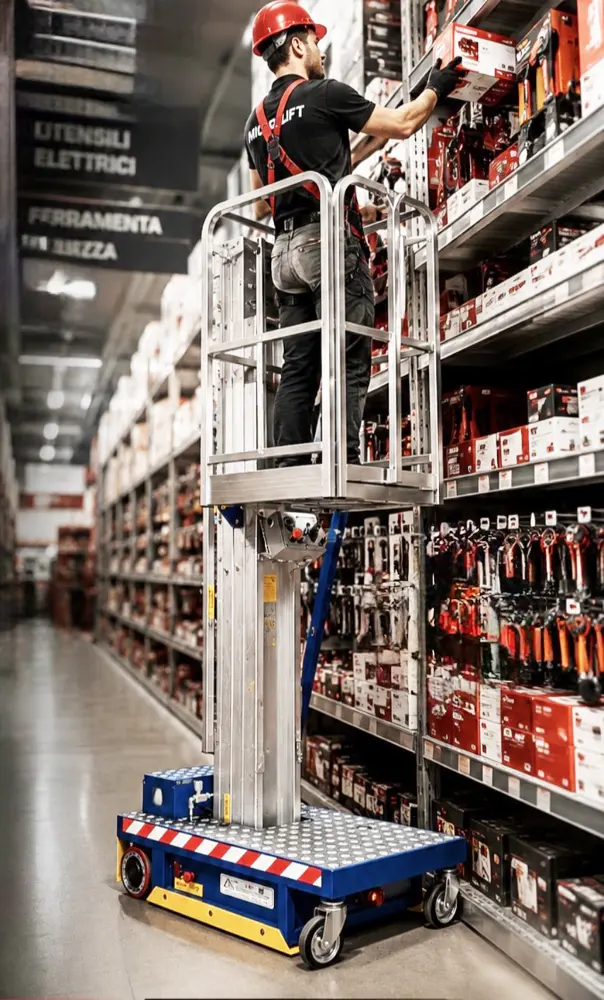

Offering a maximum working height of 5 meters and extremely easy handling, this platform is suitable for maintenance work in companies, offices, warehouses and supermarkets.
The 24 V battery operation allows you to use them even in environments without electricity, offering high autonomy thanks to the use of semi-traction batteries.
The extruded aluminum lifting column also confers safety and stability at the maximum working height, always keeping the necessary maintenance to a minimum.

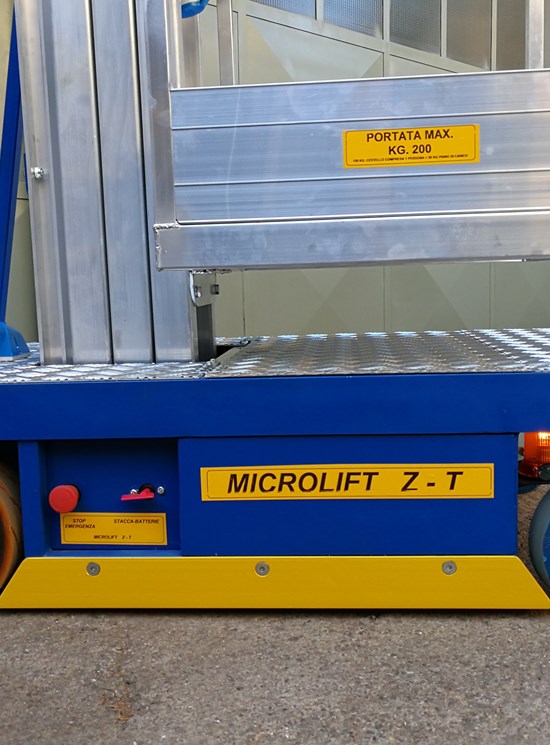

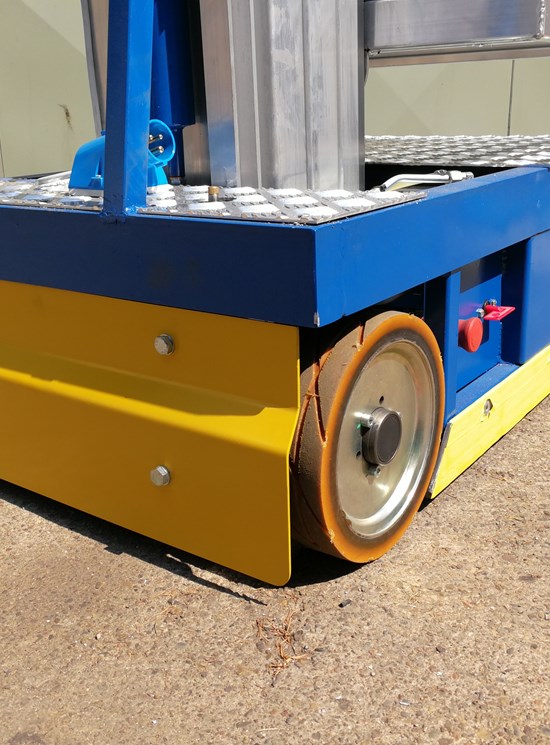

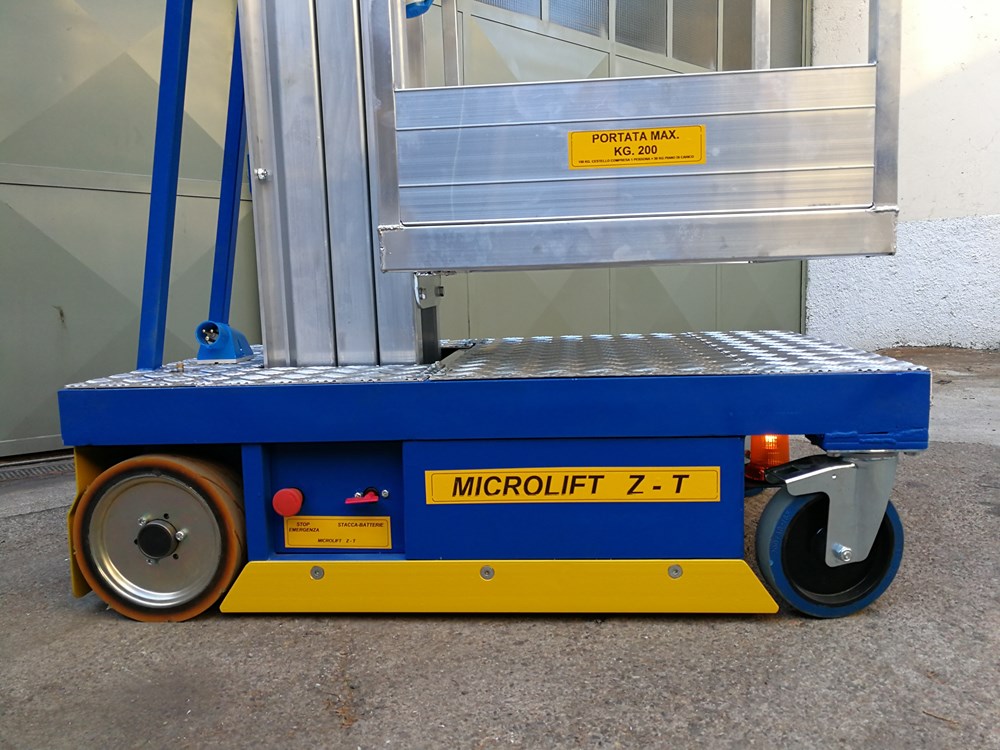

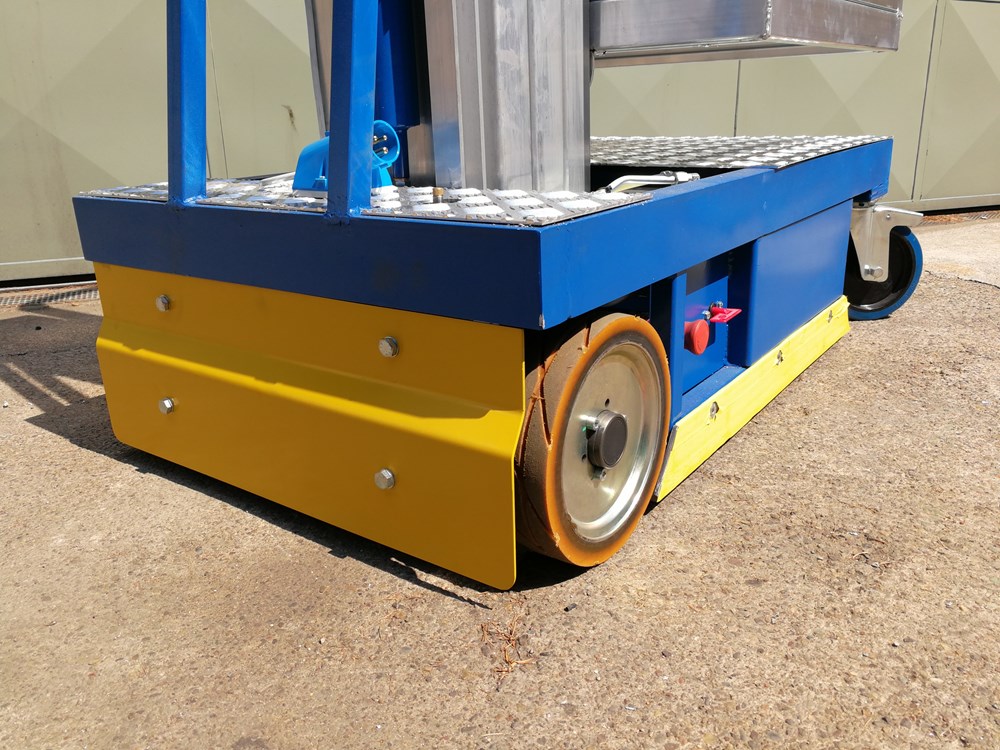

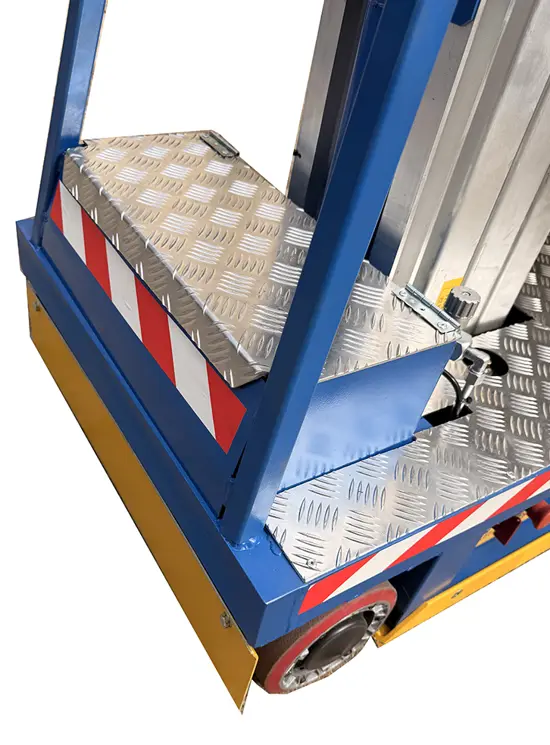

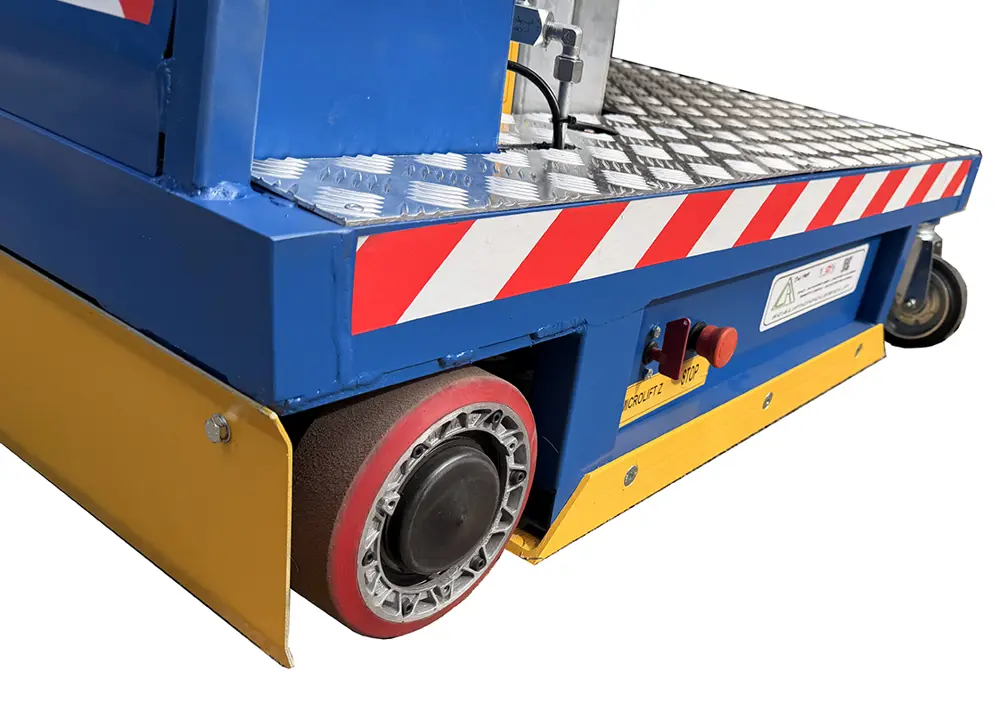

Movement speeds are reduced and the side protections (yellow miniskirts) prevent them from overturning.
There are many customizations that can be requested to make this platform ideal for any type of work.

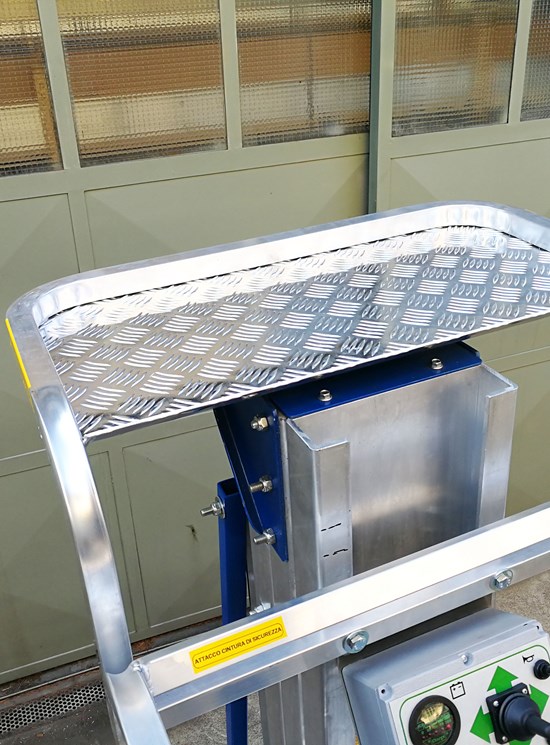

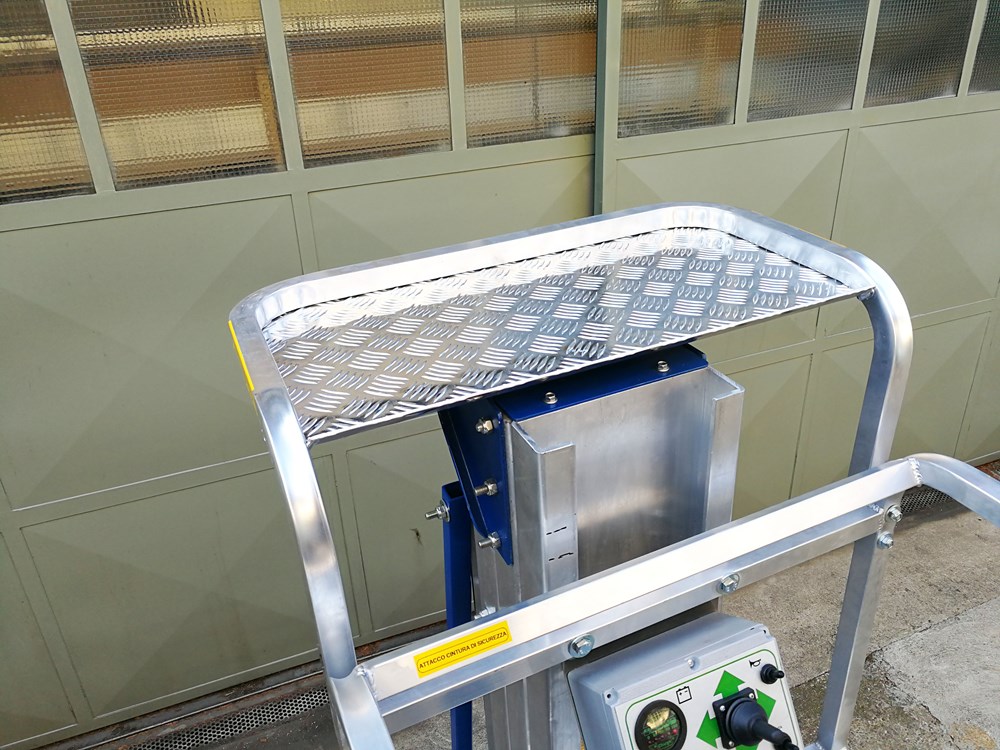

Storage shelf to be applied in the upper part of the column.

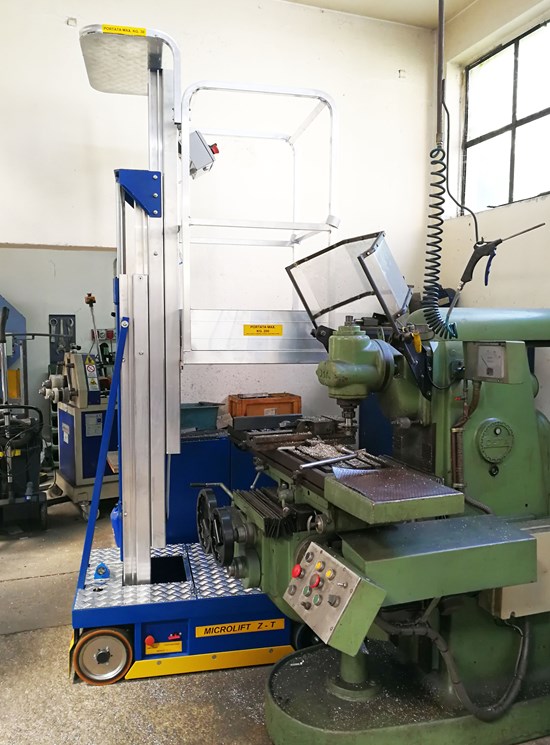

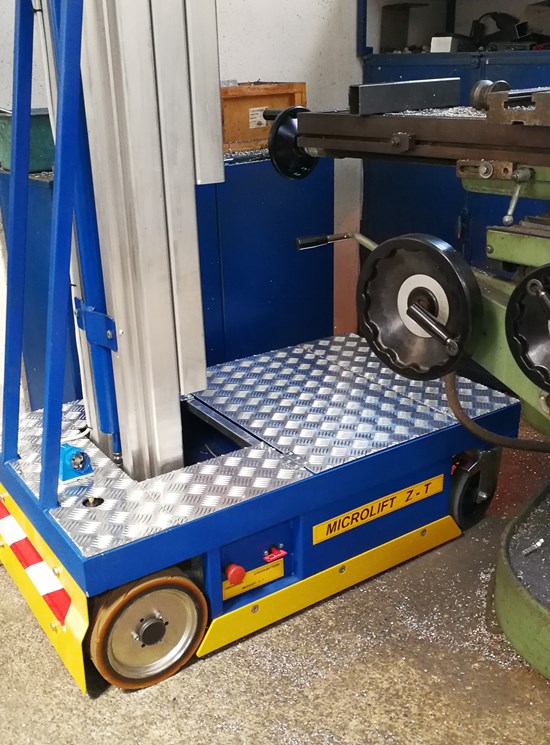

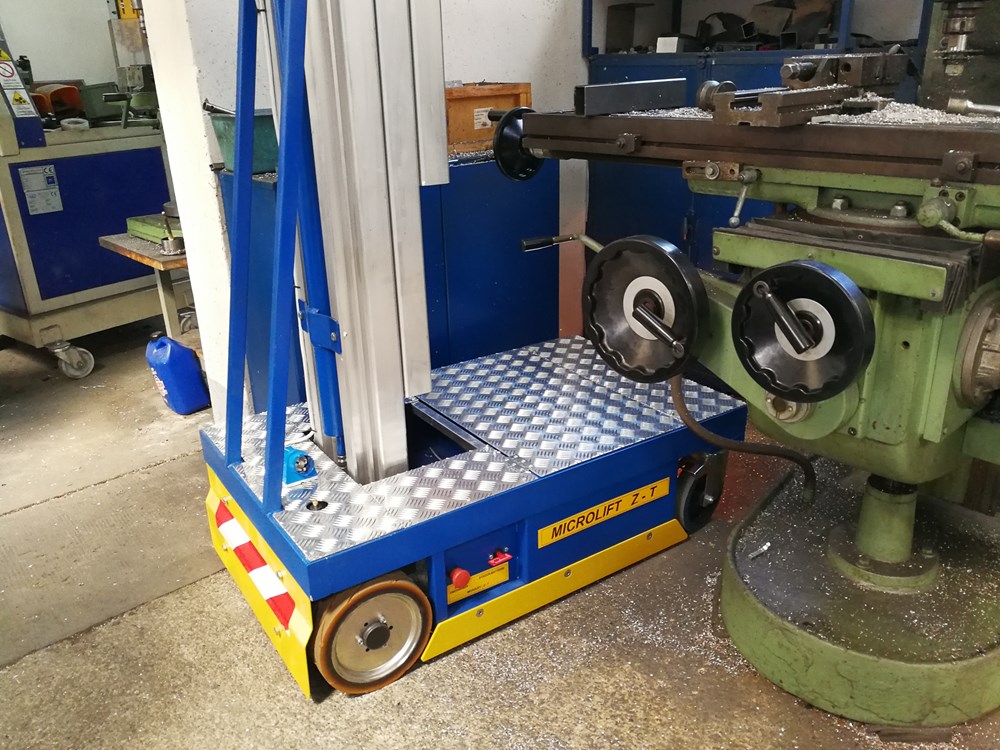

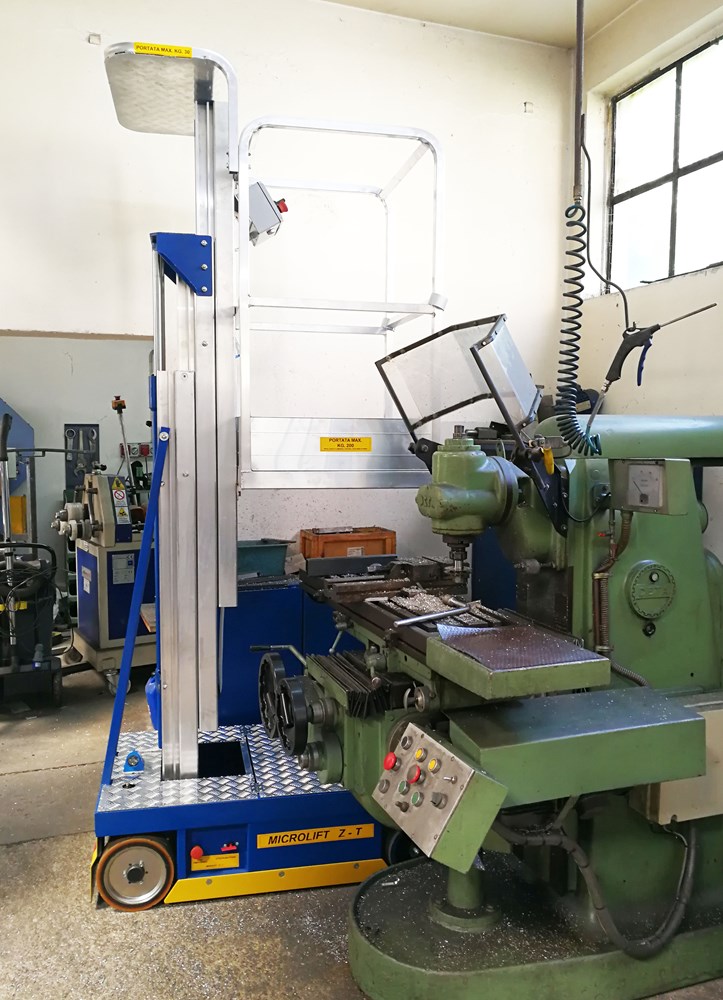

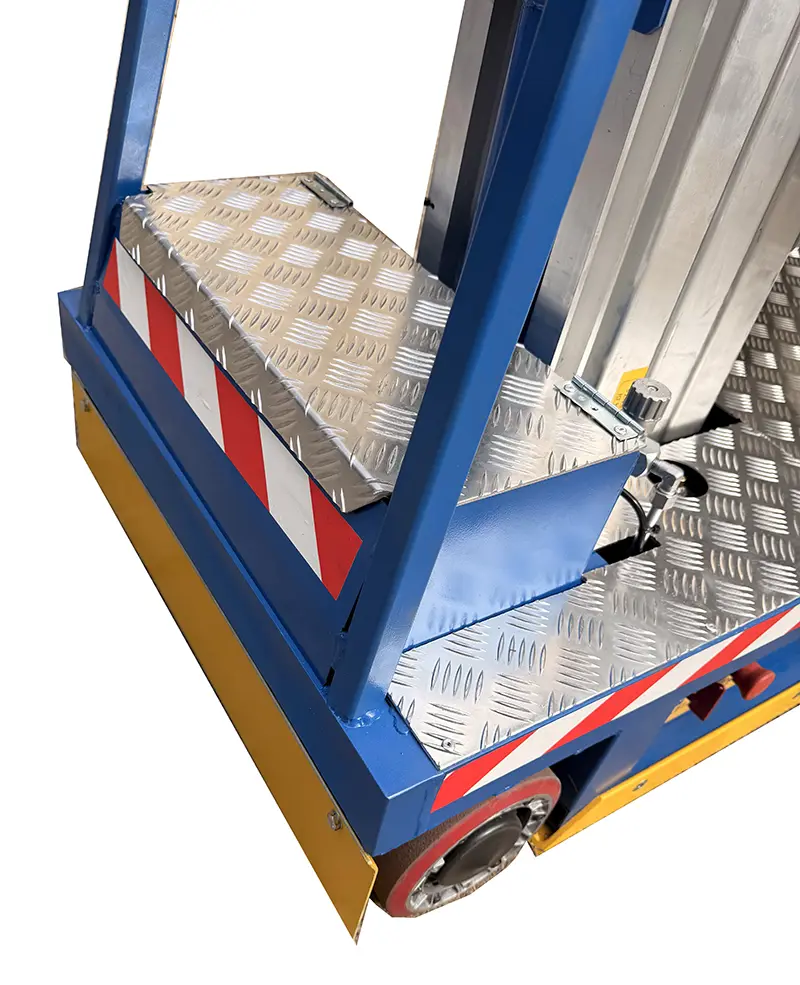

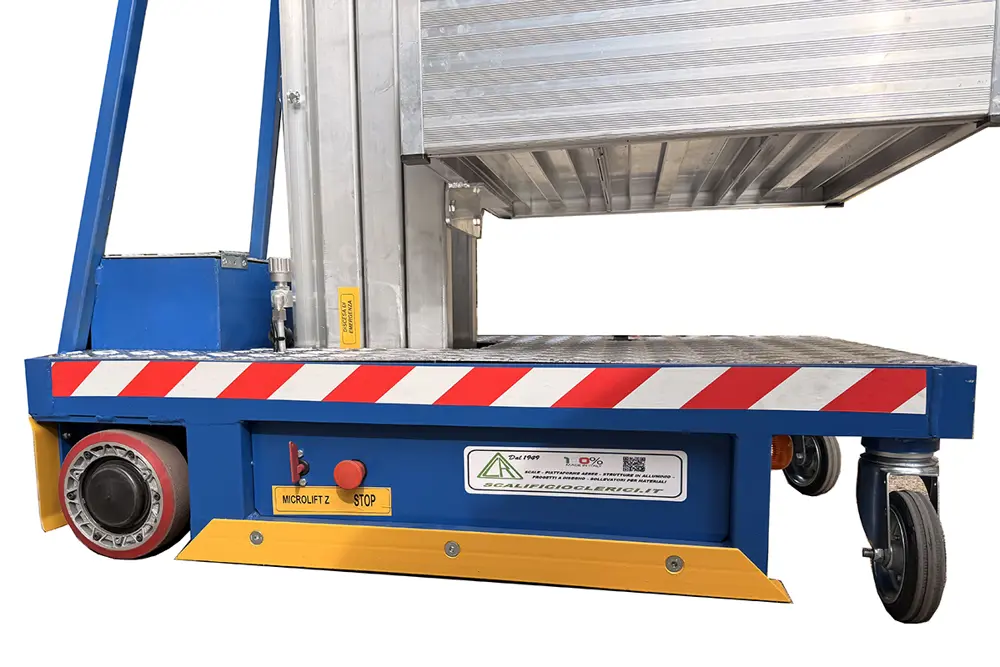

The base carriage has been specially designed to be able to slide under machinery, cutting lines and shelves in order to allow 70 cm overhang work.

Approved for internal use ONLY
Max platform hight mm 2990
Max working hight mm 4990
Minimum platform hight mm 550
Weight Kg m 380
Closed hight cm 175
Platform dimensions cm 70x70
  • Power supply: Volt 24
  • Max lifting time: 30 ''
  • Width: 70 cm
  • Length: 110 cm
  • Traction W: 450x2
  • Gradeability: 2.5%
  • Max Gradeability: 12%
  • Turning radius: internal / external 0/800 mm
  • Max pressure on fully loaded wheels: 2.01 kN
  • Max translation speed: ground / altitude 0.9 / 0.2 m / sec.

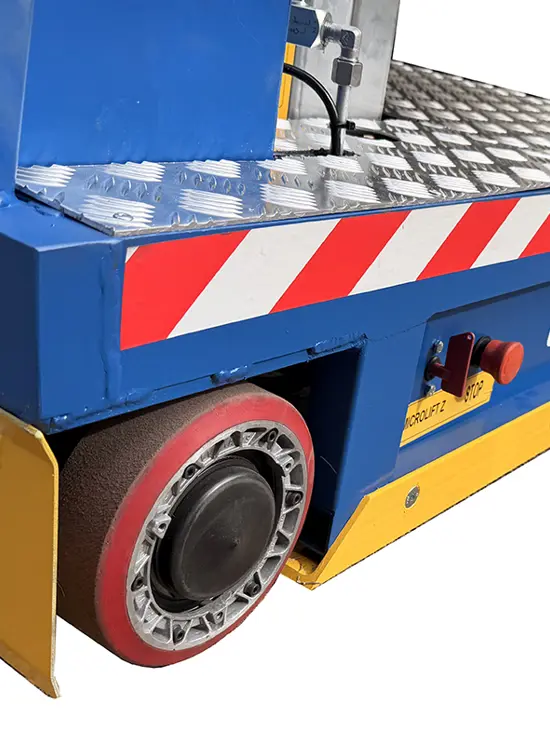

  • Traction wheels diameter: 252x82 mm
  • Idler wheels diameter: 200 mm

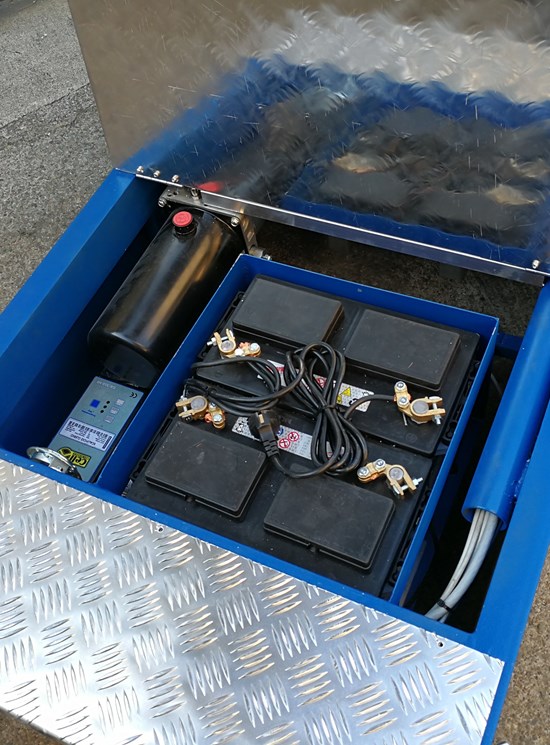

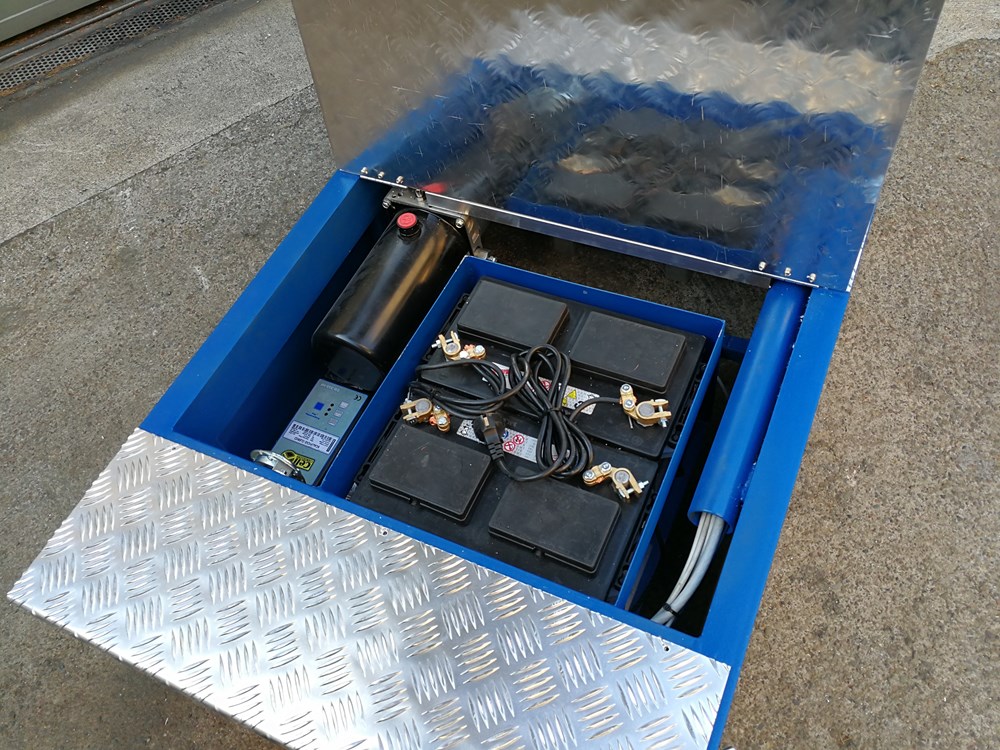

  • 2 105 Ah armored batteries with integrated automatic charger
  • Battery charge indicator

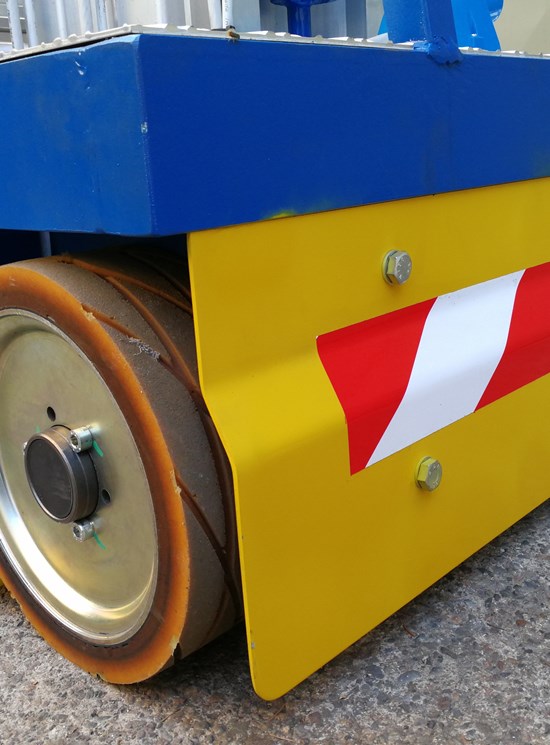

  • Anti-puncture and anti-fingerprint solid rubber tires
  • Automatic parking brake
  • Capacity for 1 person
  • Labels and user and maintenance manual

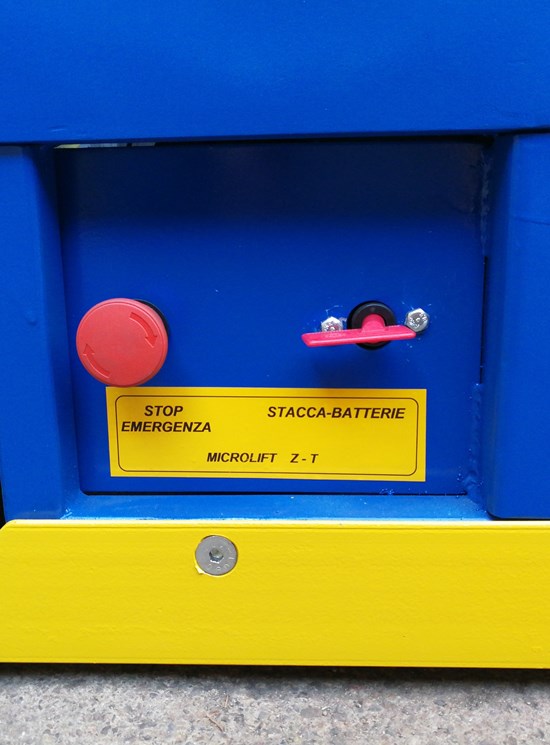

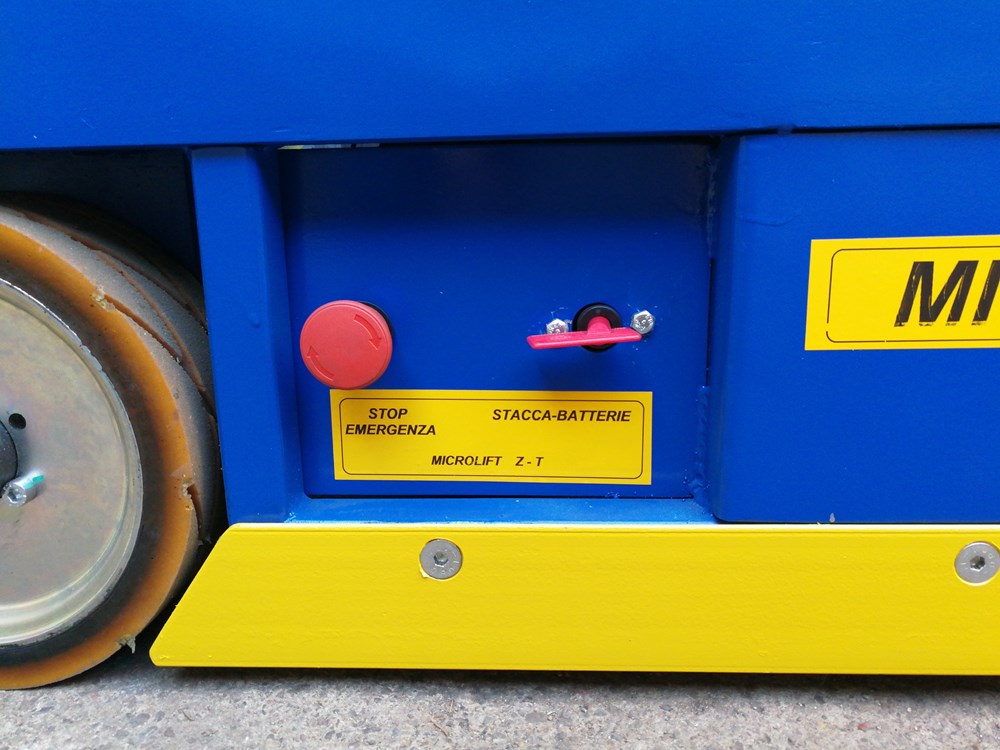

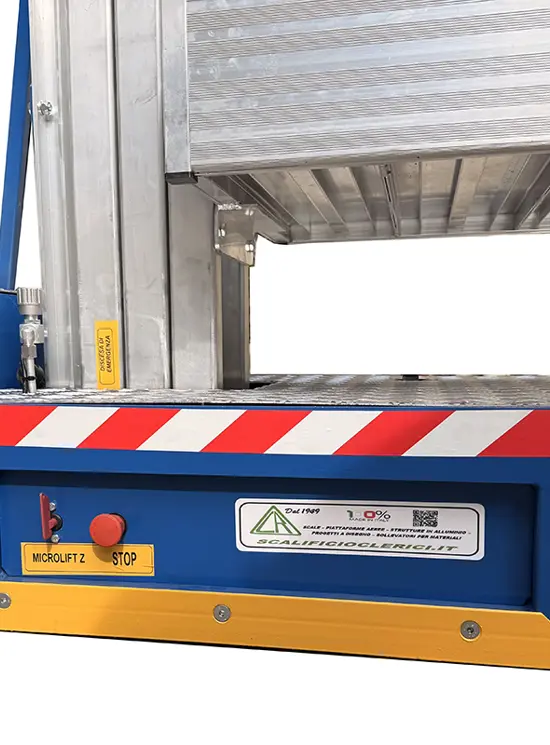

  • Emergency button on the basket and on the frame
  • General machine lock key
  • 2 independent chains with high safety coefficient
  • Double chromed piston and oil recovery prechamber
  • Locking parachute device for mechanical breakage
  • Double parachute locking device for hydraulic breakage
  • Sturdy aluminum slide with controlled flexion

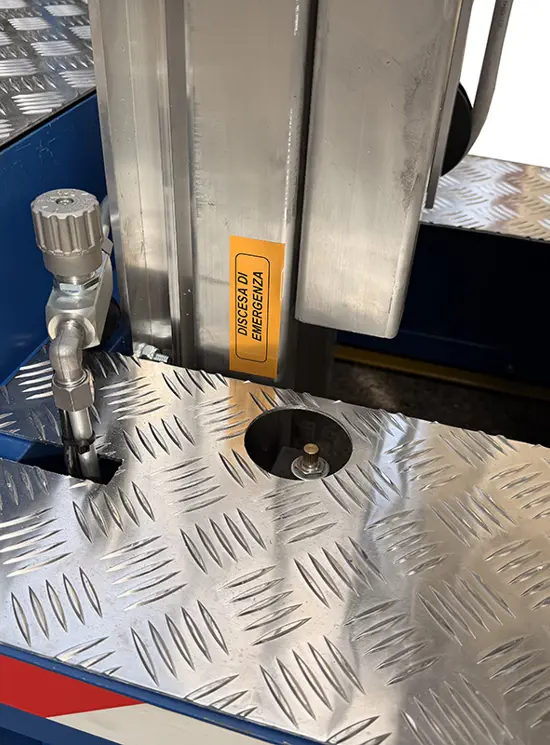

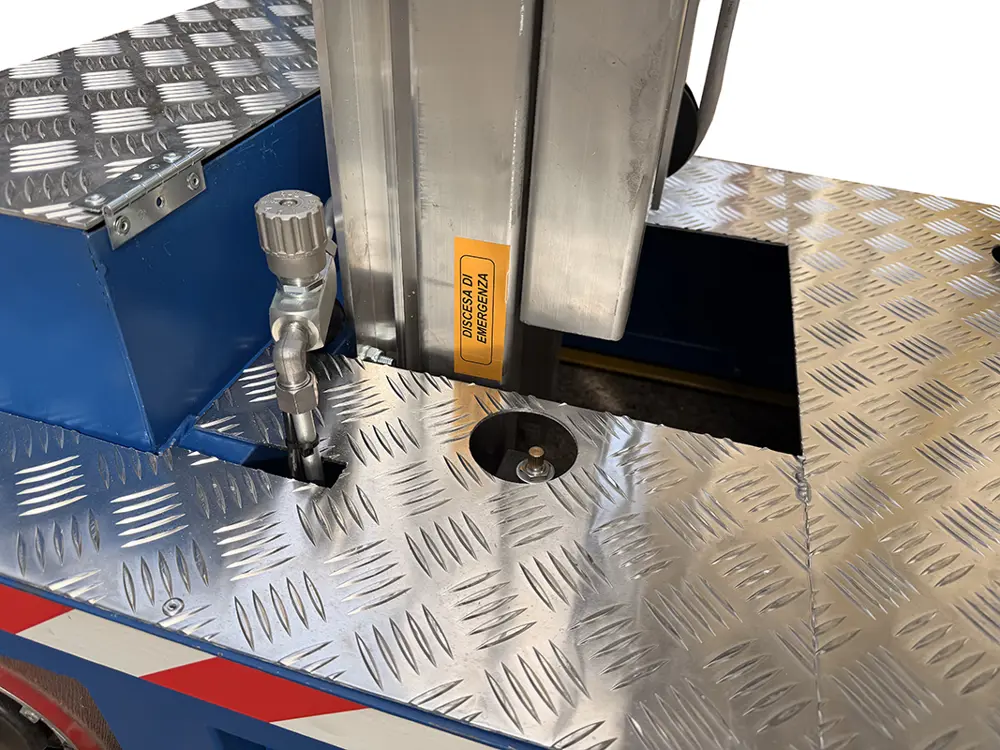

  • Emergency descent valve
  • Gripping points for forklift and crane
  • Test certificate according to Italian and European regulations (CE) for internal use
