Torretta Picking

max working height m 4,99

It shows the validity of the guarantee in years

It shows the maximum weight capacity of a product

Suitable for heavy duty

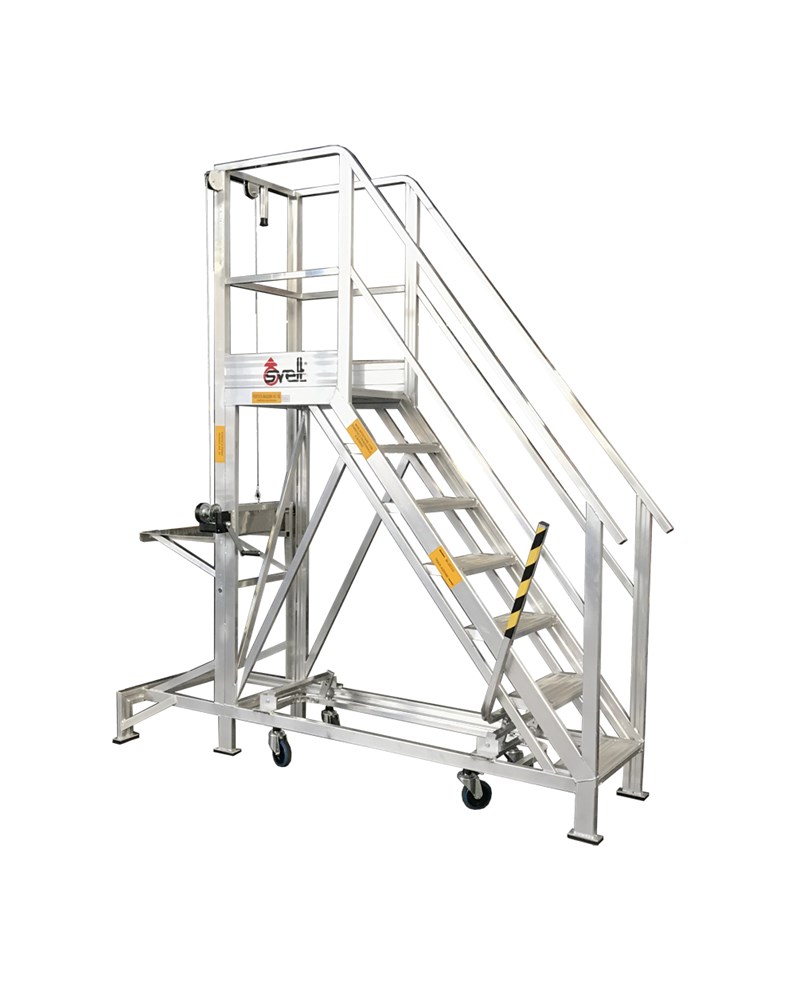

Special warehouse mobile platform ladder equipped with large platform, guardrail and handrail, it is welded extruded aluminium.

For professional use it is made of welded ribbed extruded aluminum.

The steps are welded to the uprights to create an ultra-resistant monolith.

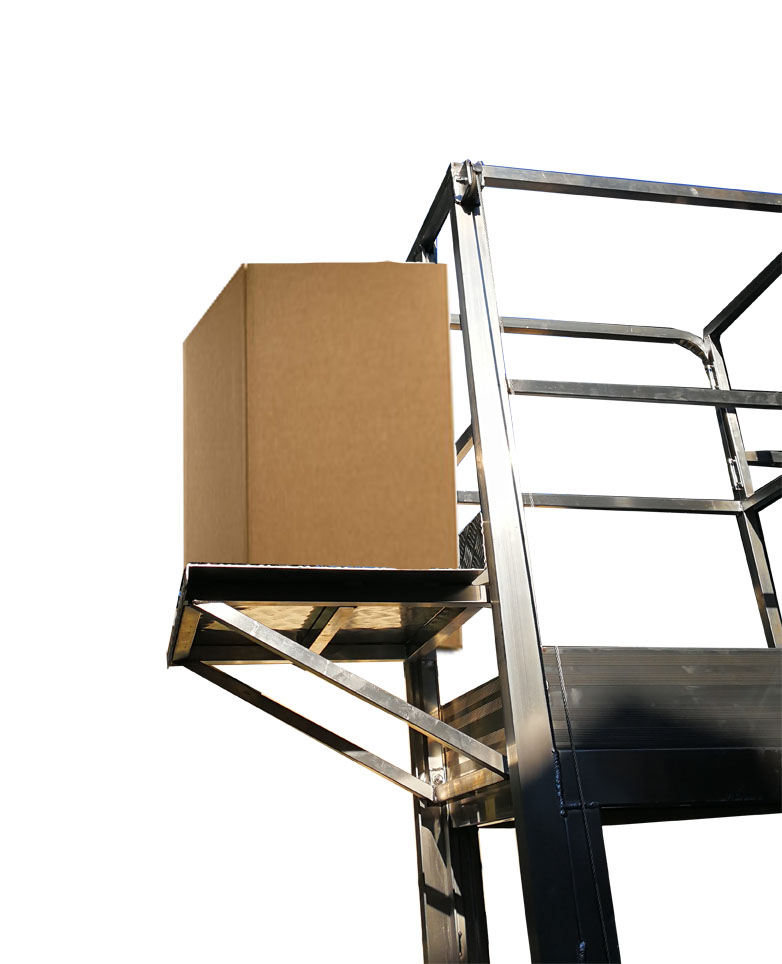

It is equipped with a mechanically operated lifting platform (winch) to bring packages of different sizes up to 50 kg up and down.
The ladder is ideal for picking inside warehouses or supermarkets.
The back frame is perpendicular to the ground in order to allow the operator to approach the shelves from the front.
However, the ladder must not be mooved with people, objects and / or material on board.

The climbing ramp is wide and comfortable.
The ladder is equipped with 10/15 or 20 cm deep non-slip flat steps (on request).

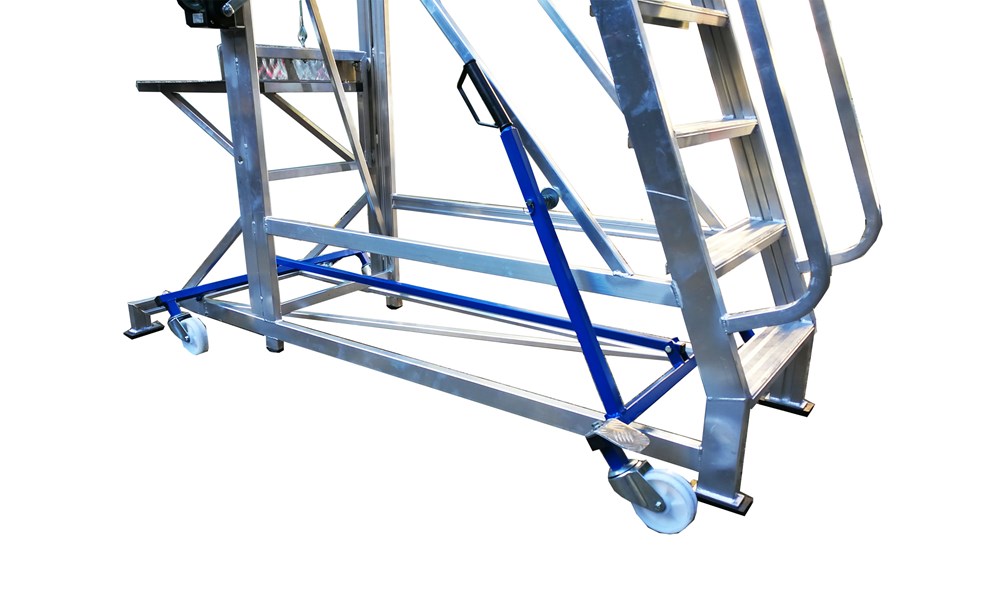

The brake system is lever operated

Lowering the lever raises the trolley and wheels, and the ladder rests firmly on the base pads (non-slip feet).
Raising the lever lowers the trolley and wheels, and the ladder is free to move along the aisles.

Technical features

60x70 cm platform equipped with small lifting platform, guardrail and handrail.
Steps (depth) steps: 10/15 or 20 cm
Lifting platform size: 60x50 cm
Ramp profile: 80x30 mm
Steps distance: 25 cm
Guardrails height: 100 cm
Toeboard height: 15 cm
Ramp width: 60 cm
46-48 ° 54 ° / with step 200 mm. 62 ° / with 150 mm step. Climbing ramp inclination: with 100 mm step.
125 Wheels: diam.
(winch)Lifting platformMechanically operated
Entry gate (360 ° protection)
Climb handrails
Basic lever trolley for quick movement
Anti-deflection bars on the longest steps
Ergonomic and oversized non-slip rubber pads for maximum adherence to the ground
Labels and user and maintenance manual
Test certificate

Catalogo Torretta Picking.pdf (1 MB)
