PID

Max height 12,0 m

It shows the validity of the guarantee in years

It shows the maximum weight capacity of a product

CE mark

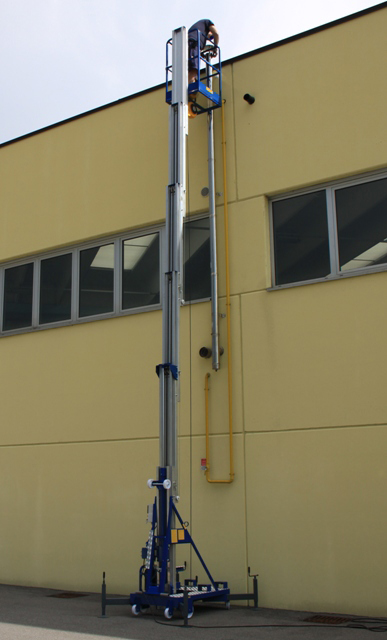

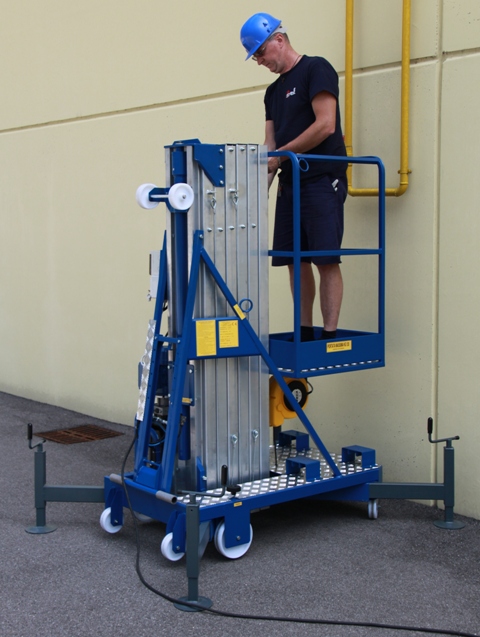

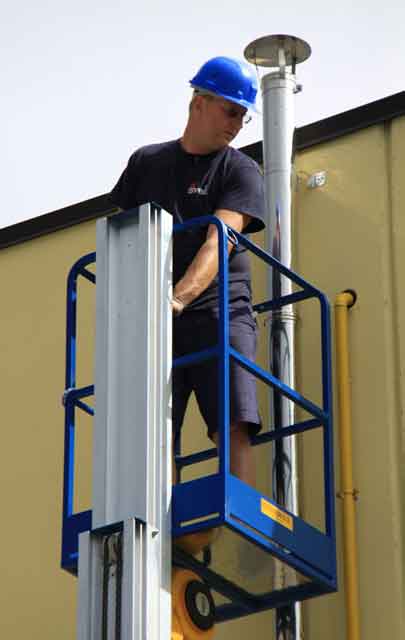

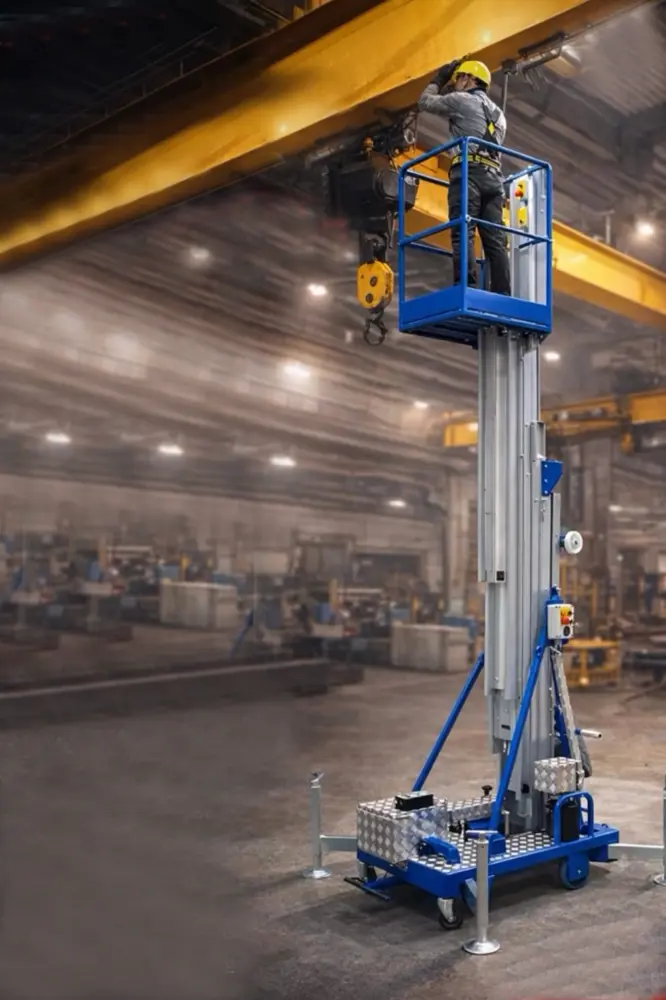

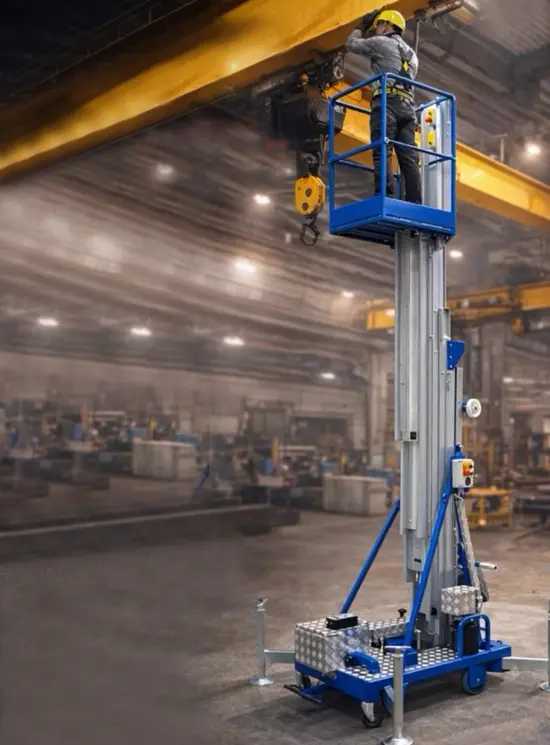

PID personnel lift provides a safe, efficient means of working at height in restricted spaces typically encountered in offices, retail stores, hotels, public buildings or crowded industrial aisles.

PID personnel lift provides a safe, efficient means of working at height in restricted spaces typically encountered in offices, retail stores, hotels, public buildings or crowded industrial aisles.

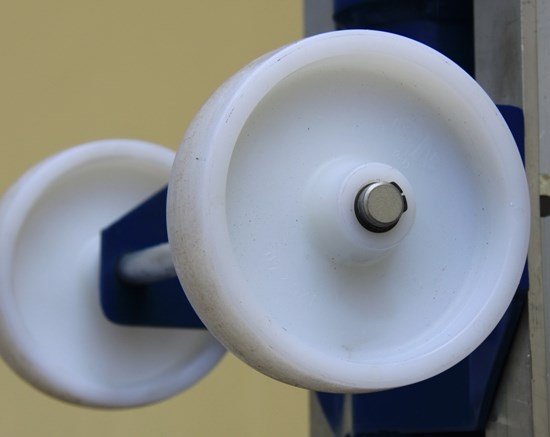

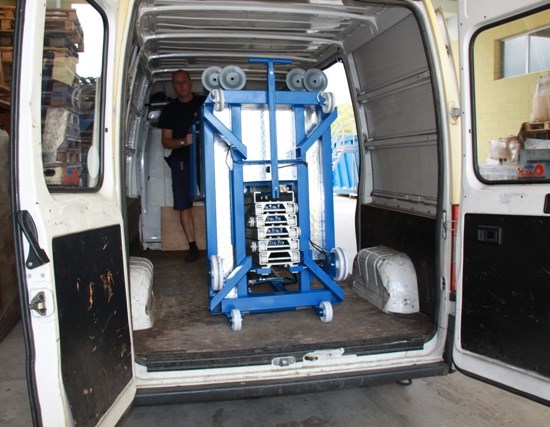

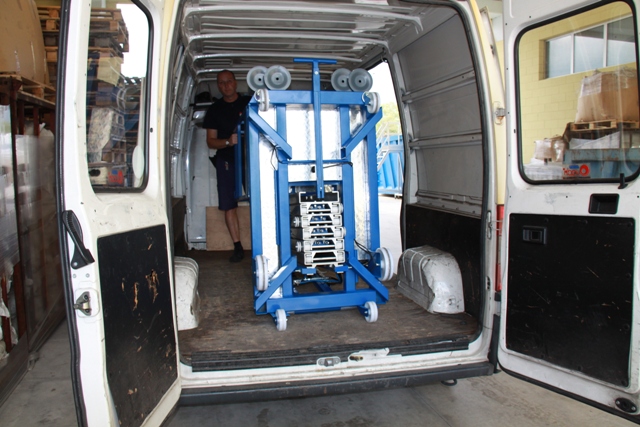

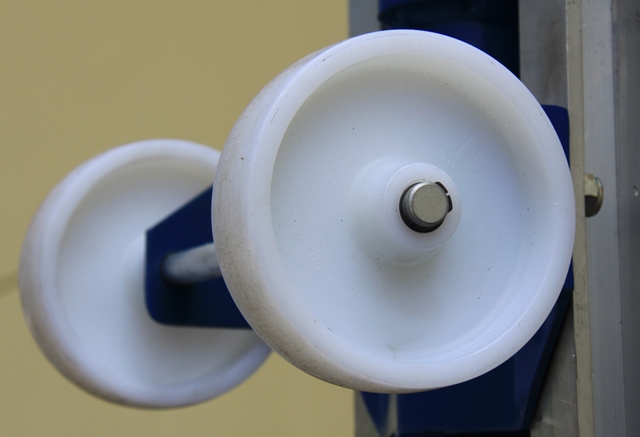

Its compact size also makes it ideal for applications such as stock picking and record storage retrieval. Operators simply step onto the platform and elevates to the desired height. When the job is complete, the lift can be quickly lowered and returned to a convenient storage area Mast is mounted on auto-lubricating nylon rollers and this system allows also a better stability even when weather conditions are too cold or on the contrary to warm.

TECHNICAL FEATURES
Type-testing for both indoor and outdoor use

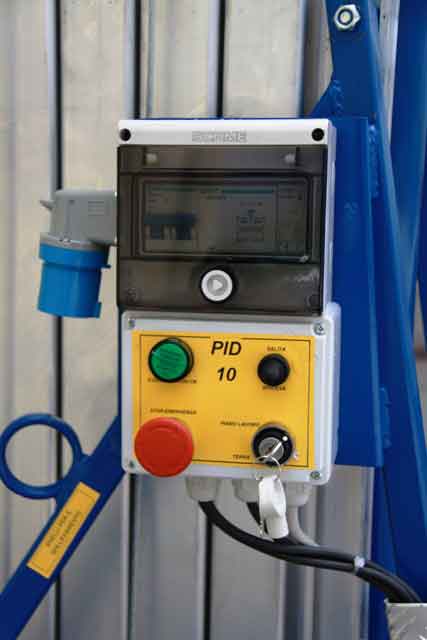

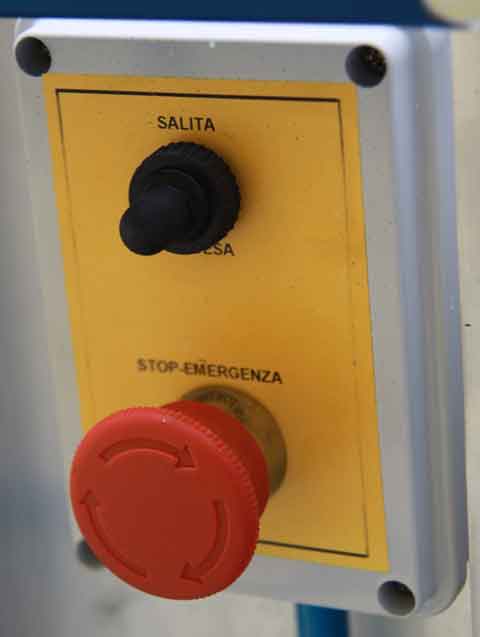

Controls and emergency stop both on platform and chassis
Key for total machine blocking

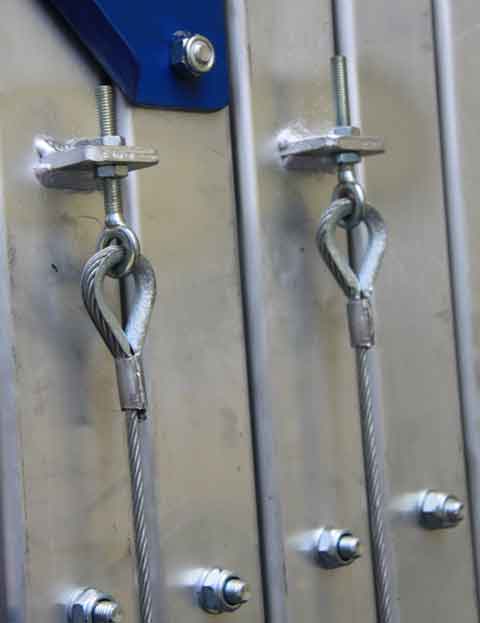

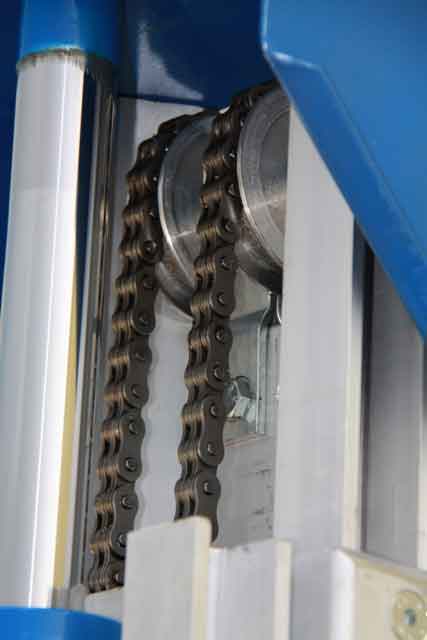

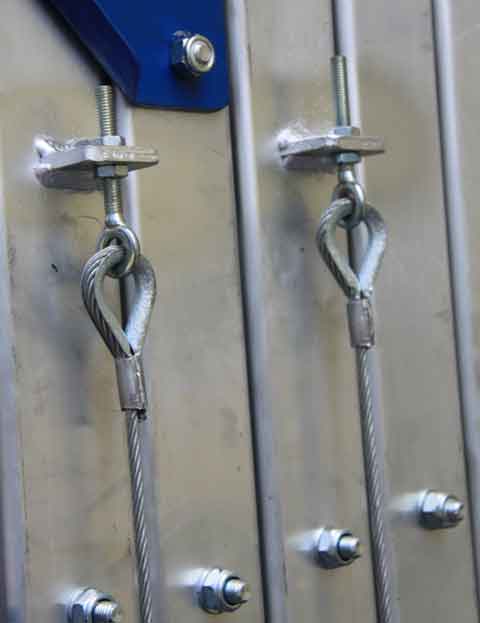

Chains allow a high level of security

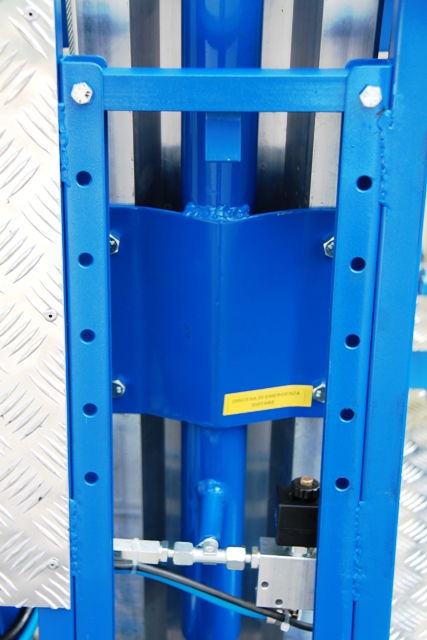

Double chromium plated and precombustion chamber for oil recovery
Device for immediate blocking in case of mechanical problems
Aluminium strong lifting device with controlled flexion

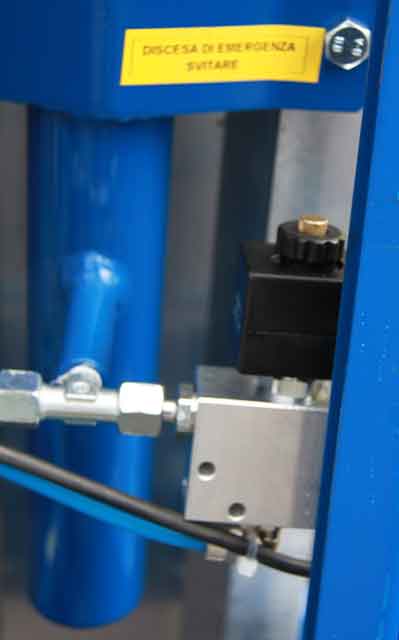

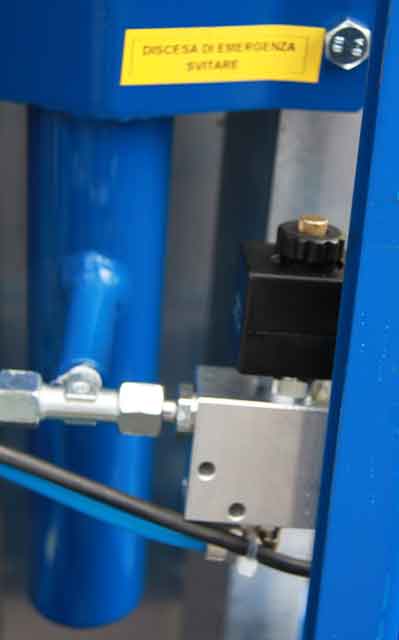

Emergency lowering valve

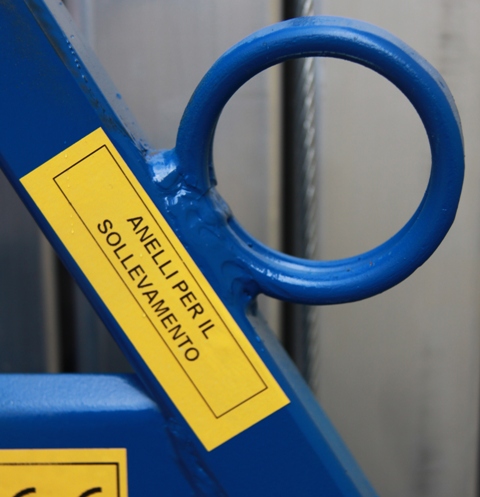

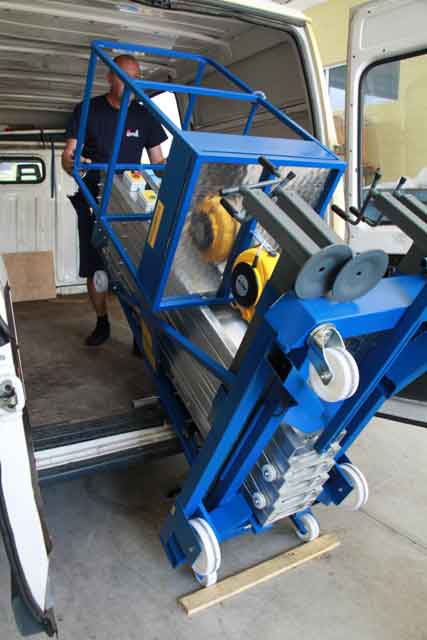

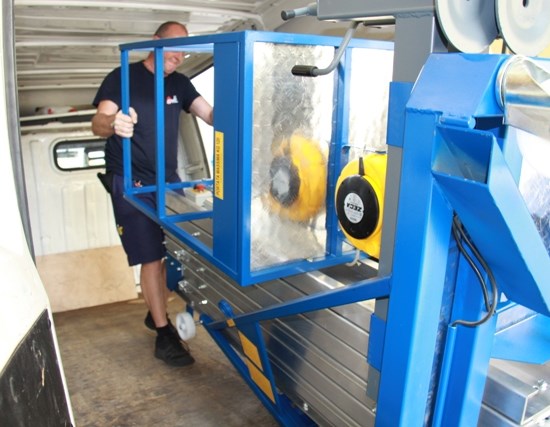

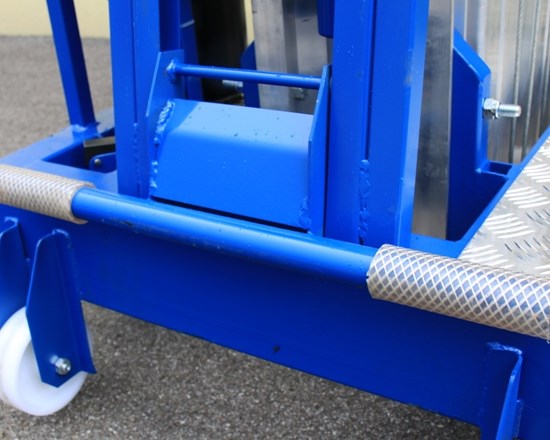

Points of loading make transport by forklift easier

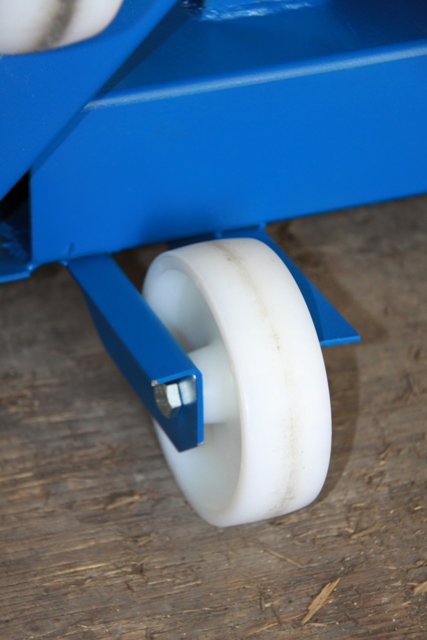

Non marking tyres protect floor finishing

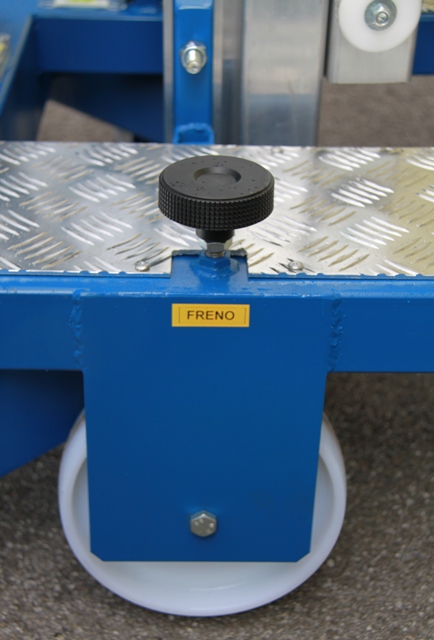

Rear wheels are fixed and equipped with blocking device

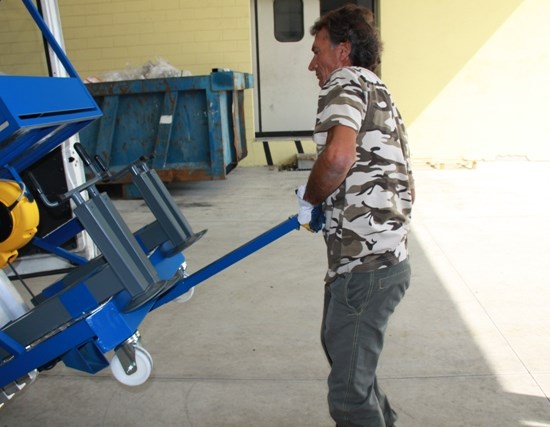

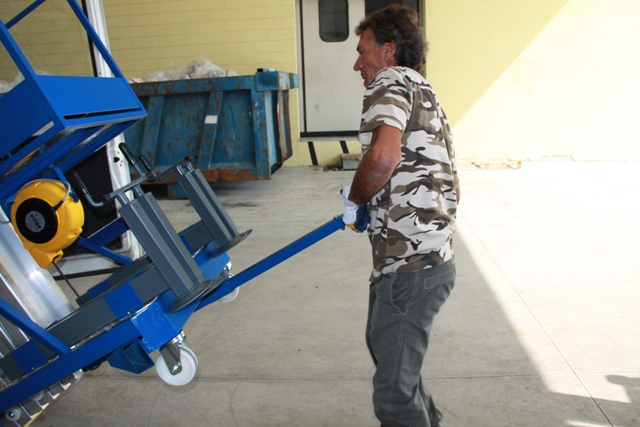

Tilting rear wheels

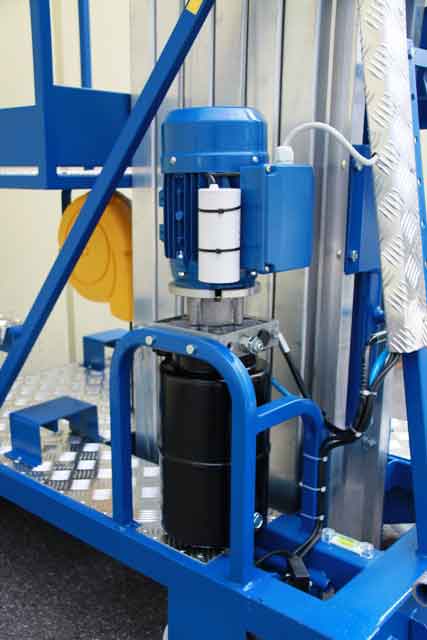

Power source: Engine 12 V A/C 220 V, 50 Hz, 0,75 Kw

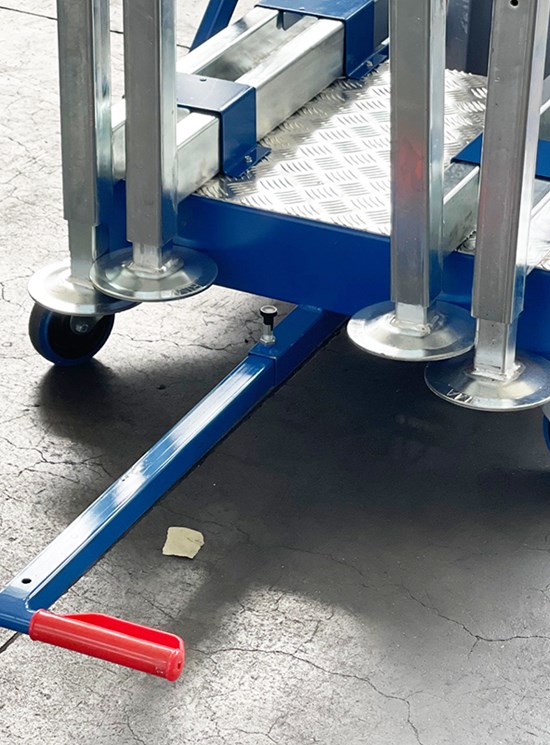

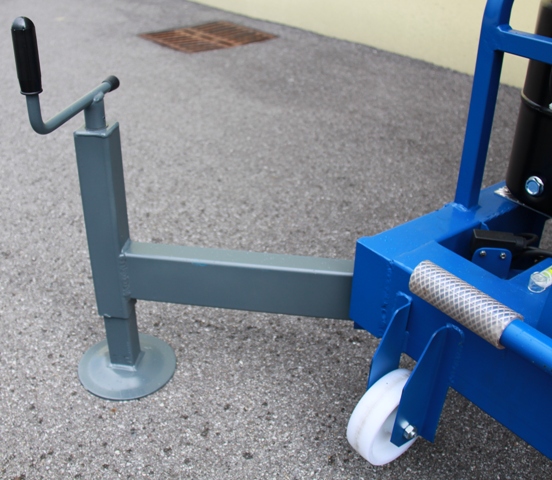

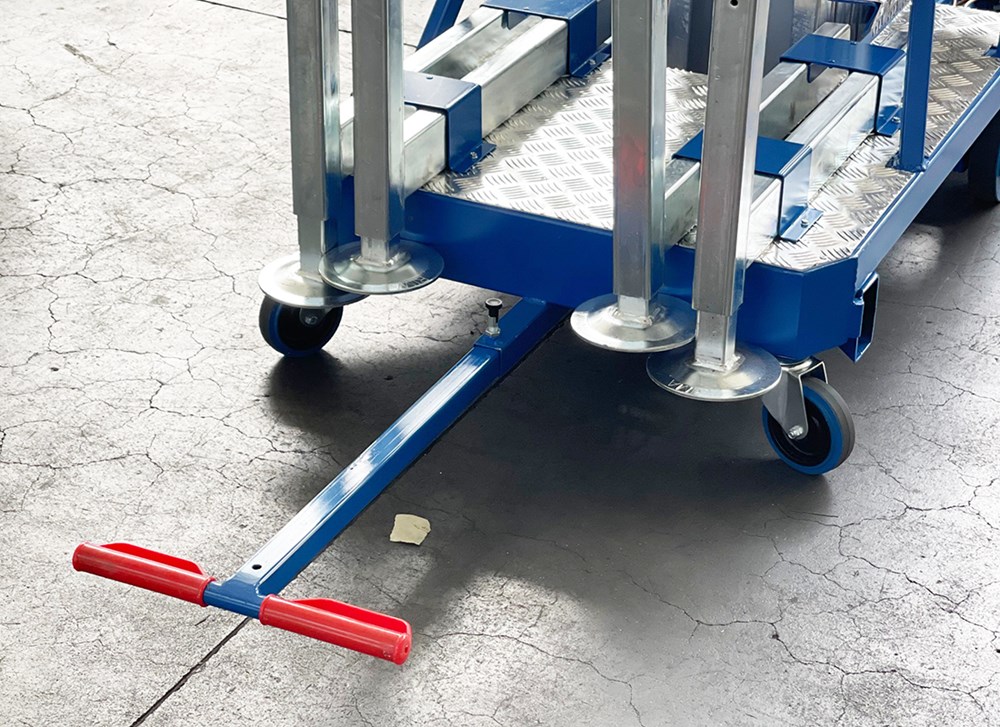

Steel outriggers with ergonomic and useful screw jacks
Capacity: 1 person

Optional:

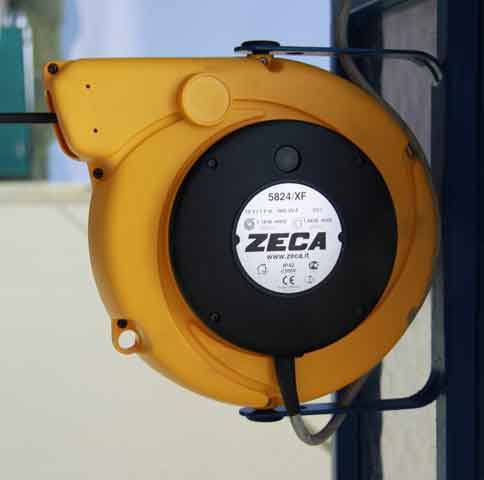

Power source/air source on the platform
PID self propelled unit (PID10S)
PID Special without outriggers (more compact)
PID non deflagrating unit (pneumatic system)

Description                                  PID7 PID8 PID10 PID12
Working height                      m    7,00 8,41    9,8      12
Platform height                     m    5,00   6,41   7,8     10
Capacity                                kg    120    120 120     120
Stowed height                        m    1,98 1,98 1,98     2,38
Platform min height (closed) cm     70      70   70       70
Stowed length                         m    1,28 1,28 1,28    1,28
Stowed width                        mm    0,80 0,80 0,80   0,80
Platform dimensions               m             0,65x0,65
Overall dimensions
( with outriggers m)                 m      1,60X1,40       1,80X1,60
Rinsing speed                     m/sec    0,20 0,20 0,20 0,20
Tilting wheels diameter           mm    125 125   125 125
Back wheels diameter             mm     200 200 200 200
AC motor                                                  220V/50
Weight without outriggers        kg     290 325 360 400
Weight with outriggers              kg     330 365 400 400
