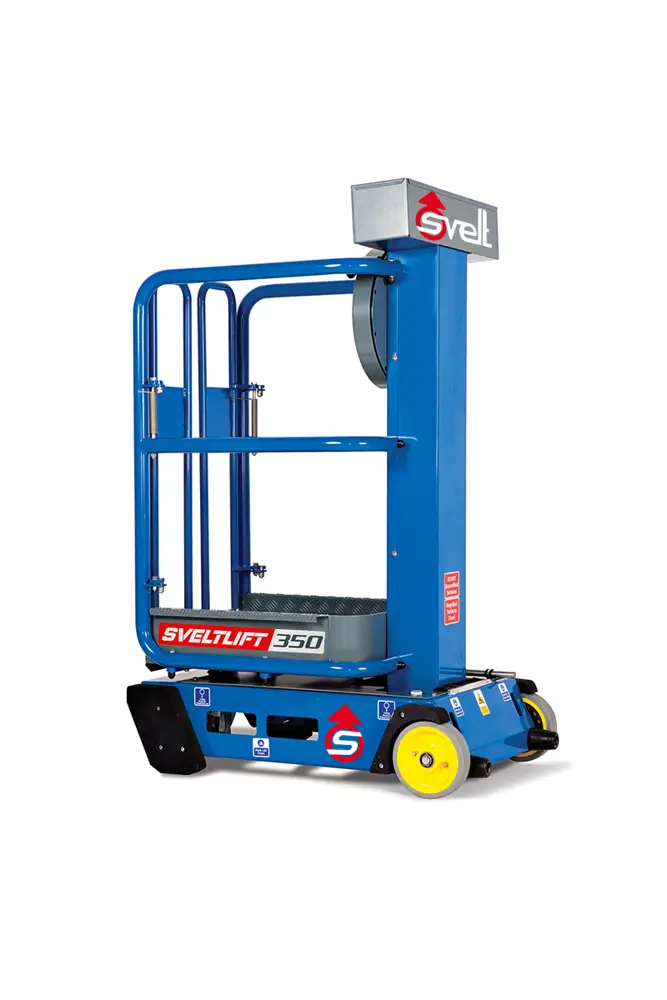

Sveltlift 350

Working height m 3.5

It shows the validity of the guarantee in years

It shows the maximum weight capacity of a product

It shows the number of people who can climb the structure at the same time

CE mark

Suitable for heavy duty

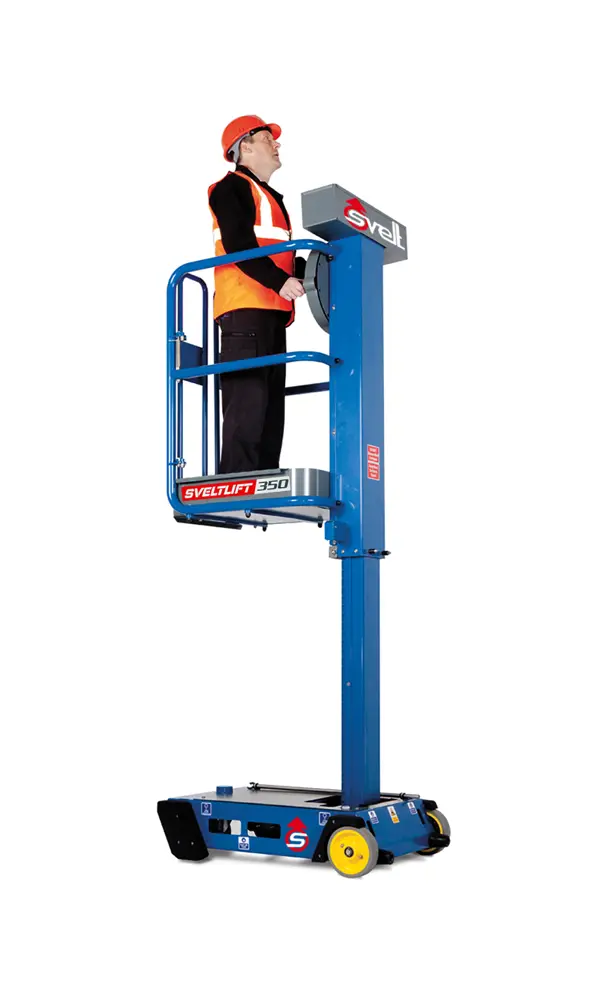

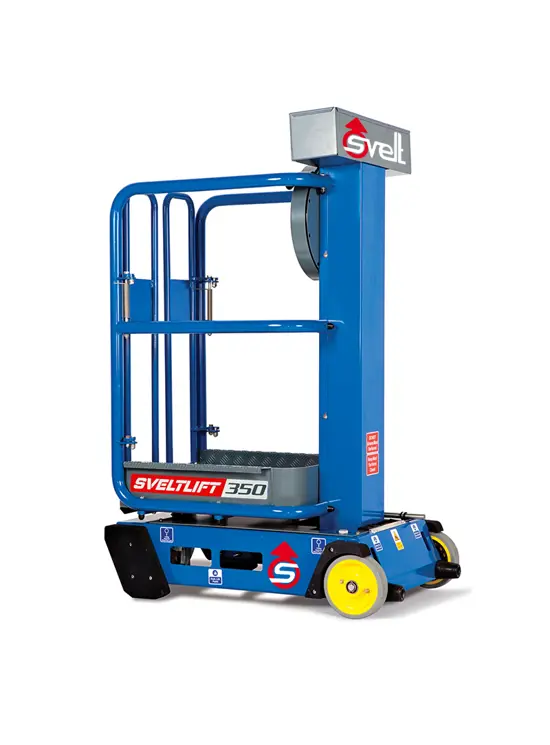

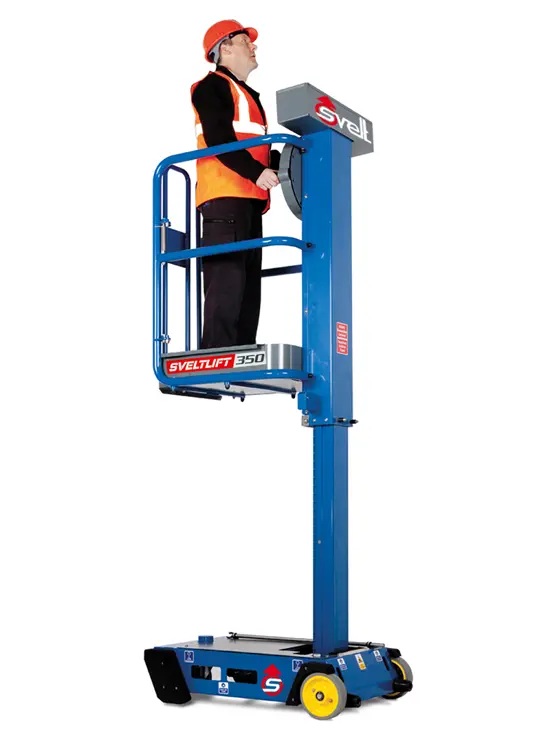

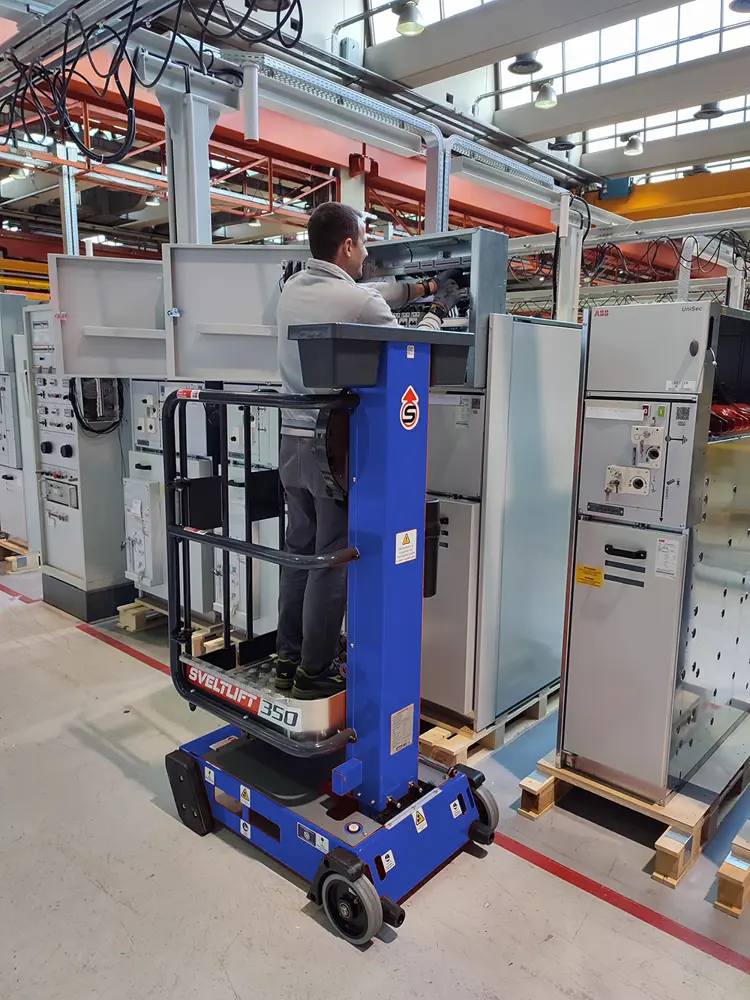

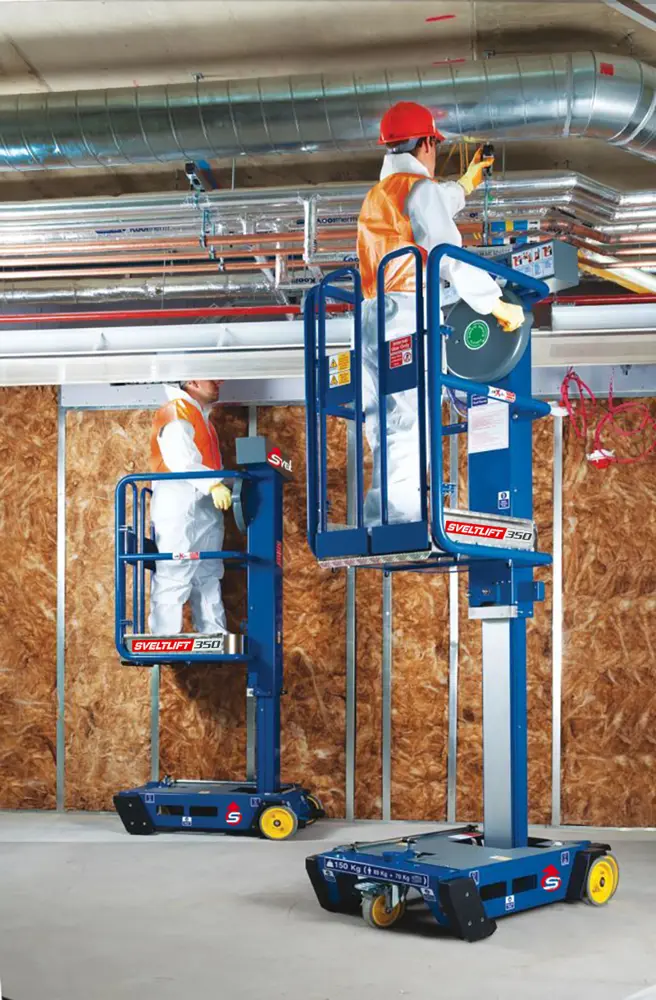

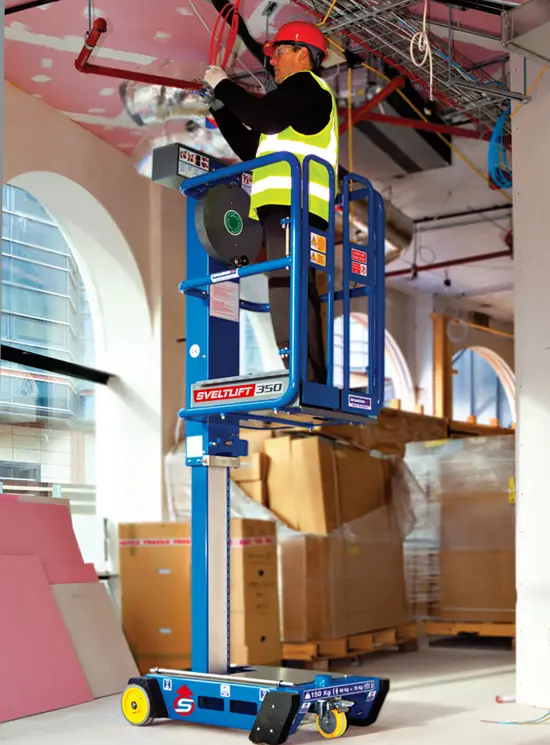

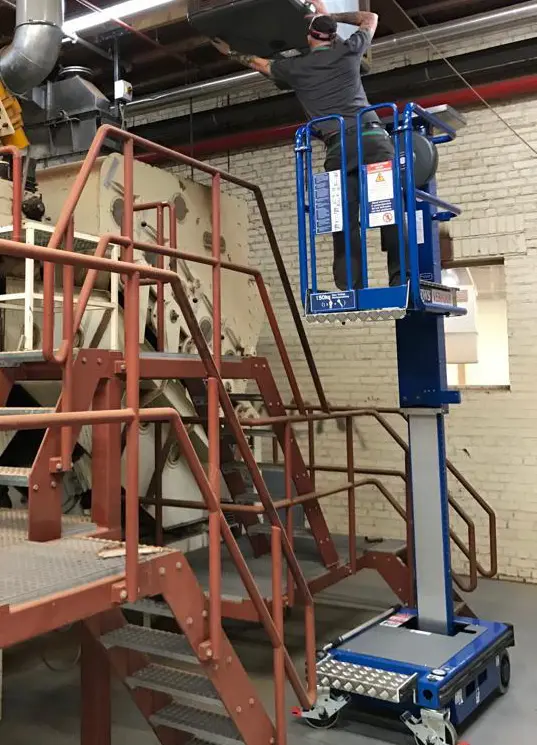

Vertical push microplatform with manual flywheel elevation, potentially maintenance-free, compact and easy to handle, maximum working height m 3.50

✅ PROMPT DELIVERY!!

Aerial platforms with reduced overall dimensions that allow you to pass through very small spaces and standard doors.
A light machine to transport that replaces a scaffolding or a bunk ladder very well, surpassing them in efficiency and speed of use.

PATENTED POWER STORAGE ELEVATION SYSTEM

The system consists of a pneumatic piston under pressure that is always active and ready to raise the platform as soon as the operator starts to turn the climb crank.

In this way, after a small effort, the platform begins to rise effortlessly.

(Similar to the trunk opening system of modern cars).

ADVANTAGES OF BUYING OR RENTING SVELTLIFT 350

CLEAN: it has no oil or battery fluid that over time could contaminate the floor of a pharmaceutical or power factory with serious consequences
SIMPLE: it has no electrical system, no hydraulics, no batteries that can create functional complications and machine downtime.
ECONOMICAL: minimal operating costs, potentially maintenance-free
ALWAYS READY: has no batteries to charge and is always ready to use 24 hours a day
EASY TO USE: intuitive to use, just turn the knob to lift the platform in seconds (patented)
REGULAR: CE approved for indoor use with a capacity of 150 Kg (1 person + tools)
CAPACIOUS: unloaded from the vehicle, it acts as a trolley to bring the tools to the work area.

Large non-slip platform with 100 cm guardrails and PPE socket

PROFESSIONAL: designed for those who work all day on the construction site

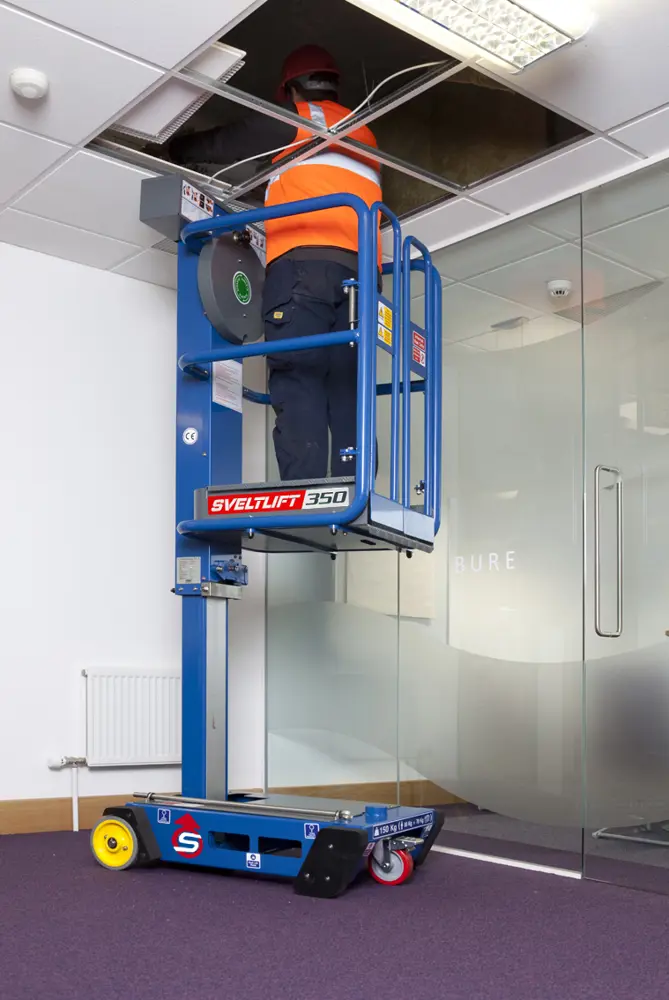

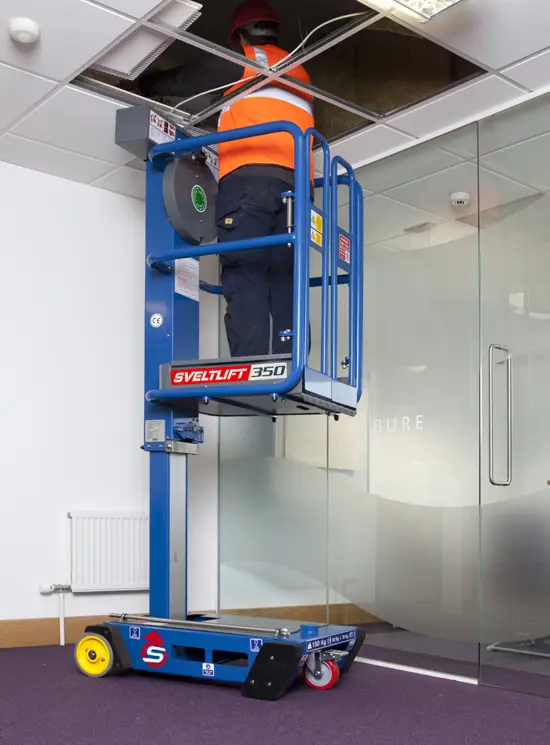

COMPACT: Fits through standard doorways and elevators
EASY HANDLING: it is ideal for indoor use, it turns easily in confined spaces (overall dimensions 99x70 cm)
LIGHTWEIGHT: can be transported on vans and lifted easily (weighs only 180 kg)
PRECISE: in pushing, ascending and lowering operations it is much more controllable than a pantograph

that with the joystick always risks hitting a window, a car or an airplane

SAFE: All safety components (guardrails, toe clips) are integrated into the structure and cannot be lost or forgotten.

Equipped with a self-closing entrance gate and automatic brake that blocks the machine during use

MOBILE: light to push on the 3 anti-fingerprint/anti-puncture wheels

(2 rear diameter 150 mm and one front swivel diameter 125 mm with brake)

Radius of curve = at 0 the machine practically rotates on itself.

LIFTABLE via 2 gripping points for forklift and crane forks
LOCKABLE: via fastening slots for transport
EQUIPPED: equipped with a tool tray for the use of power tools

STANDARD EQUIPMENT

Approval for indoor use or in any case in the absence of wind
Transportable even with small vehicles
Manually operated flywheel ascent
It has neither electrical nor hydraulic circuit
It does not need energy to operate
Robust elevation column with controlled bending
Swivel wheels with brake
Equipped with forklift grip points and transport attachment points
Equipped with seat belt anchor point
Capacity for 1 person
Self-closing entrance gate
Tool tray
Rear and side bumpers made of shock-absorbing rubber
Automatic parking brake when climbing into the basket and raising the platform
Lifts only in the presence of an operator
Self-protected lifting mechanism
Test certificate according to Italian and European regulations (CE)
Labels and use and maintenance manual in Italian
User video manual in Italian (link)

DIMENSIONS

Maximum working height: 3.50 m
Maximum height at the platform: 1.50 m
Min. height Platform: 0.50 m
Platform dimensions: m 0.60x0.72
Weight Kg 180
Transport dimensions: Length 99 cm - Width 70 cm - Height 155 cm
Capacity Kg 150 (including one person)
Maximum manual force 200 N
Maximum gradeability 0°
Lifting cycles: unlimited (24/7)

ON REQUEST

SVELTLIFT 350 ATEX: certification for potentially explosive environments (liquor cellars, fuel warehouses, ammunition, etc.)

SVELTLIFT350 may be available for rent from some of our affiliated dealers/renters
Contact us and we will help you find the available one closest to you.

Take advantage of the INAIL contribution, recover 50% of the expense.
Contact your trade association.

BIENNIAL VERIFICATION

Manual Aerial Platforms (MEWPs) approved by the manufacturer to EN280 standards are subject to INAIL registration and periodic biennial inspection.

FORMATION

Training on manual Aerial Platforms (MEWPs) approved by the manufacturer to EN280 standards with a work surface of less than 2 m can be done by the employer
