Platform for trucks and busses

Garanzia 5 anni
It shows the validity of the guarantee in years
Flow 150 kg
It shows the maximum weight capacity of a product
Flow 1 person
It shows the number of people who can climb the structure at the same time
Compliant D.Leg. 81/08
All our products conforms to the standads in force
CE mark
Suitable for heavy duty

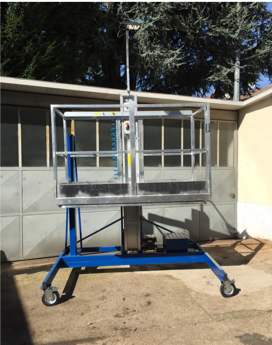

Adjustable platform for trucks and busses

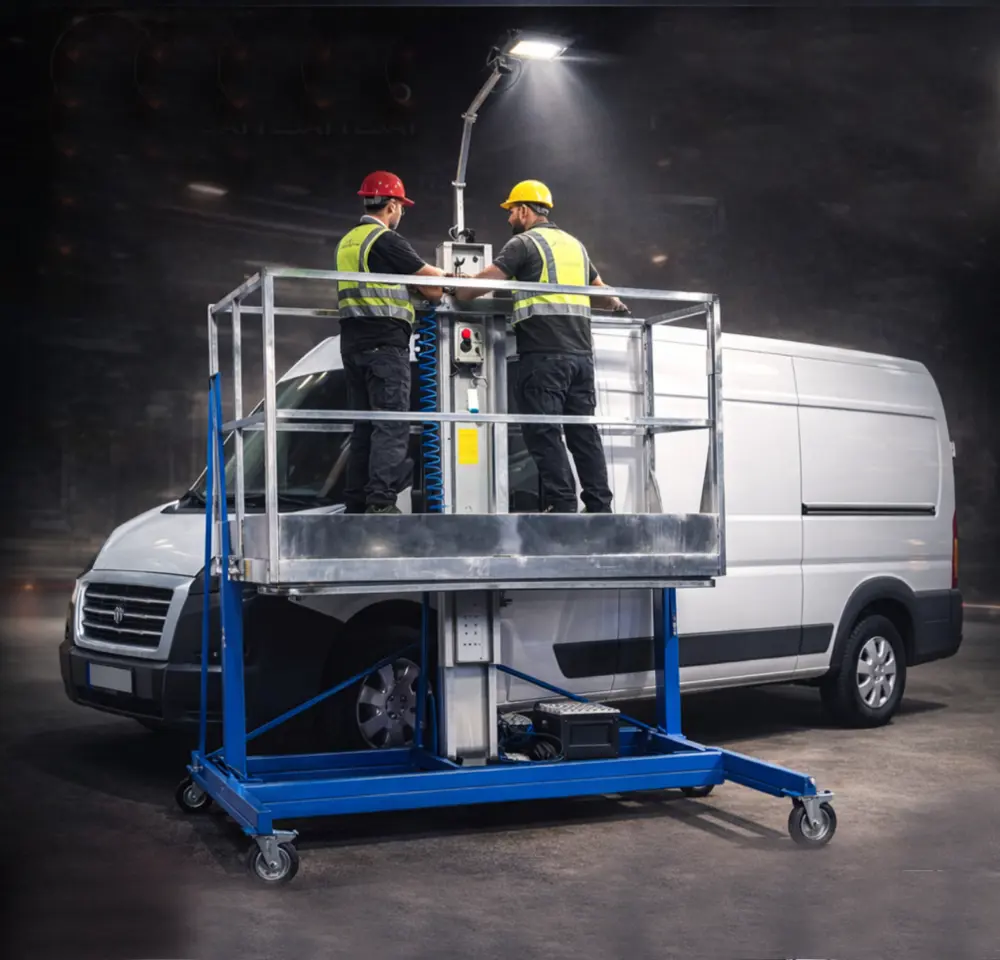

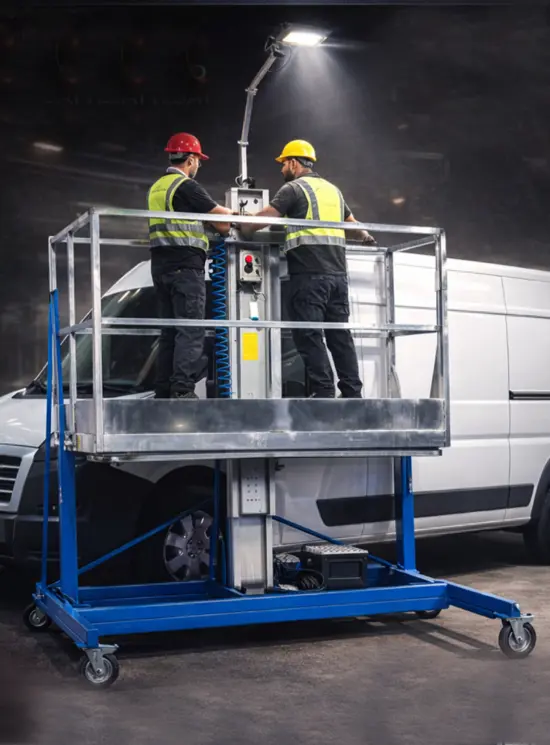

Aerial platform with painted steel frame which, thanks to the "U" shape, allows the operator to work on the front or rear of the vehicles in order to work in absolute safety up to a maximum height of 4 meters.
  • Telescopically adjustable platform height up to 2.00 m  (4 m w/height)
  • Width 140 cm
  • Length 210 cm
  • Closed height 220 cm
  • Elevation by hydraulic cylinder operated by a hydraulic power unit
  • Powered by 2 24 V batteries with automatic battery charger

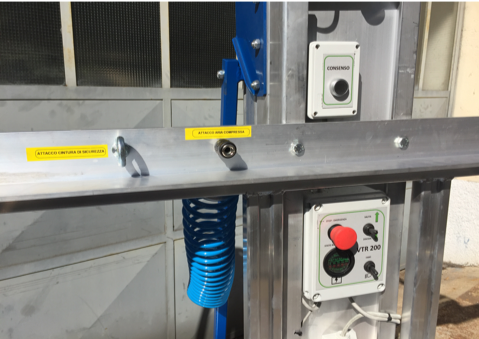

  • Low voltage controls on board the platform
  • Anti-crushing sensors under the worktop
  • Base structure (frame) made of painted steel
  • 4 solid rubber swiveling wheels diam. 150 mm
  • Aluminum platform 180x85 cm
  • 150 mm toe-board
  • 110 cm guardrail with opening gate
  • LED lighting spotlight with power of choice between 10 and 50 W and adjustable arm
  • Aluminum columns with controlled bending
  • Capacity Kg 200 (2 operators)
  • Weight Kg 400
  • Lifting time 20 ''
  • High safety coefficient chains
  • CE mark and use and maintenance instruction booklets
