Ikaro - Escalera industrial con plataforma

EN131/7 2013
Producted in compliance with the European Standard for mobile platform ladders
Warranty 5 years
It shows the validity of the guarantee in years
Flow 150 kg
It shows the maximum weight capacity of a product
Flow 1 person
It shows the number of people who can climb the structure at the same time
European Standards EN 14183
It is the European Standard for ladders

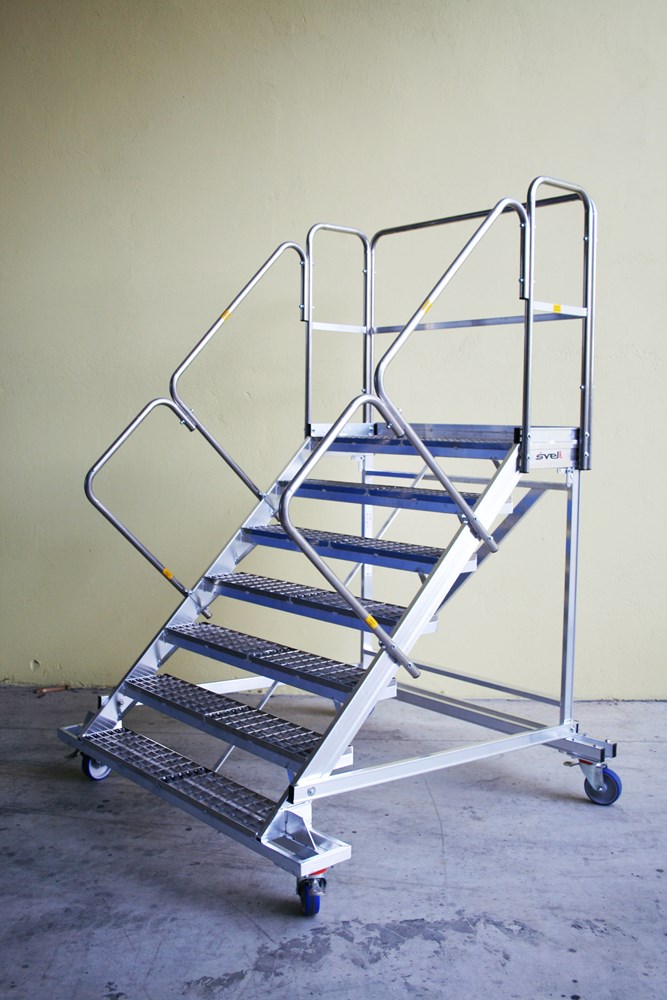

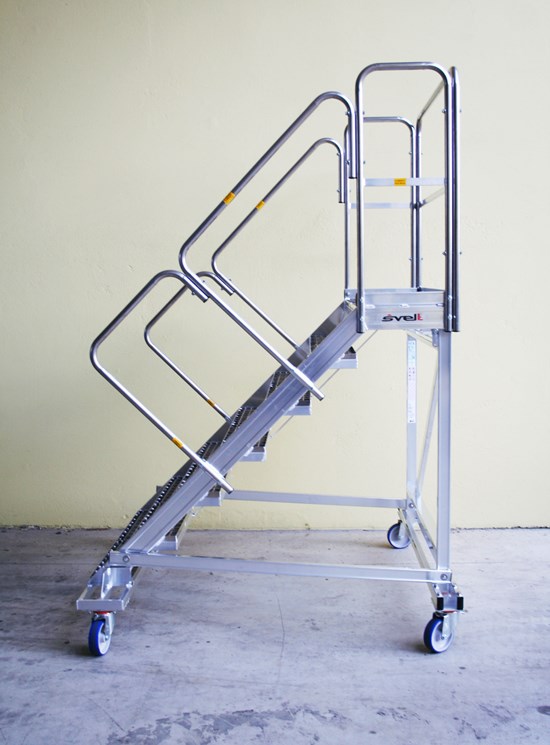

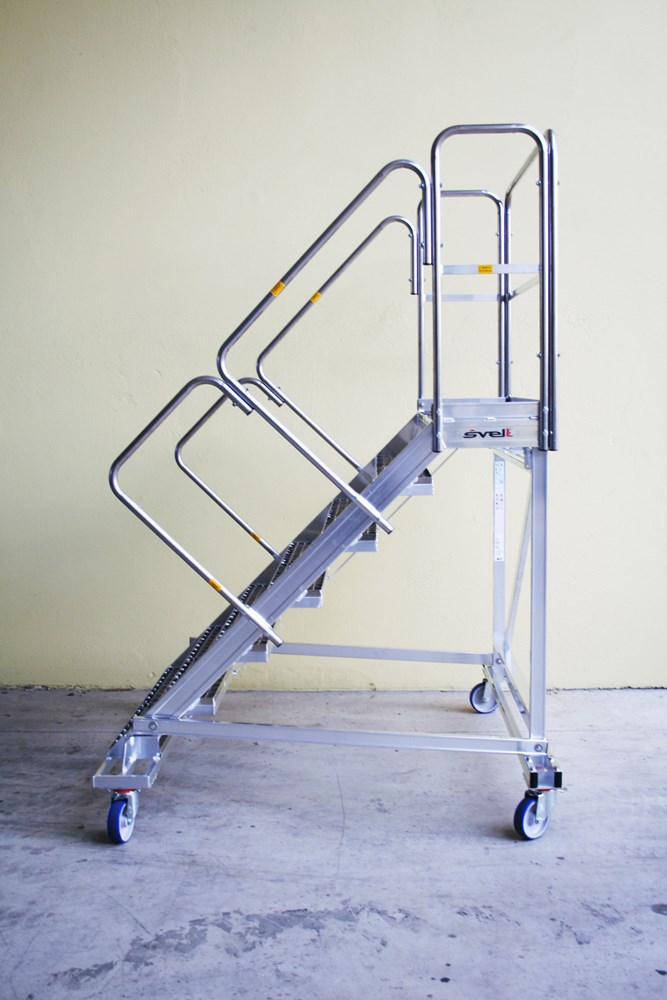

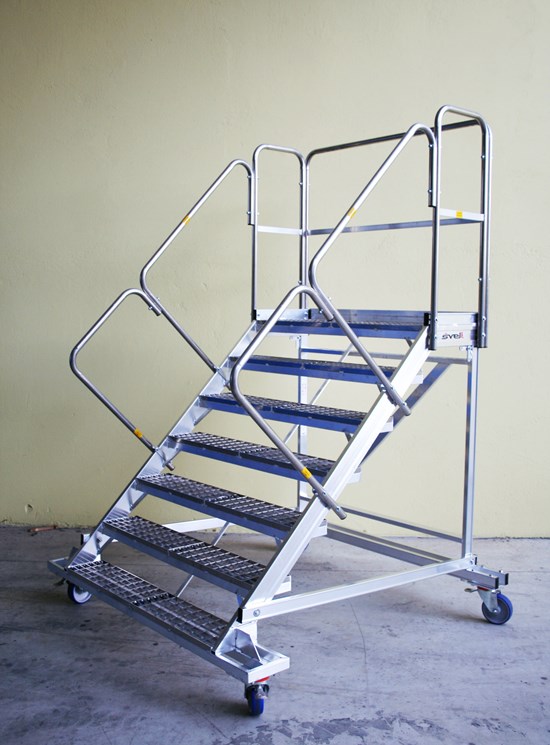

Escalera de acceso con plataforma diseñada para uso intensivo

Equipo profesional muy robusto y resistente diseñado para un uso intensivo.

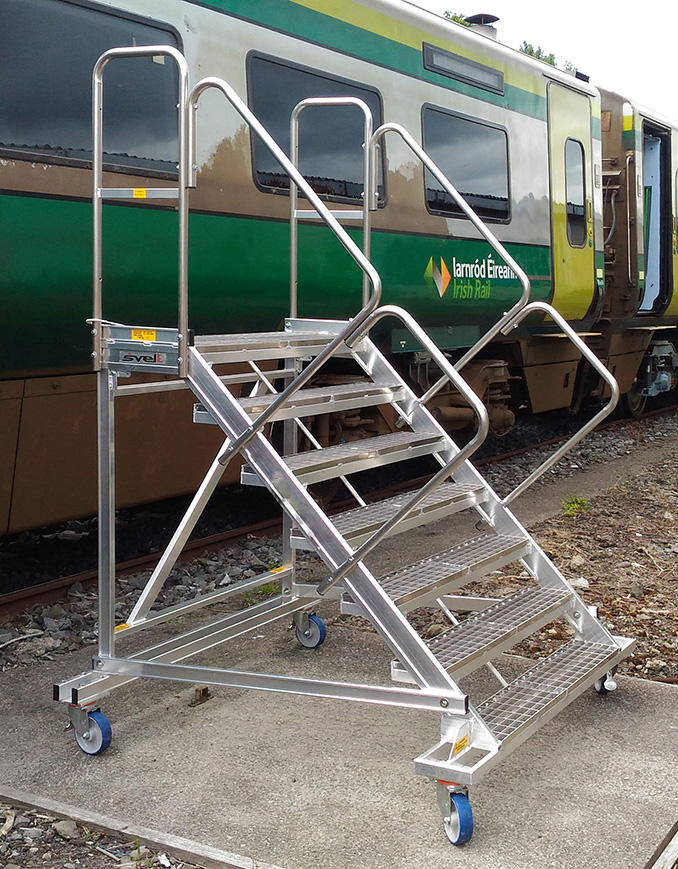

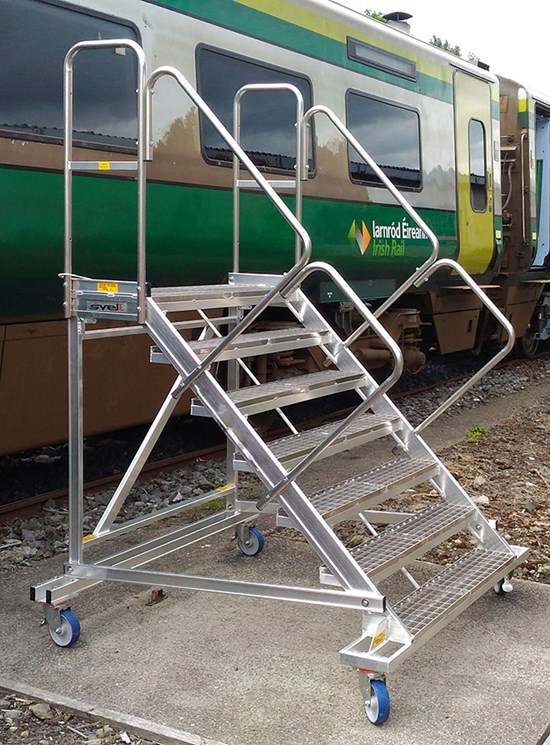

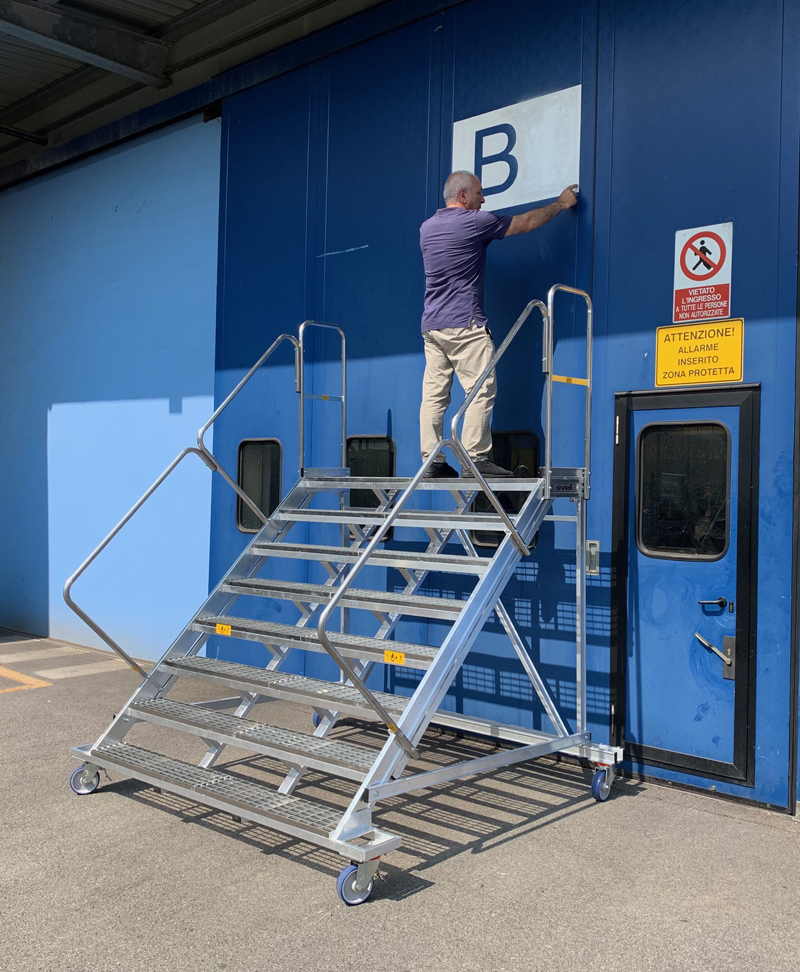

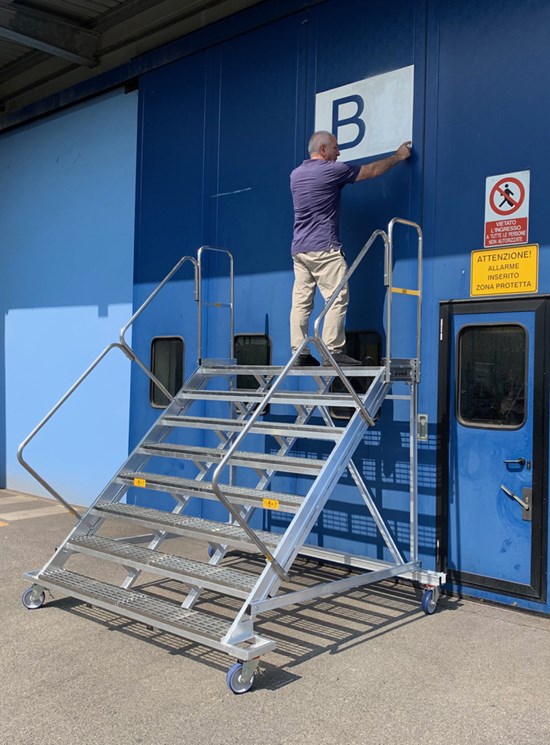

Ideal para acceso y mantenimiento de vehículos, suelos elevados o maquinaria.

Fabricado en aluminio extrusionado nervado y soldado con TIG.

La escalera está equipada con 2 ruedas macizas de Ø260 mm con soportes de aluminio para superficies irregulares, tierra o grava.

El operador puede elegir el ancho, la altura y los rellanos adecuados a sus necesidades de acceso.

La rampa de 45 ° se puede equipar con 1 ó 2 pasamanos laterales bajo pedido.

Ascenso y descenso forntal, con las manos libres.

IKARO se sirve con embalaje retráctil.



Bajo pedido (ver tablas)

IKARO P puede personalizarse y suministrarse exactamente con las características que requiera cada cliente.

  • Peldaños y plataforma en rejilla de aluminio.
  • En este caso, los peldaños planos de 20 cm de profundidad son cómodos, anchos y antideslizantes y permiten la caída de líquidos y materiales o nieve.
  • Los modelos de 2 a 10 peldaños (plataforma incluida) se pueden elegir para una altura de plataforma de 40 a 200 cm del suelo.
  • El ancho de subida y la plataforma se pueden solicitar de 60, 80 o 100 cm.
  • La profundidad de la plataforma es de 60 cm (solo para taburetes de hasta 5 peldaños es posible que IKARO esté equipado con una plataforma de 40 cm de profundidad).
  • Todos los modelos se pueden solicitar con desembarco frontal, lateral izquierdo o derecho o sin desembarco.
  • Los modelos de hasta 5 peldaños (taburete Ikaro) también se pueden pedir sin barandillas.


Las escaleras IKARO (de 6 a 10 peldaños) equipadas con una plataforma con una profundidad de 60 cm, pasamanos y parapeto están testadas y certificadas según la norma europea EN131.7 por TUV.

Los taburetes IKARO (hasta 5 peldaños) están testados y certificados según la norma europea EN14183 por el Politecnico de Milán



Ver también:

Plataformas y estructuras para camiones

Plataformas y estructuras especiales para trenes



Códigos y medidas ESCALERA IKARO con pasamanos, guardacuerpos y ruedas macizas Ø260 mm

ESCALERA IKARO60
ANCHO 60 СМ - PROFUNDIDAD PLATAFORMA 40 СМ - ANCHO PARAPETO 40 СМ - 2 RUEDAS MACIZAS Ø260 ММ

Desembarco frontal (А)

Sin desembarco (B)

Desemarco frontal (A)

Peldaños y plataforma en trámex

Sin desembarco (B)

Peldaños y plataforma en trámex

N° peldaños

Altura plataforma m

Ancho

m

Peso Kg

Volumen

Dimensiones de transporte mm

SIKAROP602/A

SICAROP602/B

SIKAROPG602/A

SIKAROPG602/B

2

0,40

0,90

12,30

0,32

900x404x870

SIKAROP603/A

SICAROP603/B

SIKAROPG603/A

SIKAROPG603/B

3

0,60

0,90

14,80

0,44

900x423x1158

SIKAROP604/A

SICAROP604/B

SIKAROPG604/A

SIKAROPG604/B

4

0,80

0,90

17,80

0,55

900x426x1442

SIKAROP605/A

SICAROP605/B

SIKAROPG605/A

SIKAROPG605/B

5

1,00

0,90

20,20

0,66

900x426x1731

SIKAROP610/A

SIKAROP610/B

SIKAROPG610/A

SIKAROPG610/B

10

2,00

1,16

36,30

1,52

1160x415x3150



ESCALERA IKARO60

ANCHO 60 СМ - PROFUNDIDAD DE PLATAFORMA 60 СМ - ANCHO GUARDACUERPOS 60 СМ - 2 RUEDAS MACIZAS Ø260 ММ

Desembarco frontal (А)

Sin desembarco (B)

Desemarco frontal (A)

Peldaños y plataforma en trámex

Sin desembarco (B)

Peldaños y plataforma en trámex

N° peldaños

Altura plataforma m

Ancho

m

Peso Kg

Volumen

Dimensiones de transporte mm

SIKAROP602/60A

SICAROP602/60B

SIKAROPG602/60A

SIKAROPG602/60B

2

0,40

0,90

12,30

0,32

900x404x870

SIKAROP603/60A

SICAROP603/60B

SIKAROPG603/60A

SIKAROPG603/60B

3

0,60

0,90

14,80

0,44

900x423x1158

SIKAROP604/60A

SICAROP604/60B

SIKAROPG604/60A

SIKAROPG604/60B

4

0,80

0,90

17,80

0,55

900x426x1442

SIKAROP605/60A

SICAROP605/60B

SIKAROPG605/60A

SIKAROPG605/60B

5

1,00

0,90

20,20

0,66

900x426x1731

SIKAROP606/60A

SICAROP606/60B

SIKAROPG606/60A

SIKAROPG606/60B

6

1,20

1,00

23,10

0,85

1000x415x2030

SIKAROP607/60A

SIKAROP607/60B

SIKAROPG607/60A

SIKAROPG607/60B

7

1,40

1,00

26,00

0,96

1000x415x2310

SIKAROP608/60A

SIKAROP608/60B

SIKAROPG608/60A

SIKAROPG608/60B

8

1,60

1,16

29,00

1,26

1160x415x2600

SIKAROP609/60A

SIKAROP609/60B

SIKAROPG609/60A

SIKAROPG609/60B

9

1,80

1,16

32,20

1,39

1160x415x2880

SIKAROP610/60A

SIKAROP610/60B

SIKAROPG610/60A

SIKAROPG610/60B

10

2,00

1,16

36,30

1,52

1160x415x3150



ESCALERA IKARO60

ANCHO 60 СМ - PROFUNDIDAD DE LA PLATAFORMA 60 СМ - CON 1 O 2 DESEMBARCOS LATERALES - 2 RUEDAS MACIZAS Ø 260 МM

Desembarco frontal (А)

2 Desembarcos laterales (D)

Desembarco lateral (C)

Peldaño y plataforma en trámex

2 Desembarcos laterales (D)

Peldaño y plataforma en trámex

N° peldaños

Altura plataforma m

Ancho

m

Peso Kg

Volumen

Dimensiones de transporte mm

SIKAROP602/60C

SICAROP602/60D

SIKAROPG602/60C

SIKAROPG602/60D

2

0,40

0,90

12,30

0,32

900x404x870

SIKAROP603/60C

SICAROP603/60D

SIKAROPG603/60C

SIKAROPG603/60D

3

0,60

0,90

14,80

0,44

900x423x1158

SIKAROP604/60C

SICAROP604/60D

SIKAROPG604/60C

SIKAROPG604/60D

4

0,80

0,90

17,80

0,55

900x426x1442

SIKAROP605/60C

SICAROP605/60D

SIKAROPG605/60C

SIKAROPG605/60D

5

1,00

0,90

20,20

0,66

900x426x1731

SIKAROP606/60C

SICAROP606/60D

SIKAROPG606/60C

SIKAROPG606/60D

6

1,20

1,00

23,10

0,85

1000x415x2030

SIKAROP607/60C

SIKAROP607/60D

SIKAROPG607/60C

SIKAROPG607/60D

7

1,40

1,00

26,00

0,96

1000x415x2310

SIKAROP608/60C

SIKAROP608/60D

SIKAROPG608/60C

SIKAROPG608/60D

8

1,60

1,16

29,00

1,26

1160x415x2600

SIKAROP609/60C

SIKAROP609/60D

SIKAROPG609/60C

SIKAROPG609/60D

9

1,80

1,16

32,20

1,39

1160x415x2880

SIKAROP610/60C

SIKAROP610/60D

SIKAROPG610/60C

SIKAROPG610/60D

10

2,00

1,16

36,30

1,52

1160x415x3150




ESCALERA IKARO80

ANCHO 80 СМ - PROFUNDIDAD PLATAFORMA 40 СМ - ANCHO GUARDACUERPOS 40 СМ - 2 RUEDAS MACIZAS Ø 260 ММ

Desembarco frontal (А)

Sin desembarco (B)

Desembarco frontal (A)

Peldaños y plataforma en trámex

Sin desembarco (B)

Peldaños y plataforma en trámex

N° Peldaños

Altura plataforma m

Ancho

m

Peso Kg

Volumen

Dimensiones de transporte mm

SIKAROP802/A

SICAROP802/B

SIKAROPG802/A

SIKAROPG802/B

2

0,40

0,90

12,30

0,32

900x404x870

SIKAROP803/A

SICAROP803/B

SIKAROPG803/A

SIKAROPG803/B

3

0,60

0,90

14,80

0,44

900x423x1158

SIKAROP804/A

SICAROP804/B

SIKAROPG804/A

SIKAROPG804/B

4

0,80

0,90

17,80

0,55

900x426x1442

SIKAROP805/A

SICAROP805/B

SIKAROPG805/A

SIKAROPG805/B

5

1,00

0,90

20,20

0,66

900x426x1731



ESCALERA IKARO80

ANCHO 80 СМ - PROFUNDIDAD DE LA PLATAFORMA 60 СМ - ANCHO GUARDACUERPOS 60 СМ - 2 RUEDAS MACIZAS Ø260 ММ

Desembarco frontal (А)

Sin desembarco (B)

Desembarco frontal (A)

peldaños y plataforma en trámex

Sin desembarco (B)

Peldaños y plataforma en trámex

N° peldaños

Altura plataforma m

Ancho

m

Peso Kg

Volumen

Dimensiones de tansporte mm

SIKAROP802/60A

SICAROP802/60B

SIKAROPG802/60A

SIKAROPG802/60B

2

0,40

0,90

12,30

0,32

900x404x870

SIKAROP803/60A

SICAROP803/60B

SIKAROPG803/60A

SIKAROPG803/60B

3

0,60

0,90

14,80

0,44

900x423x1158

SIKAROP804/60A

SICAROP804/60B

SIKAROPG804/60A

SIKAROPG804/60B

4

0,80

0,90

17,80

0,55

900x426x1442

SIKAROP805/60A

SICAROP805/60B

SIKAROPG805/60A

SIKAROPG805/60B

5

1,00

0,90

20,20

0,66

900x426x1731

SIKAROP806/60A

SICAROP806/60B

SIKAROPG806/60A

SIKAROPG806/60B

6

1,20

1,00

23,10

0,85

1000x415x2030

SIKAROP807/60A

SIKAROP807/60B

SIKAROPG807/60A

SIKAROPG807/60B

7

1,40

1,00

26,00

0,96

1000x415x2310

SIKAROP808/60A

SIKAROP808/60B

SIKAROPG808/60A

SIKAROPG808/60B

8

1,60

1,16

29,00

1,26

1160x415x2600

SIKAROP809/60A

SIKAROP809/60B

SIKAROPG809/60A

SIKAROPG809/60B

9

1,80

1,16

32,20

1,39

1160x415x2880

SIKAROP810/60A

SIKAROP810/60B

SIKAROPG810/60A

SIKAROPG810/60B

10

2,00

1,16

36,30

1,52

1160x415x3150



ESCALERA IKARO80

ANCHO 80 СМ - PROFUNDIDAD DE LA PLATAFORMA 60 СМ - CON 1 Ó 2 DESEMBARCO LATERAL - 2 RUEDAS MACIZAS Ø 260 ММ

Desembarco lateral (C)

2 Desembarcos laterales (D)

Desembarco lateral (C)

Peldaños y plataforma en trámex

2 Desembarcos laterales(D)

Peldaños y plataforma en trámex

N° peldaños

Altura plataforma m

Ancho

m

Peso Kg

Volumen

Dimensiones de transporte mm

SIKAROP802/60C

SICAROP802/60D

SIKAROPG802/60C

SIKAROPG802/60D

2

0,40

0,90

12,30

0,32

900x404x870

SIKAROP803/60C

SICAROP803/60D

SIKAROPG803/60C

SIKAROPG803/60D

3

0,60

0,90

14,80

0,44

900x423x1158

SIKAROP804/60C

SICAROP804/60D

SIKAROPG804/60C

SIKAROPG804/60D

4

0,80

0,90

17,80

0,55

900x426x1442

SIKAROP805/60C

SICAROP805/60D

SIKAROPG805/60C

SIKAROPG805/60D

5

1,00

0,90

20,20

0,66

900x426x1731

SIKAROP806/60C

SICAROP806/60D

SIKAROPG806/60C

SIKAROPG806/60D

6

1,20

1,00

23,10

0,85

1000x415x2030

SIKAROP807/60C

SIKAROP807/60D

SIKAROPG807/60C

SIKAROPG807/60D

7

1,40

1,00

26,00

0,96

1000x415x2310

SIKAROP808/60C

SIKAROP808/60D

SIKAROPG808/60C

SIKAROPG808/60D

8

1,60

1,16

29,00

1,26

1160x415x2600

SIKAROP809/60C

SIKAROP809/60D

SIKAROPG809/60C

SIKAROPG809/60D

9

1,80

1,16

32,20

1,39

1160x415x2880

SIKAROP810/60C

SIKAROP810/60D

SIKAROPG810/60C

SIKAROPG810/60D

10

2,00

1,16

36,30

1,52

1160x415x3150



ESCALERA IKARO100

ANCHO 100 СМ - PROFUNDIDAD DE LA PLATAFORMA 40 СМ - ANCHO GUARDACUERPOS 40 СМ - 2 RUEDAS MACIZAS Ø260 ММ

Desembarco frontal (А)

Sin desembarco (B)

Desembarco frontal (A)

Peldaños y plataforma en trámex

Sin desembarco (B)

Peldaños y plataforma en trámex

N° peldaños

Altura plataforma m

Ancho

m

Peso Kg

Volumen

Dimensiones de transporte mm

SIKAROP1002/A

SICAROP1002/B

SIKAROPG1002/A

SIKAROPG1002/B

2

0,40

0,90

12,30

0,32

900x404x870

SIKAROP1003/A

SICAROP1003/B

SIKAROPG1003/A

SIKAROPG1003/B

3

0,60

0,90

14,80

0,44

900x423x1158

SIKAROP1004/A

SICAROP1004/B

SIKAROPG1004/A

SIKAROPG1004/B

4

0,80

0,90

17,80

0,55

900x426x1442

SIKAROP1005/A

SICAROP1005/B

SIKAROPG1005/A

SIKAROPG1005/B

5

1,00

0,90

20,20

0,66

900x426x1731



ESCALERA IKARO100

ANCHO 100 СМ - PROFUNDIDAD DE LA PLATAFORMA 60 СМ - ANCHO GUARDACUERPOS 60 СМ - 2 RUEDAS MACIZAS Ø 260 ММ

Desembarco frontal (А)

Sin desembarco (B)

Desembarco frontal (A)

Peldaños y plataforma en trámex

Sin desembarco (B)

Peldaño y plataforma en trámex

N° peldaños

Altura plataforma m

Ancho

m

Peso Kg

Volumen

Dimensiones de transporte mm

SIKAROP1002/60A

SICAROP1002/60B

SIKAROPG1002/60A

SIKAROPG1002/60B

2

0,40

0,90

12,30

0,32

900x404x870

SIKAROP1003/60A

SICAROP1003/60B

SIKAROPG1003/60A

SIKAROPG1003/60B

3

0,60

0,90

14,80

0,44

900x423x1158

SIKAROP1004/60A

SICAROP1004/60B

SIKAROPG1004/60A

SIKAROPG1004/60B

4

0,80

0,90

17,80

0,55

900x426x1442

SIKAROP1005/60A

SICAROP1005/60B

SIKAROPG1005/60A

SIKAROPG1005/60B

5

1,00

0,90

20,20

0,66

900x426x1731

SIKAROP1006/60A

SICAROP1006/60B

SIKAROPG1006/60A

SIKAROPG1006/60B

6

1,20

1,00

23,10

0,85

1000x415x2030

SIKAROP1007/60A

SIKAROP1007/60B

SIKAROPG1007/60A

SIKAROPG1007/60B

7

1,40

1,00

26,00

0,96

1000x415x2310

SIKAROP1008/60A

SIKAROP1008/60B

SIKAROPG1008/60A

SIKAROPG1008/60B

8

1,60

1,16

29,00

1,26

1160x415x2600

SIKAROP1009/60A

SIKAROP1009/60B

SIKAROPG1009/60A

SIKAROPG1009/60B

9

1,80

1,16

32,20

1,39

1160x415x2880

SIKAROP1010/60A

SIKAROP1010/60B

SIKAROPG1010/60A

SIKAROPG1010/60B

10

2,00

1,16

36,30

1,52

1160x415x3150



SCALA IKARO100

ANCHO 100 СМ - PROFUNDIDAD DE LA PLATAFORMA 60 СМ - CON 1 Ó 2 DESEMBARCOS LATERALES - 2 RUEDAS MACIZAS  Ø260 ММ

Desembarco lateral (C)

2 Desembarcos laterales (D)

Desembarco lateral (C)

Peldaños y plataforma en trámex

2 Desembarcos laterales (D)

Peldaños y plataforma en trámex

N° peldaños

Altura plataforma m

Ancho

m

Peso Kg

Volumen

Dimensiones de transporte mm

SIKAROP1002/60C

SICAROP1002/60D

SIKAROPG1002/60C

SIKAROPG1002/60D

2

0,40

0,90

12,30

0,32

900x404x870

SIKAROP1003/60C

SICAROP1003/60D

SIKAROPG1003/60C

SIKAROPG1003/60D

3

0,60

0,90

14,80

0,44

900x423x1158

SIKAROP1004/60C

SICAROP1004/60D

SIKAROPG1004/60C

SIKAROPG1004/60D

4

0,80

0,90

17,80

0,55

900x426x1442

SIKAROP1005/60C

SICAROP1005/60D

SIKAROPG1005/60C

SIKAROPG1005/60D

5

1,00

0,90

20,20

0,66

900x426x1731

SIKAROP1006/60C

SICAROP1006/60D

SIKAROPG1006/60C

SIKAROPG1006/60D

6

1,20

1,00

23,10

0,85

1000x415x2030

SIKAROP1007/60C

SIKAROP1007/60D

SIKAROPG1007/60C

SIKAROPG1007/60D

7

1,40

1,00

26,00

0,96

1000x415x2310

SIKAROP1008/60C

SIKAROP1008/60D

SIKAROPG1008/60C

SIKAROPG1008/60D

8

1,60

1,16

29,00

1,26

1160x415x2600

SIKAROP1009/60C

SIKAROP1009/60D

SIKAROPG1009/60C

SIKAROPG1009/60D

9

1,80

1,16

32,20

1,39

1160x415x2880

SIKAROP1010/60C

SIKAROP1010/60D

SIKAROPG1010/60C

SIKAROPG1010/60D

10

2,00

1,16

36,30

1,52

1160x415x3150

¿Necesitas más información?
Nuestra experiencia está a tu servicio para asesorarte y recomendarte el mejor producto
Uno de nuestros expertos contactará contigo sin compromiso
Svelt
close
Sign up for our newsletter
Don’t miss out on any Svelt news!
