Mega

Max height m 1

This product has successfully passed the test of the German quality control body TÜV according to the European Standard on ladders

It shows the validity of the guarantee in years

It shows the maximum weight capacity of a product

All our products conforms to the standads in force

It is the European Standard for ladders

Suitable for heavy duty

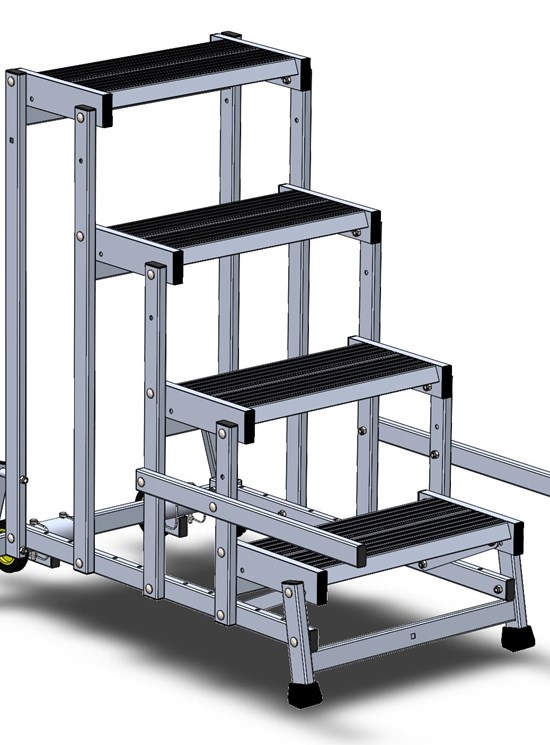

Industrial stool screwed with wide steps and customizable with various optional accessories

One-Sided stepstool for Heavy duty from 1 to 4 steps in in extruded aluminium

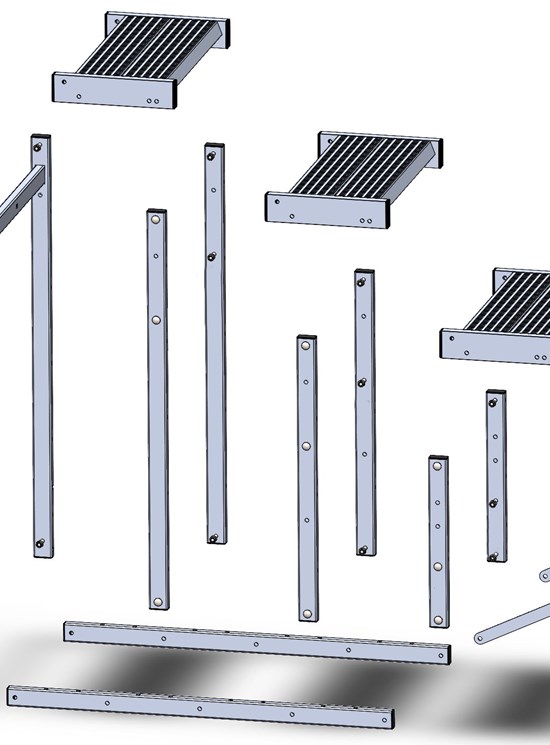

Delivered disassembled, easy to transport and can be assembled by the operator with the supplied screw kit.

Suitable for use on machinery in workshops and for accessing loading platforms.

Wide base for maximum stability.

Rustproof.

Labels and instruction manual
Test certificate according to Italian Legislative Decree 81/2008 and European standard UNIEN14183
It can be composed as you wish with 48 different configurations.

European Standard UNIEN14183:

Mega 2 and 3 steps: the operator can stand on the last step even without a guardrail (on demand).
Mega 4 steps (wider platform depth > 40 cm): the operator can stay on the platform even without a guardrail (optional).
Mega 4 steps (last standard step depth 20 cm): the operator can stand on the last step only using the 60 cm body guard (mandatory according to the European standard, optional according to the Italian standard).

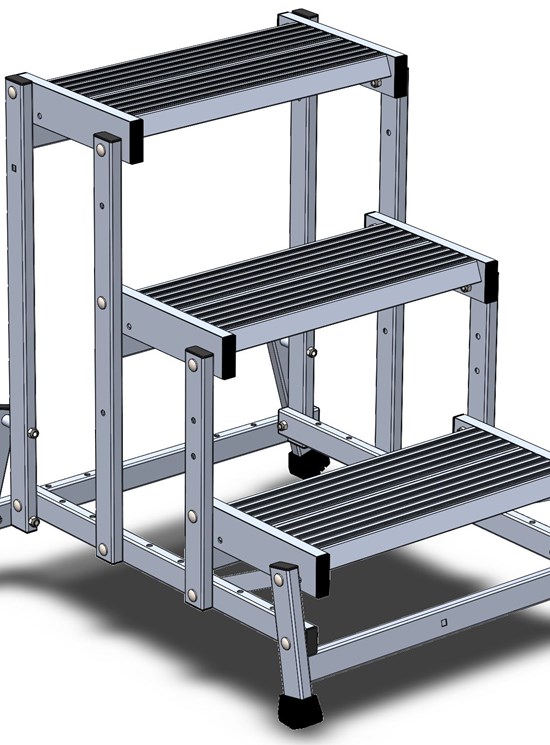

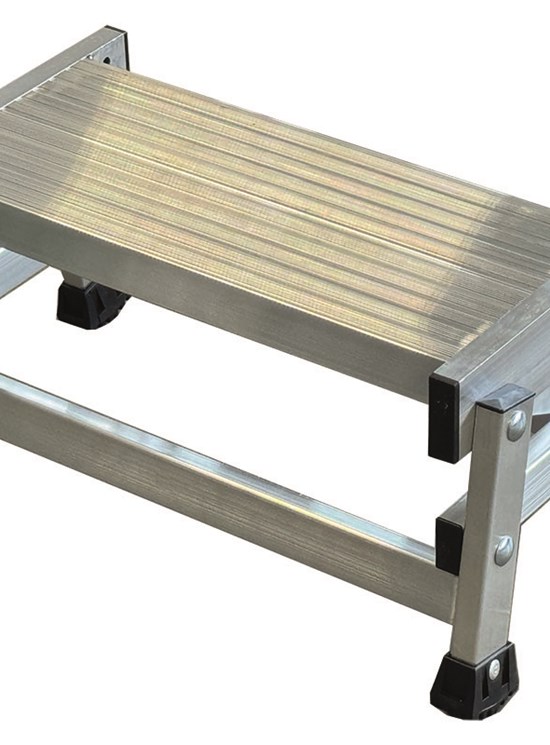

MEGA STANDARD

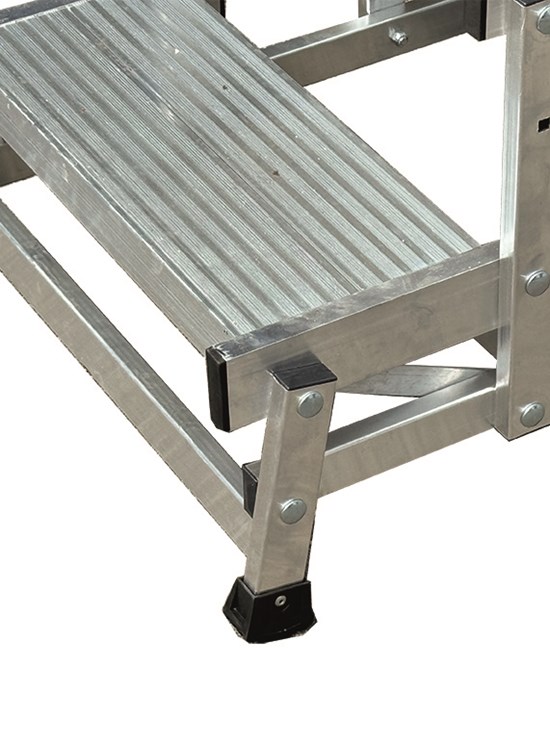

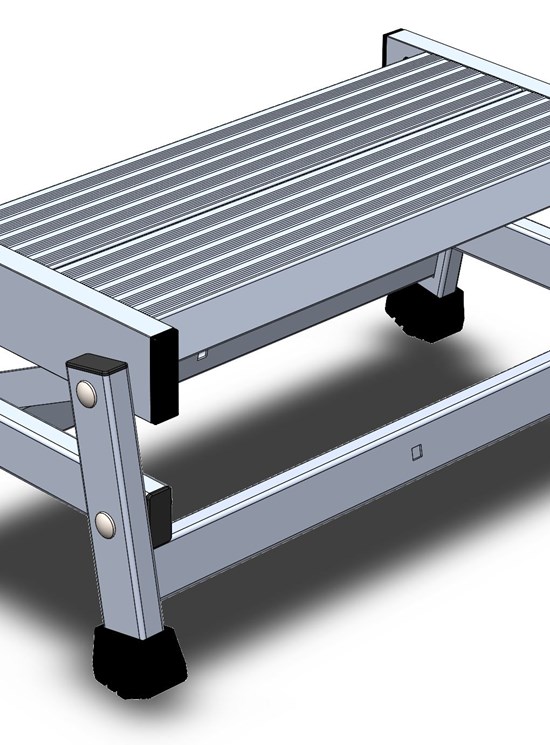

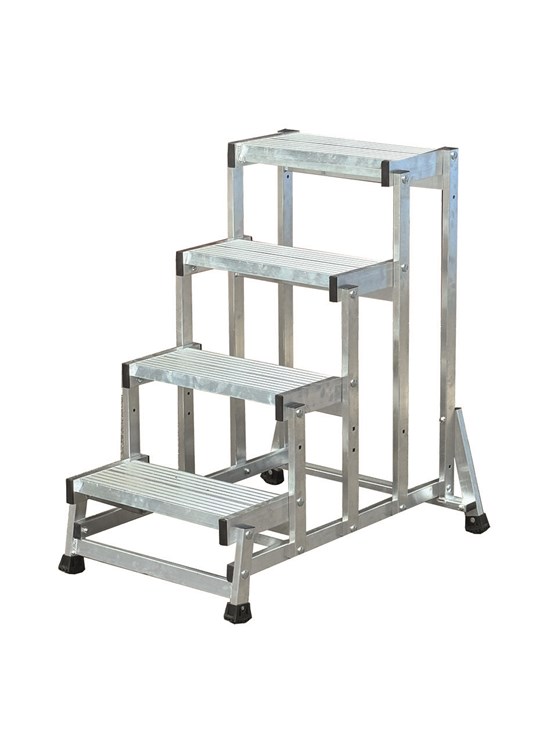

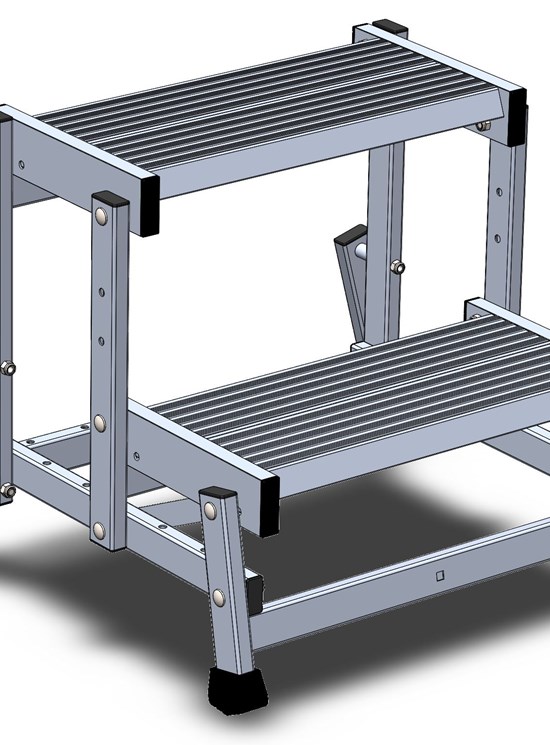

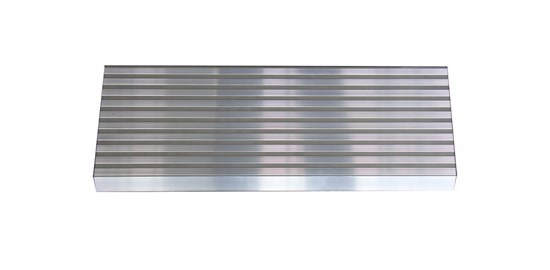

MEGA 1 STEP MEGA 2 STEPS MEGA 3 STEPS MEGA 4 STEPS STANDARD STEPS IN EXTRUDED ALUMINIUM

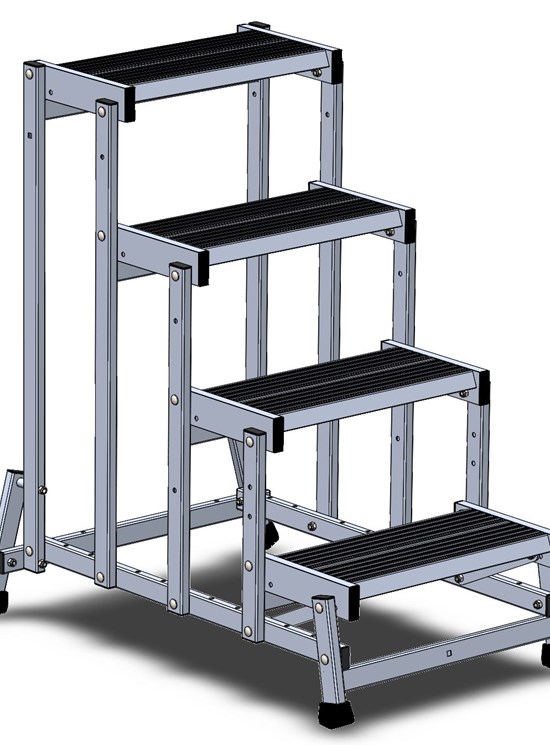

MEGA "G" DRANING

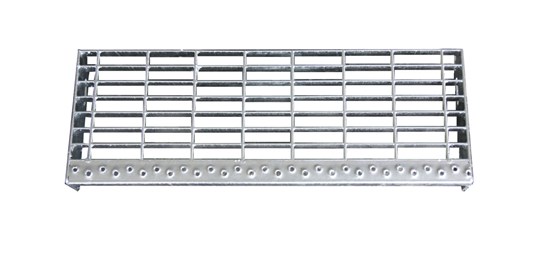

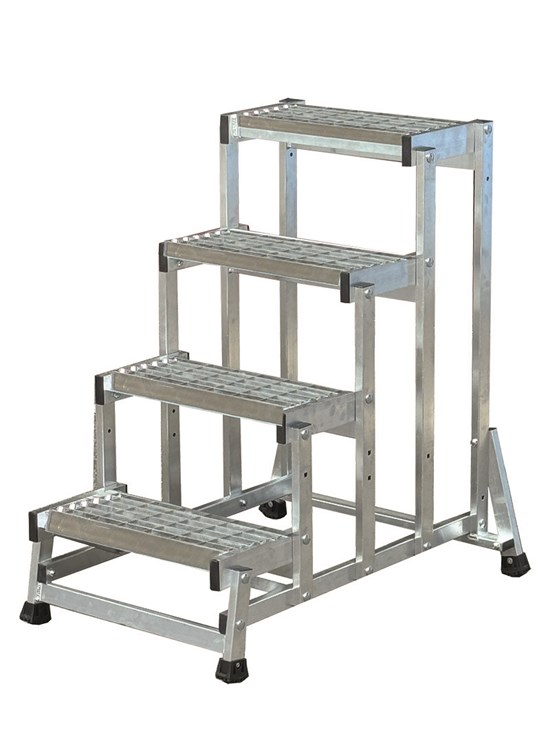

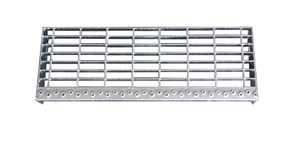

It can also be ordered with draining aluminium steps for use in presence of materials that must fall to the ground and not stop on the step.

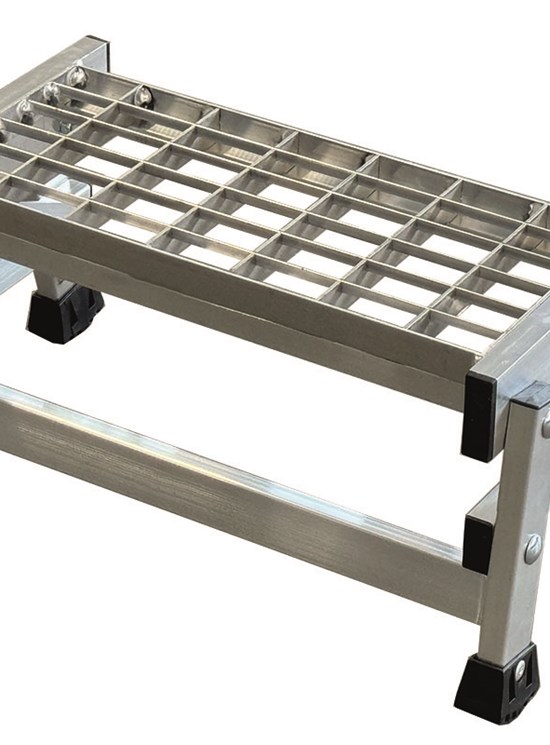

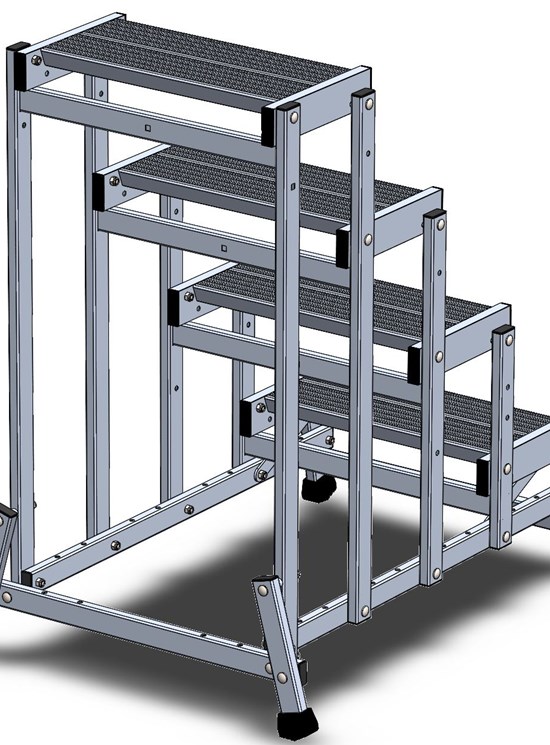

MEGA "G" 1 STEP MEGA "G" 4 STEPS DRAINING ALUMINIUM STEPS

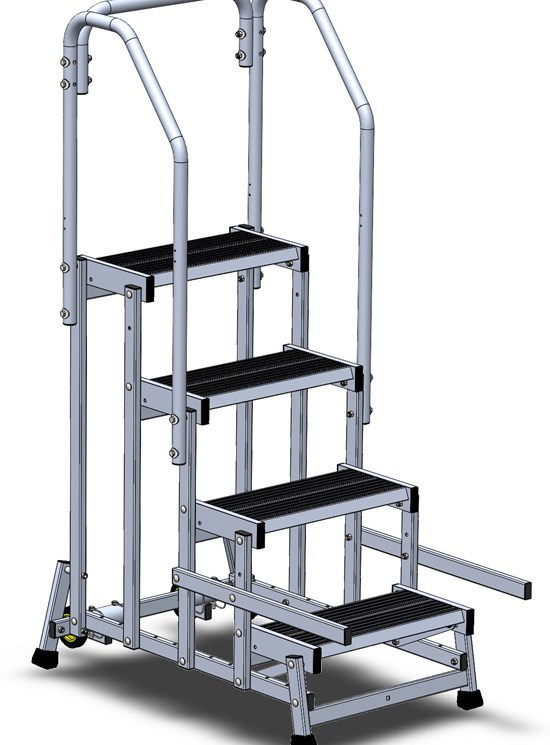

MEGA STANDARD OR DRAINING WITH HANDRAILS AND 100 CM GUARDRAIL

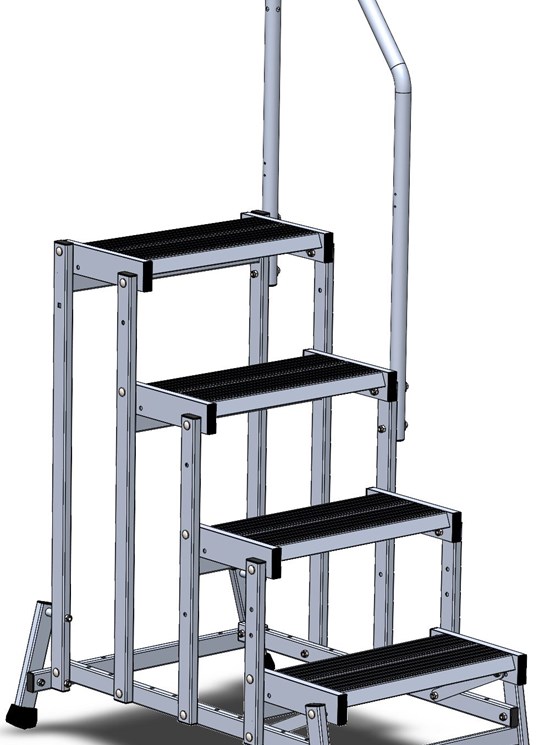

From 2 to 4 steps can be ordered with 1 or 2 handrails and with front guardrail

MEGA MEGA MEGA

1 HANDRAIL 2 HANDRAILS 2 HANDRAILS + GUARDRAIL

FRONT EXIT (NO EXIT)

MEGA WITH NO HANDRAILS AND GUARDRAIL

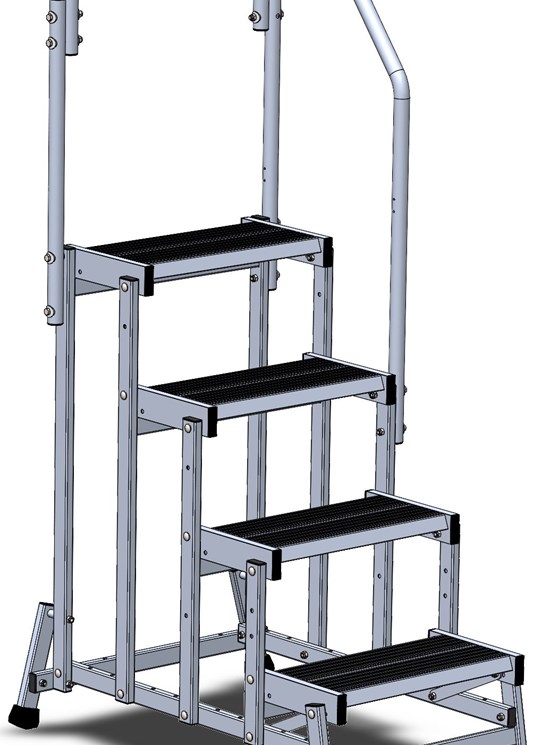

MEGA + 1 HANDRAIL

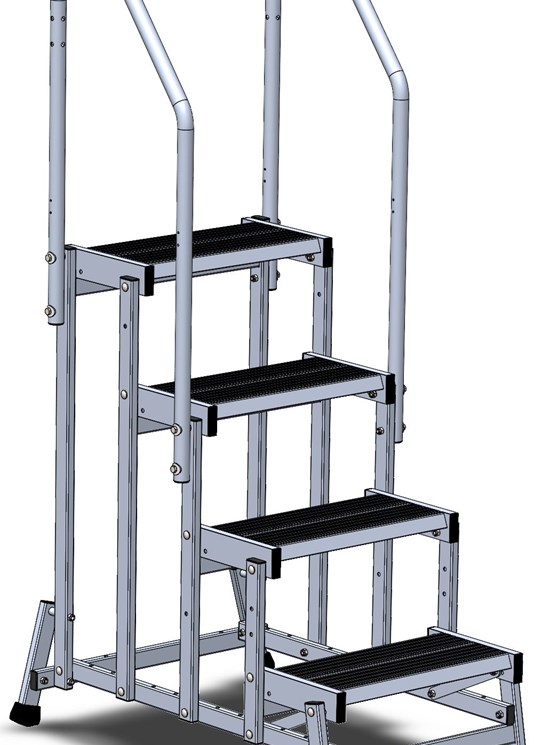

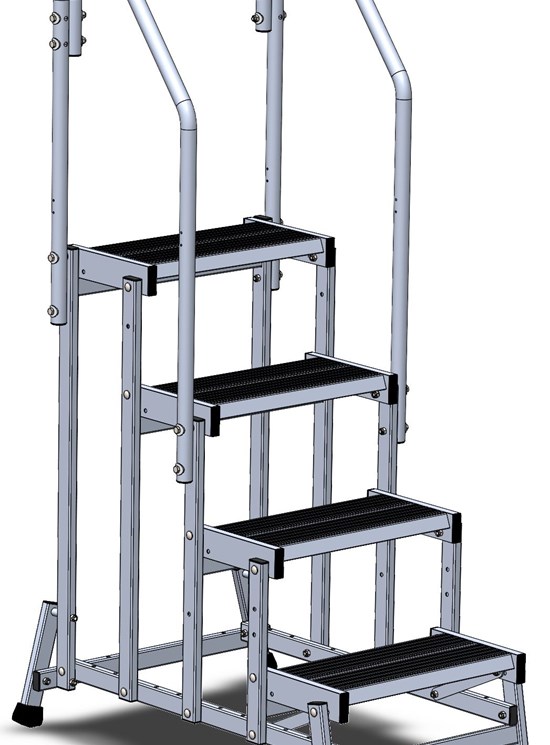

MEGA + 2 HANDRAILS

MEGA + 2 CORRIMANI + PARAPETTO DA CM 60

On demand for each model:

Stool assembled by the manufacturer (except for handrails and handrails supplied disassembled). Add an M to the codes in the tables.
Widened platform with a depth of 40 cm (extendable in multiples of 20 cm) (see Mega with wider platform).
Mega with right and/or left side exit (see Mega with larger platform)

Descriptione	Code	Picture

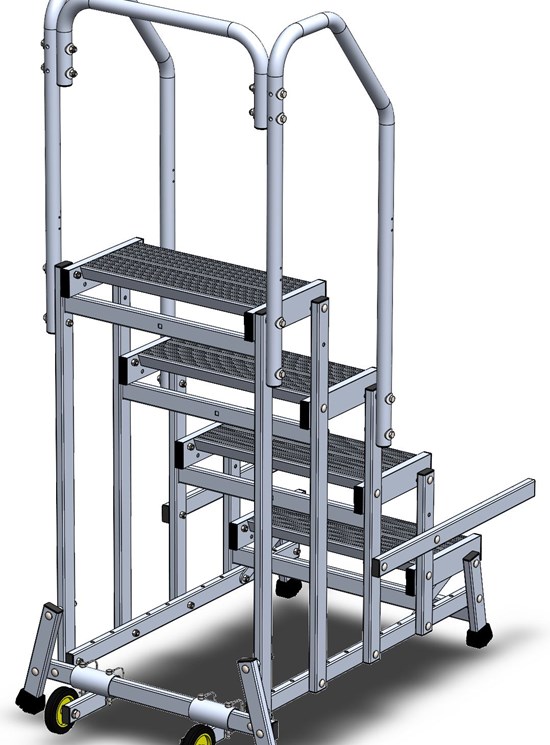

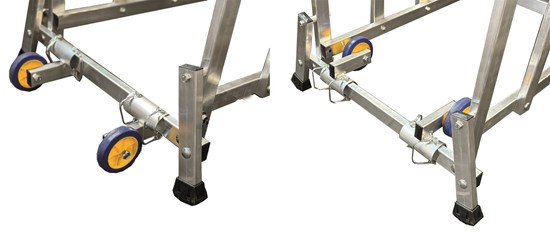

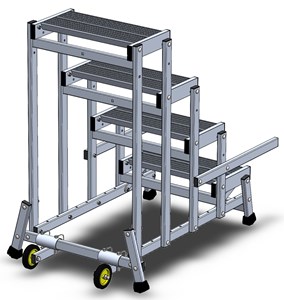

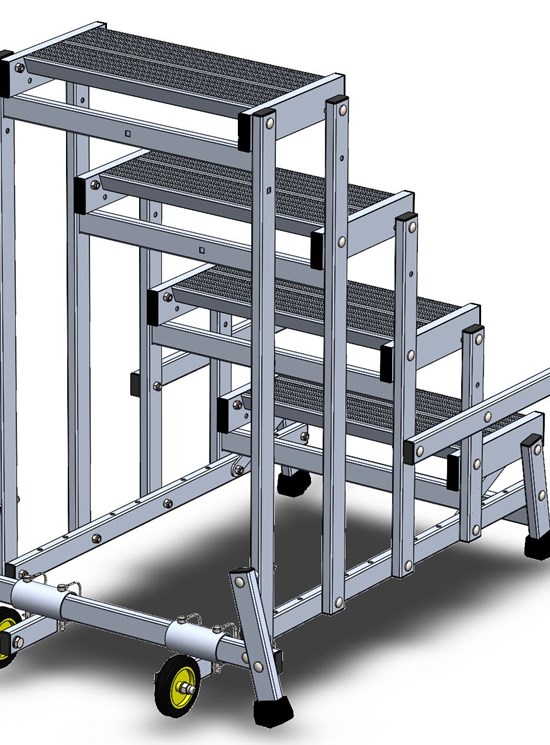

Kit 2 handles and 2 lateral/front wheels Ø 80 mm for long movements. The wheels are swivel so that they can be placed close to the wall even from the front.	SMEGARUOTE

Spare parts for each model

Description	Code
Side handrail Mega with platform depth 20 cm 2 steps (rh/sh are the same)	SMEGACORR20
Side handrail Mega with platform depth 20 cm 3 and 4 steps (rh/sh are the same)	SMEGACORR21
Side handrail Mega with platform depth 40 cm 2 steps (rh/sh are the same)	SMEGACORR40
Side handrail Mega with platform depth 40 cm 3 and 4 steps (rh/sh are the same)	SMEGACORR41
Front guardrail width 50 cm	SMEGAPAR50
Front guardrail width 60 cm	SMEGAPAR60
Front guardrail width 80 cm	SMEGAPAR80

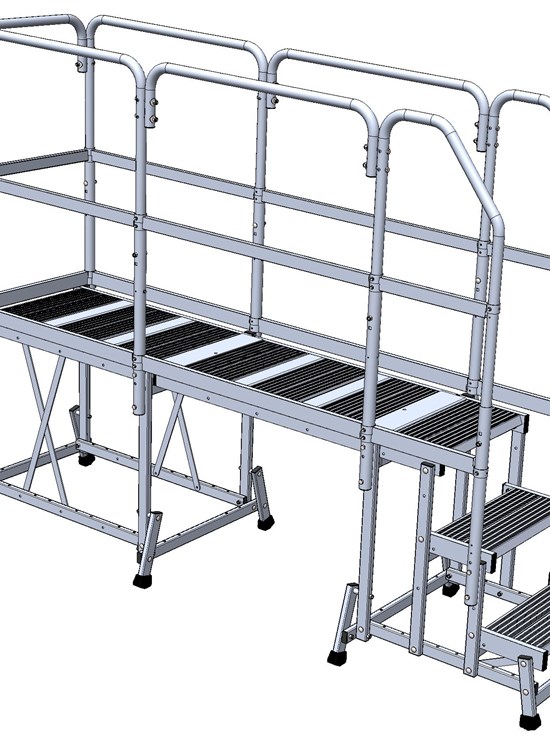

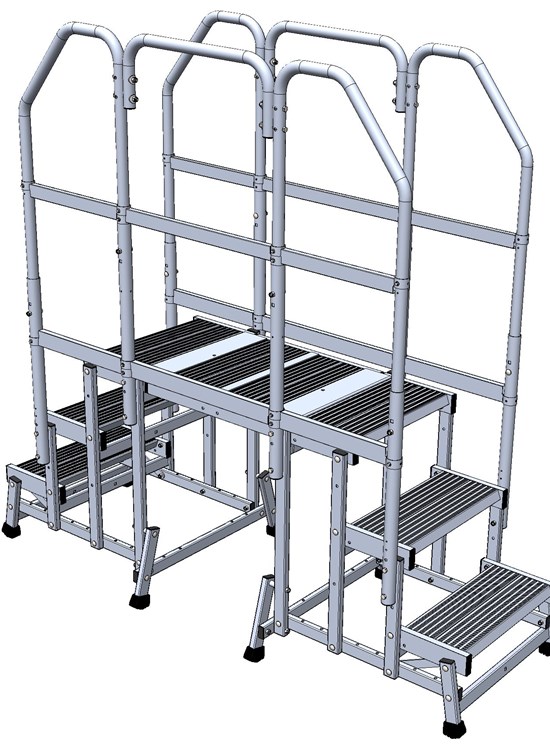

CUSTOMIZED MEGA ON DEMAND

On request, using standard material, it can also be structured in various custom configurations:

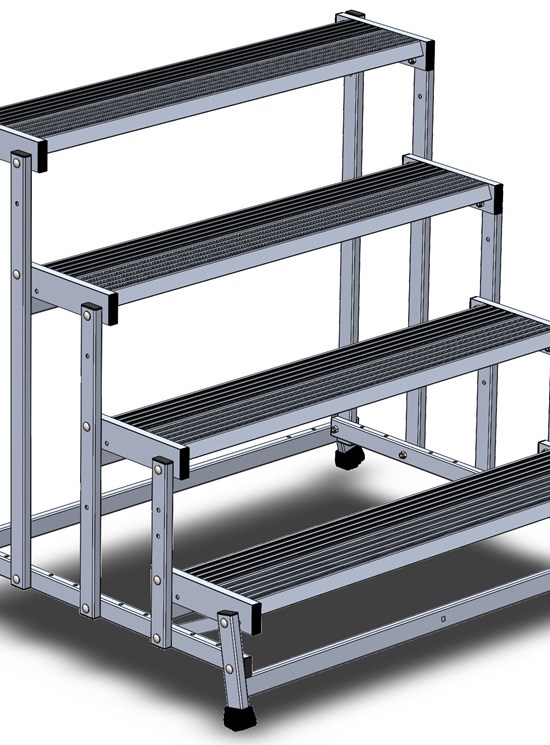

MEGA "LUNGO" MEGA "PALCO" MEGA "PONTE"

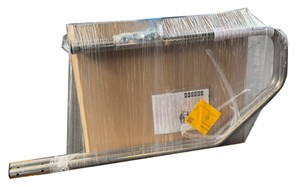

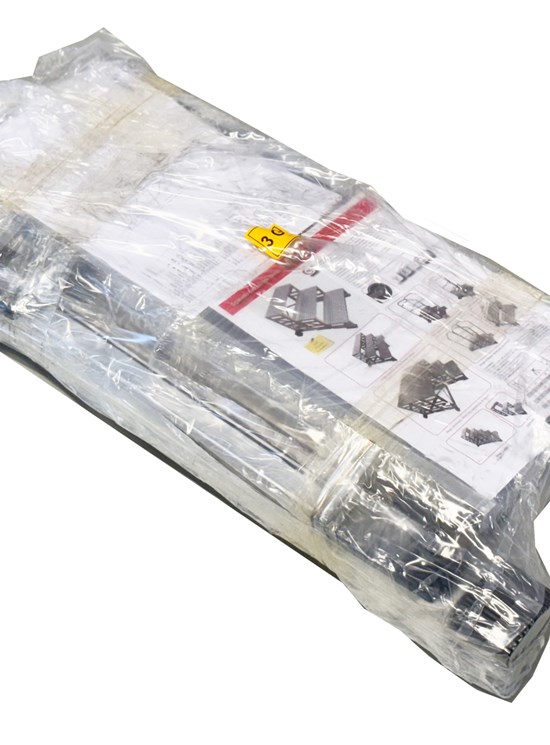

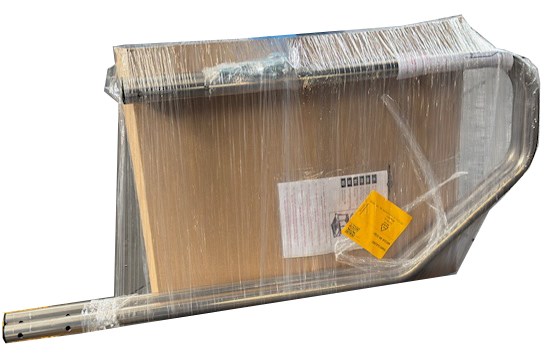

COMPACT PACKAGING

Example: packaging MEGA 3 steps with handrail
